ENERpower LCD9 Manuale utente
LCD9 Display User
Manual

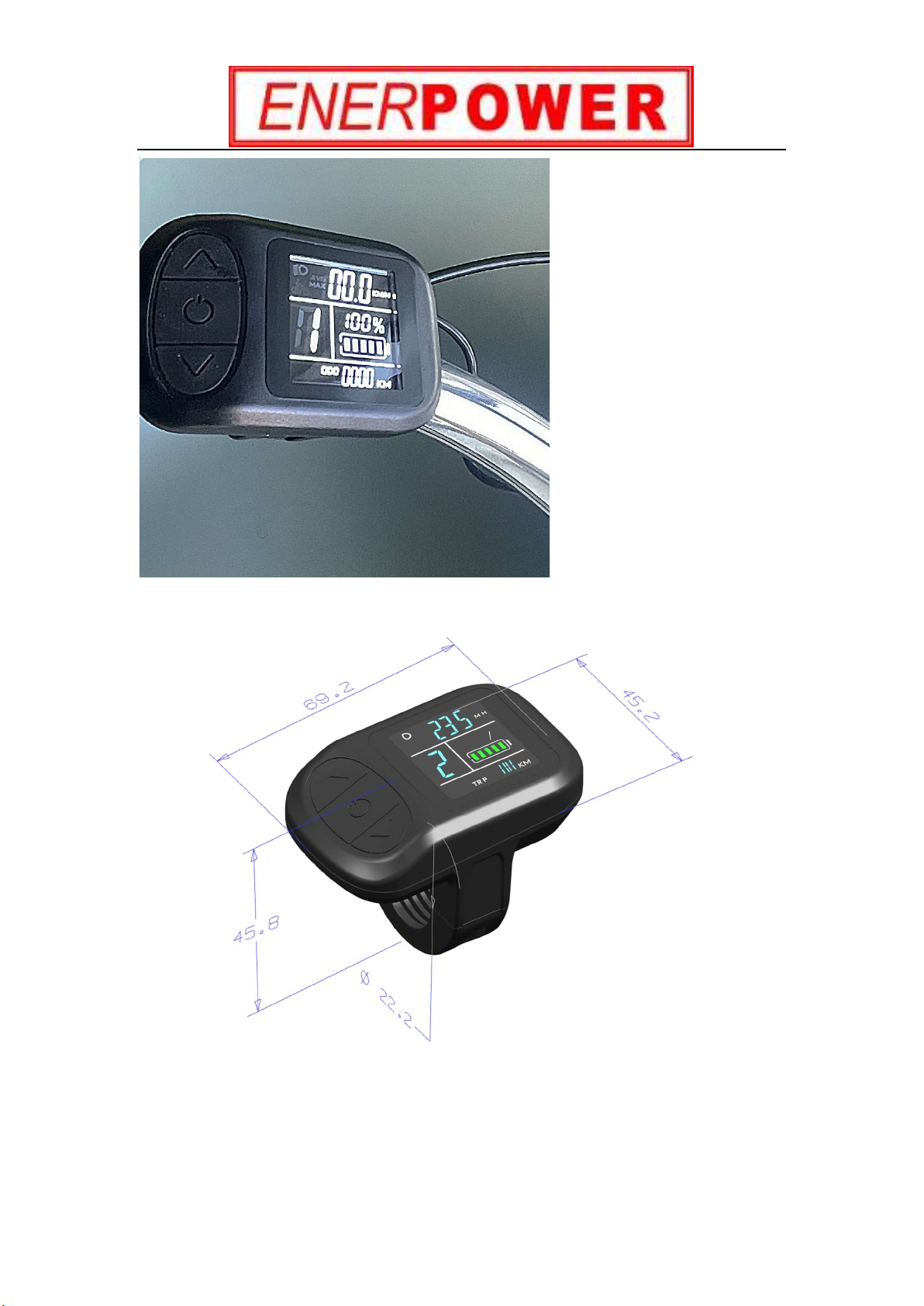

Appearance and dimensions

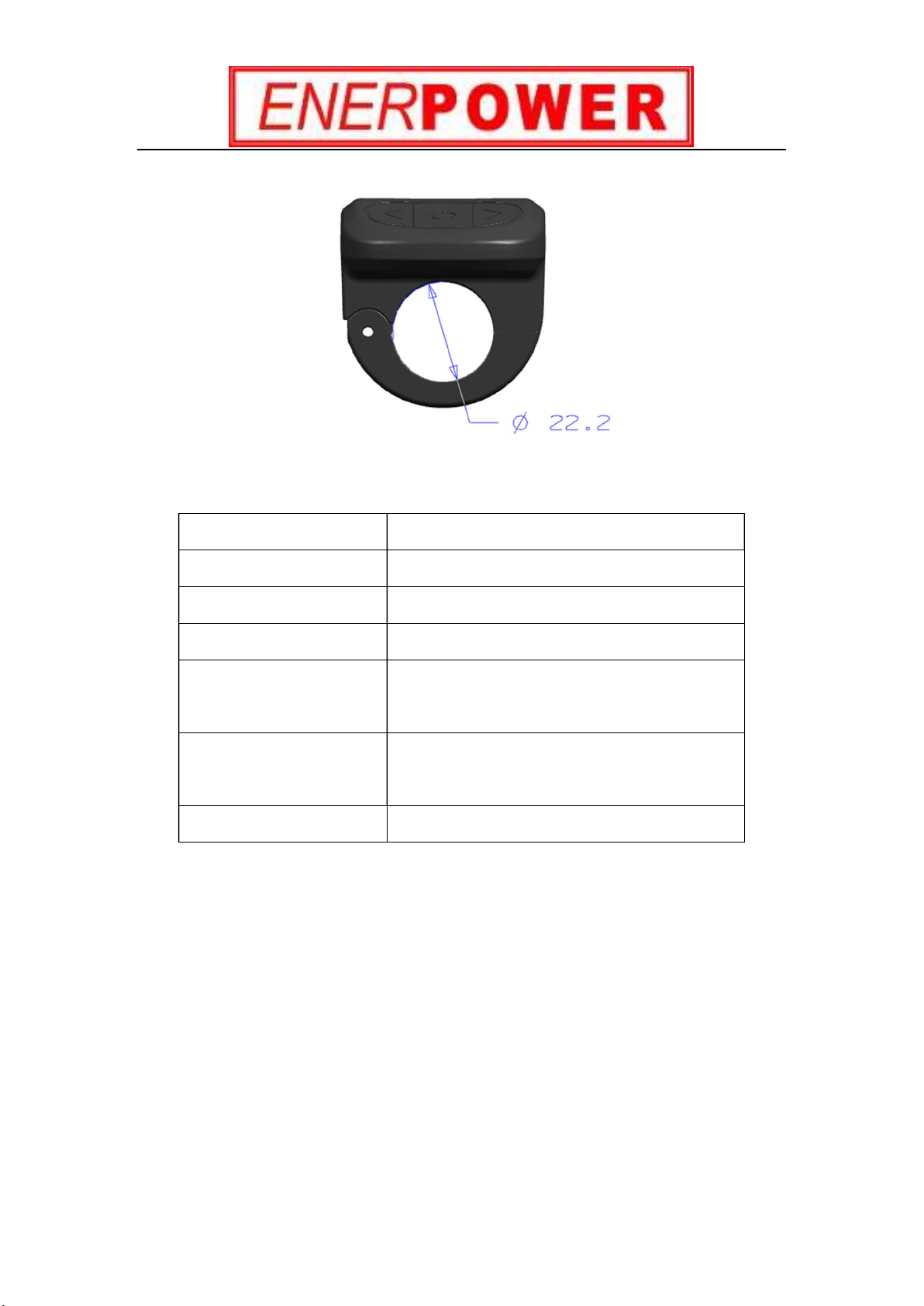

Allgemeine Information
Model LCD9
Voltage DC18V-60V
Power Consumption
70mA(15V)10mA(60V)
Display Type LCD
Compatible with
handlebars
Φ22.2mm
Operating
Temperture
-10
℃
—+60
℃
Protection Class IP65
Functional Overview
Headlight: A long press on the up button activates the auto
on/off.
Speed Display: Displays real-time speed, with MAX showing
maximum speed and AVG showing average speed
Kilometers or Miles: Users can choose between kilometers and
miles
Intelligent Battery Power Display: Algorithm optimization
ensures stable battery power display, avoiding the common
problem of fluctuating battery power readings like other
displays
Distance display: The total kilometers display is shown as ODO,
the single trip display as TRIP. When the maximum distance
reaches 9999, it will be reset automatically
Additional settings: wheel size, maximum speed, 6 km/h
support, unit conversion, speed sensor setting, version
information

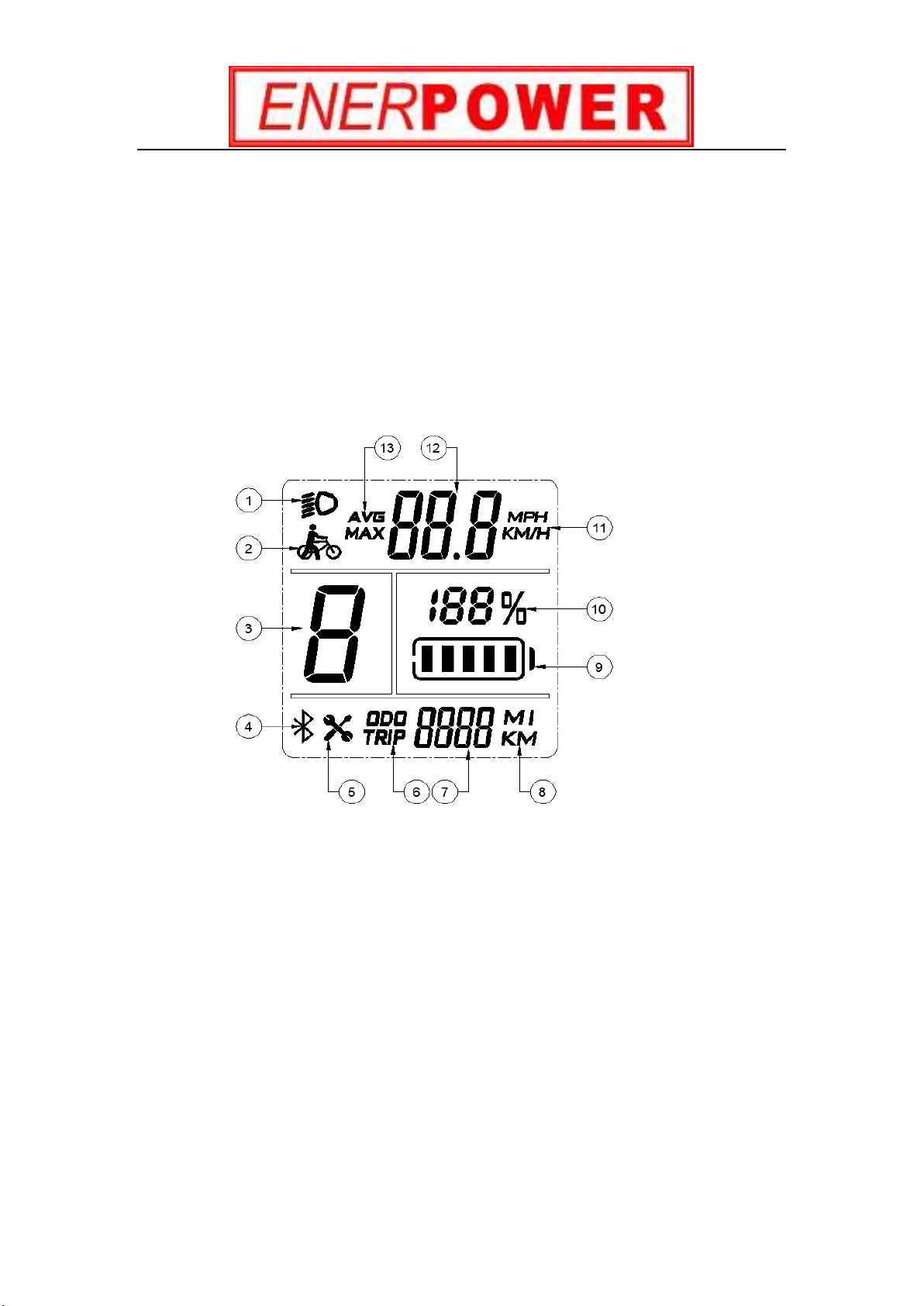

Display
1、Light
2、6 km/h function
3、Speed indicator (5 Gaers)
4、Bluetooth (Not in this version)
5、Error Display
6、Total Mileage（ODO）Single Trip（TRIP）
7、Data Display
8、System：KM / MI
9、Stand of Charge：5 bars
10、Battery power Percentage display: Percentage display
11、Speed：KM/h / MPH
12、Speed in real
13、Speed: Average（AVG） / Maximum speed（MAX）

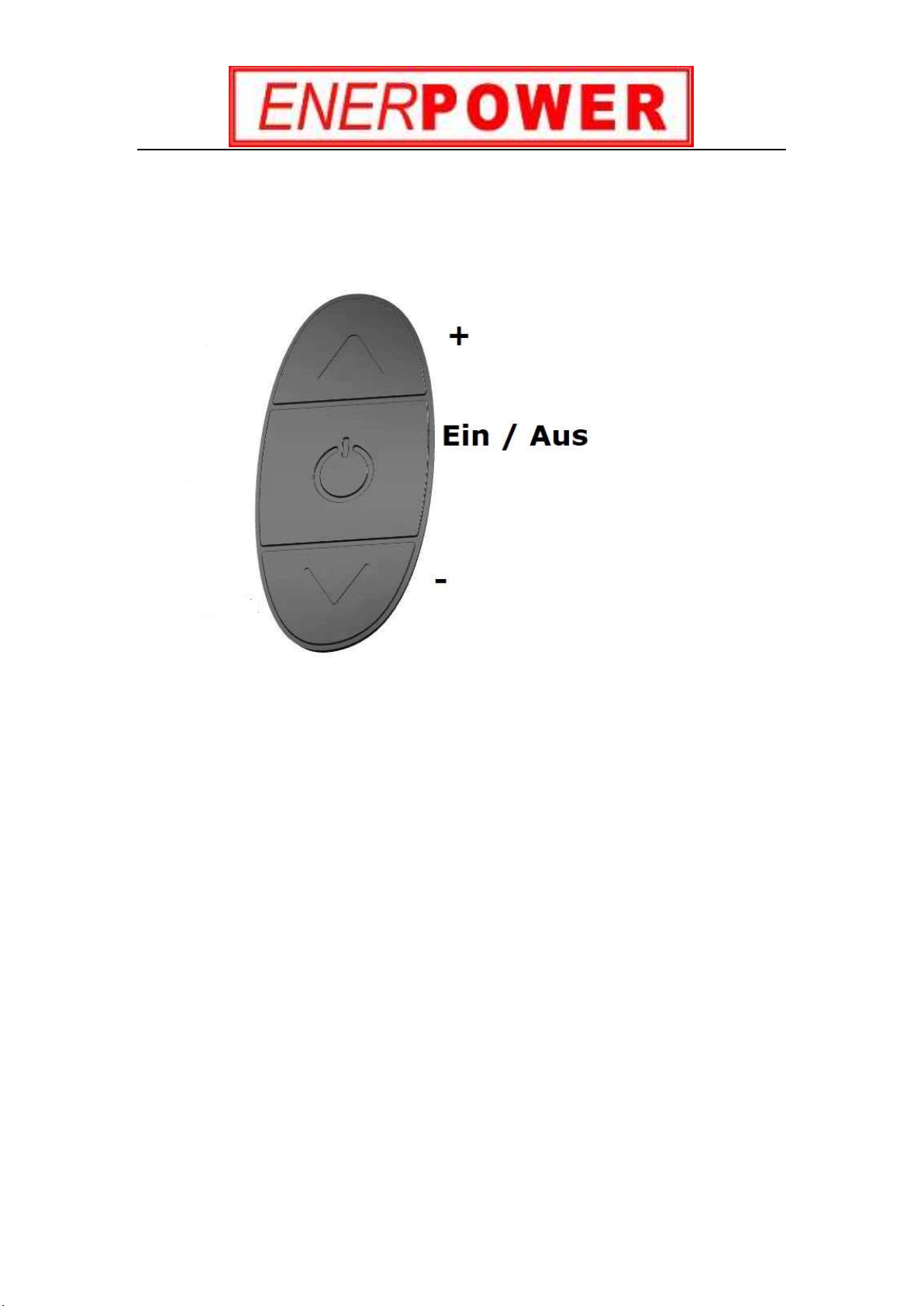

Control
Ein / Aus = On / Off
Installation
Functions of the on/off switch
• Power on: In the power off state, long press the button to turn on
the display
• Power off: In the power on state, long press the button to turn off
the display
• Mode switching: Short press the power button to switch between
ODO (total mileage), AVG (average speed), MAX (maximum speed)
and TRIP (single mileage)
Functions

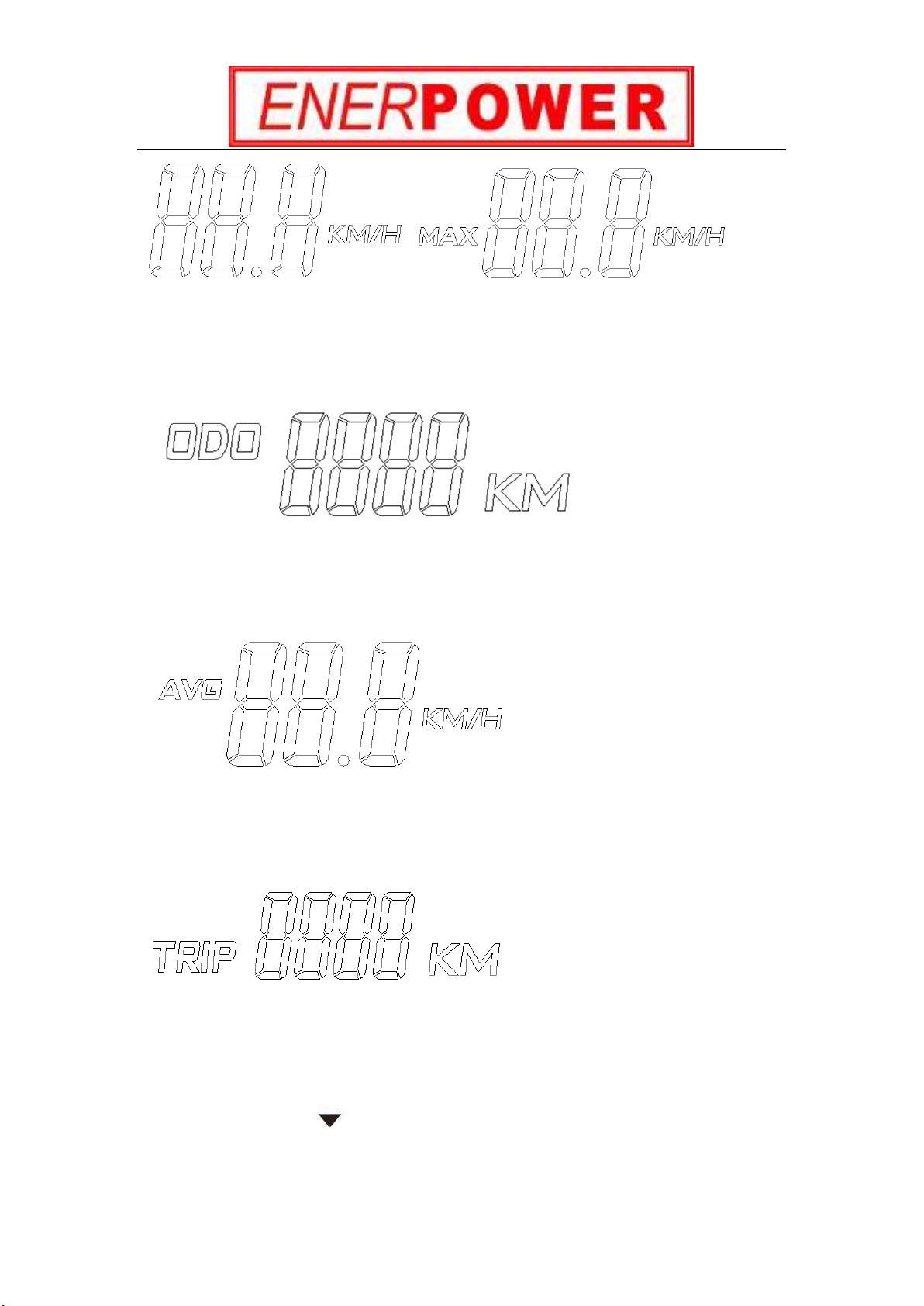

（1）Speed Display: Shows the speed of the vehicle on the home
screen. The maximum speed is 99.9 km/h.
（2）Total Odometer (ODO): Displays a four-digit odometer. The
maximum number of kilometers is 9999 km, after which the counter
is automatically reset to zero.
（3）Average Speed Display (AVG): Shows the average speed over a
single trip, including the maximum speed. 99.9km/h
（4）Trip Odometer (TRIP): Displays a four-digit mileage display for
a single trip. The maximum mileage is 9999 km
Minus-Button
1、Briefly pressing the "downshift" button can initiate a gear change
to a lower gear ratio.
2、By pressing and holding this button, the 6 km/h function switches
on. Icon 2 appears on the display. Release the button to exit this
function
Plus-Button
1、A gear change to a higher transmission ratio can be initiated by
briefly pressing the "upshift" button
2、A long press of the "upshift" button allows the headlight lighting
to be turned on or off, with a corresponding icon shown on the display:
Reset trip counters
The trip counter can be reset by pressing and holding the "shift up"
button and the on/off switch for about 3 seconds

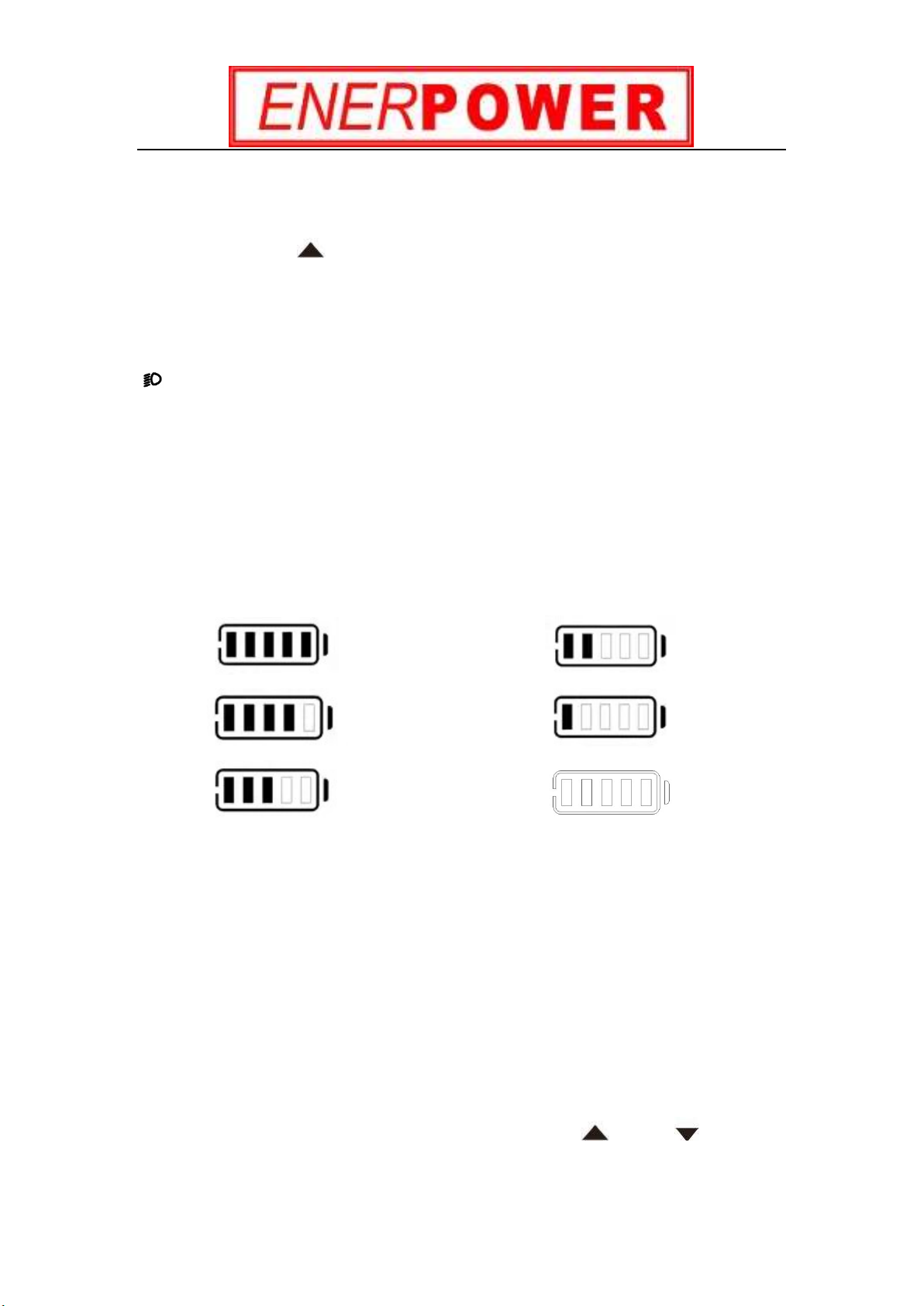

Battery indicator
1.
2.
3.
4.
5.
6.
1: 100 %
2: ca.80%
3: ca. 60%
4: ca. 40%
5: ca. 20%
6: Empty and must be charged

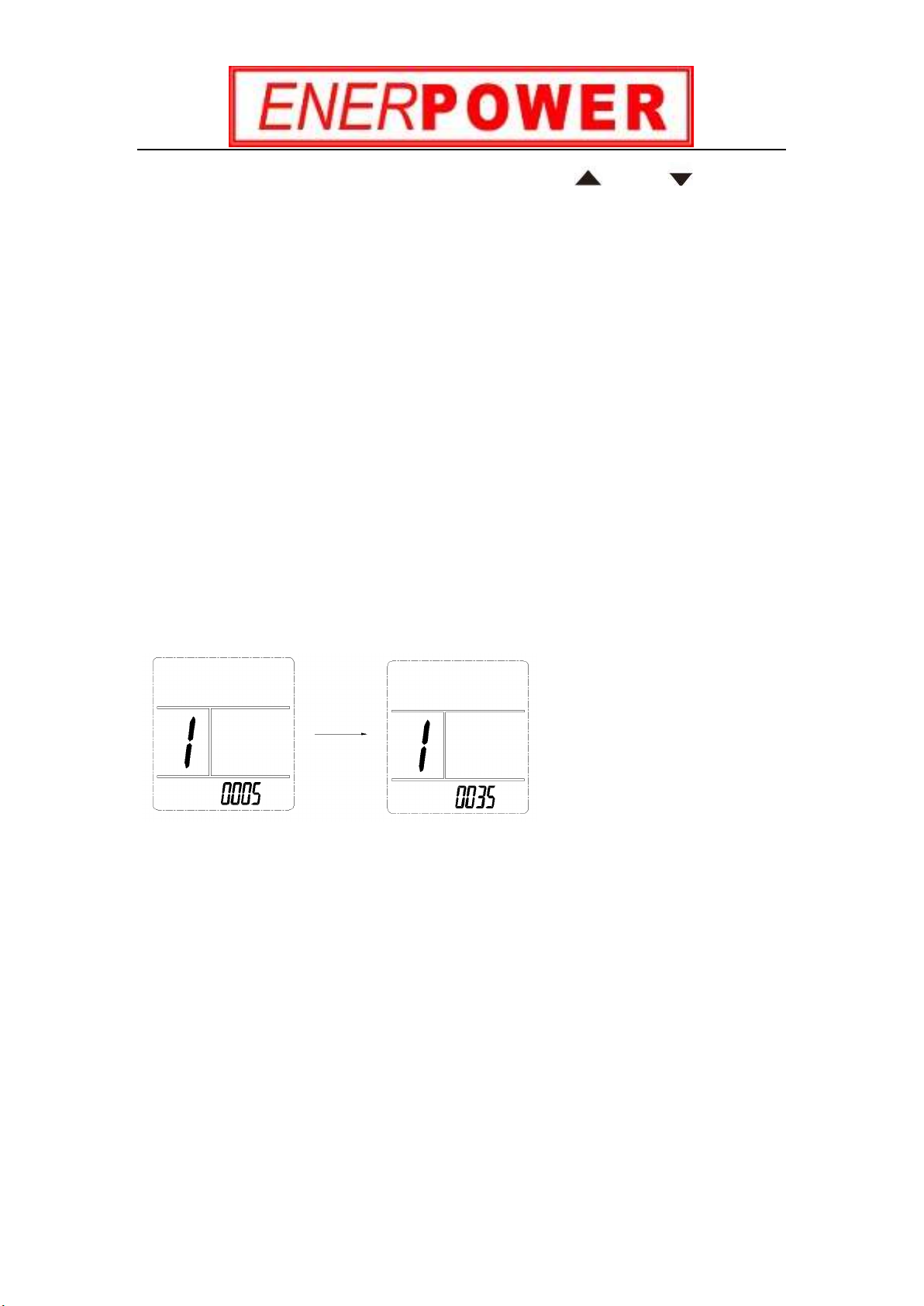

Further Settings
To enter this mode you must hold the buttons and for ca.
5 second simultaneously pressed. Use the on/off switch to switch
between the other settings. With the Buttons and you
choose between the different settings.
Those are the additional settings:
1. Wheel Diameter: Set the wheel diameter of the bike (in
millimeters)
2. Speed
3. Walk assistant function (6-km/h)
4. Unit selection for Speed
5. Number of Magnets (Speed Sensor)
6. Software Version

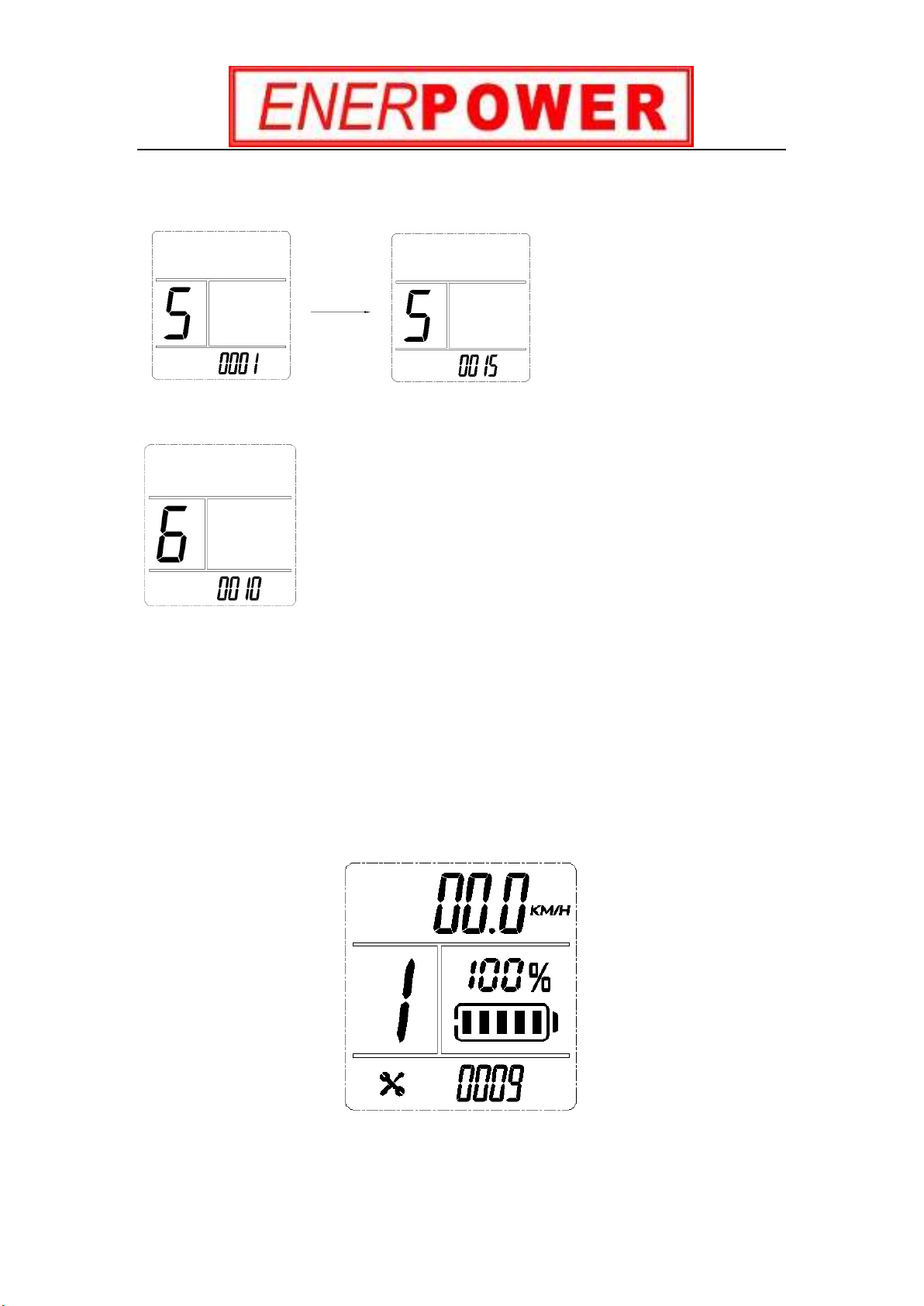

Wheel Diameter:
The wheel size setting can be selected from 5 to 35 inches, factory
setting: 26 inches when switched on

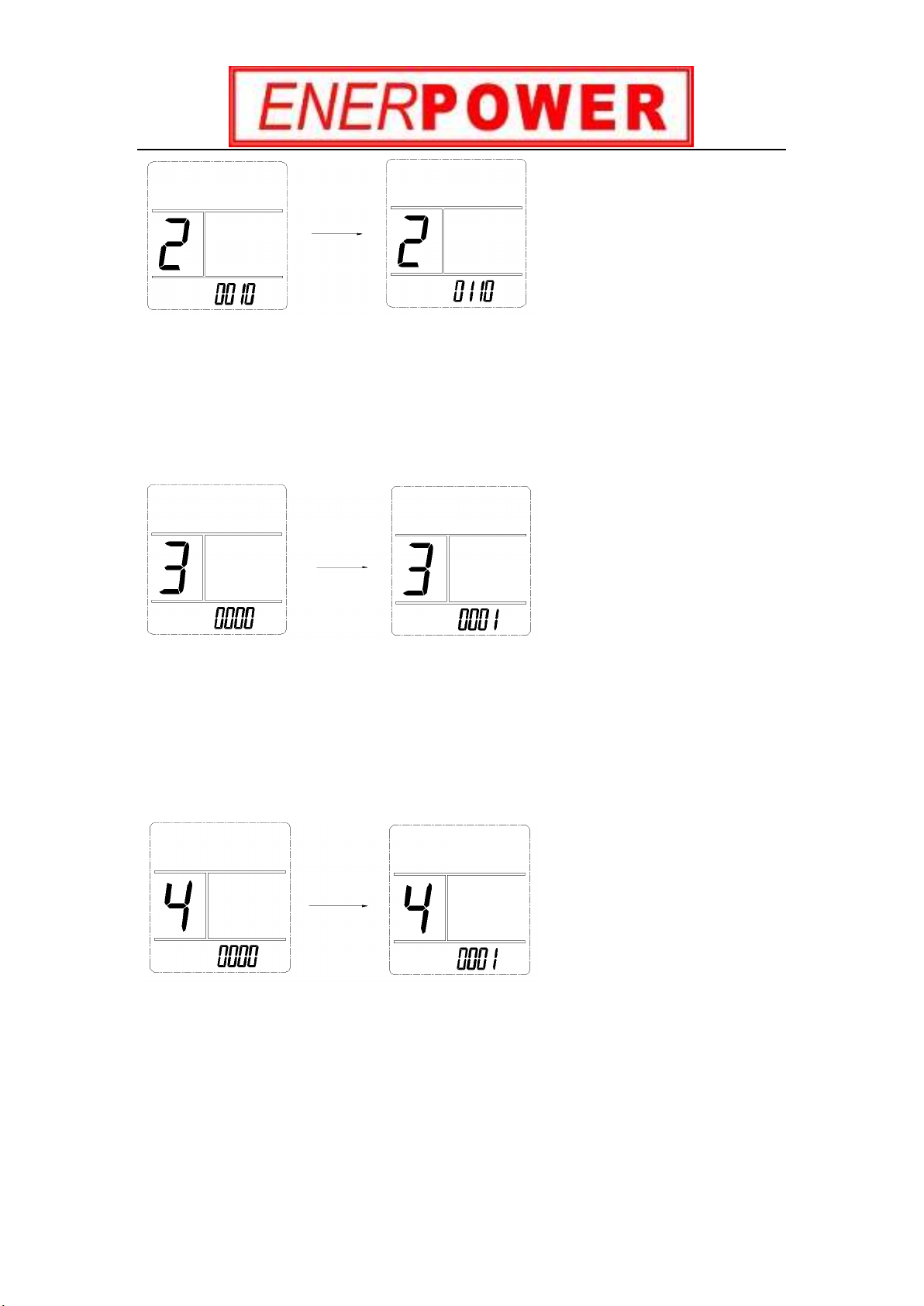

Speed:
The maximum speed can be set between 10 and 110 km/h. By
default, the setting is set to 25 km/h when switched on.
Important: please note that our motors can reach a maximum
speed of 28 km/h
Setting of walk-assistant (6 km/h)
only two states: 0 and 1.
0 means assist mode is off, 1 means assist mode is on. By default,
assist mode is turned off when you turn on the Motor
Speed unit
0 for KM/h (Kilometer per Hour), 1 for MPH (Meils oer Hour),
Default at power on is 0.
Number of Magnets (Speed Sensor)
Setting the number of magnets of the speed sensor: the setting
range is 1-15, the factory setting is 1
Software-Version
Error-Codes
If an error occurs in the system, the current error code will be shown
on the display, such as:
