ENFORCER MVE-AH010Q Manuale utente

HDMI Extender Over Cat5e/6

Manual

1080p

FULL

Resolution

Up to 196’ (60m)

MVE-AH010Q

Extend HDMI over two (2) inexpensive Cat5e/6 cables.

Supports resolution from 480i to 1080p with zero signal loss.

Transmits up to 196’ (60m) at 1080p over two (2) Cat6 cables.

Plug and play operation—comes as a complete set.

NOTE: Model numbers that end with ―Q‖ or products that have a round green ―Q‖ sticker signify RoHS compliance.

ENFORCER ®HDMI Extender Over Cat5e/6

2 SECO-LARM U.S.A., Inc.

Features:

Input video signal

0.5~1.0 Vp-p

Input DDC signal

5 Vp-p (TTL)

Maximum single link range

1920 x 1200, 1080p

Output video

HDMI

Video format supported

1080p/1080i/720p/576p/576i/480p/480i

Max range (1080p)

196’ (60m)

Max range (1080i)

230’ (70m)

Max range (480p)

328' (100 m)

Size

31/8x 13/4x 7/8" (79 x 44 x 22 mm)

Weight

8.7 oz (246 g)

Power Consumption

400mA @ 5VDC

Operating temperature

32°~158° F (0°~70° C)

External power supply

5VDC@2A (adapter included) (2.1mm plug)

The HDMI over Cat5e/6 extends the range of traditional HDMI cabling methods up to

196’ (60m). The HDMI over Cat5e/6 uses an active transmitter to send video and audio

over Cat5e/6 cables in HDMI formats as large as 1080p. The HDMI signal that is

transmitted between the two units has zero-signal loss by using integrated circuits

located in the receiver and transmitter.

Flexibility –Traditional HDMI cables present a number of challenges in long cable runs. HDMI

cables are rigid in structure and fixed in length making them very difficult to use in some

applications. By using Cat5e/6 to transmit HDMI signals, the length and route the wiring takes can

now be determined on an application by application basis.

Signal Strength –Traditional HDMI cables have limitations on the signal strength they can provide

over long distances. Using an active transmitter, the HDMI over Cat5e/6 overcomes these

limitations by providing a clearer signal farther than HDMI cable alone.

Distance –The HDMI over Cat5e/6 is capable of providing a clear HDMI signal over much greater

distances than HDMI cable alone. Using Cat6, a 1080p HDMI signal can be transmitted clearly up

to 196’ (60 m).

Formats Supported –The HDMI over Cat5e/6 supports both progressive and interlaced formats:

1080p/1080i/720p/576p/576i/480p/480i.

Plug and Play –The HDMI over Cat5e/6 comes as a complete set consisting of a transmitter and

receiver. No adjustments or settings must be made, the unit is ready to use right out of the box.

Zero Signal Loss –Integrated circuits in the transmitter and receiver clean, buffer and amplify the

HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.

DVI Support –The HDMI over Cat5e/6 can be used with an HDMI to DVI adapter to support

multiple components of a home theater system.

Specifications:

Parts list:

Introduction:

1 x Transmitter

1 x Receiver

1 x 5VDC power adapter

1 x Manual

ENFORCER ®HDMI Extender Over Cat5e/6

SECO-LARM U.S.A., Inc. 3

Installation:

1. Determine the locations where the HDMI to Cat5e/6 units will be placed as well as how much

Cat5e/6 cable will be necessary.

2. Connect the HDMI to Cat5e/6 transmitter to the HDMI port of the source device via HDMI cable.

3. Connect the HDMI to Cat5e/6 receiver to the HDMI port of the display or other device via HDMI

cable.

4. Connect Cat5e/6 cables to both the receiver and transmitter units. Make sure to connect the

cables to their respective ports, i.e. port 1 connected to port 1, and port 2 connected to port 2.

NOTE: Using Cat5e cable will greatly extend range of HDMI transmission, but for maximum

range please use Cat6 cable.

5. Connect the 5VDC adapter to the transmitter unit.

6. Turn ON the HDMI source and display, etc., devices to test the functionality of the HDMI over

Cat5e/6 system.

Sample Application:

HDMI Cable

HDTV Source

HDTV Display

Transmitter

Receiver

Two (2) Cat5e/6 Cables

Included 5VDC

Power Adapter

MVE-AH010-TQ*

MVE-AH010-RQ*

Overview:

CAT5e-1

CAT5e-2

ENFORCER

HDMI over CAT5 Extender

Receiver

2 RJ-45 Inputs

HDMI Output

5VDC Power Input

Use T568B UTP wiring standard

Two (2) Cat5e/6 cables are required. Please use T568B wiring standard.

MVE-AH010Q

(receiver shown)

*Transmitter (MVE-AH010-TQ) and receiver (MVE-AH020-RQ) are only sold as a pair.

ENFORCER ®HDMI Extender Over Cat5e/6

4 SECO-LARM U.S.A., Inc.

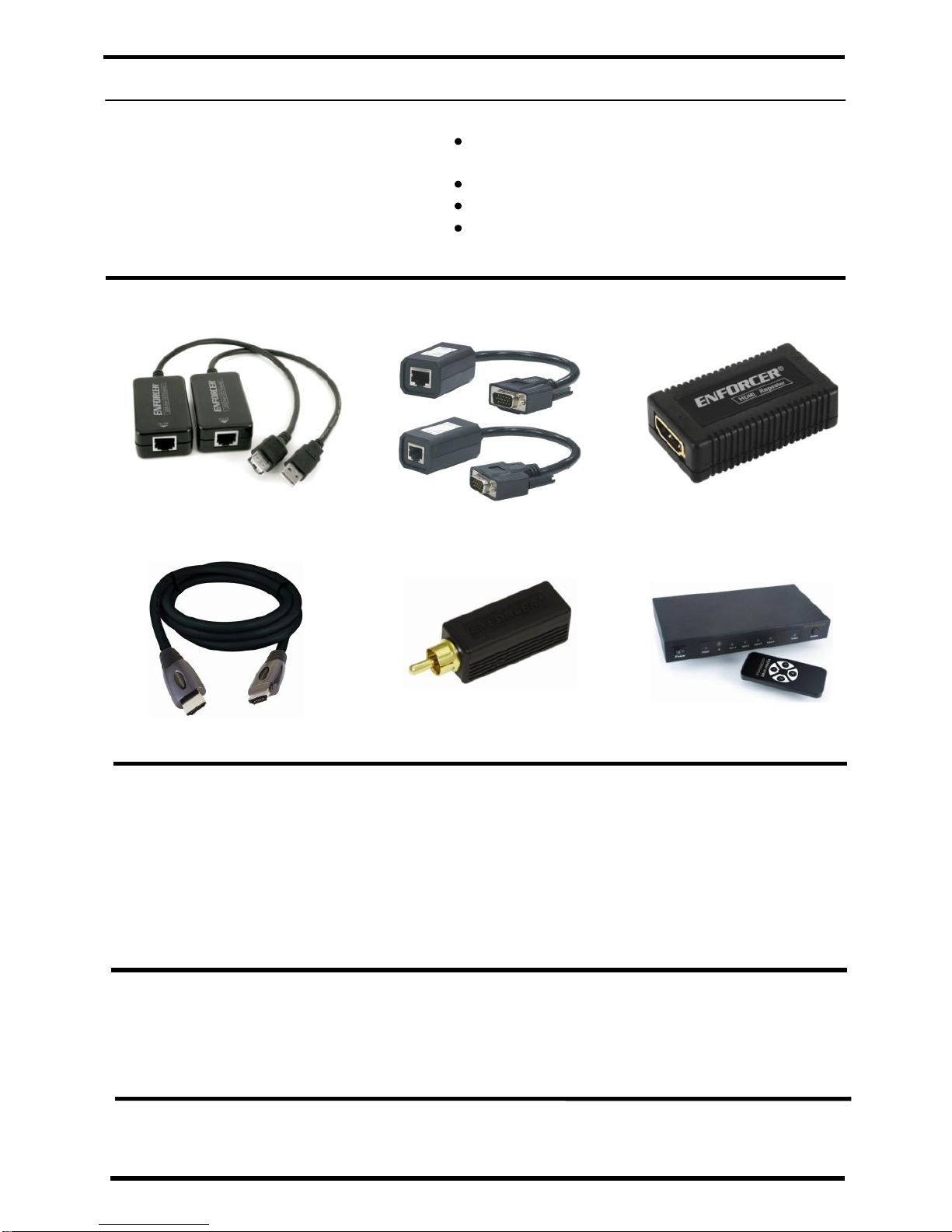

Troubleshooting

HDMI device does not function correctly Make sure the Cat5e/6 cables are connected to the

correct ports, and not to opposite ports

Make sure the HDMI input device is turned on.

Make sure the HDMI output device is turned on.

Test the Cat5e/6 cable between the receiver and

transmitter to make sure it is operational.

Products Available from SECO-LARM:

USB over Cat5/6

VGA over Cat5/6

HDMI Repeater

WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal

service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is

limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.

This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,

repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines

that such equipment is not operating properly as a result of causes other than defects in material and workmanship.

The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at

SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential

personal or property damages of any kind to the purchaser or anyone else.

NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the

SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to

change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.

in part, without the written permission of SECO-LARM.

SECO-LARM U.S.A., Inc.

16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com

Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: sales@seco-larm.com

MiMVE-AH010Q_1102.docx

PICCN3

.docx

HDMI Cable

Audio Baluns

HDMI Switcher
