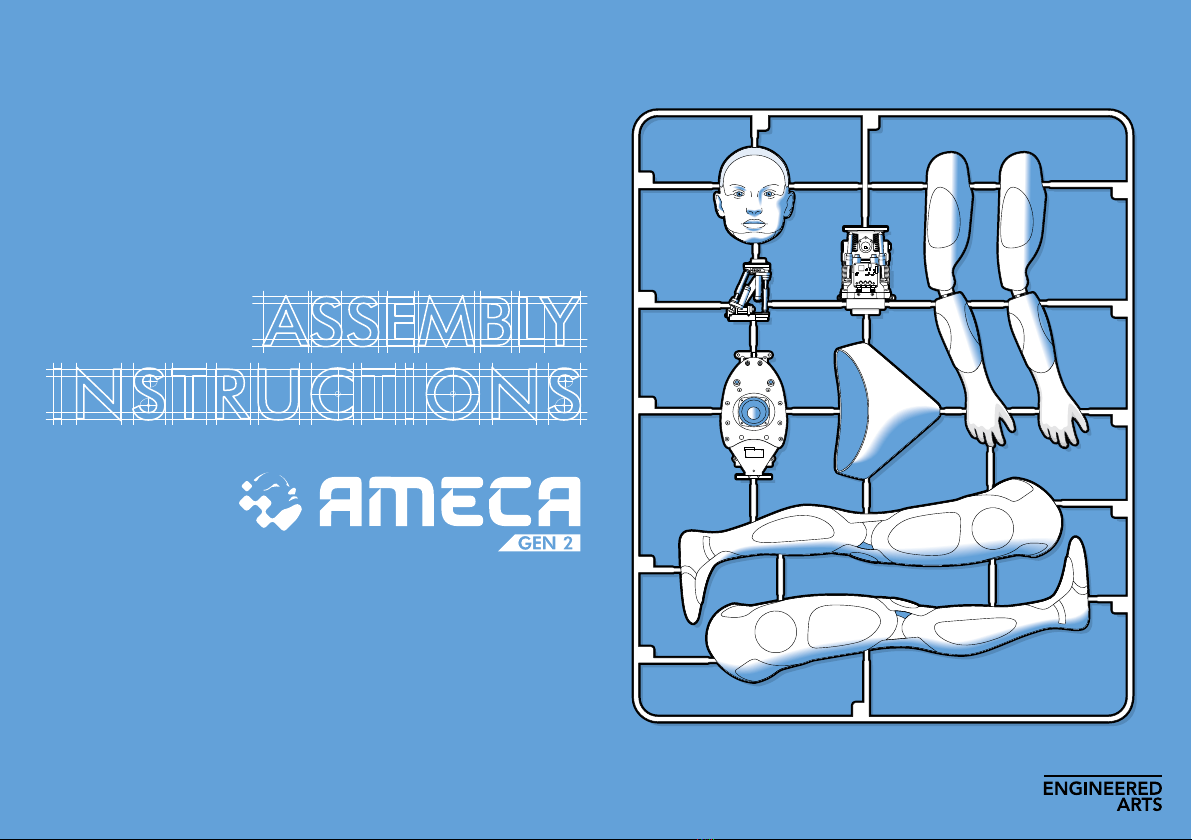

ENGINEERED ARTS Ameca Gen2 Manuale utente

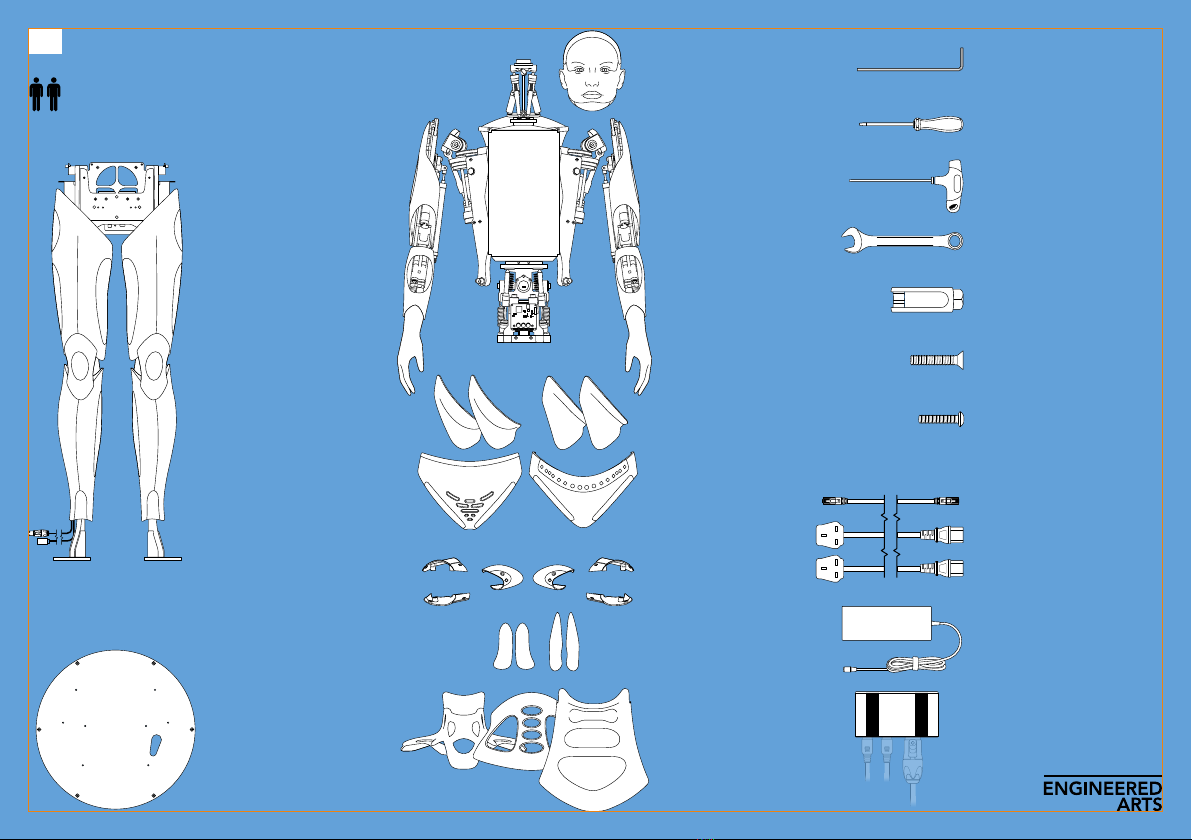

Contents
Legs
Torso
Silicones
Base
Cables
Ethernet
Mains power x2
Power breakout box
Power supply unit x2
Head
Torso
Shells
Feet
and
Ankle
Shells
Two people needed
to assemble robot
4mm Hex key
T10
T20
Spanner 14mm
Spanner 22mm
x8 - M6 16mm
02
x4 - M3 12mm
x8
4mm Hex key
M6 16mm long

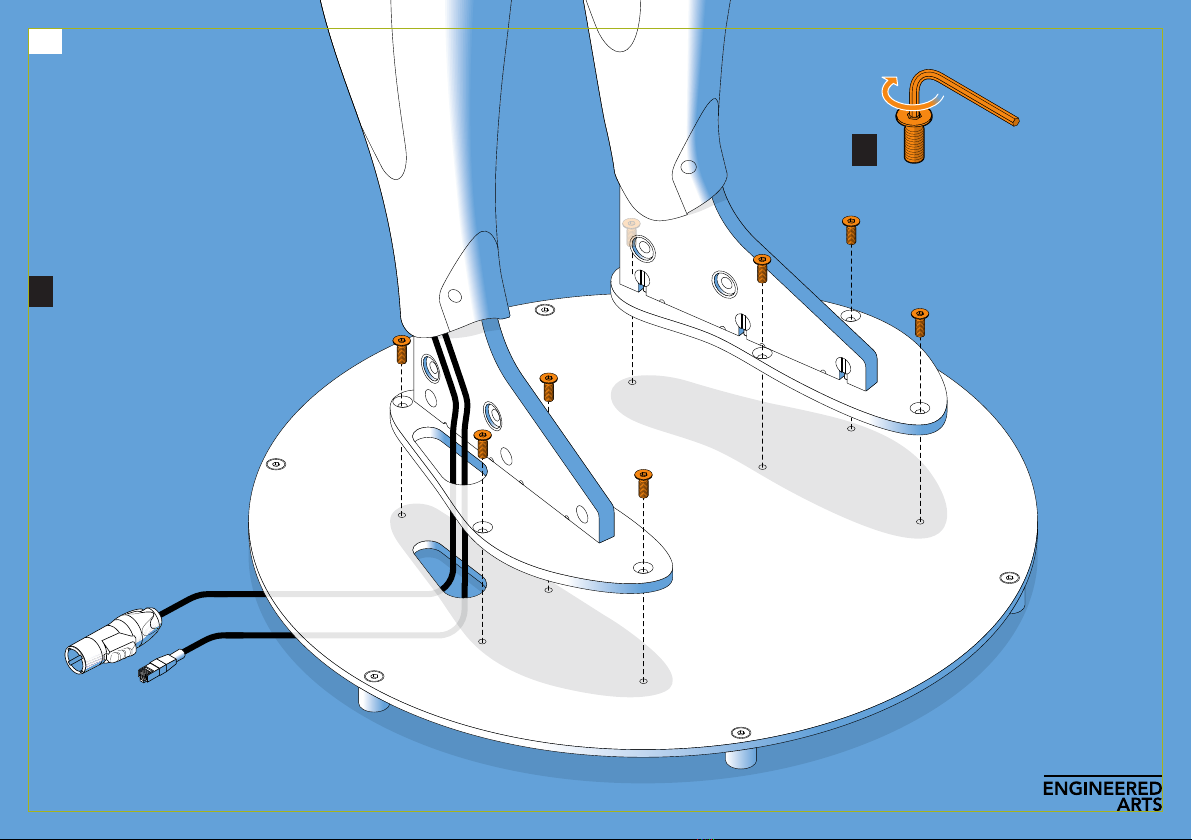

Thread
cables
through
hole and
under base
Legs to base
03
1
2

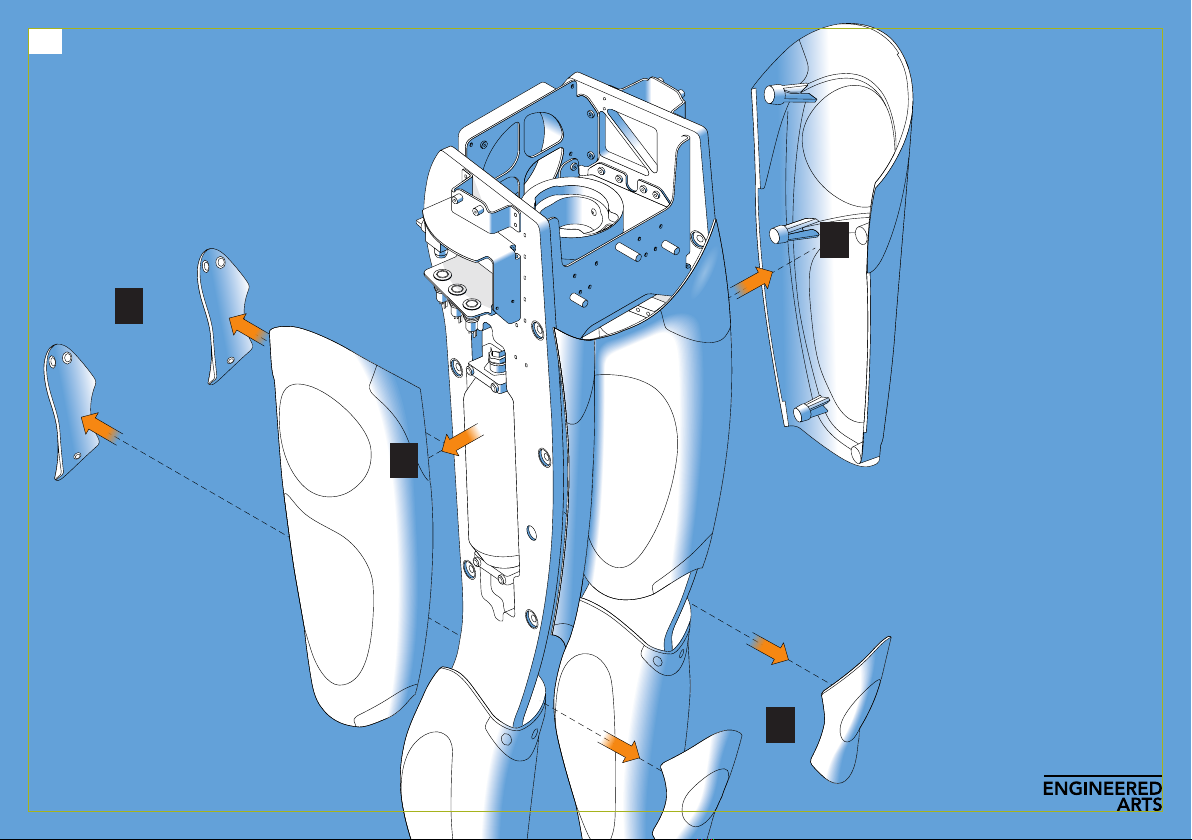

Remove magnetic leg shells
04
1
3
2
3

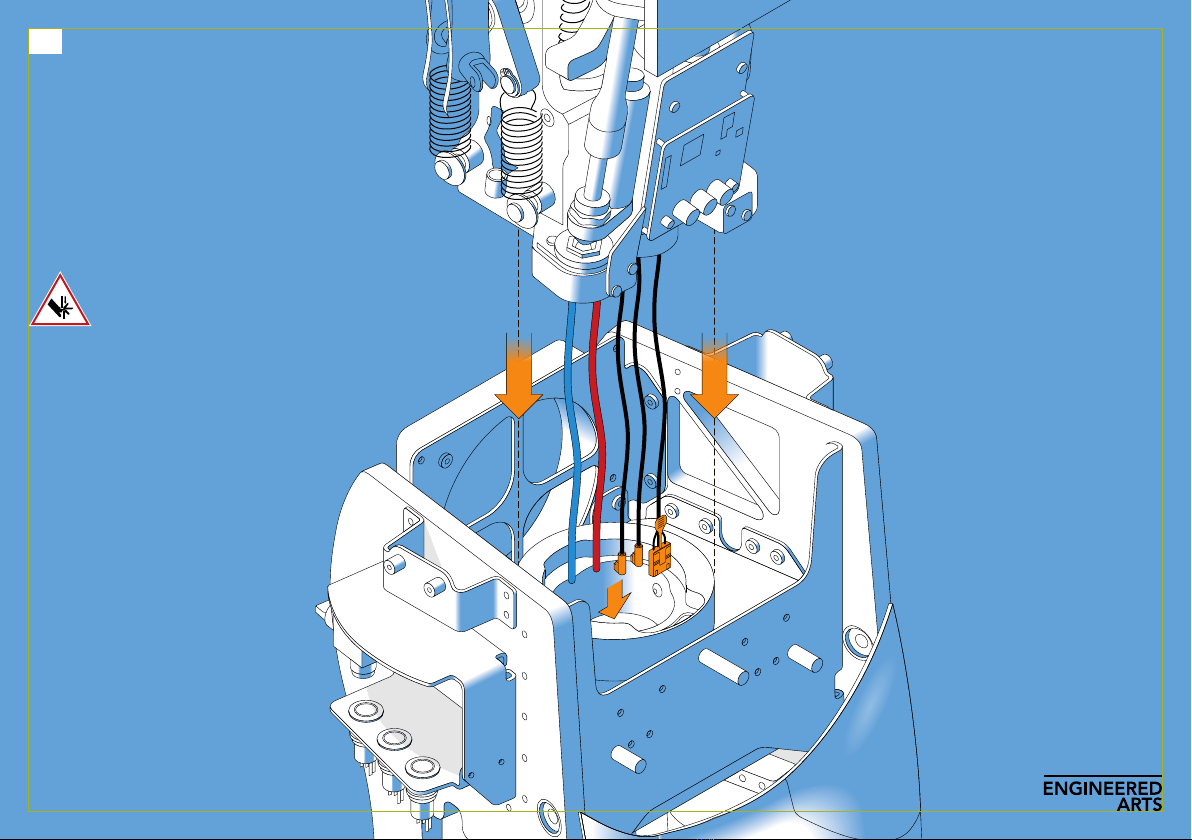

This step requires two
people to steady the torso
and feed the cables
through the body socket,
then out through the rear
Be careful not to trap
fingers in the socket
Attach torso
05
Rear torso
view

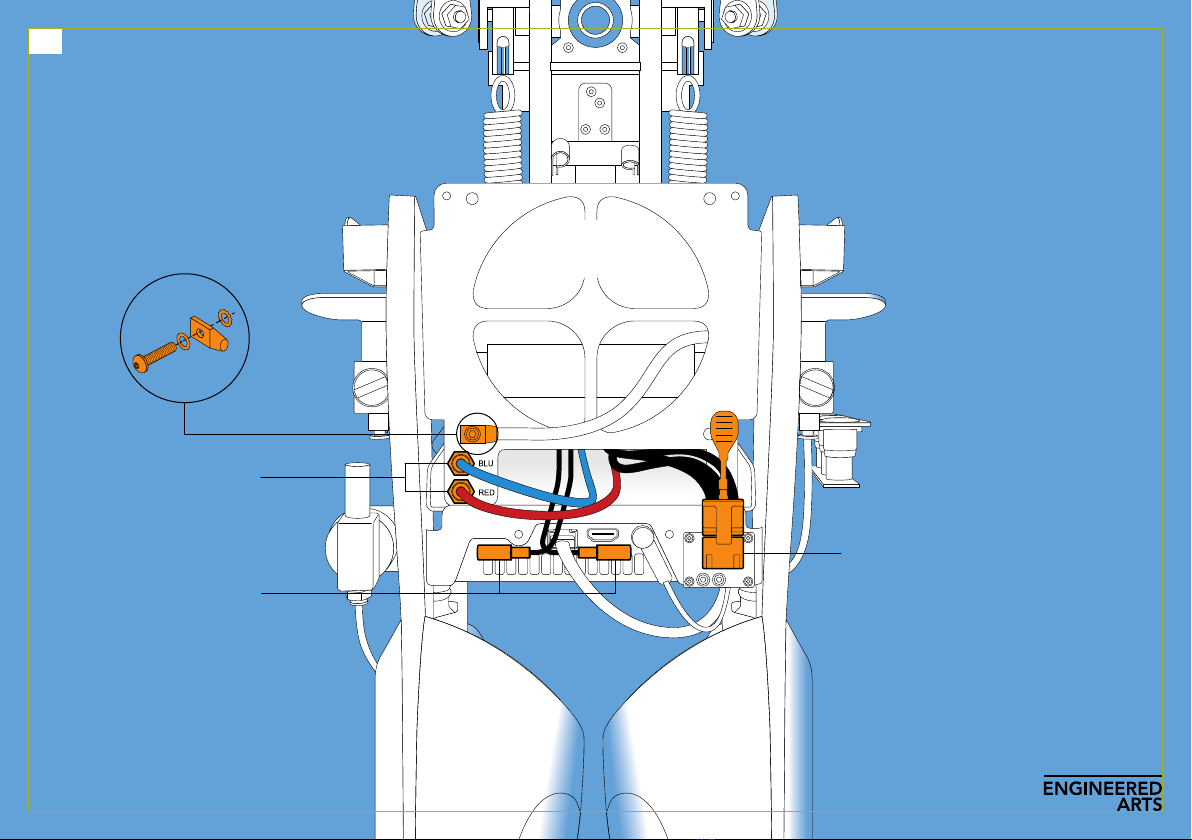

Connections
06
Plug in cables
Air lines
Attach
USB cable
Power connector
T20
1x M4
10mm
Tighten
retaining
screws,
both sides
4mm
hex
key

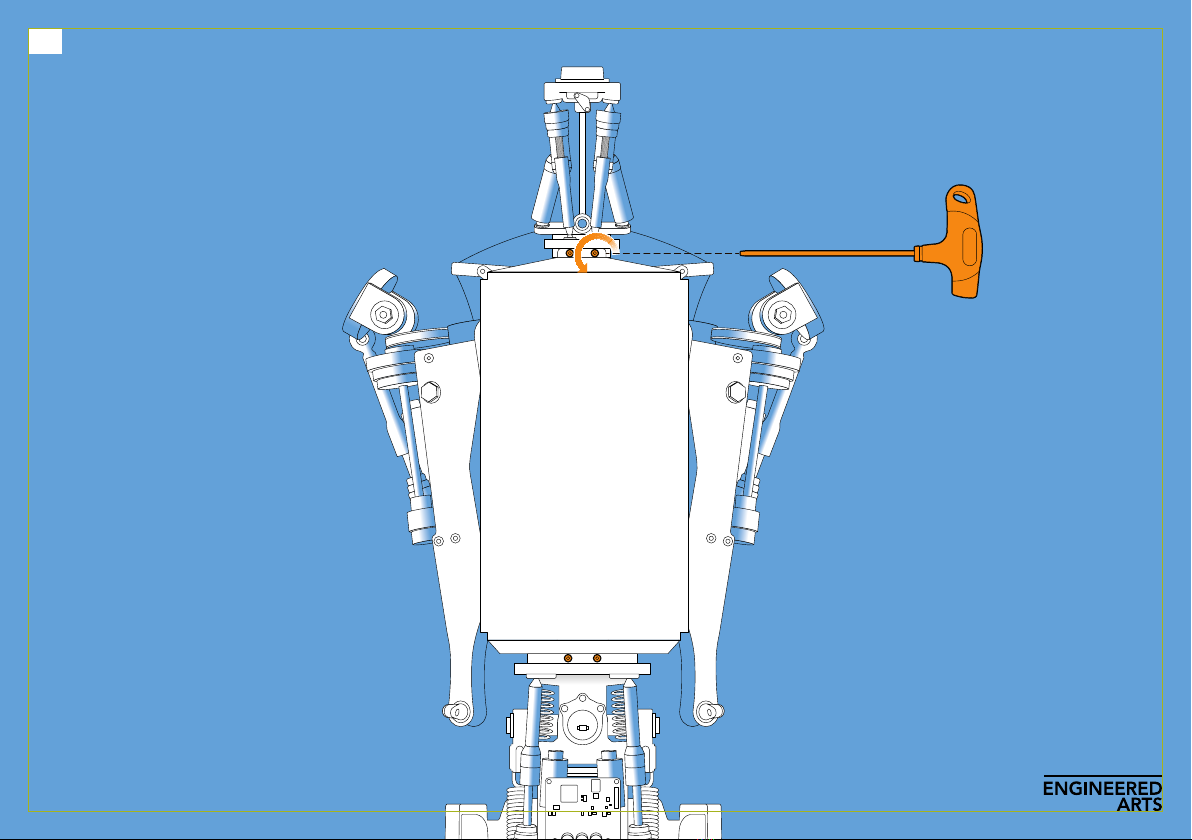

Secure torso
07
Access point
Side view

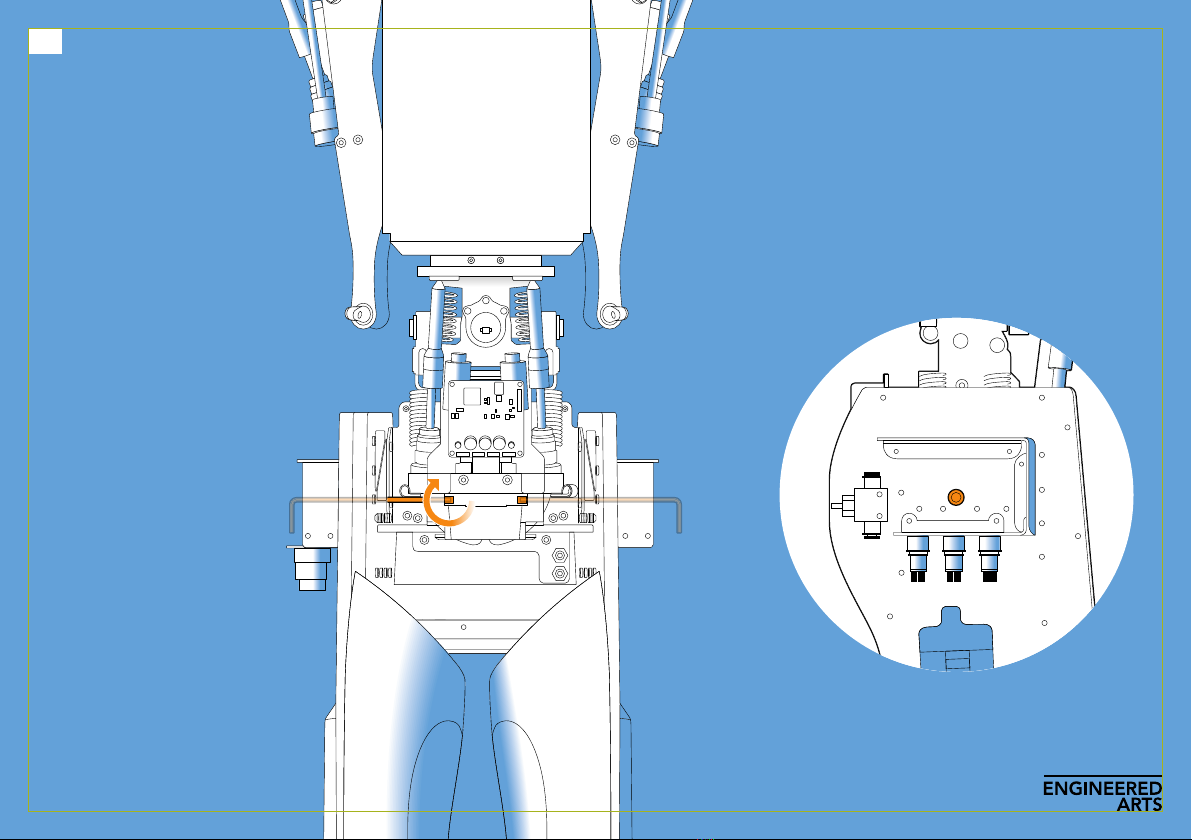

Remove shipping support
08
T20
4x
M4
10mm
Depending on the
packing method, your
Ameca robot may not
have a shipping
support attached

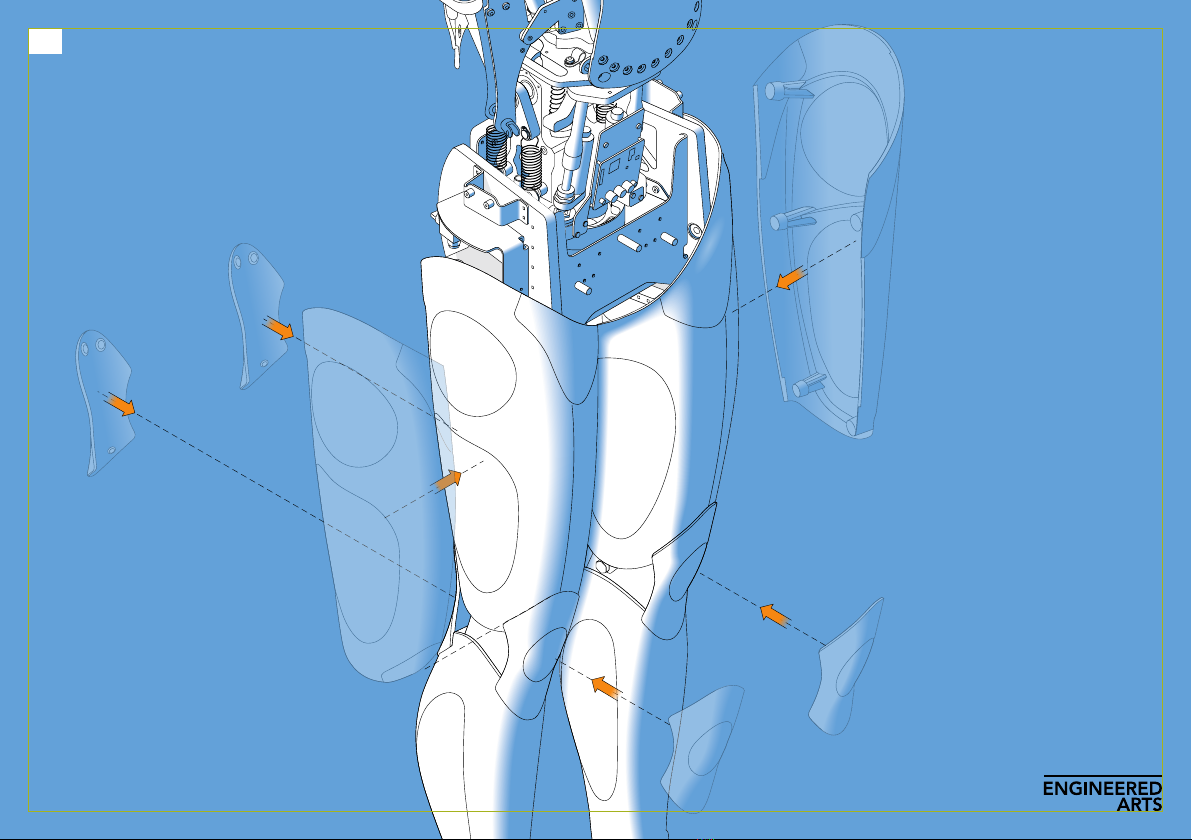

Reattach leg shells
09
T20
Remove arm shell
10
Repeat
on opposite
arm
Depending on packing
and shipping method,
your Ameca may
already have it's
arms attached
