Enlight EN-7100 Manuale utente
EN-7100
USER MANUAL
Fig:4
Remove fan housing by using thumbs to
unfasten clips and place fan in housing
(Fig. 4). Snap fan housing back into the
chassis. Connect fan and speaker wiring
to M/B as instructed in M/B user
manual (After M/B is installed!).
Install 3.5" HDD and FDD (floppy)
A. Squeeze tabs on side and remove 3.5"
drive cassette (Fig. 5). Slide HDD into
cassette and fasten with coarse thread
flat head screws. Make sure EMI clip is
In place.
B. Slide floppy into the same cassette and
fasten with fine thread flat head screws.
Then slide cassette back in to drive bay
And snap in to place.
Install CD-ROM, (DVD or 5.25" FDD)
A. Fasten slide guides to the sides of
CD-ROM (DVD or 5.25" FDD) using
fine thread flat head screws (Fig. 6).
B. Slide CD-ROM in to 5.25" bay and
snap in to place (Fig. 7)..
Fig:5
Fig:6
Fig:7
Series EN-7100
Fig:3
Fig:1
Fig:2
***Important-First please check your model number before proceeding. The user
manual is set up to correspond to the model number and installation will vary
depending on the model.
Required tools: Phillips head screwdriver, pliers
***(Photos shown may vary according to model number)

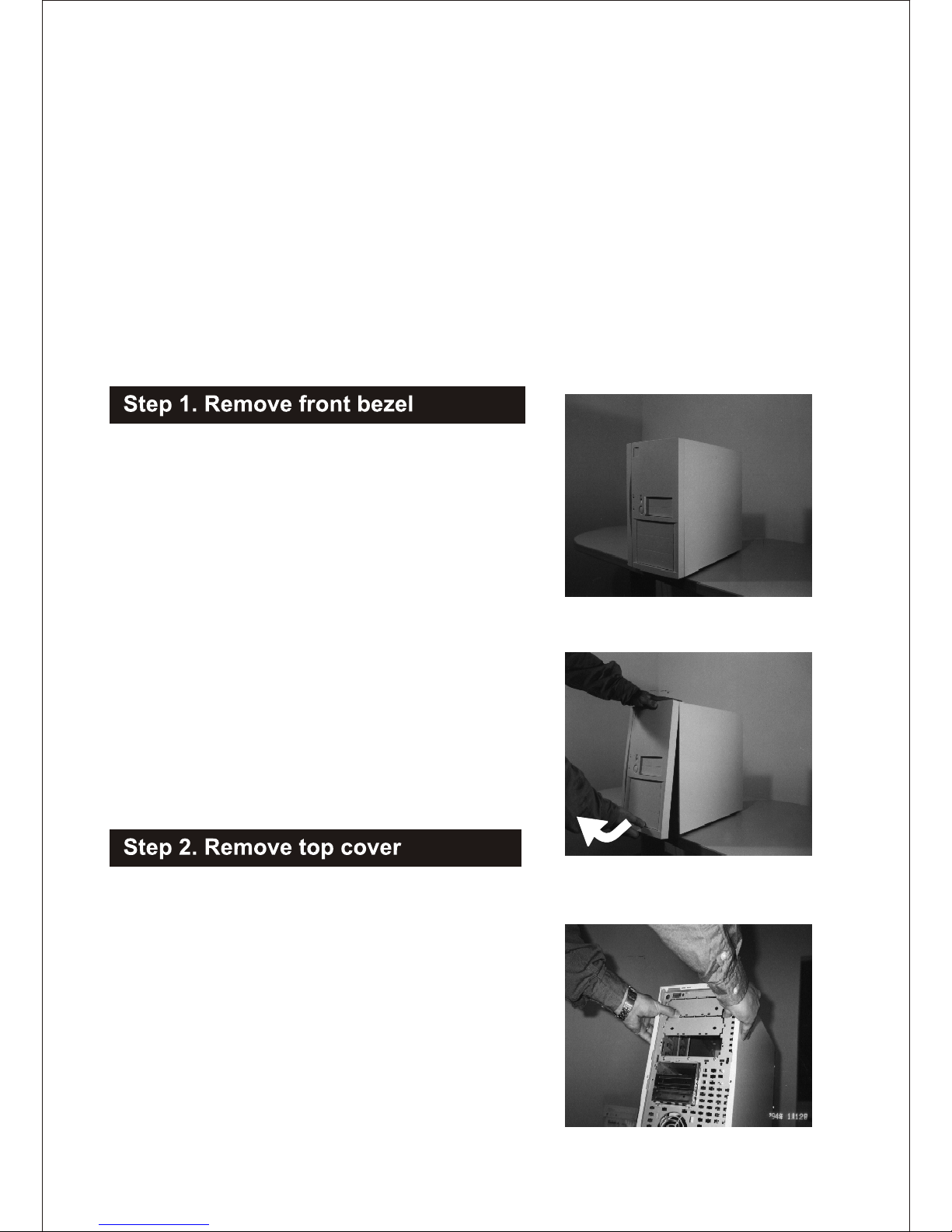

Place case on edge of table (Fig.1). With one
hand holding top of chassis, pull quickly from
the bottom of the bezel to remove it (Fig. 2).
**Note-It might require some force to remove
due to the snug fit to the chassis.
Remove screws. Place hands on sides of
top cover and thumbs firmly on chassis.
Slide top cover towards you 1" (Fig. 3).
Spread sides and lift straight up to remove.
Fig:4
Remove fan housing by using thumbs to
unfasten clips and place fan in housing
(Fig. 4). Snap fan housing back into the
chassis. Connect fan and speaker wiring
to M/B as instructed in M/B user
manual (After M/B is installed!).
Install 3.5" HDD and FDD (floppy)
A. Squeeze tabs on side and remove 3.5"
drive cassette (Fig. 5). Slide HDD into
cassette and fasten with coarse thread
flat head screws. Make sure EMI clip is
In place.
B. Slide floppy into the same cassette and
fasten with fine thread flat head screws.
Then slide cassette back in to drive bay
And snap in to place.
Install CD-ROM, (DVD or 5.25" FDD)
A. Fasten slide guides to the sides of
CD-ROM (DVD or 5.25" FDD) using
fine thread flat head screws (Fig. 6).
B. Slide CD-ROM in to 5.25" bay and
snap in to place (Fig. 7)..
Fig:5
Fig:6
Fig:7
Series EN-7100
Fig:3
Fig:1
Fig:2
***Important-First please check your model number before proceeding. The user
manual is set up to correspond to the model number and installation will vary
depending on the model.
Required tools: Phillips head screwdriver, pliers
***(Photos shown may vary according to model number)
Place case on edge of table (Fig.1). With one
hand holding top of chassis, pull quickly from
the bottom of the bezel to remove it (Fig. 2).
**Note-It might require some force to remove
due to the snug fit to the chassis.
Remove screws. Place hands on sides of
top cover and thumbs firmly on chassis.
Slide top cover towards you 1" (Fig. 3).
Spread sides and lift straight up to remove.
A. Orient top cover and spread sides.
Slide vertically down and make sure
slide fasteners guides are properly set
in the rails.
B. Once top cover is set properly on the
rails, slide away from you towards
backof chassis to close the top cover.
Use hex head screws to fasten top
cover to chassis.
Snap in to place, starting with top
snaps. Make sure to line up tabs on
top end with the slots in the chassis.
Fig:10
Fig:9
Fig:8

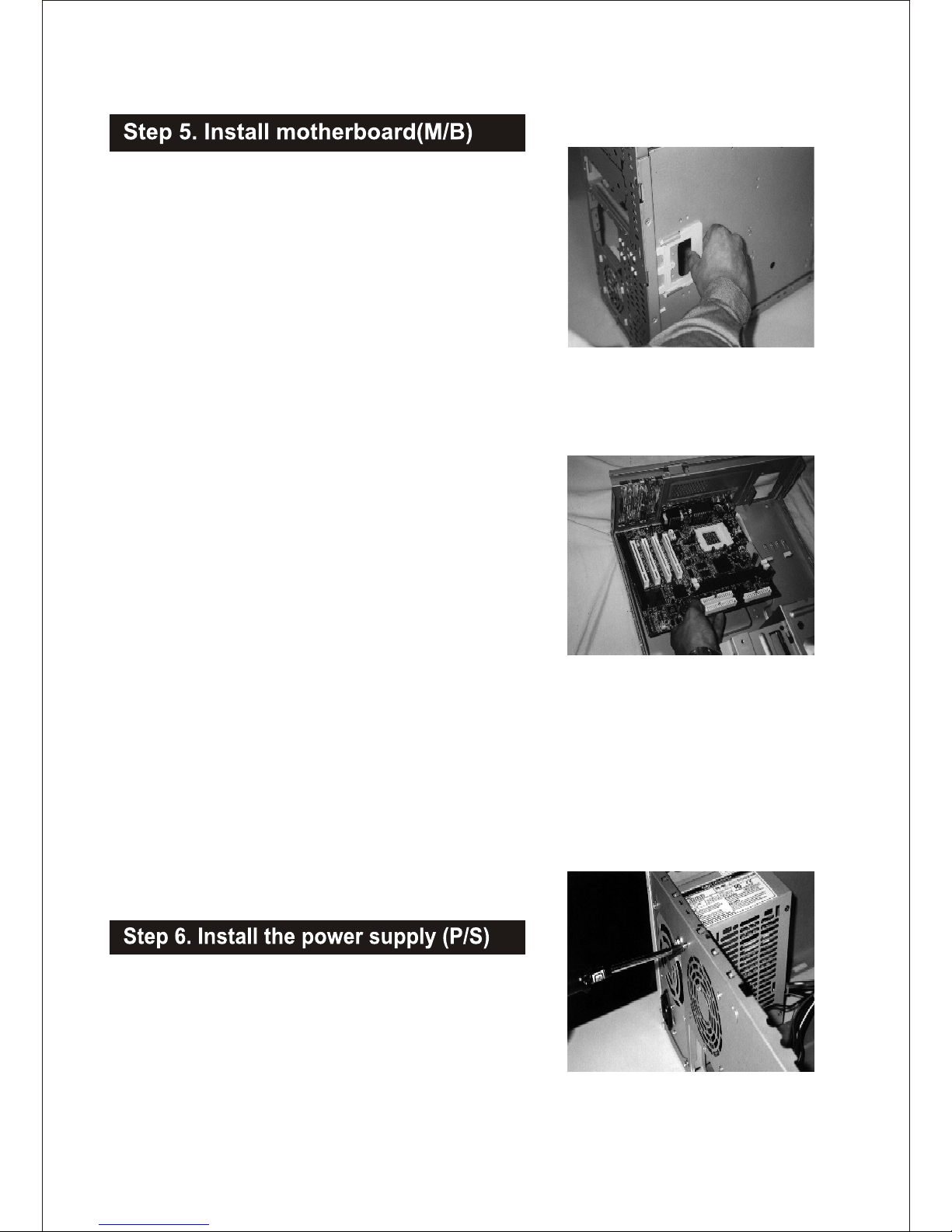

A.Identify if M/B is AT or ATX.
B.Remove M/B mounting plate by pulling
Latch towards back of chassis and swinging
out the plate (Fig. 8).
C.Make sure punch out holes for I/O ports on
the I/O plate are punched out matching
ports on the M/B.
D.Install at an angle, first by lining up the I/O
ports on the M/B with I/O plate (Fig. 9).
E.Once holes are lined up, set M/B on
standoffs and stakes, make sure the M/B is
seated properly and fasten M/B using hex
head screws. Note-make sure stake at A3
hole is oriented correctly (M/B mounting
screw holes will vary with manufacturer.
Please refer to M/B user manual for more
details.) Connect wires as directed in M/B
user manual.
G.Reinstall M/B mounting plate and swing
into Place.
Slide in to P/S area and fasten with hex
head screws (Fig. 10).
A. Orient top cover and spread sides.
Slide vertically down and make sure
slide fasteners guides are properly set
in the rails.
B. Once top cover is set properly on the
rails, slide away from you towards
backof chassis to close the top cover.
Use hex head screws to fasten top
cover to chassis.
Snap in to place, starting with top
snaps. Make sure to line up tabs on
top end with the slots in the chassis.
Fig:10
Fig:9
Fig:8
A.Identify if M/B is AT or ATX.
B.Remove M/B mounting plate by pulling
Latch towards back of chassis and swinging
out the plate (Fig. 8).
C.Make sure punch out holes for I/O ports on
the I/O plate are punched out matching
ports on the M/B.
D.Install at an angle, first by lining up the I/O
ports on the M/B with I/O plate (Fig. 9).
E.Once holes are lined up, set M/B on
standoffs and stakes, make sure the M/B is
seated properly and fasten M/B using hex
head screws. Note-make sure stake at A3
hole is oriented correctly (M/B mounting
screw holes will vary with manufacturer.
Please refer to M/B user manual for more
details.) Connect wires as directed in M/B
user manual.
G.Reinstall M/B mounting plate and swing
into Place.
Slide in to P/S area and fasten with hex
head screws (Fig. 10).

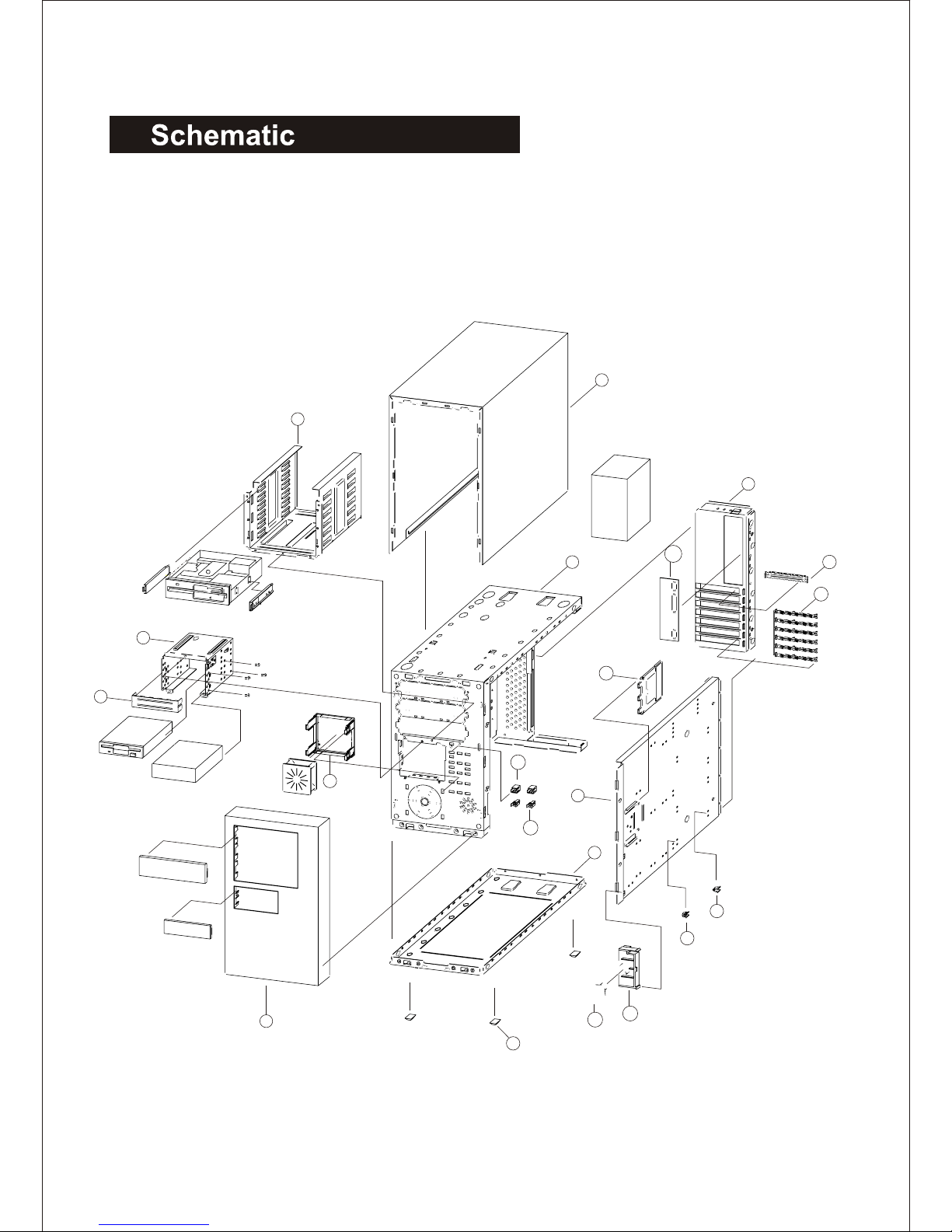

EN-7100 SERIES P/N:36132791
NO P/N PART NAME
13214101 CHASSIS
23214123 5.25” DRIVE BRACKET
35208089 3.5” DRIVE BRACKET
43214112 SUPPORT BRACKET
53214555 ADAPTE R BRAC KET
63214145 M/B MOUNTING PLATE
73214544 COVER
8******* BEZEL
93212514 3.5”EMI CLIP
10 3132621 M/B LATCH
11 *5405126 FAN AND FAN HOLDER
12 3132643 CARD GU IDE BRACKET (A.B.S)
13 3132596 SWITCH HOLDER
14 3408384 LED HO LDER
15 3214566 M/B STAKET-1 (SCREWED)
16 3214602 M/B STAKET-2 (HOOKED)
17 3214577 ADAPTER PLATE
18 3214624 ADAPTER EMI CLIP
19 3132574 RUBBER FOOT
20 *32140542 I/O PLATE
21 3401723 SPEAKER
EN-7100 SERIES ACCESSORY PARST LIST
NO P/N PART NAME
A5208012 SLIDE GUIDE
B3214566 M/B STAKE-1 (SCREWED)
C3214602 M/B STAKE-2 (HOOKED)
D3500851 SCREW-PAN HEAD #6-32*5
E3501171 SCREW-HEX HEAD #6-32
F3501592 SCREW-PAN HEAD M3*5
G3602055 POLYBAG 8*12
I3602102 INNER BOX
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
3
P/S
21
20
3.5"HDD
Part List
EN-7100 SERIES P/N:36132791
NO P/N PART NAME
13214101 CHASSIS
23214123 5.25” DRIVE BRACKET
35208089 3.5” DRIVE BRACKET
43214112 SUPPORT BRACKET
53214555 ADAPTE R BRAC KET
63214145 M/B MOUNTING PLATE
73214544 COVER
8******* BEZEL
93212514 3.5”EMI CLIP
10 3132621 M/B LATCH
11 *5405126 FAN AND FAN HOLDER
12 3132643 CARD GU IDE BRACKET (A.B.S)
13 3132596 SWITCH HOLDER
14 3408384 LED HO LDER
15 3214566 M/B STAKET-1 (SCREWED)
16 3214602 M/B STAKET-2 (HOOKED)
17 3214577 ADAPTER PLATE
18 3214624 ADAPTER EMI CLIP
19 3132574 RUBBER FOOT
20 *32140542 I/O PLATE
21 3401723 SPEAKER
EN-7100 SERIES ACCESSORY PARST LIST
NO P/N PART NAME
A5208012 SLIDE GUIDE
B3214566 M/B STAKE-1 (SCREWED)
C3214602 M/B STAKE-2 (HOOKED)
D3500851 SCREW-PAN HEAD #6-32*5
E3501171 SCREW-HEX HEAD #6-32
F3501592 SCREW-PAN HEAD M3*5
G3602055 POLYBAG 8*12
I3602102 INNER BOX
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
3
P/S
21
20
3.5"HDD
Part List
