Enphase IQ Combiner 5 Manuale utente

June 10, 2023

How to make the IQ Combiner 5/5C

compatible with IQ Battery 3T/10T

<<

Step 1: Unplug the Mobile Connect

Unplug the Mobile Connect

from the USB port. This must

be removed so that the

deadfront can be removed.

2© 2023 Enphase Energy, Inc.

Step 2: Unscrew the deadfront

3© 2023 Enphase Energy, Inc.

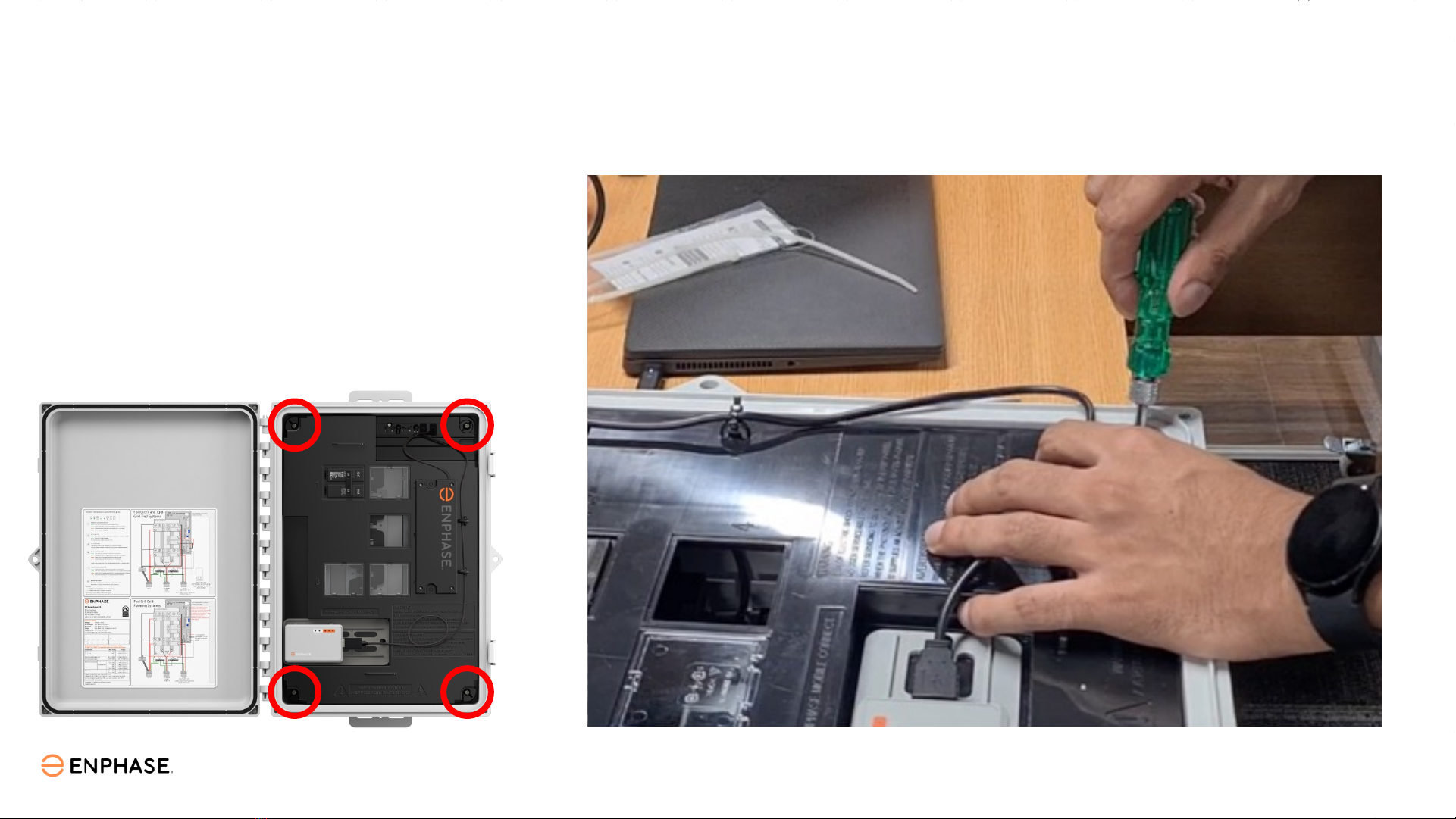

Unscrew the four screws that

secure the deadfront. There

is one screw in each corner.

Step 3: Unplug the Communications Kit

4© 2023 Enphase Energy, Inc.

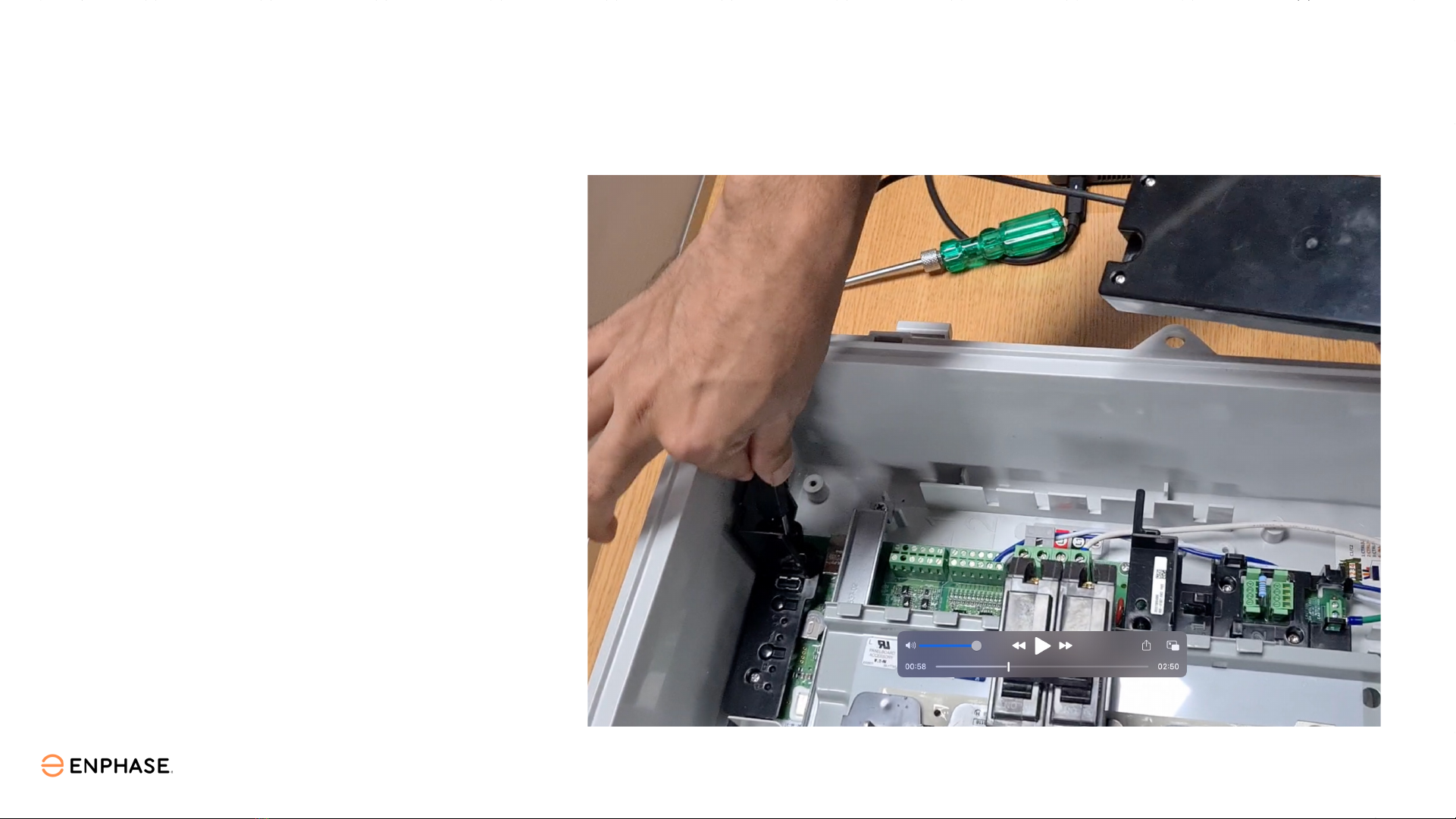

Unplug the pre-installed

Communications Kit

(COMMS-KIT-02). The

preinstalled kit will remain in

the IQ Combiner. Tuck the

cable to the side of the

circuit board.

Step 4: Install the new Communications Kit

5© 2023 Enphase Energy, Inc.

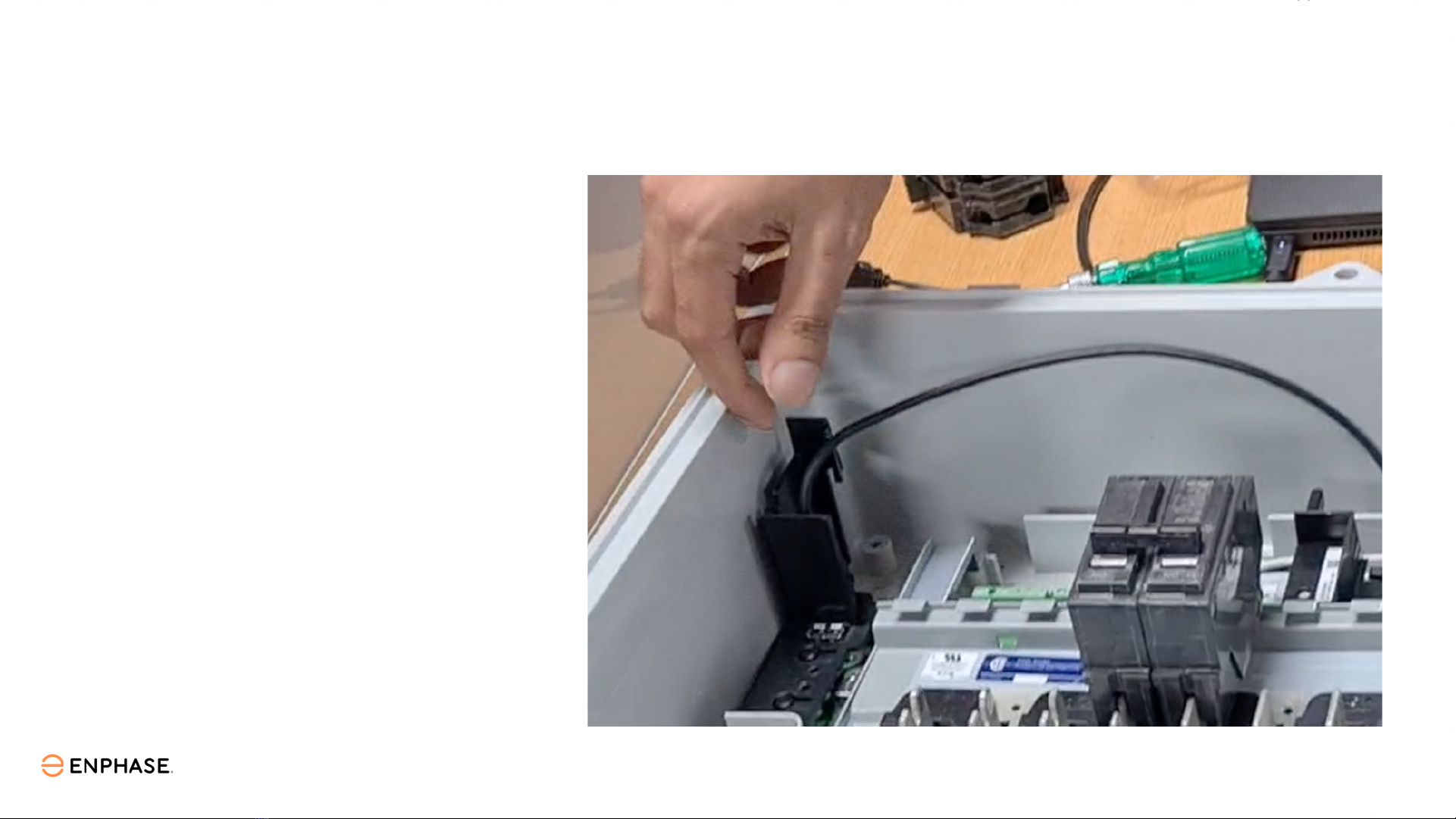

Plug the new

Communications Kit

(COMMS-KIT-01) into the

USB port.

Keep the new

Communications Kit on the

outside of the enclosure. It

must be located on the

outside of the deadfront.

Step 5: Reinstall the deadfront

6© 2023 Enphase Energy, Inc.

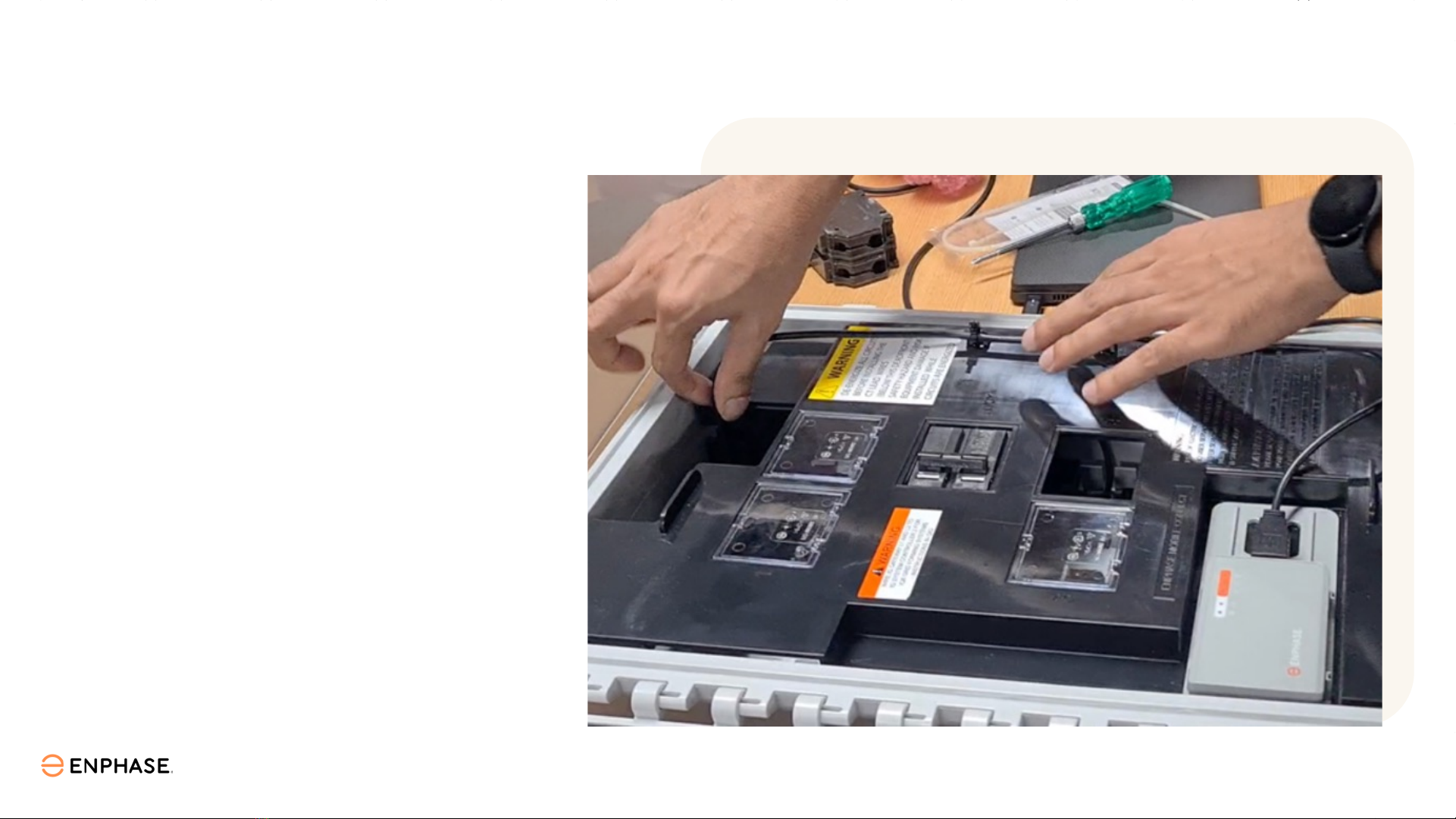

Reinstall the deadfront using

the four screws that were

previously removed.

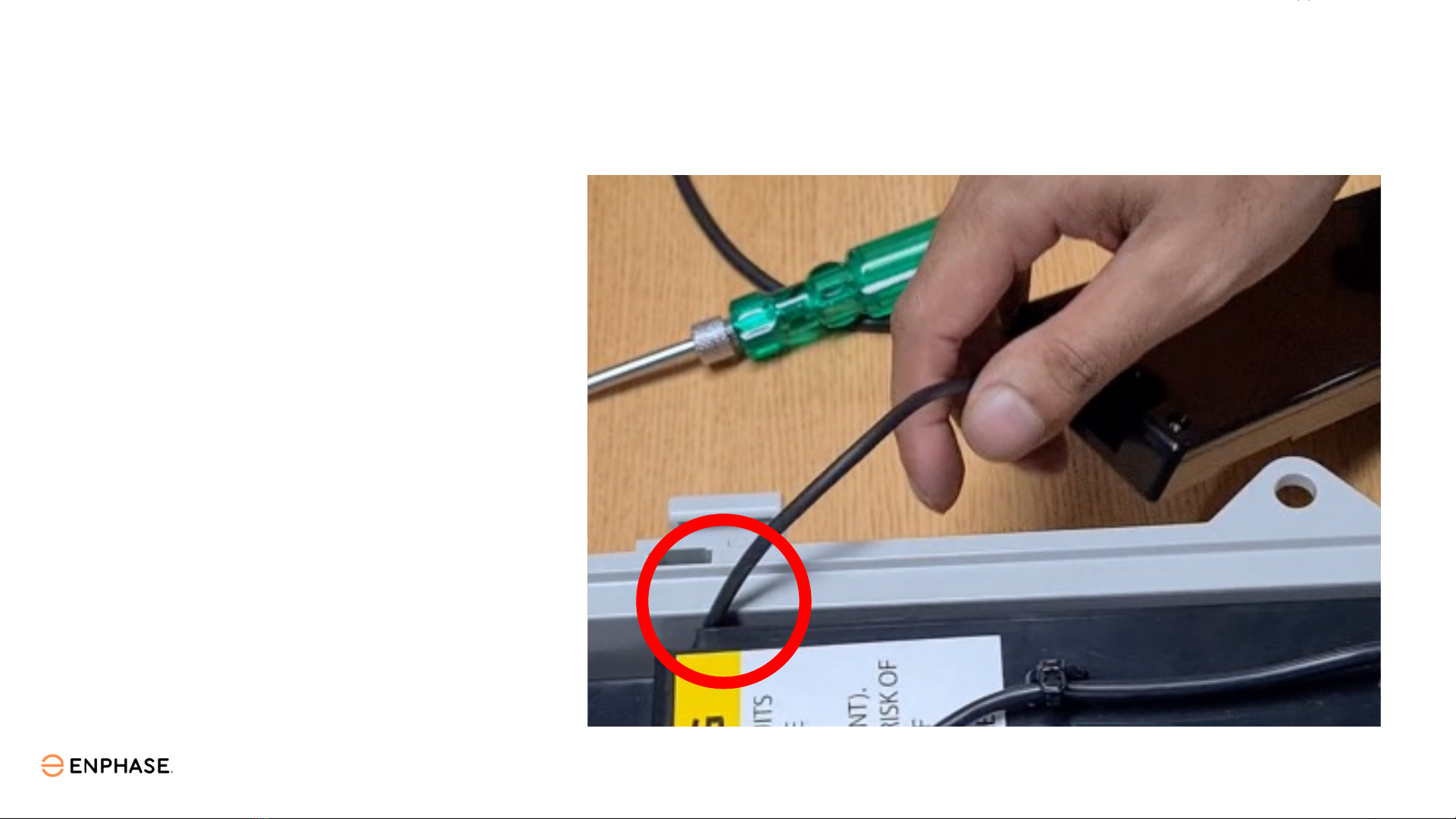

Take care in routing the

Communications Kit cable

through the gap on the side

of the deadfront that is

intended for an ethernet

cable.

Step 6: Attach the Communications Kit

7© 2023 Enphase Energy, Inc.

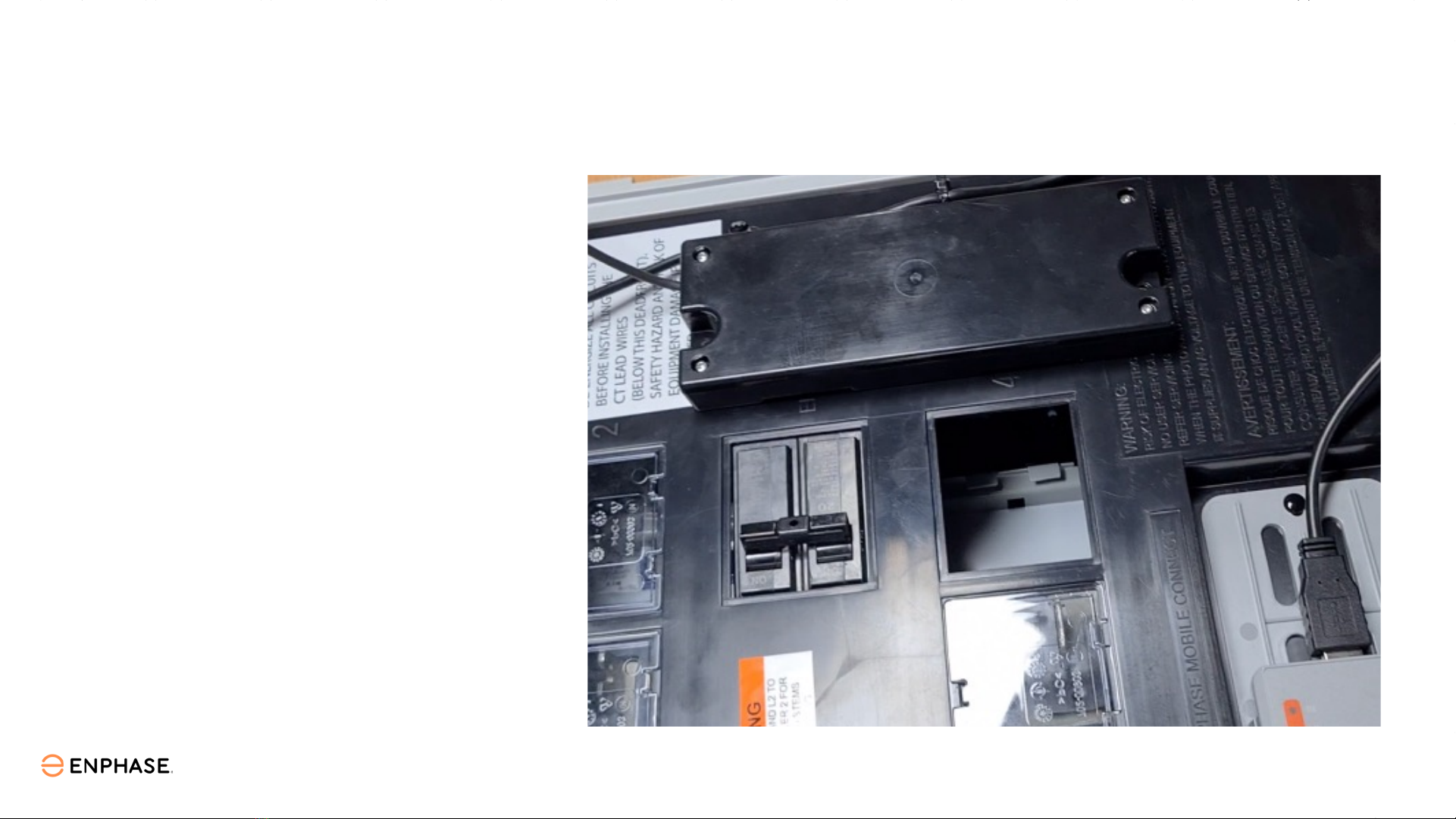

Use the double-sided tape

located on the back of the

Communications Kit to

attach it to the surface of the

deadfront. Please it firmly to

activate the adhesive.

Step 7: Secure the installation using zip ties

8© 2023 Enphase Energy, Inc.

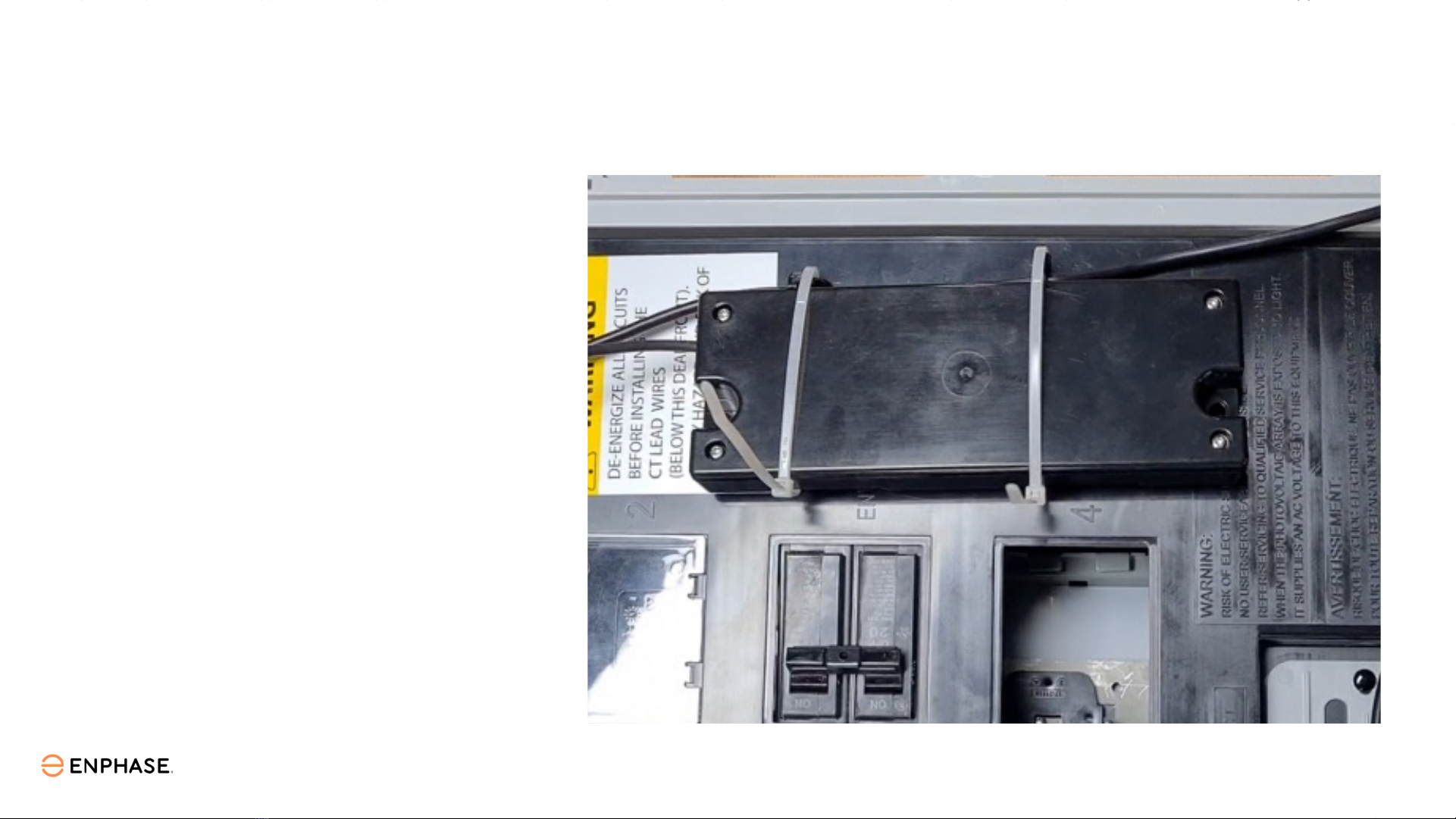

Use the provided zip ties to

secure the Communications

Kit to the deadfront.

The USB cables for the

Communications Kit and

Mobile Connect can also be

zip tied in place for cable

management.

Revision history

9© 2023 Enphase Energy, Inc.

Revision

Date

Description

1.0

June 11, 2023

Initial release
