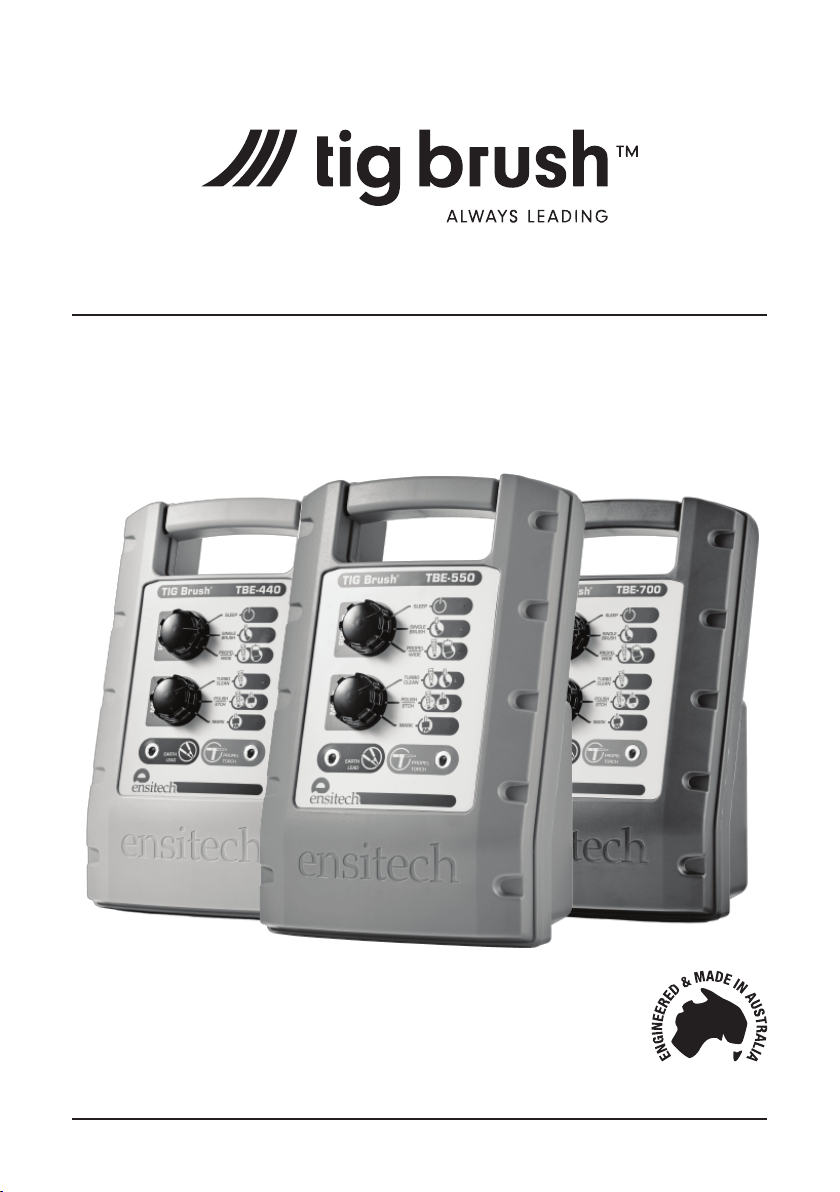

Ensitech TIG Brush Manuale utente
TIG Brush™ Instruction Manual
2022
Ensitech Pty Ltd
www.tigbrush.com
Stainless Steel Weld Cleaning System
TIG Brush Instruction Manual
Ensitech is committed to providing the highest quality goods, services,
and solutions for all of our customers. To achieve this goal, we adhere to
the process of a QUALITY MANAGEMENT SYSTEM which complies with
the requirements of ISO 9001:2015 for the following scope: the design,
manufacture, supply and repair of TIG Brush weld cleaning systems.
QUALITY YOU CAN TRUST
3
TIG Brush™ Instruction Manual
2022
Ensitech Pty Ltd
www.tigbrush.com
STOP!
Register your Warranty
Online and Extend your 2-Year
Warranty at no extra Cost!
Ensitech offers an extended 6-month warranty* on any new TIG Brush Control Unit that has its
warranty information registered on the TIG Brush website www.tigbrush.com/warranty.
Registering your TIG Brush online and activating your warranty is easy and links your product
with proof of ownership and warranty service. Online warranty activation also simplifies proof
of purchase in the event of a warranty claim.
Your TIG Brush extended warranty is issued on the condition that you complete the online
warranty activation within 30 days of purchase and purchase verification is attached. The
extended warranty only applies to the TIG Brush Control Unit, and does not include cables,
the PROPEL Torch, consumables or any other TIG Brush accessory.
*For full Terms and Conditions of your TIG Brush warranty see (Ensitech Warranty Against Defects)
on page 28 of this Instruction Manual.
Registration is quick and easy. Go to www.tigbrush.com/warranty
4TIG Brush™ Instruction Manual
2022
This instruction manual is an important tool and designed to help you get
the most out of your Ensitech products. We recommend you keep it with your
TIG Brush at all times.
Please take the time to read this manual as it provides users with the necessary
operating procedures and safety precautions, essential for the safe and proper
operation of the TIG Brush.
With correct usage and maintenance, you can be assured your TIG Brush will
give you reliable service for many years to come.
Due to continuous improvements, Ensitech Pty Ltd, reserves the right to make
specification changes and update this Instruction Manual accordingly.
© 2022 Ensitech Pty Ltd
FOREWORD
FOREWORD
5
TIG Brush™ Instruction Manual
2022
Ensitech Pty Ltd
www.tigbrush.com
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT
YOU TO THE POTENTIAL PERSONAL INJURY HAZARDS. OBEY
ALL SAFETY MESSAGES THAT FOLLOW THIS SYMBOL TO
AVOID POSSIBLE INJURY.
WARNING
SYMBOL FOR “VOID WARRANTY” OR “DAMAGED WORK”
V
INDICATES AN IMMEDIATELY HAZARDOUS SITUATION. IF NOT
AVOIDED, MAY RESULT IN MINOR OR MODERATE INJURY. IT
MAY ALSO ALERT AGAINST UNSAFE PRACTICES.
CAUTION
THIS SYMBOL INDICATES A HAZARDOUS SUBSTANCE WHICH
MAY CAUSE MINOR OR MODERATE INJURY. SOME TIGBRUSH
KITS MAY SHIP WITH HAZARDOUS FLUIDS. CHECK SAFETY
DATA SHEETS CAREFULLY.
SAFETY ALERT SYMBOLS AND SAFETY SIGNAL WORDS
FOREWORD
6TIG Brush™ Instruction Manual
2022
FOR:
• Product safety publications
• Current owner updates
• Questions regarding product safety
• Standards and regulations compliance information
•
• Questions regarding product modifications
• Accident reporting
www.tigbrush.com/contact
Questions regarding special product applications
CONTACT
Ensitech Pty Ltd
Unit 1/144 Old Bathurst Road
Emu Plains NSW 2750
Australia
Phone: +61 2 4735 7700
Email: [email protected]
Ensitech Inc
340 Marshall Ave, Bldg#104
Aurora IL 60506
United States
Phone: +1 630 405 6440
Email: [email protected]
Your local TIG Brush distributor/dealer or Ensitech direct:
FOREWORD
7
TIG Brush™ Instruction Manual
2022
Ensitech Pty Ltd
www.tigbrush.com
REVISIONS LOG
Original issue of Manual: August 2016
Revision 1: April 2018
Revision 2: February 2020
Revision 3: July 2022
REVISIONS LOG
8TIG Brush™ Instruction Manual
2022
9
10
12
12
13
14
16
16
16
17
18
19
21
16
22
22
22
23
24
24
24
24
24
24
24
24
24
26
26
26
INTRODUCTION
SAFETY PRECAUTIONS AND INFORMATION
DESCRIPTION OF BASIC EQUIPMENT
S1
S2
S3
3.1 Classic Kit
3.2 Flexi Handle Kit
3.3 PROPEL Kit
4.1 Preparation
4.2 Assembly
4.2.1 Classic Kit
4.2.2 Flexi Handle Kit
4.2.3 PROPEL Torch
4.3 Cleaning Fluid
4.4 Operation
OPERATIONS4
POWER AND MODE SETTING
5.1
5.2
S5
Power Settings
Mode Settings
MAINTENANCES6
28
WARRANTYS9
CONSUMABLES
7.1
7.2
7.3
S7
Brushes
Insulating Shrouds
257.4 PROPEL Torch Collets
Fluids
• Pre-Weld Cleaning Fluids
• Weld Cleaning Fluids
• Neutralising Fluids
• Finishing Fluid
• Printing Fluids
• Engraving Fluids
TROUBLESHOOTING
8.1 The mains power button on the back of the Control Unit doesn’t
operate properly or illuminate.
The front panel LEDs are not illuminating.
8.2
26
The Control Unit is making a humming/buzzing noise.
8.3
27
The front Control Unit lights are illuminated but it will not clean or
it’s not performing as well as normal.
8.4
S8
CONTENTS
9
TIG Brush™ Instruction Manual
2022
Ensitech Pty Ltd
www.tigbrush.com
INTRODUCTION
Congratulations on the purchase of your TIG Brush!
Designed, developed, and manufactured in Australia by Ensitech, the TIG Brush
is an electrochemical surface finishing system. It uses the combined action of
electric current, heat, and chemistry to provide fast metal finishing. The system
is famous for its ability to remove heat tint from stainless steel TIG and MIG
welds. In addition, the TIG Brush can perform other functions such as polishing
metal surfaces, indelibly printing logos, text, and even engraving/etching.
To meet your specific needs several options are available. The 440, 550 and 700
models offer different power levels for light work on thin metal through to
removing deep heat tint from the largest metalwork. See section S5 for
more information.
Several proprietary fluids are available for different operations. There are
solvents for adhesive removal and weld preparation, acids for fast heat tint
removal with matching neutralisers, and neutral solutions for food safe work.
See section 7.3.
There are several tools available to enable the different operations. The Classic
Wand for general work, the PROPEL for the more sophisticated user and the
Flexi-Wand to get to more inaccessible work. See section 4.2
When used with the Branding Kit and custom-made or single use stencils,
the TIG Brush will also permanently brand your stainless steel with an indelible
printed mark or engraving. For more details on the Branding Kit visit
www.tigbrush.com/products/branding-kit.
As well as Stainless Steel, the TIG Brush can also be used with other metals
such as brass, copper and aluminium (aluminum). Contact your local TIG
Brush distributor/dealer team for more information, or visit our website
www.tigbrush.com
S1 INTRODUCTION
10 TIG Brush™ Instruction Manual
2022
S2
Protect yourself and others by observing all safety
information, warnings and cautions. Failure to comply with
instructions could result in personal injury and/or damage
to the product or property.
Read this documentation carefully before operating the
equipment. Please retain these instructions for future
reference.
Before using the TIG Brush, make sure the work environment
is well ventilated and away from any combustible substances.
Ensure that all required equipment is available.
Do not use the TIG Brush for any purpose other than that
described in this manual. Failure to observe this warning
may result in permanent damage to the TIG Brush, cause
damage to the workpiece, cause injury to the operator
and void the warranty.
The TIG Brush is one of the safest appliances in its class. However
some precautions must be taken with the use of the TIG Brush,
as with any electrolytic/electrochemical weld cleaner.
• The TIG Brush uses mild acids; gloves should be used to
avoid prolonged contact with any of the fluids.
•Goggles or safety glasses should be worn to prevent fluid
being splashed in the eyes.
Where an inhalation risk exists, wear a type B (Inorganic
gases & vapours) respirator.
SAFETY PRECAUTIONS
SAFETY INFORMATION
WARNING
•
SAFETY PRECAUTIONS AND INFORMATION
