ensto Wallbox Manuale operativo e di manutenzione
ENG
Wallbox
RAK111_ENG
28.2.2019
© Ensto 2019
Installation Instructions
Operation Instructions
2RAK111_ENG / © Ensto 2019
Contents
1. Ensto Wallbox........................................................................................................................ 3
2. Safety Instructions................................................................................................................ 3
3. Delivery Contains.................................................................................................................. 4
4. Accessories............................................................................................................................ 4
5. Mounting instructions.......................................................................................................... 9
5.1. Before Installation..................................................................................................... 9
5.2. Wall Mounting with Wall Bracket............................................................................ 10
5.3. Ground Mounting on Concrete Casting with Ground Mounting Pole................ 12
5.4. Ground Mounting on Concrete Foundation with Ground Mounting Pole......... 13
5.5. Wall Mounting on Wall Mounting Pole................................................................... 14
5.6. Ground Mounting on Unimi Concrete Foundation............................................... 14
5.7. Fixing Wallbox on Mounting Poles EVTL43.00 and EVTL48.00........................... 16
6. Electrical Connections.......................................................................................................... 17
6.1. Wiring Instructions.................................................................................................... 17
6.2. Power Supply............................................................................................................. 18
7. Commissioning...................................................................................................................... 20
7.1. Connecting to Wallbox.............................................................................................. 20
8. User Instructions................................................................................................................... 21
8.1. User Interfaces.......................................................................................................... 21
8.2. Charging..................................................................................................................... 21
9. Technical Information - EVB................................................................................................ 22
10. Dimension Drawing............................................................................................................ 23
11. Installation / Commissioning Checklist............................................................................ 24
12. Maintenance / Preventive Maintenance Instructions.................................................... 25
13. EVB100 Internal Circuit Example...................................................................................... 26
14. EVB101 Internal Circuit Example...................................................................................... 27
15. EVB200 Internal Circuit Example...................................................................................... 28
16. Extension Box EVK.............................................................................................................. 30
16.1. Mounting the Extension Box................................................................................. 31
16.2. Wiring Instructions.................................................................................................. 32
16.3. Technical Information - EVK................................................................................... 34
17. Troubleshooting.................................................................................................................. 35
18. Warranty.............................................................................................................................. 35
3
RAK111_ENG / © Ensto 2019
Plastic front
cover
3-color LED indicates
the charging point’s
status
1-2 x Mode 3/ Type 2 socket outlet
Ambient light
Painted steel
frame
RFID reader
1. Ensto Wallbox
EVB100: Single charging unit (3-phase)
EVB200: Dual charging unit (3-phase)
EVB101: Single charging unit (1-phase)
EVB201: Dual charging unit (1-phase)
2. Safety Instructions
• Wallbox must be installed by a qualied person.
• Read this instruction manual before installation and usage of the charging station.
• The instruction manual must be stored in a safe location and be available for future instal-
lation and service.
• Follow the guidelines in the instruction manual when installing and using the charging sta-
tion.
• The installation must be done according to the local safety regulations, restrictions, dimen-
sioning, rules and standards.
• The information provided in this manual in no way exempts the user of responsibility to
follow all applicable rules and safety standards.
Front cover
lock
4RAK111_ENG / © Ensto 2019
3. Delivery Contains
• Wallbox
• Installation and Operation instructions
4. Accessories

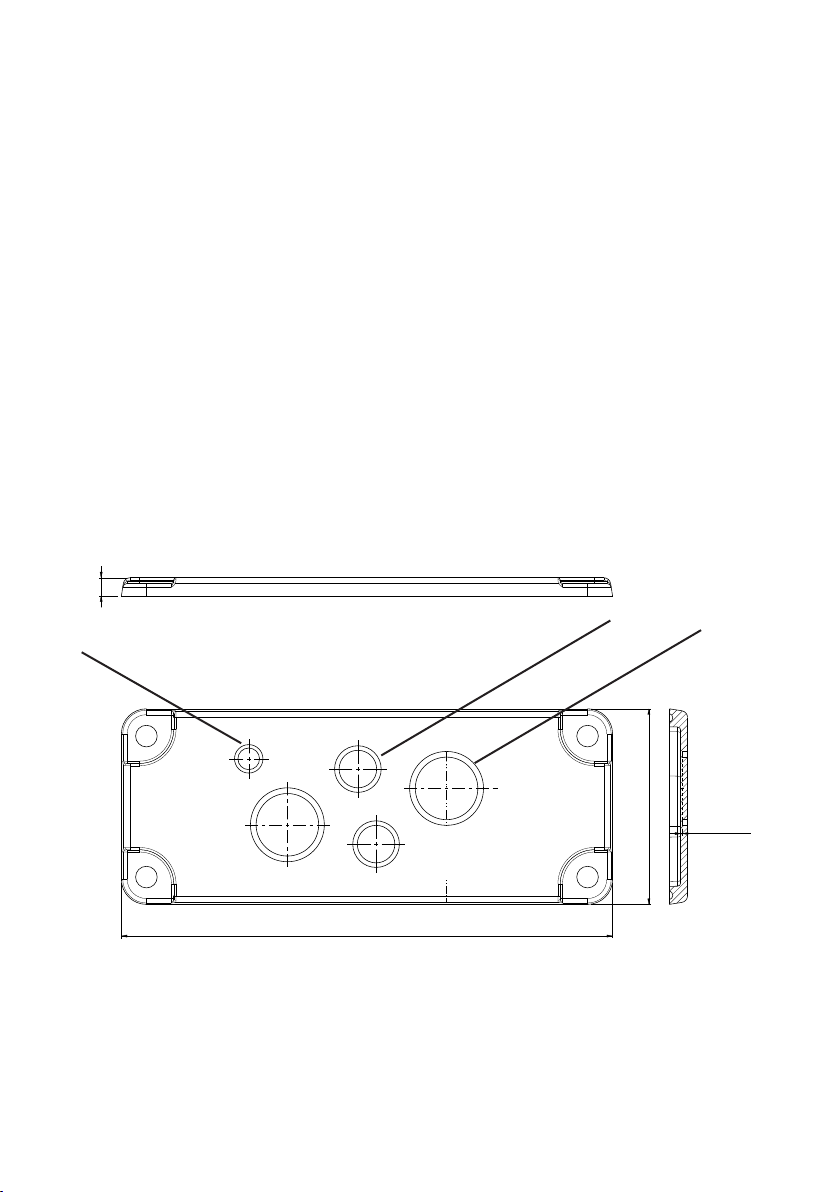

Flange KOT21715
Included in the delivery.
Note! Cable glands are not included in the delivery.
Please order suitable cable glands separately according to the used supply cable sizes, for
example Ensto KTM... cable gland series (polyamide or brass).
0.7
216
8
86
+0.1
-0.1
Ø20.5 2pcs (knock-outs)
Ø32.5 2pcs (knock-outs)
All
knock-
outs
Ø12.5 (knock-out)
5
RAK111_ENG / © Ensto 2019
EVTL40.00
Wall bracket
300
2x Ø6
436
240
4x Ø7
320
6RAK111_ENG / © Ensto 2019
EVTL43.00
Ground mounting pole
200
250
150
4 x Ø14
100
1029,5
(4 x Ø9,5)
7
RAK111_ENG / © Ensto 2019
EVTL44.00
Adapter for ground mounting
Ø60,3
100
150408 ± 1
Ø54,5
8
4 x M12
200
250
8RAK111_ENG / © Ensto 2019

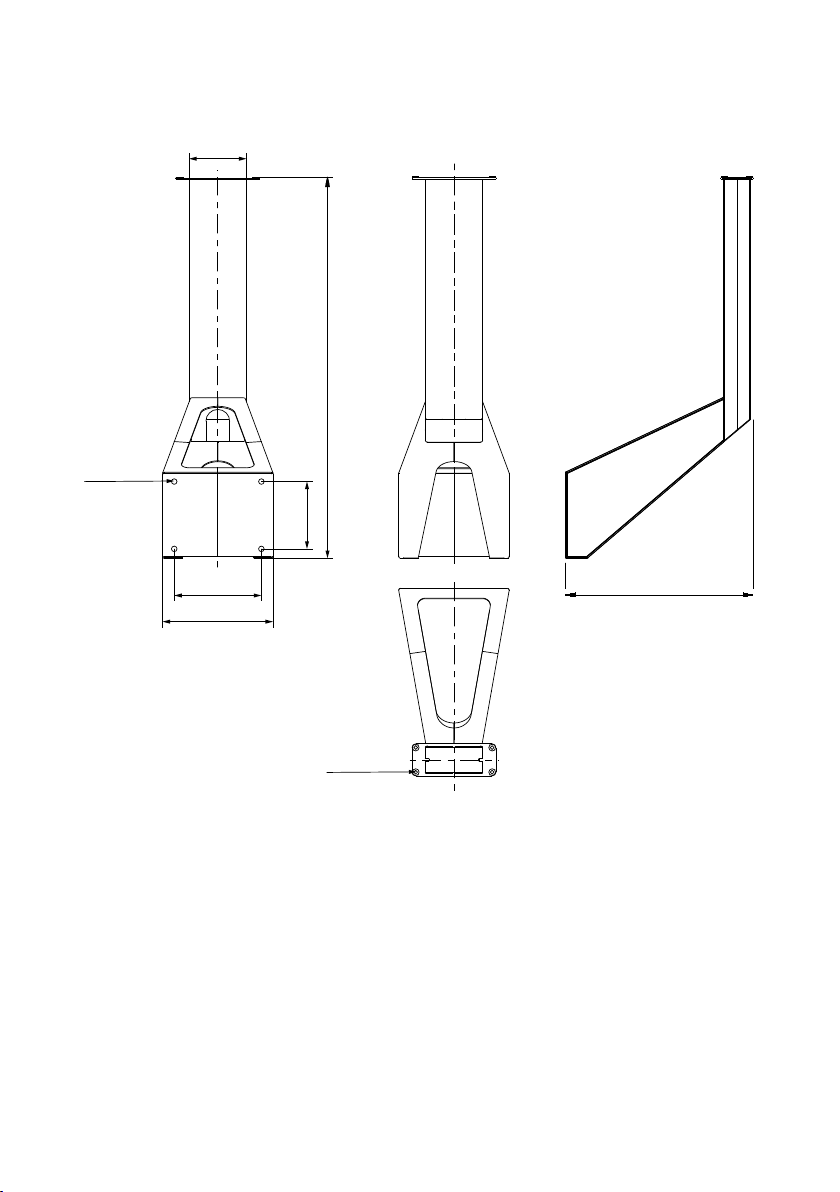

EVTL48.00
Wall mounting pole
474
(4 x Ø9,5)
145
963
170
279
220
(4 x Ø10)
9
RAK111_ENG / © Ensto 2019
5. Mounting instructions
5.1. Before Installation
Remove the Wallbox from its package. Do not scratch the surface of the Wallbox after removal
from the package.
When selecting installation site, take into account the following:
• The minimum space needed for operating and maintenance.
• Make sure that the mounting foundation is suitable and robust.
• In order to ensure the optimal charging performance, the charging unit should not be
exposed to direct sunlight.

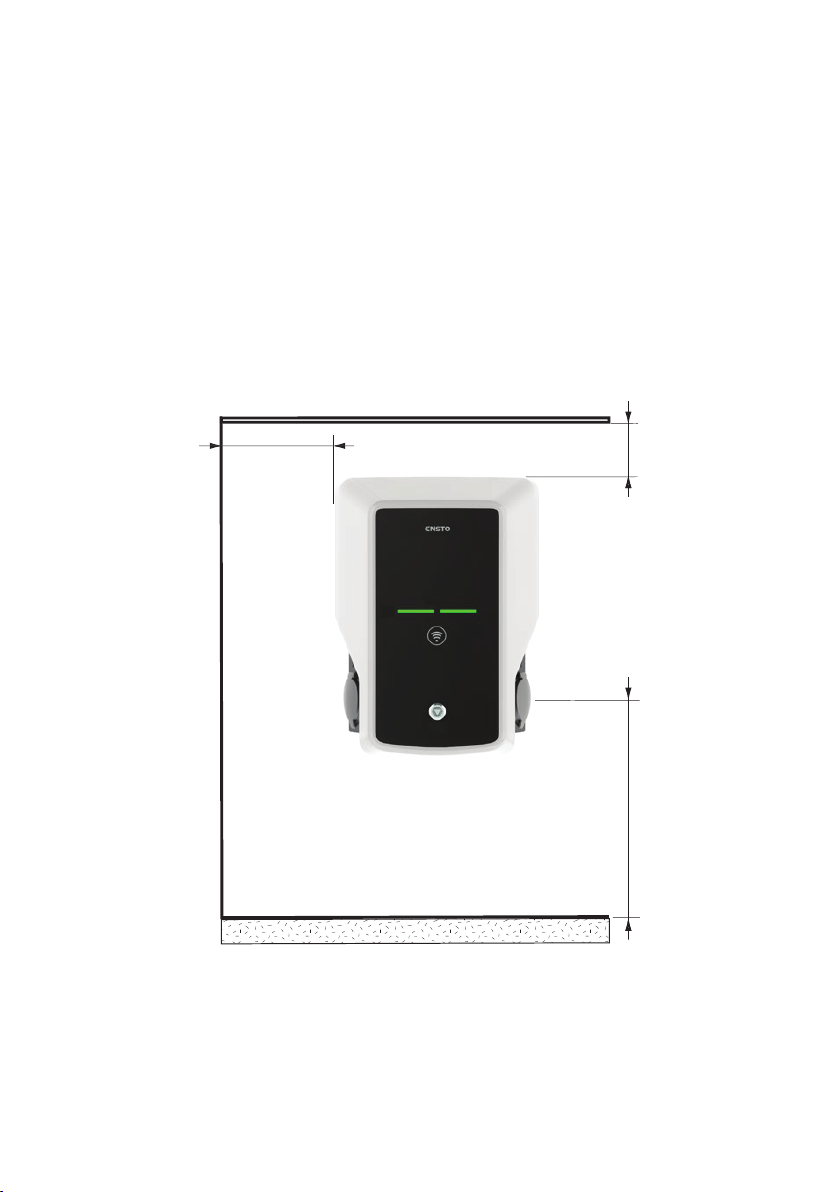

Follow always national regulations and
site requirements
Recommendation
1200 mm
min. 400 mm min. 200 mm
10 RAK111_ENG / © Ensto 2019

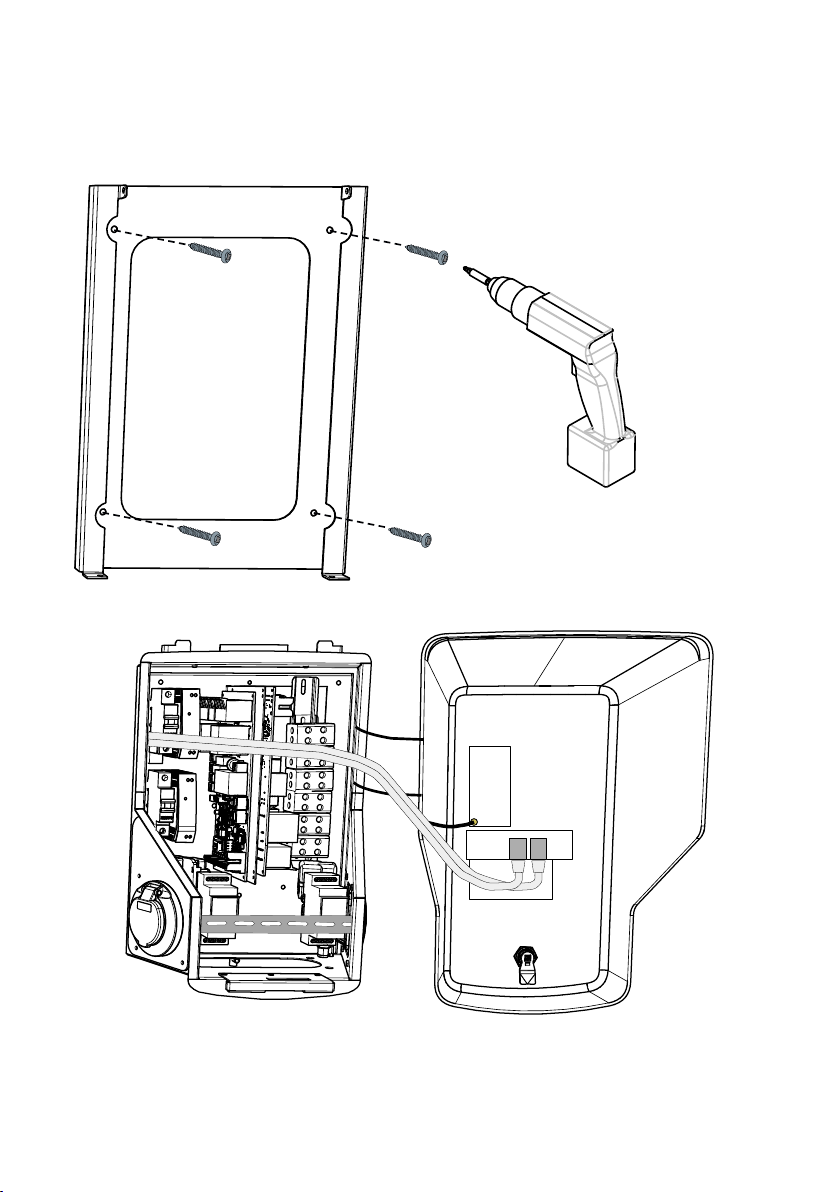

1. Drill screw holes for the wall bracket.
2. Fix the wall bracket on the wall. Use
screw type depending on the wall type.
5.2. Wall Mounting with Wall Bracket
Items needed: Wall bracket EVTL40.00 1 pcs
Screws 4 pcs
Installation steps
3. Open the front cover lock and remove the front cover.
Note! RFID, LED module and antenna cables are attached to the front cover.
Be careful not to break any components when you remove the front cover.
