ENVIRORIDES G2 PRO 2022 Manuale utente
User-Manual Content
1) Introduction
2) Product Overview
3) Parameter & Malfunction
4) Preparation To Ride
5) Battery & Charger
6) Accessories
7) Socials and Content
8) Warranty Details
9) Legal Information
Introduction
1.1) We hope you enjoy your new purchase, for your safety and
legal responsibility, read this user manual fully before using the
EnviroRides G2 Pro Electric Scooter. Failure to do so may risk
the chances of accident, prosecution, injury, or even death.
If you have any questions regarding this product, please contact
us either via our email, on-site messenger, phone, or our social
media outlets.
1.2) Be aware, your actions could lead to personal injury, public
injury, or fatality. EnviroRides holds no liability in any event when
using this product.
Product Overview

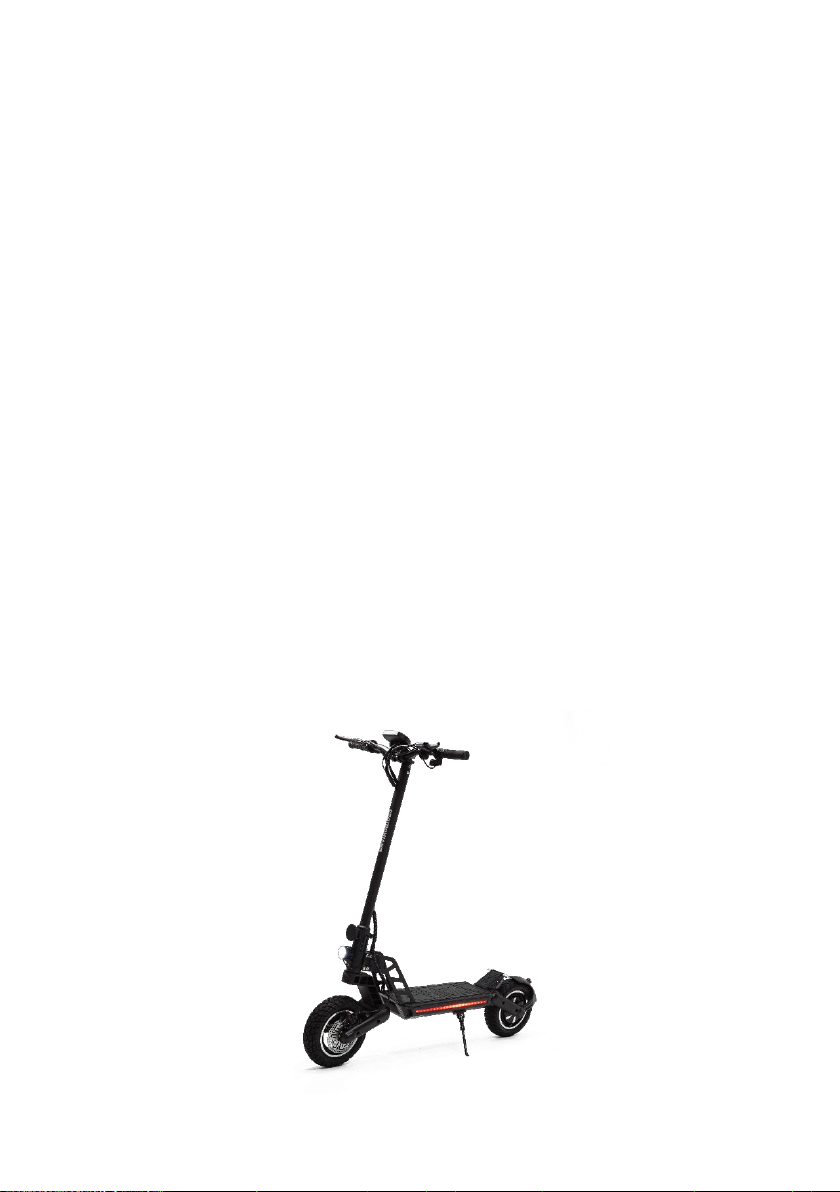

2.1) G2 Pro 1000W Electric Scooter by EnviroRides + Variations.
2.2) Please familiarise yourself with the controls graphic below.
2.3) To power up the G2 Pro Electric Scooter press and hold the
on / off button on the Smart User Controls Panel. For those
with the G2 Pro Ignition Variation, ensure the ignition key is fully
turned to the right (clockwise), then press and hold the on /
off button to turn on the G2 Pro Electric Scooter.
Parameter & Malfunction
3.1) Press and hold the mode button to access the eScooters
parameter settings. (DNA: Do Not Adjust*)
▪P01: 10 (Wheel Diameter) DNA*
▪P02: MPH or KM/PH
▪P03: 00 (Speed Setting) DNA*
▪P04: 48V (Battery Voltage) DNA*
▪P05: 1 or 0 (Kick Start)
▪P06: 1 or 0 (Electric Assist Braking Strength)
▪P07: 1 or 0 (Cruise Control)
3.2) eScooter malfunction codes.
E3
Controller Unit & Motor Connection Error
E4
Low Voltage Protection
E5
Brake Lever Failure
E6
Connection Error
E8
Controller Error
E9
Light Error
Error Code E3)
•This error code will highlight when the G2 Pro Controller
Unit and Motor Connection has incurred a fault. If this
error code is activated, please see possible faults below.
oLoose Controller Unit and Motor Cable Connection
oDamaged Controller Unit
oDamaged Motor Cable
Error Code E4)
•This error code will highlight when the G2 Pro Controller
Unit is under the required voltage. If this error code is
activated, please see possible faults below.
oBattery Under Voltage (Extreme Battery Depletion)
oDamaged Battery Terminals
oDamaged Battery Unit
Error Code E5)
•This error code will highlight when the G2 Pro Controller
Unit senses a Brake Lever Fault. If this error code is
activated, please see possible faults below.
oDamaged Brake Levers
oDamaged Brake Callipers
oDamaged Electrical Brake Cables
oDamaged Electrical Brake Cable Fittings
Error Code E6)
•This error code will highlight when the G2 Pro Controller
Unit senses a loose connection to the G2 Pro Main Integral
Wire. If this error code is activated, please see possible
faults below.
oLoose Terminal Fittings
oIntegral Wire Damage
oDamaged Controller Unit
Error Code E8)
•This error code will highlight when the G2 Pro Controller
Unit senses a fault. If this error code is activated, please
see possible faults below.
oDamaged Controller Unit
Error Code E9)
•This error code will highlight when the G2 Pro lights
senses a short circuit. If this error code is activated, please
see possible faults below.
oDamaged Headlight
oDamaged Sidelight
oDamaged Internal Light Module
oLoose Light Connection
3.3) What to do if you have a malfunction?
If you encounter any of the errors listed above, photograph the
error symbol, or notify us in the feedback section on the
EnviroRides Warranty Process Form or the EnviroRides
Servicing & Repairs Process Form.
Please refer to our Warranty Details to establish if your issue is
covered under warranty.
The Technical Team may require your eScooter to be returned to
the EnviroRides Depot for further assessment. Ensure you keep
the original packaging, or you may be required to purchase an
appropriate replacement carton and packaging.
Items returned without original or in unsuitable packaging
will not be refunded and or may incur further costs.
Preparation To Ride
4.1) Please familiarise yourself with the G2 Pro Electric Scooter
graphic below.
Please note that all the specification for this eScooter are based on tests at optimal conditions and
rider weight of 65kg. Speeds and distances may vary depending on rider's weight, battery level,
terrain, weather, and temperature. Additional weight can see a reduction of up to 5-15% on listed
specifications.
4.2) Unfold your G2 Pro Electric Scooter by pulling the stem
forward. See below.
Once unfolded, use the Stem Lock Screw to hold the stem in
place. Ensure this is fully tightened. See below.
4.3) DO NOT USE THE ELECTRIC SCOOTER WITHOUT
CHECKING ALL FIXTURES AND FITTINGS.
4.4) Ensure you have a clear area before using the G2 Pro
Electric Scooter. Check your surroundings when riding your
eScooter to avoid accidents, collisions, or damage to the rider,
others, or the eScooter.
4.5) Power up your G2 Pro Electric Scooter.
The G2 Pro Electric Scooter is set to speed one and to soft start
from dispatch to ensure your safety. Slowly press the accelerator
whilst keeping one foot aside in case you need to stop. Slowly
increase the acceleration as you become more capable and
proficient.
4.6) Braking. Ensure you are familiar with your brakes before
riding. As this is a new item the brakes may be tight for the first
few trips, bed them in at slow speeds and do not brake sharply or
erratically as this will cause warping of the brake discs and
reduce braking capabilities. Never use the accelerator and
brakes at the same time.
4.7) Maintain correct tyre pressure. Over or under inflated tyre
pressure may increase risk of failure, collision, or damage. Do not
ride with low or flat tyres, this will damage the alloy and tyres.
4.8) Always wear protective clothing when riding.
4.9) Use extra caution in wet or icy conditions, reduce speed to
minimum and use dual braking (the use of both brakes in
conjunction) to reduce chance of skidding.
4.10) Do not expose your eScooter to excess water or moisture.
Do not ride in heavy rain, sleet, snow or through rivers and
streams.
