Envision G2219W1 Manuale utente

G2219w1

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color

monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING:

(FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide proper protection against harmful interference to a

residential installation. This monitor generates, uses, and can radiate radio

frequency energy. Harmful interference to radio communication may be

led as a result if it‘s not properly installed and used. However, there is no

guarantee that interference will not occur in a particular installation. If this

monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to

correct interference by doing one or more of the following:

Reorient or relocate the receiving antenna.

Move the monitor and the receiver further away from each other.

Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

Consult your local dealer or an qualied technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power

supply cord and the provided shielded video interface cable with bonded

ferrite cores. Also, any unauthorized changes or modications to this monitor

would void the user‘s authority to operate this device.

LAMP(s) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST

BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE

OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE

ELECTRONICS INDUSTRIES ALLIANCE AT WWW.EIAE.ORG.

Note: If necessary, shielded interface cables and AC power cord must be

used to meet the emission level limits.

English

Content

Safety Precautions.............................................................................1

First Setup .........................................................................................2

Quick Installation.............................................................................2-5

Using On Screen Display (OSD) Functions ....................................7-9

Supporting Timing Modes .................................................................10

Technical Information........................................................................11

Care and Maintenance.....................................................................12

Troubleshooting ...............................................................................12

Rear View of the Product .................................................................. 6

Front View of the Product .................................................................. 6

English

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s

safety comes first. However, improper use or installation may result danger

to the monitor as well as to the user. Carefully go over the following

WARNINGS before installation and keep this guide handy.

WARNINGS:

 This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of

the power supply in your residence, consult your local dealer or power

company.

 Do not try to repair the monitor yourself as it contains no

user-serviceable parts. The monitor should only be repaired by a

qualified technician.

 Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power

cord is disconnected .

 Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

 Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

 Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not

directly onto the glass screen.

 Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

 Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

English

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories:

Power Cable

D-Sub Cable (15 pin)

Warranty Documents

User’s Guide

Quick Start Guide

Quick Installation

Installing & Removing the Base

Install Remove

lgnE

Preparing To Install The Optional Wall Mount Arm (Not

Included)

English

This monitor can be attached to a wall mounting arm you can purchase separately.

Turn the power OFF then dis-connect the cables from the monitor before performing

the procedure below. Lay the monitor face down on a soft surface.

1. Remove the plastic hinge cover. It is attached to the back of the monitor

by hooks.

2. Remove the 4 screws holding the stand to the back of the monitor.

3.Remove the stand.

English

Attaching The Optional Wall Mount Arm (not supplied)

Follow these steps to finish installing the wall mounting arm:

1. Place the wall mounting arm onto the back of the monitor. Line up the

holes of the arm with the holes in the back of the monitor.

2. Insert the 4 screws into the holes and tighten.

3. Reconnect the cables. Refer to the user’s manual that came with the

optional wall mounting arm for instrucstions on attaching it to the wall.

NOTE

The ENVISION G2219w1 is in compliance with the most current revision of the VESA

100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).

Connecting the Monitor

1. Connect Power Cable

Connect the power cable to the back of the monitor. Plug the power cable to a

nearby power outlet.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video

cable ( D-Sub cable) to the computer, then to the monitor.

3. Connect DVI cable (Optional)

Connect the DVI cable from DVI output of computer to the DVI input of the

monitor.

4. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

5. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1680 x 1050 @ 60 Hz (Recommended Resolution)

Resolution Right-click on the Windows desktop > Properties > Settings >

“Desktop Area”. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for

instructions.

Connection Diagram:

English

Front View of the Product

➊ OSD TURN ON/OFF ➍ CONFIRM SELECTION

➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF

➌ SCROLL UP/INCREASE ➏ LED INDICATOR

Rear View of the Product

➐ POWER INPUT ➒VGA INPUT (D-SUB 15 PIN)

➑ DVI INPUT (DVI 24 PIN)

English

Using On Screen Display (OSD) Functions

Main Menu

English

Exit from OSD menu.

Auto adjust the image when at root menu.2

Confirm the selection.

Select the desired item when in OSD menu.

When not in OSD menu, it is to immediately activate Contrast/

Brightness. It should be change to Contrast/ Brightness by pressing

button W.

Vor W

When not in OSD menu, it is to immediately activate Screen 16:10/

4:3. It should be change to image ratio by pressing button V.

▼+ ▲Recall both of Contrast and Brightness.

1 + ▼Power Lock (when not in OSD menu)

1 + ▲OSD Lock (when not in OSD menu)

Display main menu.

Altri manuali per G2219W1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Envision Monitor

Envision

Envision H2476WDHAL Manuale utente

Envision

Envision E218C1 Manuale utente

Envision

Envision Envision Professional G22LWK Manuale utente

Envision

Envision LCD Manuale utente

Envision

Envision EN7410 Manuale utente

Envision

Envision G2460w Manuale utente

Envision

Envision EN5400 Manuale utente

Envision

Envision G918w1 Manuale utente

Envision

Envision EN9410e Manuale utente

Envision

Envision H712a Manuale utente

Envision

Envision Envision H1781 Manuale utente

Envision

Envision H1981 Manuale utente

Envision

Envision EN-7100e Manuale utente

Envision

Envision EN-7500 Manuale utente

Envision

Envision G2461w Manuale utente

Envision

Envision EN-985e Manuale utente

Envision

Envision G2261w Manuale utente

Envision

Envision G2016wa1 Manuale utente

Envision

Envision EN-7220 Manuale utente

Envision

Envision EN-775e Manuale utente

Envision

Envision EFT720 Manuale utente

Envision

Envision G917w Manuale utente

Envision

Envision H716a4 Manuale utente

Envision

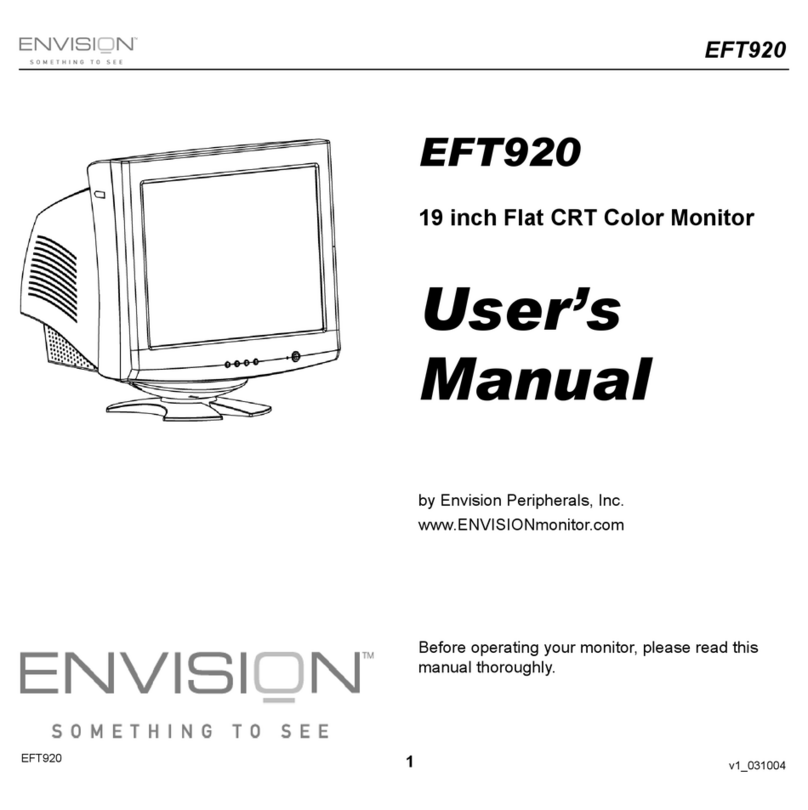

Envision EFT920 Manuale utente
