Eono PL2465 Manuale utente
PL2465 INSTALLATION INSTRUCTION
(PL-C3)
13"~43"
Max:200x200mm/8x8"
Min:50x50mm/2x2"
Für die Installationsanweisungen auf Deutsch, siehe Seite 12~13.
Pour l'instruction en Français, veuillez vous reporter à la page 14~15.
Para las instrucciones de la instalación en Español, favor vea la página 16~17.
Per le Istruzioni in Italiano, vedi pagina 18~19.
x3 x1
TV
1 2
If you have any questions, please contact our customer service.

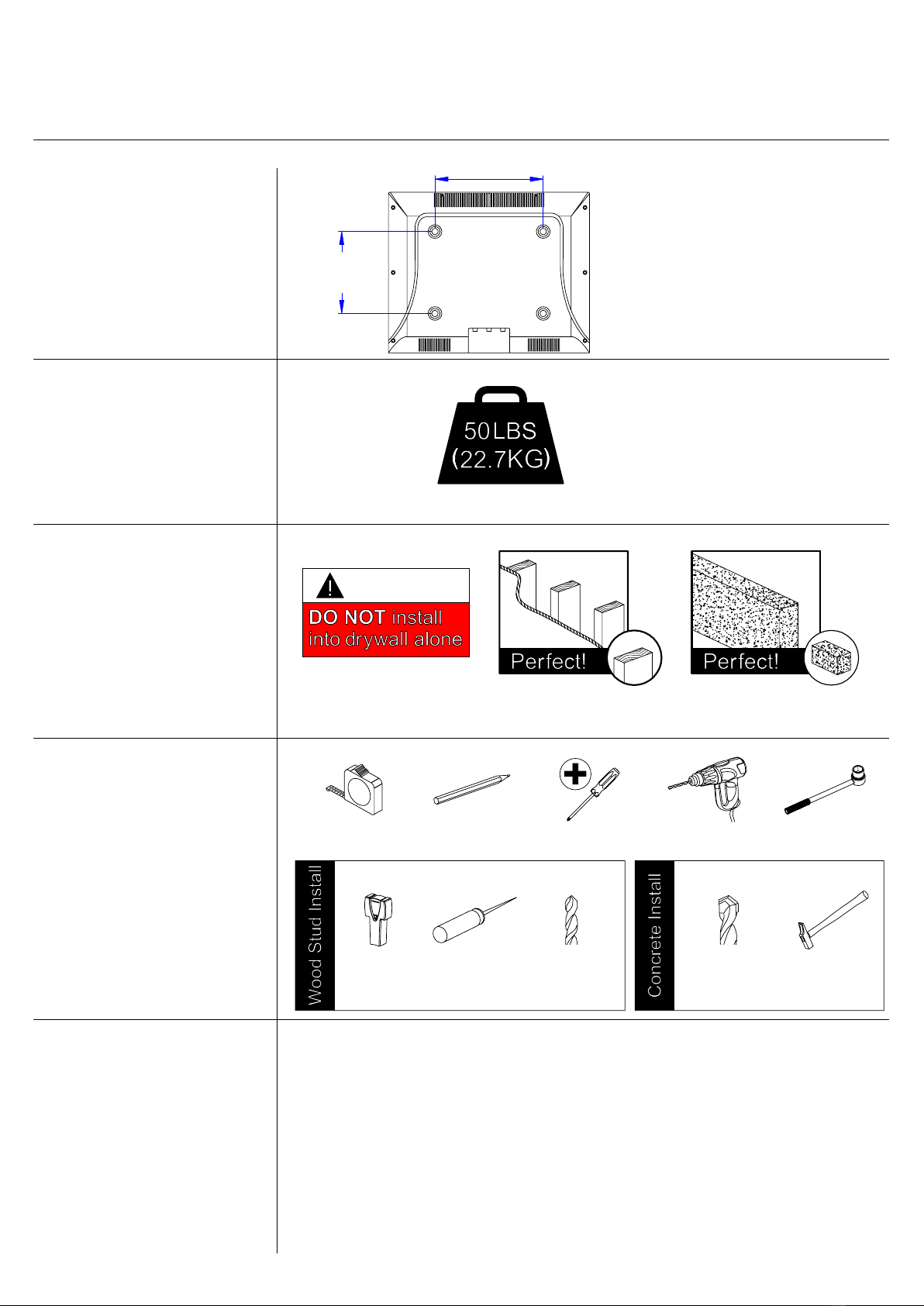

Before getting started, let’s make sure this mount is perfect for you!
2
Does your TV
(including accessories)
weigh less than
50 LBS (22.7 KG)?
4
Installation Tools
(Not Included)
Yes ---
Perfect!
No ---
This mount is
NOT
compatible.
MAX:200mm/8"
MAX:
200mm/8"
Yes ---
Perfect!
No ---
This mount is
NOT
compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2M2M
5
Safety Caution
Solid concrete
wall?
Pencil Screwdriver Electrodrill Socket Wrench
3/8"(10mm)
Stud Finder Awl 1/8"(3mm)
Wood Drill Bit
5/16"(8mm)
Masonry Drill Bit Hammer
1
3
What is your wall
made of?
1
Is your TV VESA
equal to/greater than
50x50mm/2x2"
and equal to/less than
200x200mm/8x8"?
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please contact customer service.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Eono.
● Incorrect installation may result in product damage or body injury. Eono shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.

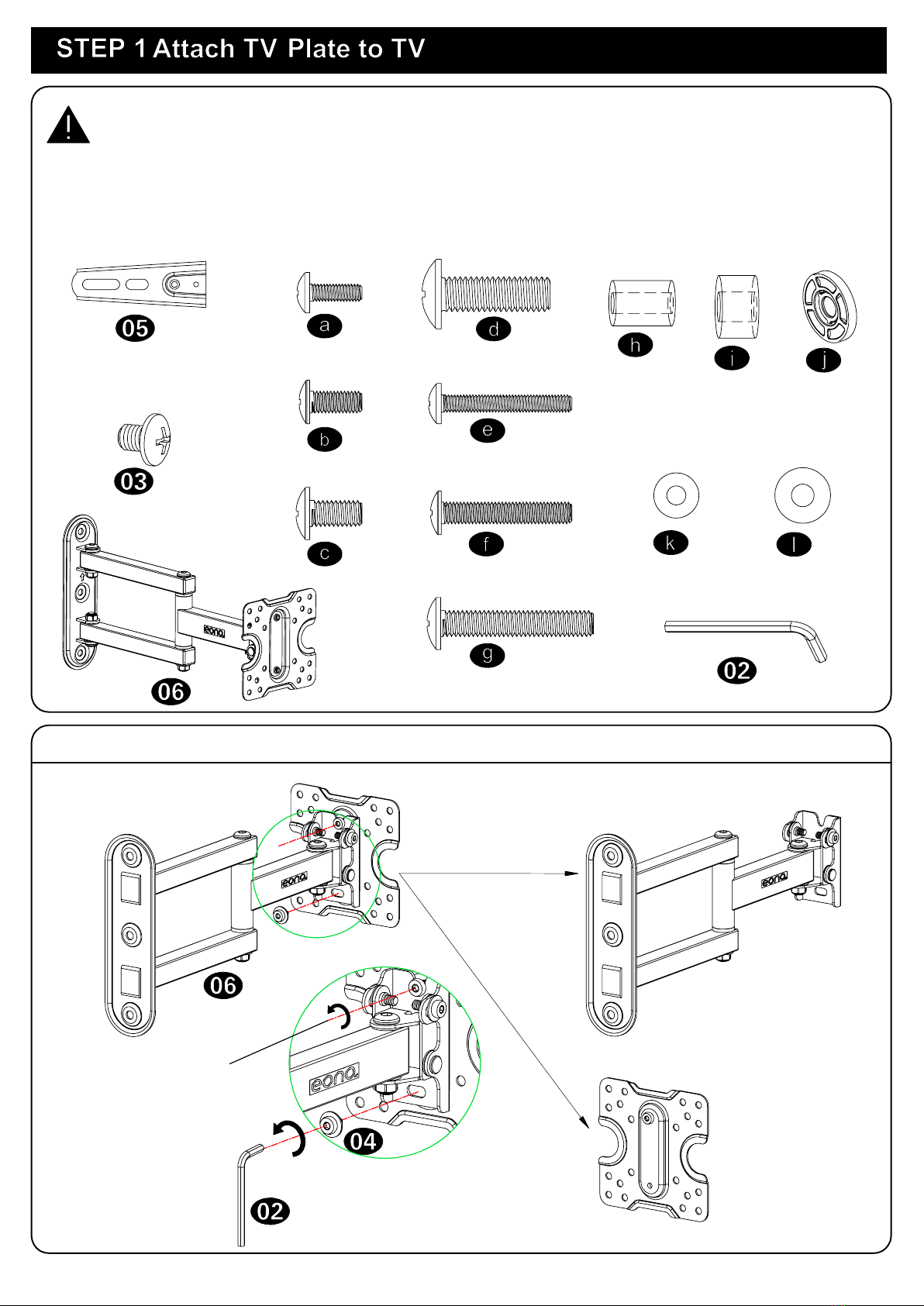

Parts and Hardware
2
x4
M6x8mm
1-1 Disassemble Wall Plate Unit into Two Pieces
Extended Arm Screws
M4x12mm
M6x12mm
M4x30mm
M6x35mm
M6x17mm
M4/M5 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4
x4
x4
x4
x4 x4
x4 x8
x4
Wall Plate
Unit
x1
Extended Arm
x4
TV plate
Wall plate
M5x12mm
M5x30mm
x4 x4
M8x25mm
x4
Allen Key
x1
Loosen the bolt on the
back of TV plate by 2
turns.
Do Not Have It
ENTIRELY LOOSE
WARNING:
This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact customer service.
NOTE:
Not all hardware included will be used.
3
①
50mm x 50mm
②
75mm x 75mm
③
100mm x 100mm
④
100mm x 200mm
⑤
150mm x 150mm
⑥
200mm x 200mm
⑦
200mm x 100mm

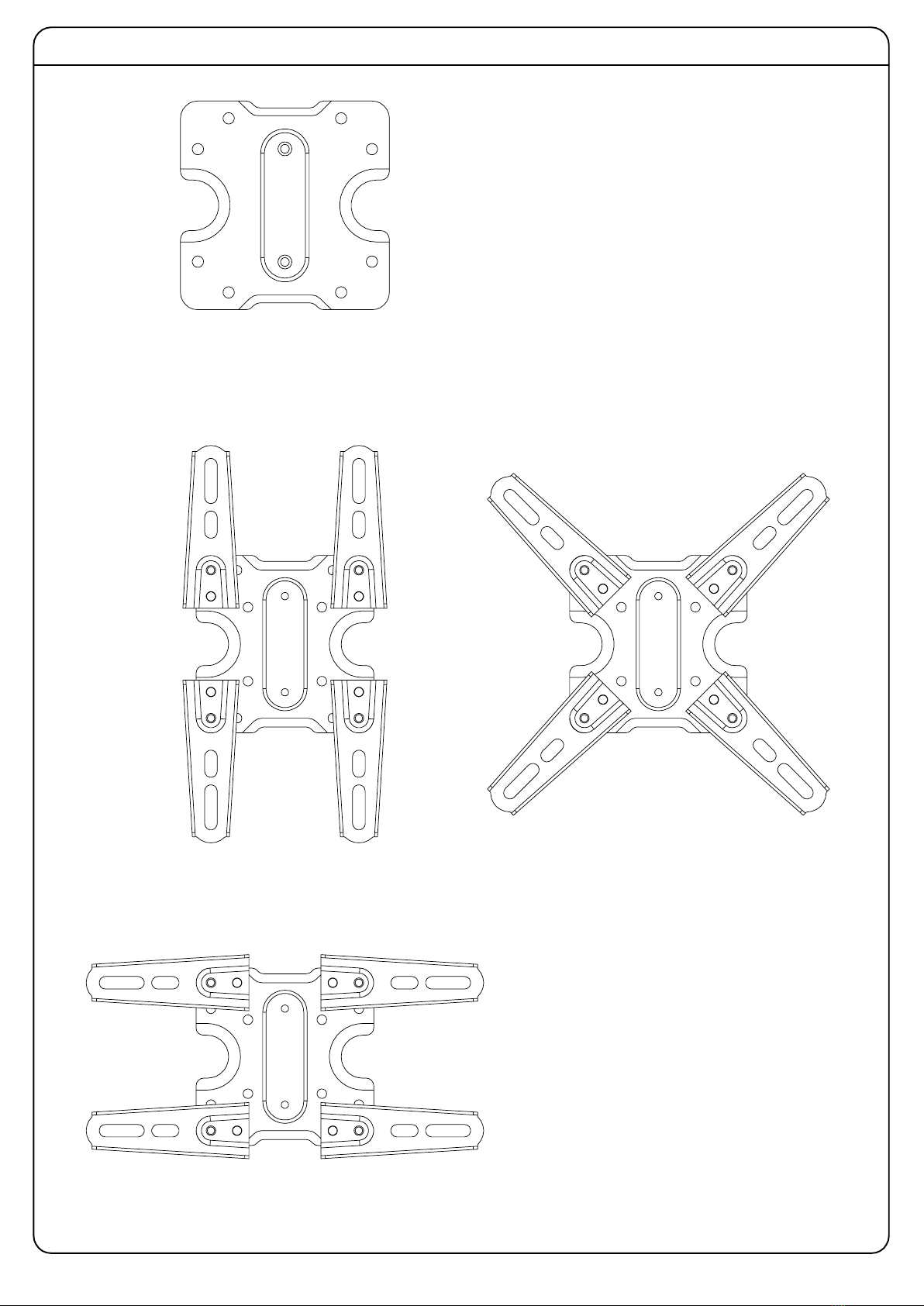

1-2 Choose Configuration
① ①
①①
② ②
②②
③③
③ ③
④④
④④
⑤ ⑤
⑤
⑤
⑥⑥
⑥⑥
⑦ ⑦
⑦⑦
⑤
150mm x 150mm
⑥
200mm x 200mm
④
100mm x 200mm
⑦
200mm x 100mm
①
50mm x 50mm
②
75mm x 75mm
③
100mm x 100mm
4
M8
M6
M4

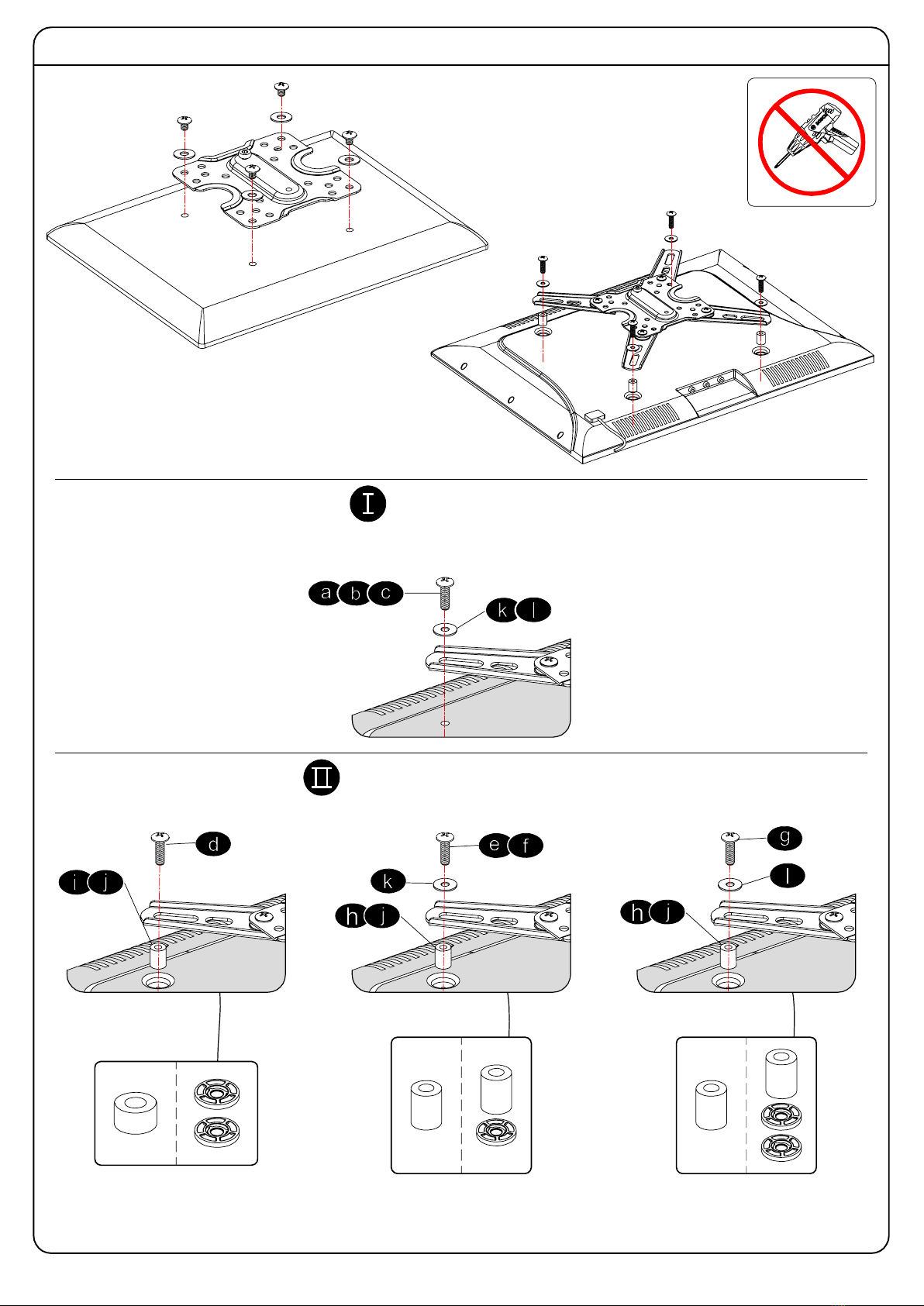

1-4 Select TV Screws
P
P
O
OO
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 5 for detailed combination.
Yes, go to PAGE 5 for detailed combination.
TV back
1-5 Need Spacer?
Short Screw
Washer
1-3 Extended arms assembly example (for reference)
Tips: If you need to combine M6(g) or M8(d) screw with 2.5mm spacer(j), you have to
remove the inner circle.
Screw and washer
Spacer(s), screw and washer

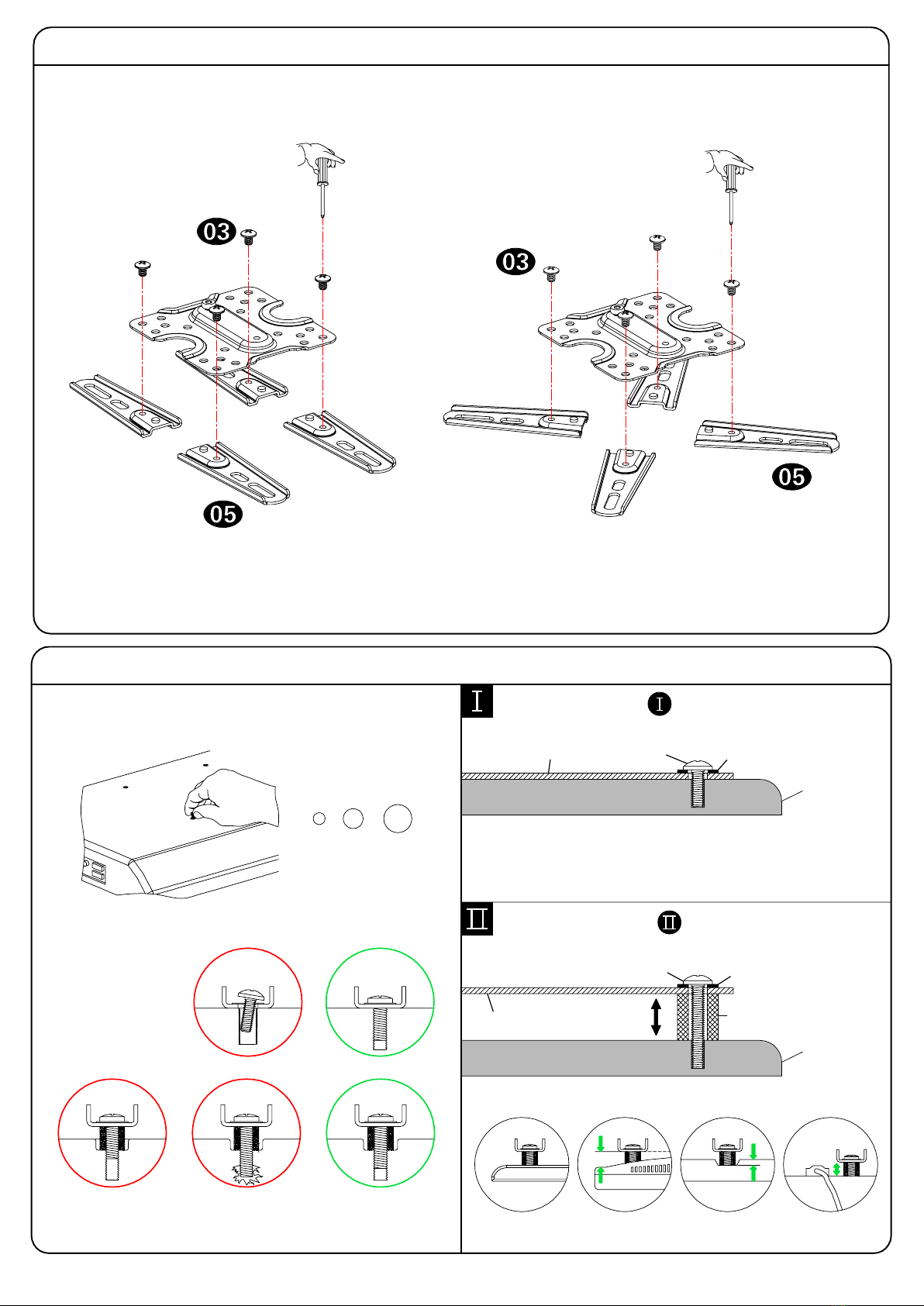

1-6 Attach TV Plate to TV Back
5
No!

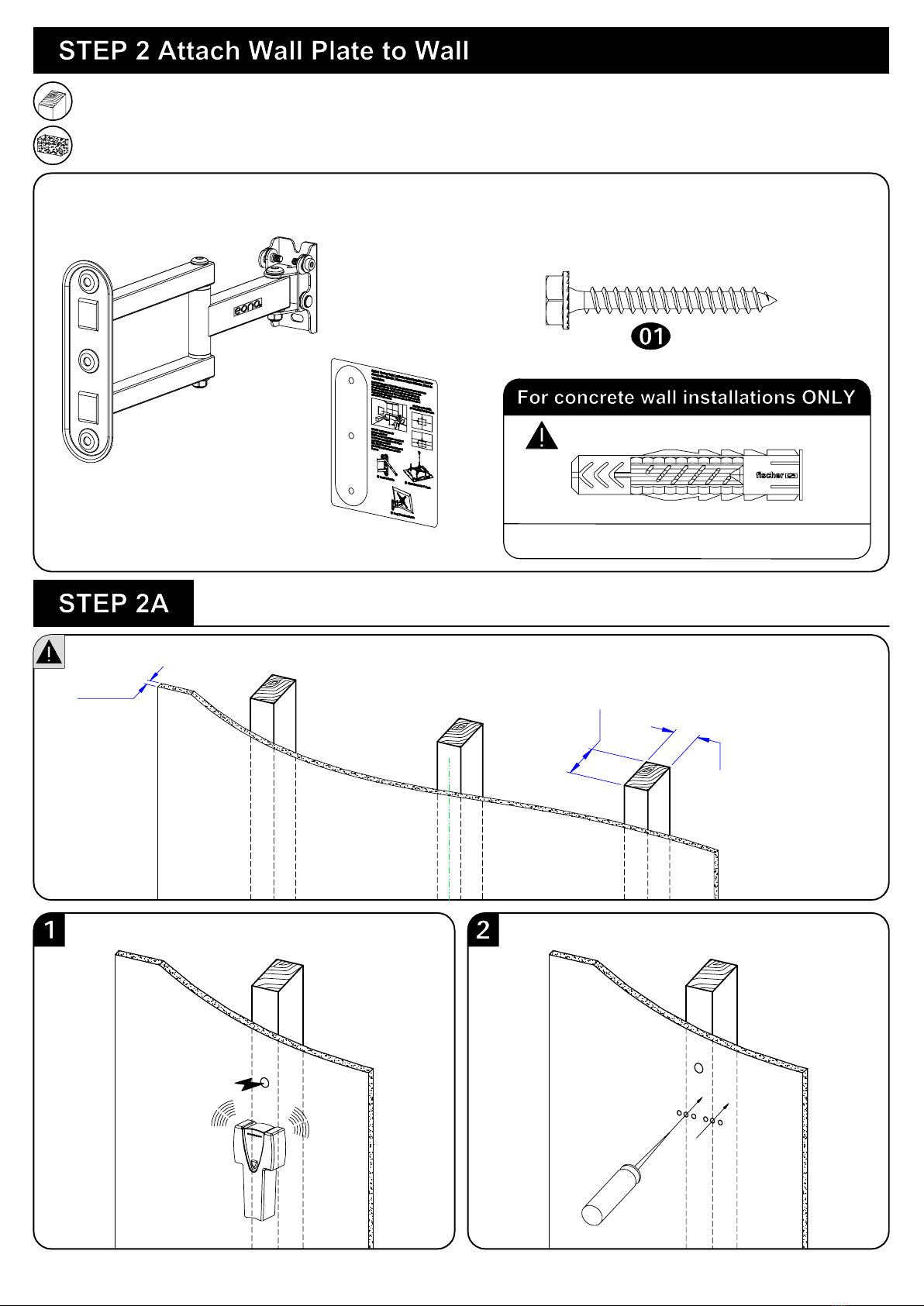

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 8
<16mm
(5/8")
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Parts and Hardware

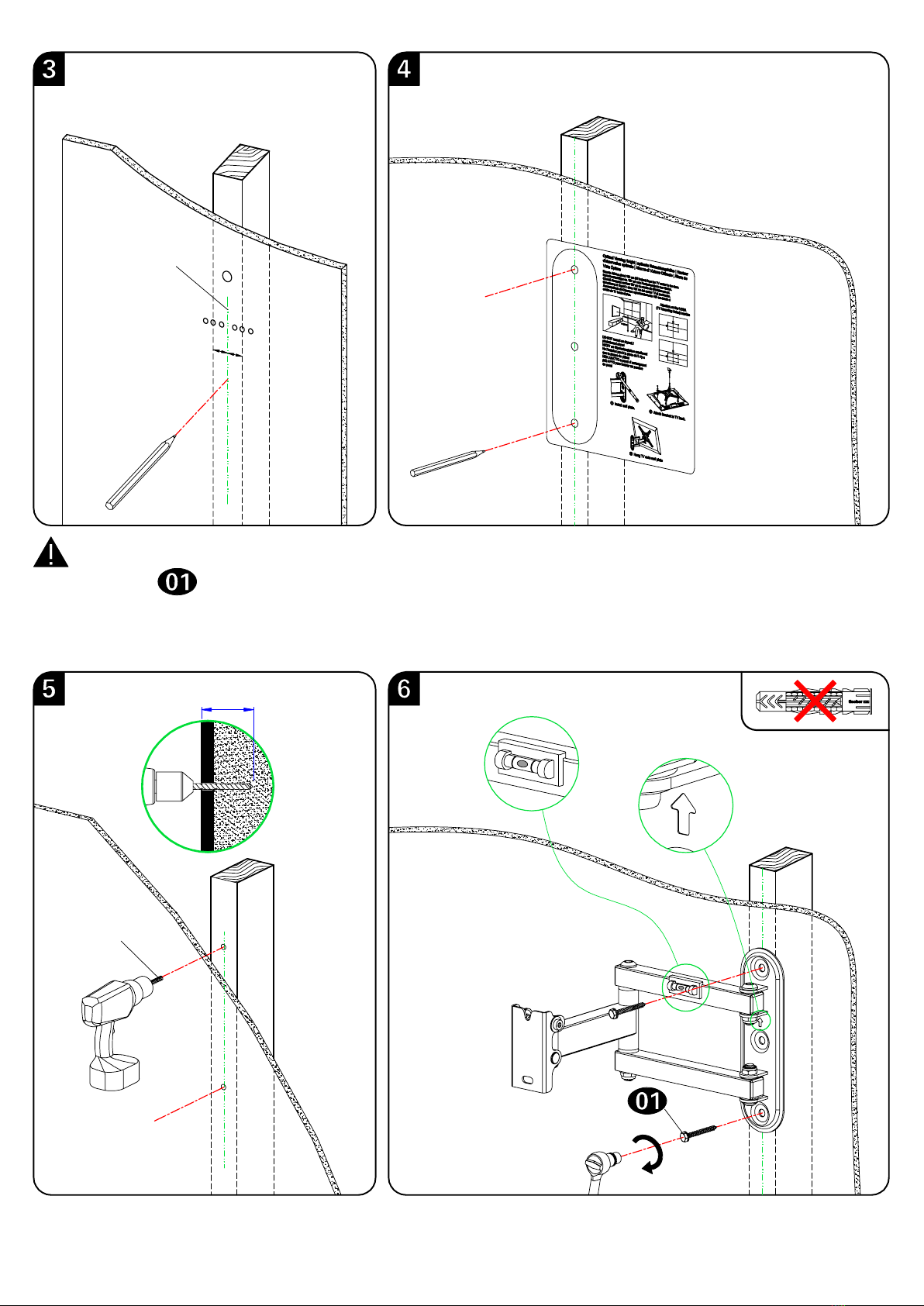

Wood Stud Installation
6
Wall Plate
Lag Bolt M6x60mm
x3
Mounting Template Concrete Wall Anchor 3pcs
CAUTION:
Do not use in drywall or wood
Fischer UX8x50 R
1/8"
(3mm)
Go to Step 3 on PAGE 9.
7
O
Centre line
2.5"(65mm) Level
Wall plate
CAUTION:
To avoid potential personal injury or property damage:
All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
Mounting Template
UP
Solid Concrete Wall Installation
8
2.5"
(65mm)
5/16"
(8mm)
Concrete Wall
Anchor Wall plate
Level
DANGER
Min.
8"(203mm)
CAUTION:
To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
Mounting Template
UP
9
50 LBS (22.7 KG)

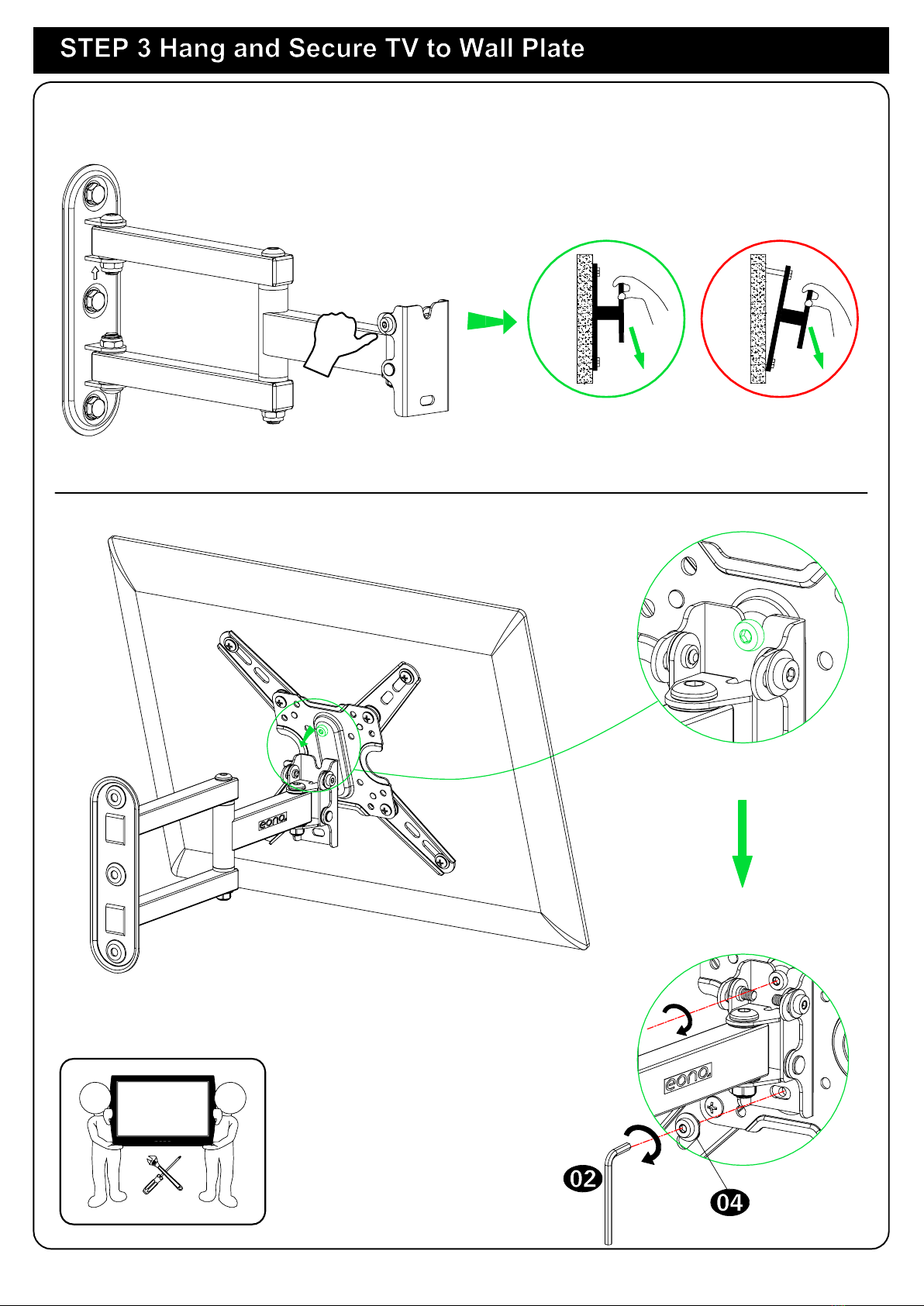

Before hanging TV, please conduct "wall plate installation integrity test" first.
PO
TV
1 2
