Model TT-4501T
Features
1. Power supply: 12VDC input;
2. Plug & Play, real e transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable;
3. Unique Design: ABS engineering plas ase, Classic and elegant;
4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
Overview
TT4501T is single channel HD active UTP Video Transmitter over Cat5e/6, compatible with HD-CVI/TVI/AHD/CVBS analog cameras. It is widely applied to
the field of CCTV Video Transmission.
HD Picture
HD Active Video Balun
HD Active Video Balun
Installaon steps
1.Before installaon, please check the devices and accessories as blow included in the package; If not, please contact with the manufacturer directly.
1pc
1) TT4501T
2) User Manual 1pc
2. Please follow the below steps for installaon.
1) Power off, make sure no damage for the device；
2) Connect TT4501R to DVR, Male BNC of TT4501T to the female BNC of Camera, the other side of TT4501T to power connector and UTP cat5e/6；
3) Check the connecon of transmier and receiver accordingly, make sure keep the same pin connecon table；
4) Power on aer well connected.
Specificaons and Parameters
Product Name Single Channel HD Acve Transmier
Input power supply 12V/1A
Video connector over coax BNC Male connector
Cable Cat5e/ 6（copper）
An-Interference >60db
Resoluon Rao 720P/1080P
Impedance
BNC Male 75ohms
UTP 100ohms
Transmission Distance
(Connect with HD Passive Video Receiver
Or HD Acve Video Receiver)
Resoluon Rao
Soluon
1080P
Passive RX
1080P
Acve RX
720P
Passive RX
720P
Acve RX
HD-CVI 360M 470M 450M 550M
HD-TVI 320M 400M 320M 400M
AHD 360M 470M 500M 700M
Dimension 60*30*24.5mm（L*W*H）
Weight（g) 50g
MTBF MTBF>20000H
Color Black
Operang Temperature
Working Temperature: -5～45;
Storage Temperature: -20～70;
Environment Humidity
Working Humidity: 90%，non-condensaon;
Storage Humidity: 95%，non-condensaon;
HD Active Video Balun
HD Active Video Balun
Trouble shoong
If something has gone wrong with the device, please follow up the below steps to solve the problems:
1) Check whether the connecon is well or not according to the user manual；
2) Check whether the UTP cable connect well or not, with open circuit or not, andthe pin connecon table of transmier andreceiver right or not；
3) Check the transmission distance is no more than the max transmission distance；
4) Check the power input of TT4501T is 12VDC or not；
5) Change the faulty device with well working device to check the device damaged or not；
6) If the device sll cannot work,please contact the manufacturer.
Aer-sale Service
There is 1-year world-wide warranty from the date of purchasing.
The warranty terms as below for your reference.
1) Return: within 15 days from the shipping date due to the quality problems
2) Replacement: within 30 days from the shipping date due to the quality problems
3) Maintenance:
Within 1-year warranty period, free of charge for repair.
Exceeding 1-year warranty, the repair is paid by customers according to the situaon of the device.
The following factors resulted in the failure or damage for the device are not covered under the warranty terms:
1) All man-made damage, including non-normal work environment, not in accordance with user manual and improper storage, etc;
2) Users disassemble, repair or take the product to a undesignated maintenance point by manufacturer for detecon and maintenance;
3) Failure or damage is due to force majeure and other unexpected events (such as natural disasters, fire, lightning and earthquakes);
4) Other problems and faulty caused by the non-normal use.
HD Active Video Balun
HD Active Video Balun

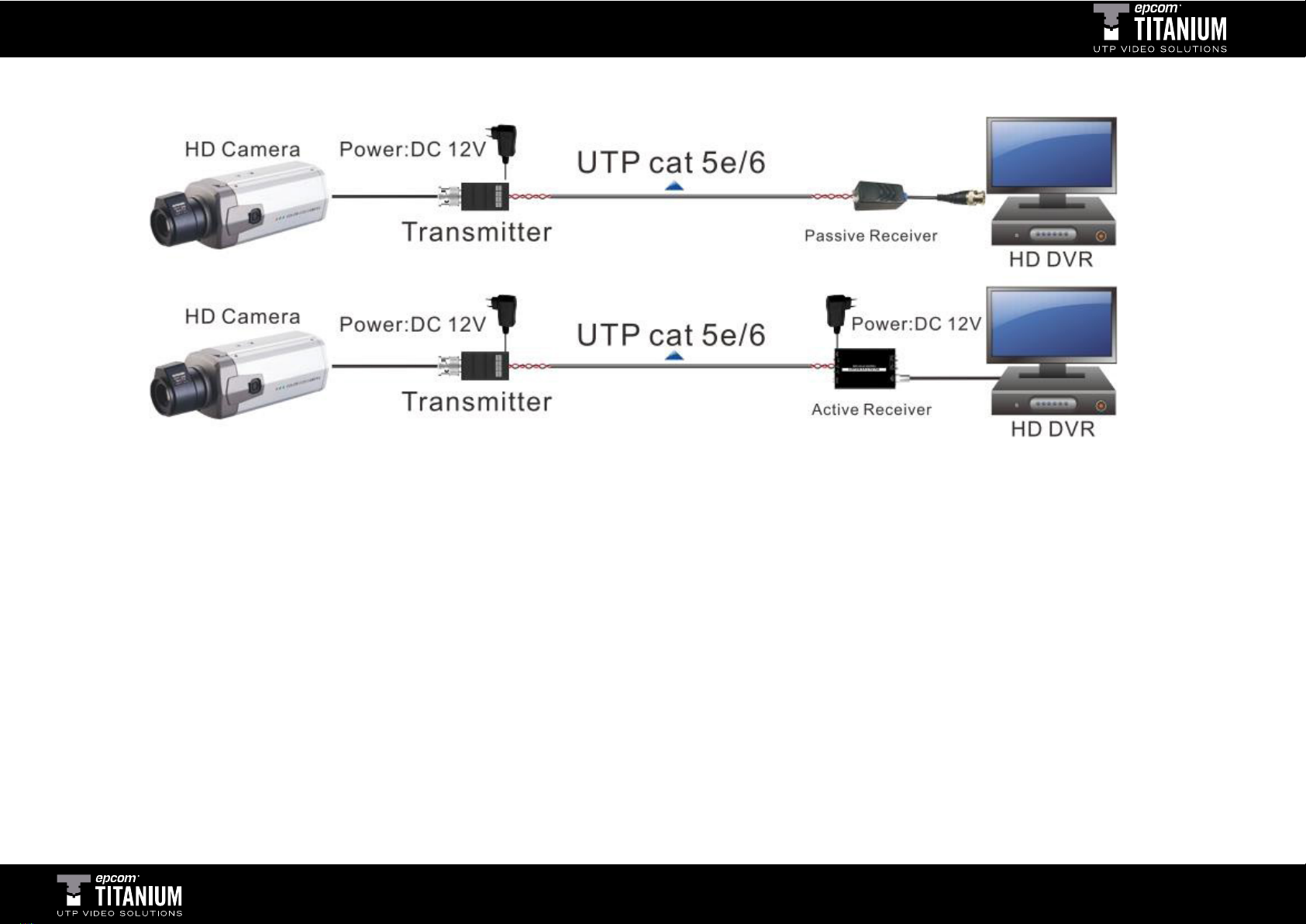

Applicaon Diagram
HD Active Video Balun
HD Active Video Balun
