Epever Epsolar eBox-WIFI-01 Manuale utente

Installaon Manual for

eBox-WIFI-01

and Android App

For MPPT Epever controller

on systems equipped with

Lithium LFP KS2 corp

baeries

Rev 1

February 2019

1. This manual is intended for eBox-WIFI-

01 RS485 To WIFI converter and it’s cor-

responding app for Android devices. To

be used in MPPT solar charge controller

Tracer 3215BN.

2. All parameters shown here are intended

to use with KS2 Corp baeries only and

are not recommended for any other

type of baery.

3. To be used by trained personnel only,

electrocuon dangers involved. Read

carefully all Epever MPPT , solar panels,

vehicle and baeries documentaon,

warnings and/or wiring procedures ,

ver- ify all

con-

necons and wirings before energize.

Installaon:

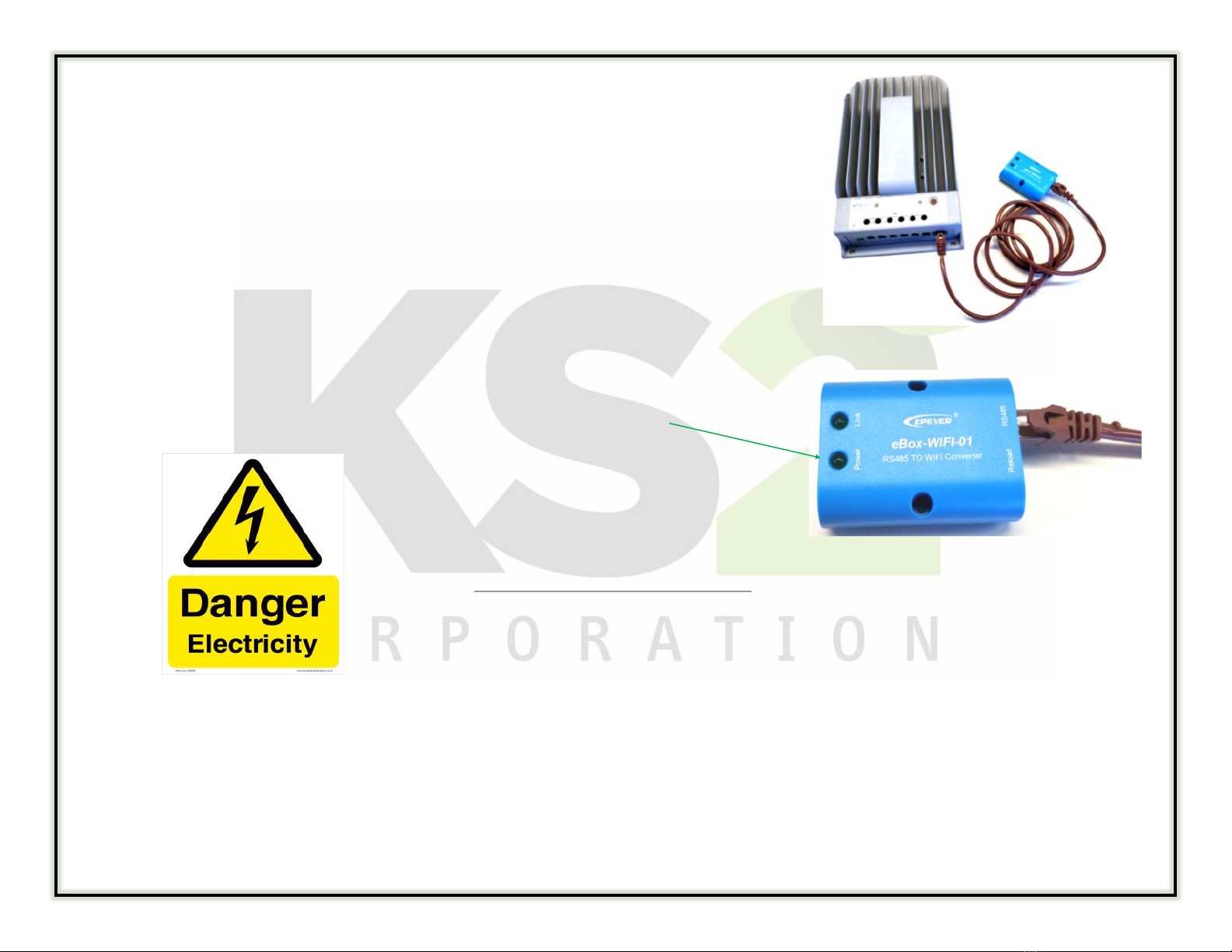

Connect e-Box-WIFI to the RJ45 port on your MPPT

Epever device as shown.

Turn ON MPPT controller

Wait for Power green LED ON

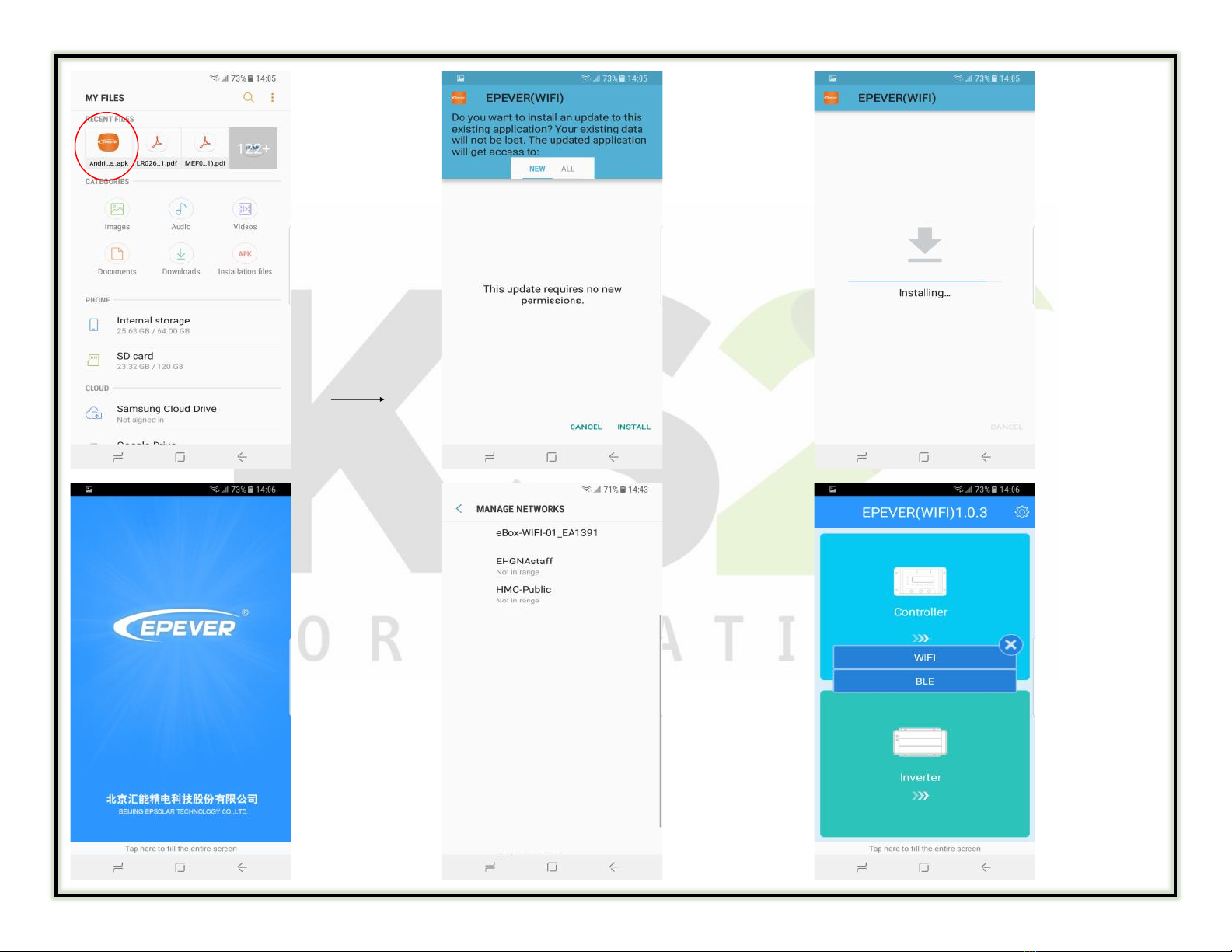

Get Android App by downloading it from:

hps://www.epsolarpv.com/downso.html

Download the

app le into your

phone ,

look for it likely

on recent les or

in downloads

Please note this

app works only on

Android devices

If requested, you

will need to grant

permissions for

the app

installaon

depending on

your phone

preferred sengs

Wait for

installaon

When nished

installaon

choose to open

the app

The device will

create a wi-

network which

you can connect

to in order to

receive/send

informaon,

choose eBox-WIFI

network and

connect to it

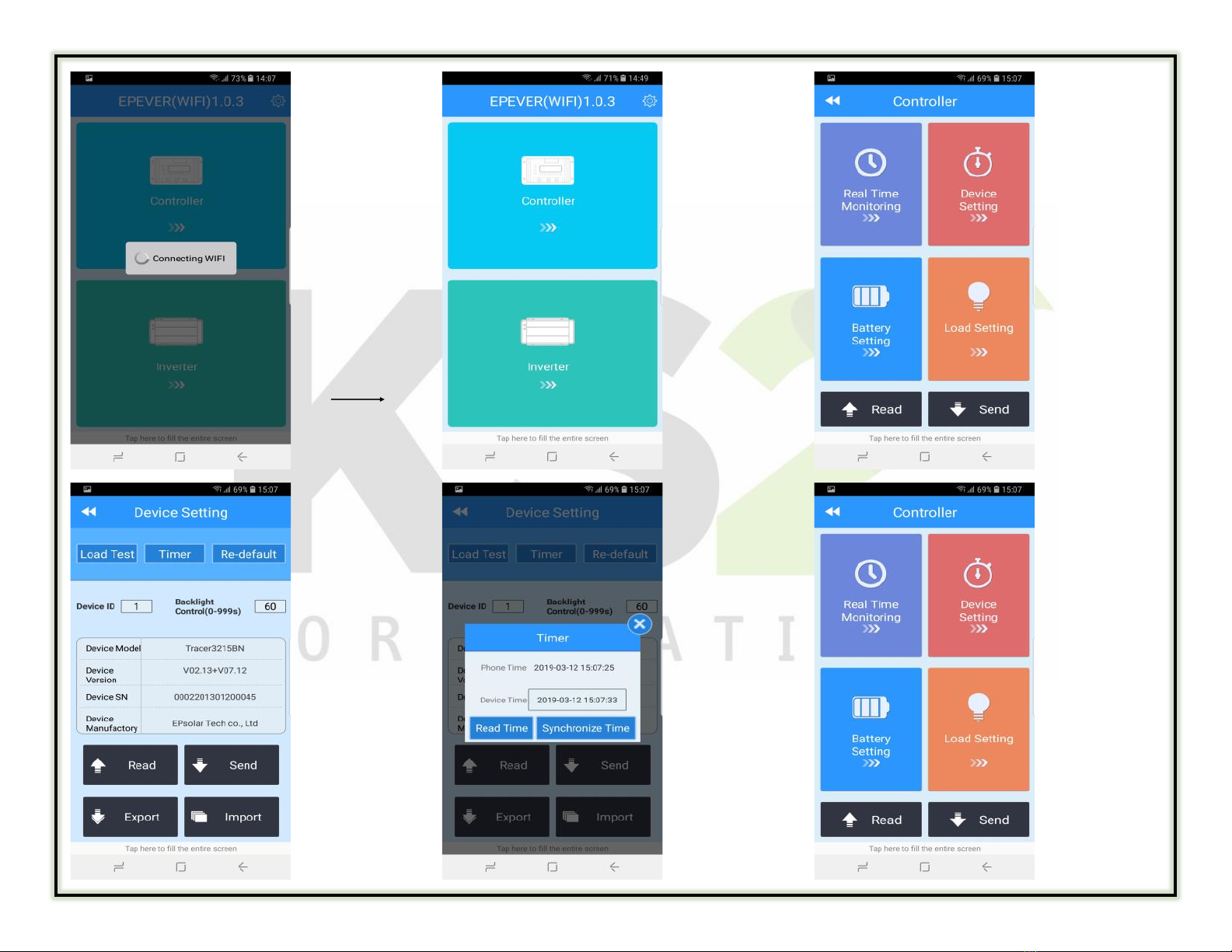

When connected

to the device’s

WIFI network

chose WiFi blue

buon

Wait for the

devices to

connect

When ready,

choose the blue

screen to enter

the controller

applicaon

From here you

can go to the

dierent features

for the MPPT

Press Device

Seng

At device seng:

Press read buon

to load your

MPPT’s

informaon.

If you have more

than one you can

change the Device

ID and press send

to save it on the

MPPT

Press Timer

buon on the top

center:

Press read me to

obtain the me

registered on

your MPPT, if

need press

Synchronize to

sync with your

phone’s me

Press baery

seng

Common Advanced

Baery Type User Boost Duraon (min) 120

Rated Voltage Level 12V Equalize Duraon (min) 120

Temp Compensaon ( °C) -3

Over Volt Disconnect (V) 15.5

Over Volt Reconnect (V) 14.4

Equalize Charging (V) 14

Boost Charging (V) 13.8

Float Charging (V) 13.7

Boost Recon Charge (V) 13.25

Charging Limit (V) 14.1

Discharging Limit (V) 11.6

Low V Disconnect (V) 11.9

Low Volt Reconnect (V) 12.9

Undervoltage Warning (V) 12.2

Under voltage Warning Recon-

nect (V) 12.9

At Baery Seng

Press Read:

If necessary

change Baery

Type to USER and

Rated voltage

according your

KS2 baery

voltage see table

below

Now you can

check advanced

parameters

according your

KS2 baery

voltage see table

below

Scroll down for to

connue

When nished

press Send if you

want to modify

the sengs or

just go back if no

modicaons

were needed

This sengs are aimed for 12V-200Ah

models such as H, L1 and L2

For Baery voltages 24V or 48V models

and /or other baery capacies such as

400Ah or 800Ah please contact:

[email protected]m

To see device

working press

Real Time

Monitoring

Here you can see

the device

acvity, press on

any element to

enter details

Details on

Photocell

readings

Details on Baery

readings

Details on Load

readings

(Not Used on

must EHG /

Roadtrek

vehicles)

For any quesons please contact:

[email protected]m
