Installation Instructions for

Epson Artisan 1430 Continuous Ink System

List of Contents

1. Continuous Ink System

2. Installation Manual

3. Tube Support Bracket

4. Spare Grommets

5. Spare Sticky Pads

6. Spare Rubber Seals

7. 60ml Syringe

8. Sharp Needle

9. Screwdriver

10. Spare Plastic Elbows

Page | 2

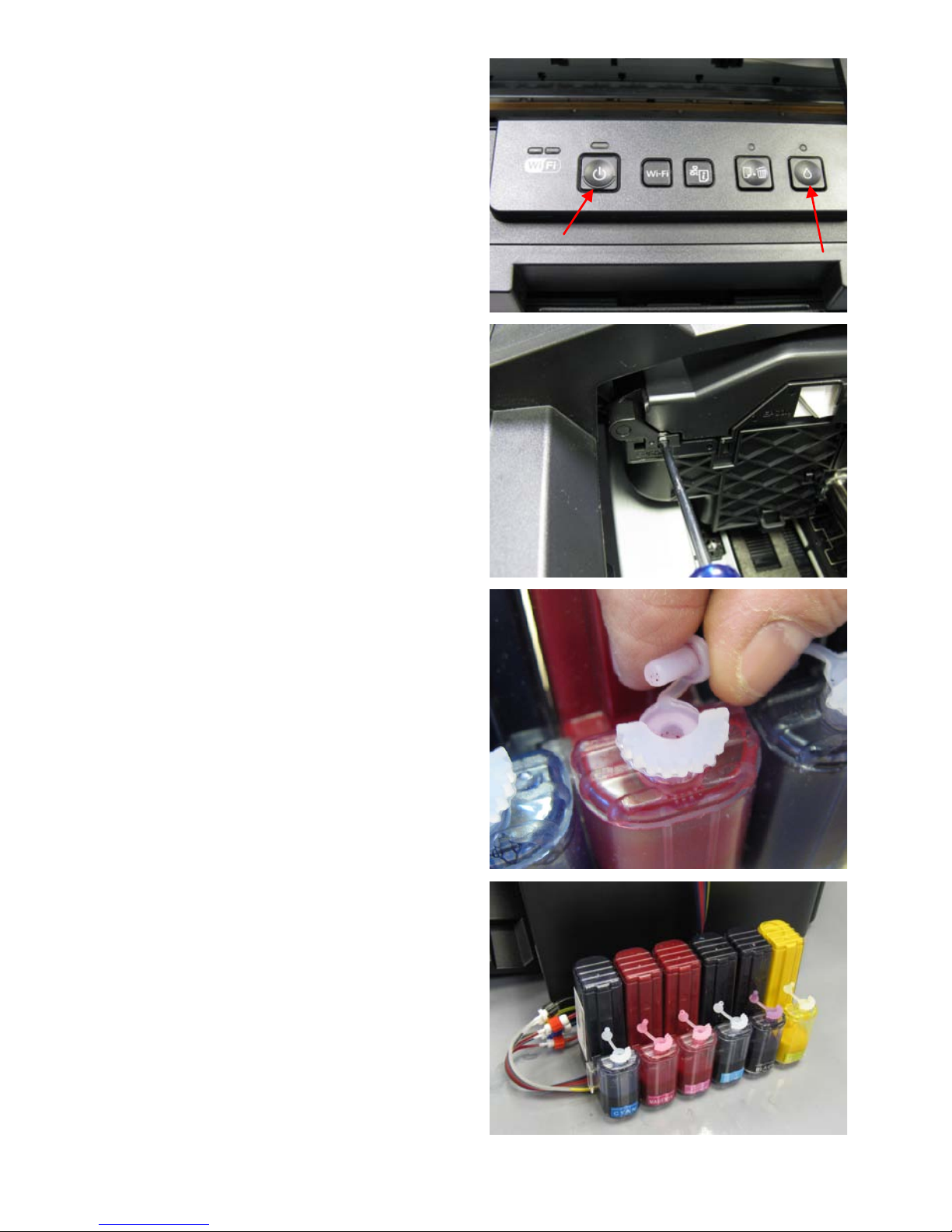

Power on the printer and press the ink

button. When the carriage has moved to

the cartridge removal position unplug the

mains cable from the printer.

This allows the carriage to be moved

manually.

Move the carriage to the left, insert the

screwdriver into the hole and raise the

screwdriver to lever off the hinge. Remove

the cartridge lid.

Remove any cartridges from the machine.

Remove the centre bung from the rubber

seal.

BE CAREFUL NOT TO DAMAGE THE SEALS

WHEN REMOVING THE CENTRE BUNG

Repeat this for all colours, then place to

the right of the printer as shown.

NEVER PLACE THE BOTTLES HIGHER THAN

THE LEVEL OF THE PRINT HEAD

Page | 3

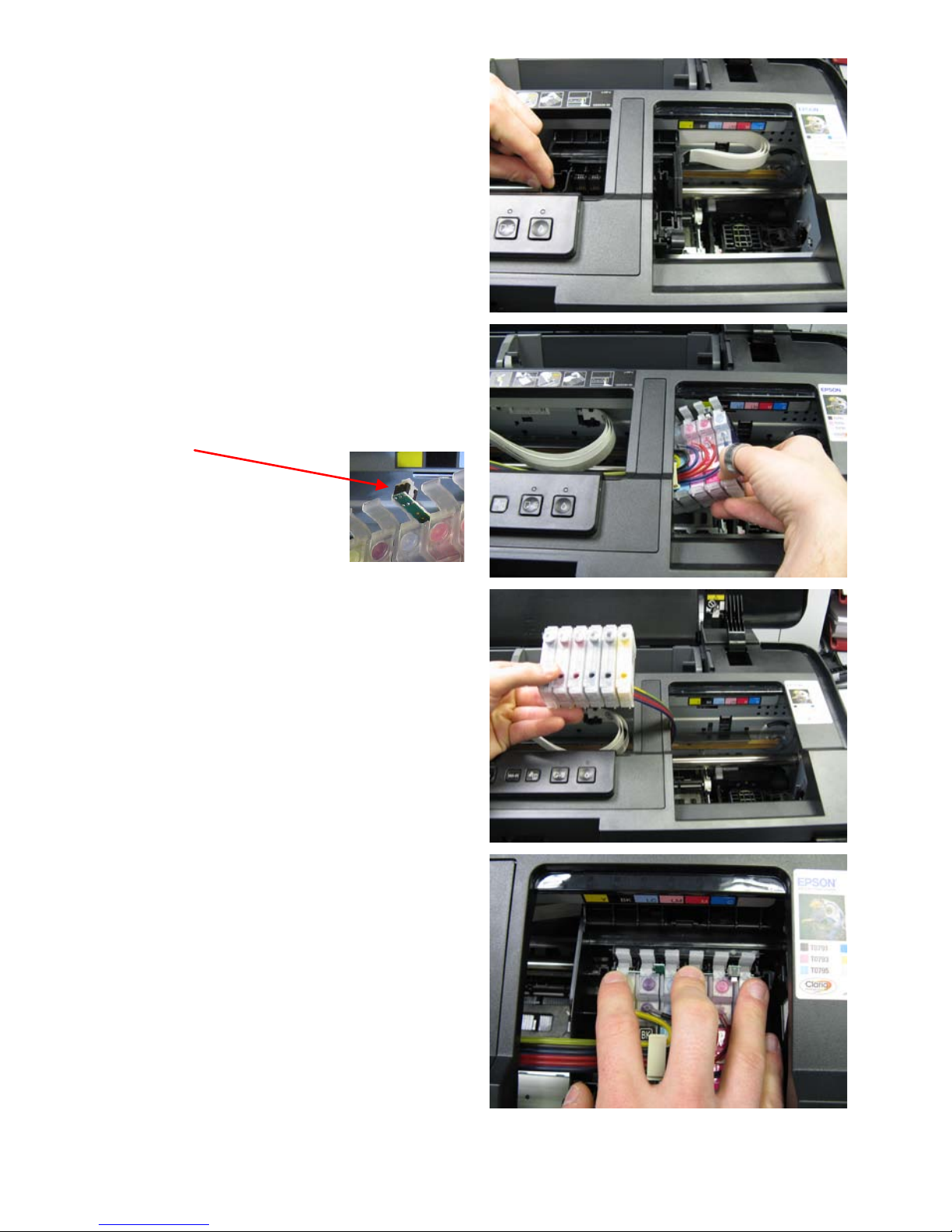

Move the carriage to the left hand side of

the printer.

Feed the cartridges under the printer

housing.

TAKE CARE NOT TO DAMAGE THE CHIP

RESETTER

Place the cartridges on the housing whilst

you move the carriage back to the

cartridge removal position.

Place the cartridges into the carriage. Press

them down firmly by spreading fingers

across all the cartridges.

Important:

ENSURE THAT EACH CARTRIDGE HAS

CLICKED INTO PLACE.

Page | 4

Remove the backing tape from the sticky

pads on the tube support bracket.

Position the bracket around the printer

button housing, ensuring the plastic tab

fits into the slot.

ENSURE THE SURFACE OF THE PRINTER

HOUSING IS CLEAN AND DRY

Place the tubes into the tube support

bracket and move the carriage all the way

to the left of the printer, remove any slack

by adjusting the tubes while in the support

bracket.

Remove the backing tape from the small

support bracket and fit as shown.

ENSURE THE SURFACE OF THE PRINTER

HOUSING IS CLEAN AND DRY

Attach the printer lid support brackets as

shown. You can now close the lid.

Page | 5

Plug in the mains power cable

and power on the printer.

The printer will go through the

initial ink charge before your

system is ready for use.

If the orange ink light is

illuminated when the printer is

powered on, press the ink button

to move the carriage to the

removal position.

Press and hold the chip reset

button for 5 seconds.

Press the ink button and the

printer will begin the initial ink

charge.

Page | 6

Your system is now ready for use.

Visit www.sawgrasseurope.com/technical-support for further instructions on how to

configure your Epson Stylus Photo 1500W for use with sublimation ink:

Setup should be completed in the following order:

1. Sublimation Installation Guide

2. Epson Driver Configuration

3. Printing from your graphics software application.

Page | 7

REFILLING THE BOTTLES

Lay the bottles down and remove the

rubber bung from the colour you wish to

refill.

Use the syringe and nozzle attachment

to fill the colour.

You cannot fill the reservoir further than

the hole allows.

Do not stand the system up so you can

fill the smaller chamber, this system

works on the principle that the smaller

chamber is partially empty.

Return the bottles to an upright position

and replace the rubber seal ensuring the

centre bungs are removed.
