Epson Stylus CX5800 Guida

1 Unpack

Remove all the tape.

If anything is missing, contact Epson® as described on the back in

“Any Questions?”.

2 Unlock the Printer

1 Lift up the scanner.

2 Remove the tape from the ink

cartridge holder.

3 Close the scanner.

*410409100*

Epson Stylus® CX5800F

Star t Here

Start

Color OK

3 Turn On the Epson Stylus CX5800F

1 Connect the power cable.

2 Press the On button.

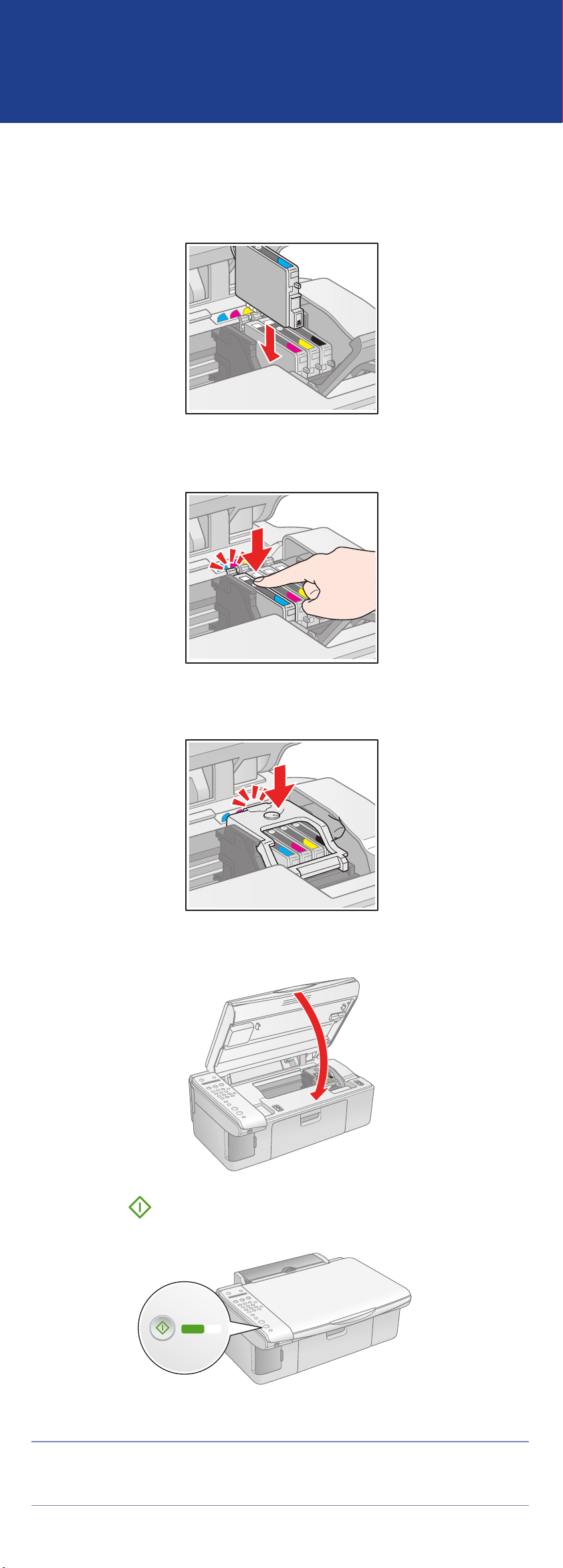

4 Install Ink Cartridges

Note: Don’t load paper before installing the ink cartridges.

1 Lift up the scanner, then press

the OK button.

2 Open the ink cartridge cover.

3 Shake the ink cartridges, then

unpack them.

4 Insert the cartridges in the holder for each color.

5 Press the cartridges down until they click.

6 Close the ink cartridge cover and press it down until it clicks.

7 Close the scanner.

8 Press the OK button to charge ink. Charging takes about

2 minutes.

Caution: Don’t turn off the Epson Stylus CX5800F while Charging

appears on the LCD screen or you’ll waste ink.

Start

Color OK

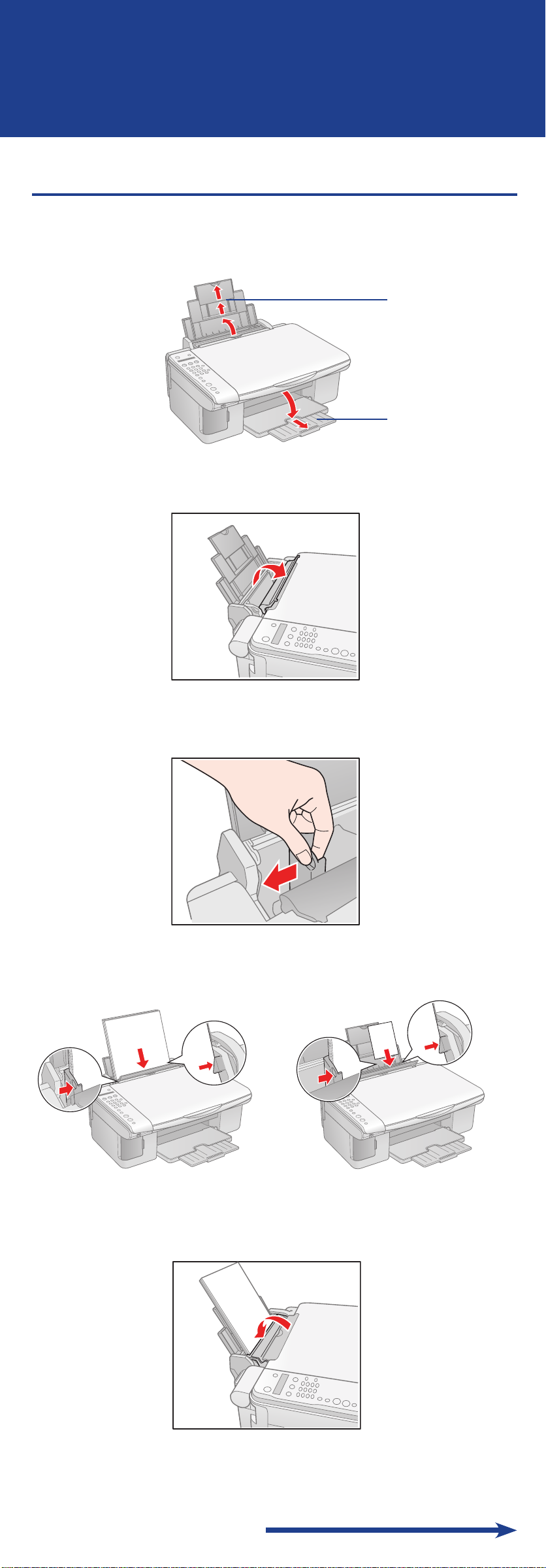

5 Load Paper

1 Open the paper support and pull up its extensions.

2 Open the output tray and pull out its extension.

3 Flip the feeder guard forward.

4 Slide the edge guide left.

5 Load paper against the right edge guide and slide the left edge

guide over.

6 Flip the feeder guard back.

Paper support

Output tray

Letter size 4 x 6-inch or 5 x 7-inch

6 Install Software

Your software works with Windows® 98SE, Me, 2000,

and XP, and Macintosh® OS X 10.2.x to OS X 10.4.x.

Windows

Make sure the Epson Stylus CX5800F is

NOT CONNECTED to your computer.

Note: If you see a screen like this,

click Cancel and disconnect the

USB cable. You can’t install your

software that way.

2 Insert the Epson Stylus CX5800F CD.

3 Click Install and follow the

on-screen instructions. Software

installation takes several minutes.

4 When prompted, connect the USB cable. Use any open USB port on

your computer.

Note: If installation doesn’t continue after a moment, make sure you

securely connected and turned on the Epson Stylus CX5800F.

5 When you’re done, remove the CD and restart your computer.

You’re ready to copy, print, and scan! See the Basics Guide or your

on-screen User’s Guide.

To connect your Epson Stylus CX5800F to a phone line for faxing,

see “Connect Phone Line” to the right.

Macintosh

1 Insert the Epson Stylus CX5800F CD.

2 Open the Epson CD-ROM desktop icon

and double-click the

5 When you’re done, remove the CD and restart your computer.

You’re ready to copy, print, and scan! See the Basics Guide or your

on-screen User’s Guide.

To connect your Epson Stylus CX5800F to a phone line for faxing,

see “Connect Phone Line” to the right.

Macintosh

1 Insert the Epson Stylus CX5800F CD.

2 Open the Epson CD-ROM desktop icon

and double-click the Epson icon.

3 Click Install and follow the

on-screen instructions. Software

installation takes several minutes.

If necessary, close any open

windows on your screen to

return to the installer.

4 Connect the USB cable. Use any open USB port on your computer.

5 Remove the CD and restart your Macintosh.

6 Open the Applications > Utilities folder and select the Printer

Setup Utility (OS X 10.3.x to 10.4.x) or Print Center (OS X 10.2.x).

7 Click the Add button.

8 In OS X 10.4.x, select Stylus CX5800F.

In OS X 10.2.x to 10.3.x, select EPSON USB at the top and

Stylus CX5800F below.

9 Click Add.

10 Quit the Printer Setup Utility or Print Center.

You’re ready to copy, print, and scan! See the Basics Guide or your

on-screen User’s Guide.

To connect your Epson Stylus CX5800F to a phone line for faxing,

see the next section.

7 Connect Phone Line

Mac® OS X 10.4.x

Mac OS X 10.2.x to 10.3.x

7 Connect Phone Line

If you are going to connect a dedicated phone line to the Epson Stylus

CX5800F for faxing, connect it as shown below.

If you want to connect a telephone or answering machine, see the Basics

Guide for instructions.

Connect the phone cable leading from your telephone wall jack to the

LINE port on the back of the Epson Stylus CX5800F.

Note: If you connected the Epson Stylus CX5800F to a DSL phone line,

you must install a DSL ﬁlter to the line or you won’t be able to fax. Contact

your DSL provider for the necessary ﬁlter.

Any Problems?

If the green On light is ﬂashing, just wait until it stops before pressing

any control panel buttons.

If you see a Paper out message on the display, reload paper and

press the OK button to continue.

If you see a No ink cartridge message on the display, an ink

cartridge may be installed incorrectly. Press the OK button, then

open the scanner and push down the cartridges and cartridge cover

all the way. See section 4 on the front of this sheet for instructions.

If you see a Paper jam message on the display, press the OK

button to eject the paper, then pull out the jammed sheets from

the sheet feeder or output tray. See the Basics Guide for details.

See your Basics Guide and on-screen User’s Guide for more

problem-solving information.

EXT.

LINE

Cancel/Back

Setup

100%

Fit to Page

Auto Answer

Print From Index

Answer

Mode

Tone

Redial

Pause

Print All

DPOF

Fax Resolution

Print IndexSend

Rec. Fax

Fax Contrast

Plain Paper

Photo Paper

Letter5“x7”

4“x6”

Copy

Memory Card

Fax

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

symb

Start

B&W

Start

Color OK

On light

Display

Start Color/OK button

Any Questions?

Look here for answers:

Basics Guide

Basic steps for using the Epson Stylus CX5800F.

On-screen User’s Guide

Double-click the desktop shortcut for easy access to Epson Stylus

CX5800F information.

On-screen help with your software

Select Help or ? when you’re using your software.

Epson Technical Support

World Wide Web

http://support.epson.com

Automated Telephone Services

Call (800) 922-8911 with a touch tone telephone. Use Epson

SoundAdviceSM Express Code 82710 for the Epson Stylus CX5800F.

Speak to a Technical Support Representative

Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM,

Paciﬁc Time, Monday through Friday. Toll or long distance charges

may apply.

Software Technical Support

ArcSoft PhotoImpression™

(510) 440-9901

Web: www.arcsoft.com

E-mail: [email protected]

Need Paper and Ink?

For the best prints, copies, and faxes, use genuine Epson ink and paper.

Get them from your local store or contact Epson for dealer referral.

Premium Glossy Photo Paper

Heavyweight paper with a high gloss ﬁnish

for beautiful photographs in a variety of sizes,

with borders or borderless.

Other ﬁne Epson papers are available.

See your Basics Guide for details.

Epson and Epson Stylus are registered trademarks of Seiko Epson Corporation. DURABrite is a registered

trademark and SoundAdvice is a service mark of Epson America, Inc.

General Notice: Other product names used herein are for identiﬁcation purposes only and may be trademarks

of their respective owners. Epson disclaims any and all rights in those marks.

CPD-20212R1

Printed in XXXXXX XX.XX-XX XXX

T060120

Black

T060220

Cyan

T060320

Magenta

T060420

Yellow
