Network Installation Guide
Epson Stylus
®
NX510 Series
Network Guide_R1.fm Page 1 Wednesday, April 8, 2009 2:37 PM
2
Before You Begin
Before You Begin
Make sure you installed ink cartridges and loaded paper as described on the
Start Here sheet. Then follow the instructions in this guide to set up the printer for
use on a network.
Tip:
For a video tutorial and other information about setting up a wireless network, go to:
epson.com/support/wireless.
Do one of the following:
■If you’re installing the printer for the first time, see “Choose Your Connection
Type” on page 3.
■If you’re setting up an additional computer to use the printer on the network,
follow the steps in “Install Software” on page 23.
Network Guide_R1.fm Page 2 Wednesday, April 8, 2009 2:37 PM
Choose Your Connection Type
3
Choose Your Connection Type
Wireless To connect the printer wirelessly, see page 4.
Note:
If you want to print wirelessly but do not have an access point or router, see “Create an
Ad-Hoc Wireless Connection” on page 16.
Wired To connect the printer using an Ethernet cable, see page 22.
Network Guide_R1.fm Page 3 Wednesday, April 8, 2009 2:37 PM
4
Wireless Network Installation
Wireless Network Installation
To add the printer to your wireless network, you need to know the name (SSID)
of your wireless network. If it has security enabled, you also need to know the
WEP key or WPA passphrase. Write down your network and security information
in the space provided below:
■Network name (SSID): _________________________________________
■WEP key or WPA passphrase: ____________________________________
Note:
If your WPA passphrase contains upper- or lowercase letters, be sure to note it
correctly.
If you don’t know your wireless network name (SSID), WEP key, or WPA passphrase,
contact the person who set up your wireless network before you begin.
Connect Wirelessly Using the Setup Wizard
Follow the steps below to connect to your wireless network.
1. Press the
F
Setup
button on the printer’s control panel.
2. Press lor rto select
Network Settings
, then press
OK
.
Network Guide_R1.fm Page 4 Wednesday, April 8, 2009 2:37 PM
Wireless Network Installation
5
3. Press
OK
to select
Wireless LAN Setup
.
4. Press
OK
to select
Setup Wizard
.
5. Press uor dto select the name of your wireless network, then press
OK
.
If your network name isn’t listed, try the following:
■Make sure that your wireless router or access point is turned on and
working correctly. Press the y
Back
button to return to the previous
screen, press
OK
to select
Setup Wizard
, then repeat step 5.
■If you still can’t find the network name in the list, your router or access
point is not broadcasting its network name. Press the y
Back
button, then
see “Connect Wirelessly Using Advanced Setup” on page 8.
6. Do one of the following:
■If your wireless network doesn’t have security enabled, continue
with step 9.
■If your wireless network has security enabled, continue with step 7.
Network Guide_R1.fm Page 5 Wednesday, April 8, 2009 2:37 PM
6
Wireless Network Installation
7. Use the arrow buttons on the printer’s control panel to enter your WEP key or
WPA passphrase. Press the x
Menu
button to switch between uppercase,
lowercase, or numeric/special characters.
Important:
WPA passphrases and WEP keys in ASCII format are case-sensitive. Be sure to
enter upper- or lowercase letters as necessary.
■Press x
Menu
to switch between uppercase (
ABC
), lowercase (
abc
), or
numeric/special (
123
) characters.
■Press uor duntil you see the character you want.
■Press lor rto move the cursor.
■Press
–
to delete a character.
8. When you’re done entering your WEP key or WPA passphrase, press
OK
.
Indicates current selection. Press the xMenu
button to switch between uppercase, lowercase,
or numeric/special characters.
From the printer’s control panel:
Press uor dto select a character.
Press lor rto move the cursor.
Press –to delete a character.
Press OK when done.
Network Guide_R1.fm Page 6 Wednesday, April 8, 2009 2:37 PM
Wireless Network Installation
7
9. When you see a screen like this one, verify that the settings are correct. If you
need to change a setting, press y
Back
until you see the setting you need to
change.
10. Once you have verified that your network settings are correct, press
OK
to save
the settings and return to the Network Settings menu.
11. Press the r
Copy
button to exit the Network Settings Menu.
12. Wait for the printer to connect to your wireless network (this can take up to
90 seconds).
Once it’s connected, you see a green
WiFi
light on the printer’s control panel.
13. Continue with “Install Software” on page 23.
Note:
If the printer doesn’t connect to your wireless network after 90 seconds, the WEP key
or WPA passphrase may have been entered incorrectly. See “Connect Wirelessly Using
the Setup Wizard” on page 4 to select your network settings again.
If the printer still doesn’t connect to your wireless network, see “The printer cannot
find or connect to the wireless router or access point” on page 31.
WiFi light
Network Guide_R1.fm Page 7 Wednesday, April 8, 2009 2:37 PM
8
Wireless Network Installation

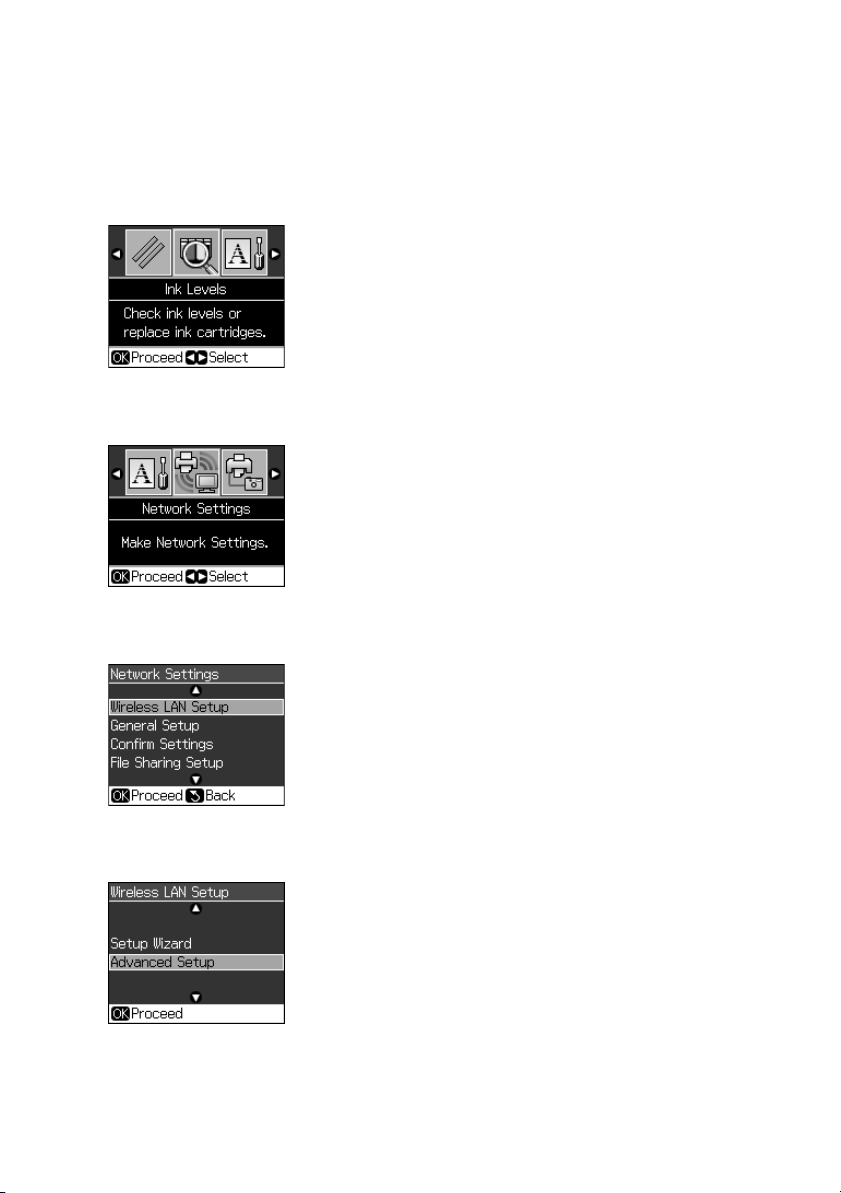

Connect Wirelessly Using Advanced Setup
Use this setup method if your access point or router isn’t broadcasting its network
name (SSID).
1. Press the F
Setup
button on the printer’s control panel.
2. Press lor rto select
Network Settings
, then press
OK
.
3. Press
OK
to select
Wireless LAN Setup
.
4. Press uor dto select
Advanced Setup
, then press
OK
.
Network Guide_R1.fm Page 8 Wednesday, April 8, 2009 2:37 PM
Wireless Network Installation
9

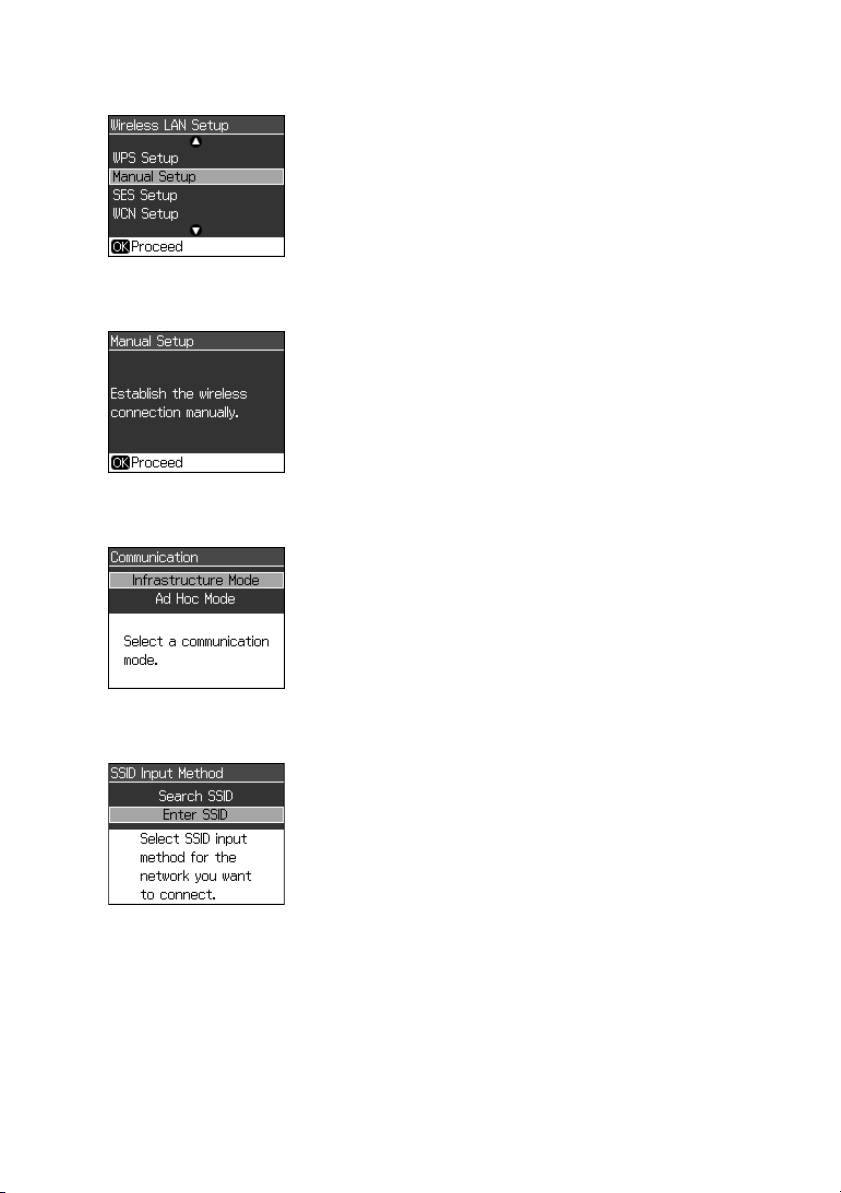

5. Press uor dto select
Manual Setup
, then press
OK
.
6. When you see this screen, press
OK
.
7. Press uor dto select
Infrastructure Mode
, then press
OK
.
8. Press uor dto select
Enter SSID
, then press
OK
.
Network Guide_R1.fm Page 9 Wednesday, April 8, 2009 2:37 PM
10
Wireless Network Installation
9. Use the arrow buttons on the printer’s control panel to enter your wireless
network name (SSID). Press the x
Menu
button to switch between
uppercase, lowercase, or numeric/special characters.
Important:
Network names are case-sensitive. Be sure to enter upper- or lowercase letters as
necessary.
■Press x
Menu
to switch between uppercase (
ABC
), lowercase (
abc
), or
numeric/special (
123
) characters.
■Press uor duntil you see the character you want.
■Press lor rto move the cursor.
■Press
–
to delete a character.
10. When you’re done entering your wireless network name, press
OK
.
Indicates current selection. Press the xMenu
button to switch between uppercase, lowercase,
or numeric/special characters.
From the printer’s control panel:
Press uor dto select a character.
Press lor rto move the cursor.
Press –to delete a character.
Press OK when done.
