EPSON Endeavor L

power

(SPEED)

hard disk diskette

power

light

accesslight drive

button

Memory

bay for hard disk, diskette drive,

CD-ROM drive, tape drive, or other

option card slots

Video RAM

ROM

Shadow RAM

Cache

Math

coprocessor

Computer Specifications

Clock/calendar

CPU and Memory

32-bit CPU Intel 486SX, DX, or DX2 processor

upgradable to faster, more powerful

processors, including SX2, DX4, or

Pentium OverDrive processors; DX4

processors require an adapter board to

regulate voltage

Energy Star Low power consumption, Energy Star

compliant in base configurations

(consumes less than 30 Watts)

System speed Fast and slow processor speeds available;

fast speed is the speed of your processor

and slow speed is 8 MHz; 0 wait state

memory access at fast speed

Press Ctrl, Alt, and - to select slow speed or

Ctrl, Alt, and + to select fast speed (use the

- or + on the numeric keypad); default

system speed selectable through SETUP

Controllers

Video

Diskette

Hard disk

Interfaces

Monitor

ISA bus speed for all processors is

8.3 MHz; local bus video speed reflects the

speed of the processor; at fast speed,

DX2/50 and DX2/66 processors run

internally at 50 and 66 MHz, but run

externally at 25 and 33 MHz; local bus

speeds for DX/2 processors are 25 and

33 MHz respectively

4MB RAM standard on system board;

expandable to 36MB using 1MB, 4MB, and

16MB SIMMs; SIMMs must be 72-pin,

32-bit or 36-bit, fast-page mode type with

an access speed of 70ns

128KB system and video BIOS and SETUP

code located in EPROM on main system

board

512KB or 1MB DRAM standard on main

system board; 512KB expandable to 1MB

using a 256 x 16-bit, 40-pin SOJ DRAM

chip

Supports shadowing of system and video

BIOS ROM into RAM

8KB of internal cache on processor;

supports 32KB, 64KB, 128KB, or 256KB of

external cache using 28-pin, 8 x 8, 20ns

DIP chips or 28-pin, 32 x 8, 20ns DIP chips

and 28-pin, 32

8, 15ns tag chips

For SX-based systems, can install an

80487SX processor with math coprocessor

support; math coprocessor built into

DX-based and Pentium OverDrive

processors

Real-time clock, calendar, and CMOS

RAM socketed on main system board with

external 3.6V battery backup

Cirrus Logic CD5428 high speed super

VGA local bus on-board controller with

True Color support

Controller on main system board supports

up to two diskette drives or one diskette

drive and one tape drive

Interface on main system board supports

up to two IDE hard disk drives with

built-in controller

Local bus SVGA interface for fixed or

multi-frequency monitor built into system

board; 15-pin, D-shell connector

3/94 EPSON Endeavor L - 1

EPSON Endeavor L

SVGA feature

connector

Parallel

Serial

Keyboard

Mouse

Option slots

Speaker

Mass storage

Diskette drives

Hard disk

drives

Other devices

Keyboard

SETUP

Program

SVGA pass-through interface built into

main system board; 26-pin connector

One standard 8-bit parallel uni- or

bi-directional interface built into main

system board; I/O address selectable

through SETUP; 25-pin, D-shell connector

Two RS-232C, programmable,

asynchronous interfaces built into main

system board; 9-pin, D-shell connectors

PS/2 compatible keyboard interface built

into main system board; 6-pin, mini DIN

connector

PS/2 compatible mouse interface built into

main system board; 6-pin mini DIN

connector

Four 16-bit (or 8-bit) I/O expansion slots,

ISA compatible, 8.33 MHz bus speed; three

slots accommodate any size card, bottom

slot can hold a half size card

Internal, piezo-electric speaker on main

board

Internal mounts:

One

3!4-inch

wide, half-height

Externally accessible mounts:

Two 5.25-inch wide, half-height

3.5-inch

diskette drive, 720KB or 1.44MB

storage capacity

5.25-inch diskette drive, 360KB or 1.2MB

storage capacity

Combination diskette drive; 3.5-inch,

1.44MB and 5.25-inch, 1.2MB

341-&h

form factor hard disk drive(s), up

to half-height size; the first mounted in the

vertical internal bay and the second

mounted in an externally accessible,

horizontal bay

Half-height tape drive, CD-ROM drive,

optical drive, or other storage device;

5Mr~h

3Wnch

with mounting frames

Detachable, two-position height; 101 or

102 sculpted keys; country-dependent

main typewriter keyboard; numeric/

cursor control keypad; four-key cursor

control keypad; 12 function keys

Stored in ROM; accessible by pressing the

Delete

key at the SETUP prompt during

boot

EPSON Endeavor L - 2

System security Password (up to 8 characters) defined in

SETUP for system boot and keyboard

unlock; definable hot key combination

locks the keyboard and mouse

Virus protection Write protection feature for boot sector of

the hard disk drive

Physical

Characteristics

Width

Depth

Height

weight

Power

Supply

Type

Input ranges

Maximum

outputs

Frequency

Cables

14.8 inches (370

mm)

16.5 inches (412

mm)

4.8 inches (120

mm)

16.7 lb (7.5 kg), with one diskette drive and

one hard disk, but without keyboard

85 Watt, Autosensing, UL listed, fan-cooled

100V to 125V

200V to 240v

VDC at 11 Amps, -5 VDC at 0.3 Amp,

+12 VDC at 2.0 Amps, -12 VDC at 0.3 Amp

50/60Hz

Two to main system board; four to mass

storage devices

Option

Slot

Power

Limits

Maximum current +5 Volts

-5 volts

+12 Volts

-12 volts

For each

slot

7 Amps 0.3 Amp 1.5 Amps 0.3 Amp

For all slots*

11 Amps

0.3 Amp 2 Amps

0.3 Amp

Environmental

Requirements

Non-operating

Condition range

range

Storage range

Temperature

41° to 90° F -4° to 140° F-4° to 140° F

(5° to 32° C) (-20° to 60° C)

(-20° to 60°C)

Humidity (non

20% to 90%

1O% to 90% 1O% to 90%

condensing)

Altitude

-330 to 9,900 ft -330 to 39,600 ft -330 to 39,600 ft

(-100 to 3,000 m)

(-100 to 12,000 m) (-100

12,000 m)

Maximum wet

68° F (20° C) 104° F (40° C) 134° F (57° C)

bulb

Acoustical noise

37.5 dB N/A N/A

3/94

EPSON Endeavor L

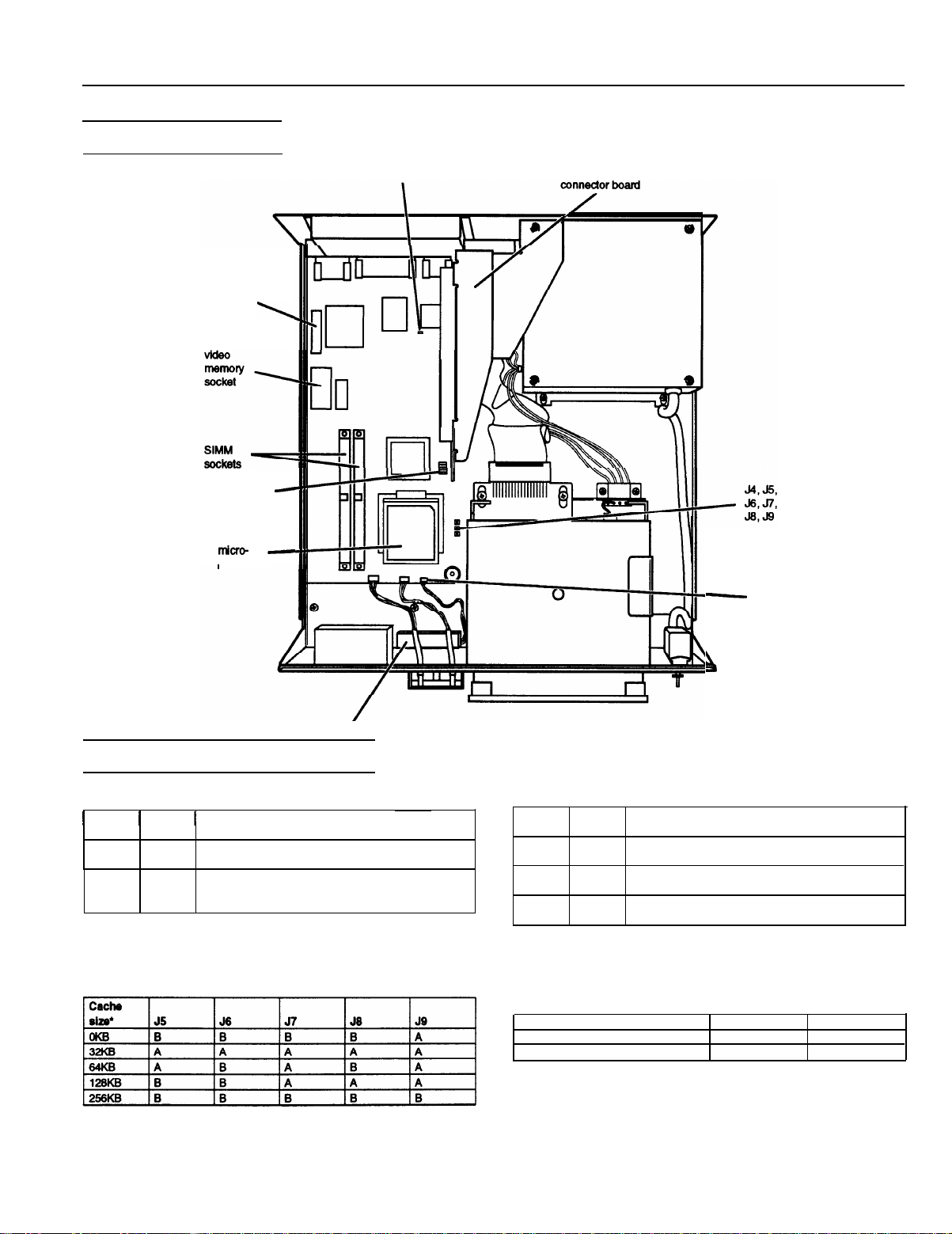

Major Subassemblies

SVGA

feature

connector

DIP

switches

micro-

processor

battery

Jumper and DIP Switch Settings

Jumper settings

Jumper

number setting Function

Enable the built-in VGA adapter

Disable the built-in VGA adapter

J4** AEnable DX-based or Pentium-based processor

in PGA

socket

Enable SX-based processor

in PGA socket

Factory setting

Factory set according to system CPU

External cache jumper settings

option card

CN3

DIP switch settings

Switch

number setting Function

3** On CPU Installed in PGA socket

off

CPU not installed in PGA socket

On* Password enable

off

Password disable

5On*

Color monitor

off

Monochrome monitor

Factory setting

Factory set according to system type

Clock speed DIP switch settings

CPU clock speed

25 MHz

33 MHz

Switch 1

off

Switch 2

off

Factory setting based on amount of external cache installed, if applicable

3/94 EPSON Endeavor L - 3

EPSON Endeavor L

System board components and connectors

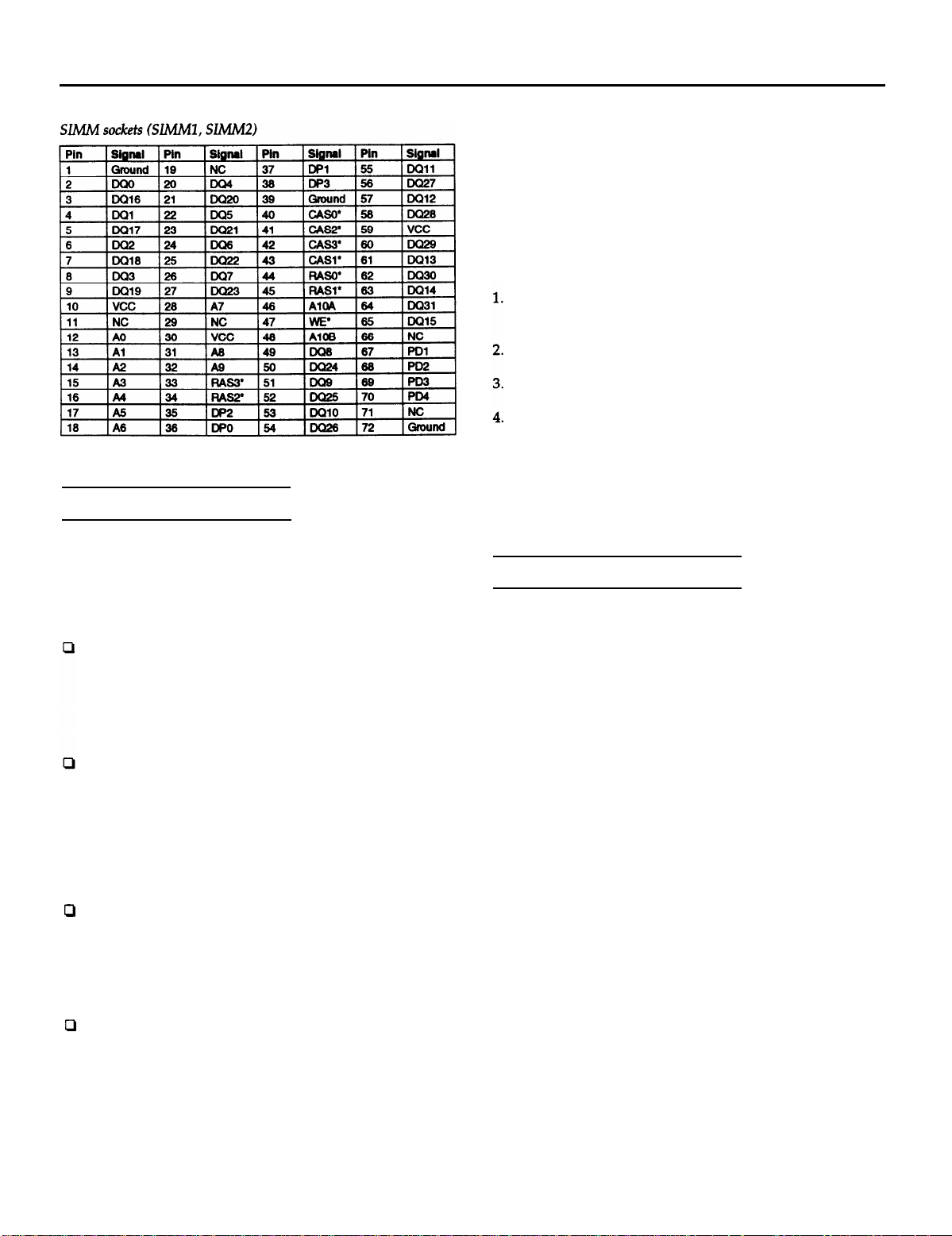

SIMM Installation

Your computer comes with 4MB of memory on the system

board. You can increase the memory up to 36MB by installing

1MB, 4MB, and 16MB SIMMs in the computer’s two SIMM

sockets. The following table shows the possible SIMM

configurations. You can install SIMMs in either SIMM socket.

SIMM

configuration

On-board

SIMM1

SIMM2

Total

memory

4MB

None

4MB*

4MB

1MB

4MB

1MB

4MB 4MB

4MB 16MB

4MB

16MB

None

1MB

None

4MB

None

1MB

4MB

16MB

5MB

6MB

8MB

12MB

20MB

21MB

24MB

36MB

Standard memory on the system board

Use only 32-bit, 72-pin, fast-page mode SIMMs that operate

at an access speed of 70ns. If 32-bit SIMMs are unavailable,

you can use 36-bit SIMMs instead.

Video Memory

This system comes with 512KB or 1MB of video memory. You

can increase the video memory to 1MB by installing a video

DRAM, 40-pin, 256KB x X-bit, SOJ chip.

Video resolutions and colors

Non-interlaced and interlaced

** Interlaced

External Cache

EPSON Authorized Servicers can install 32KB, 64KB, 128KB,

or 256KB of external cache on this system.

To install 32KB or 64KB of external cache, use SRAM,

28-pin, 8 x 8, 20ns DIP chips

To install 128KB or 256KB of external cache, use SRAM,

28-pin, 32 x 8, 20ns DIP chips

For all configurations of external cache, use two 28-pin,

32 x 8, 15ns tag chips

If you install external cache, make sure you set jumpers J5,

J6, J7, J8, and J9 as described on page 3.

For the cache memory to work properly, you must install

chips in the following configuration (each bank contains four

cache memory sockets).

Cache memory configurations

3/94 EPSON Endeavor L - 5

EPSON Endeavor L

Microprocessor Upgrades

The computer’s processor can be upgraded by replacing the

existing microprocessor with a faster one. You can either

purchase an upgrade kit from EPSON or buy the individual

components separately, as listed in the following table.

Microprocessor upgrade components

Actual formatted size may be slightly different than size on drive label

SX2, DX/33, DX/50, DX2/50, DX2/66, DX4, and Pentium

OverDrive processor upgrades require a heat sink.

You may also need to change the settings of jumper J4 or DIP

switches 1 and 2. See page 3.

Drive Option Information

Hard disk drive options for 1-inch IDE drives

Hard Disk Drive Types

The table below lists types of hard disk drives supported by

the computer. Check this table and the hard disk drive

manual to find the correct type number(s) for the hard disk

drive(s) installed in the computer. Enter the type number(s)

when you set the hard disk drive configuration in the SETUP

program.

Hard disk drive types

Select 1 or none for the precomp value. lf neither of these options are

available, select the maximum available precomp value.

EPSON Endeavor L - 6

3/94

EPSON Endeavor L

IDE hard disk drive

Hardware Interrupts

CS (cable selection) can he jumpered for any configuration. When CS is used,

the drive Is a master If pin 28 is grounded, or a slave if pin 28 Is not

grounded.

System Memory Map

Diskette and magneto optical drive options

DMA Assignments

3/94 EPSON Endeavor L - 7

EPSON Endeavor L

System l/O Address Map Connector Pin Assignments

Parallel port connector pin assignments (CN8)

Serial port connector pin assignments (CN9, CN10)

Pin Signal

Data canter detect 6Data set ready

2Receive data 7Request to send

3Transmit data 6Clear to send

Data terminal ready 9

Ring Indicator

Ground

III

Keyboard connector pin assignments (CN5)

Pin Signal

Data

Vcc

2Reset 5

clock

Ground

6NC

Mouse connector pin assignments (CN4)

Signal

Data 4VCC

2NC 5

clock

Ground

‘NC

VGA port connector pin assignments (CN13)

Pin Signal Pin Signal Pin Signal

Red 6

Ground

Reserved

Green

Ground

12 Reserved

Blue

Ground 13 Horizontal sync

Ground

9NC 14

Vertical sync

Ground

15 NC

VGA feature connector (CN14)

EPSON Endeavor L - 83/94

EPSON Endeavor L

Power supply connector pin assignments (CN1)

Diskette drive connector pin assignments (CN11)

**All odd-numbered pins are grounds

Hard disk drive connector pin assignments (CN12)

‘Active low logic

Speaker connector pin assignments (SP1)

Signal

Speaker

(+)

Battery connector pin assignments (CN3)

Pin Signal

RED wire (3.6v)

2BLACK (Ground)

Option card riser board connector pin 1;

*Active low logic

Option slot connector pin assignments

*Active low logic

assignments (CN2)

3/94 EPSON Endeavor L - 9

EPSON Endeavor L

Active low logic

Installation/Support Tips

Installing Diskette Drives

Make sure that the drive type has been correctly selected in

the SETUP program.

Installing Hard Disk Drives

When installing a hard disk drive, see the hard disk drive

type tables on page 6 to select the correct type number for

the drive. If the parameters for your drive are not listed,

you can define your own drive type by selecting drive

type 47 and entering the drive’s exact parameters for this

user-defined drive type.

It is recommended that a 16-bit, AT-type hard disk

controller be used if you are installing a drive that cannot

use the embedded IDE interface. If you install a non-IDE

hard disk drive and controller card, you need to use the

SETUP program to disable the built-in IDE hard disk drive

interface.

Software Problems

When installing a copy-protected software package, first

try the installation at high speed. If this does not work

properly, select low speed by pressing the

Ctrl

and

Alt

keys and the - key on the numeric keypad

simultaneously. Try loading the program at low speed

and then switching to high speed, if possible.

When using a software package that uses a key disk as its

copy-protection method, try loading it at high speed. If

this does not work, load it at low speed.

Booting Sequence

If you cannot boot the computer from the hard disk, make

sure the booting sequence in SETUP is set to

then C:.

Then boot the computer from a system diskette in drive A.

Password

Make sure that you do not forget the password you set up. If

you do:

Disable the password by setting DIP switch 4 on the main

system board to OFF.

Then turn the computer on and off again.

Set DIP switch 4 to ON to enable the password function.

Run SETUP to enter a new password, if desired.

You can also enter a hot key designation in SETUP to secure

the system from unauthorized users. Once a password and

hot key have been set, when the hot key is pressed, the

keyboard and mouse lock until the the user enters the

password.

Information Reference List

Engineering Change Notices

None.

Technical Information Bulletins

None.

Product Support Bulletins

None.

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
