Epson S5U13719P00C100 Manuale utente

SEIKO EPSON CORPORATION Rev. 1.1

S1D13719 Mobile Graphics Engine

S5U13719P00C100

Evaluation Board User

Manual

NOTICE

No part of this material may be reproduced or duplicated in any form or by any means without the written permission of Seiko

Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does not assume any lia-

bility of any kind arising out of any inaccuracies contained in this material or due to its application or use in any product or cir-

cuit and, further, there is no representation that this material is applicable to products requiring high level reliability, such as,

medical products. Moreover, no license to any intellectual property rights is granted by implication or otherwise, and there is

no representation or warranty that anything made in accordance with this material will be free from any patent or copyright

infringement of a third party. When exporting the products or technology described in this material, you should comply with

the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You are

requested not to use, to resell, to export and/or to otherwise dispose of the products (and any technical information furnished,

if any) for the development and/or manufacture of weapon of mass destruction or for other military purposes.

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective companies.

Evaluation Board/Kit and Development Tool Important Notice

1. This evaluation board/kit or development tool is designed for use for engineering evaluation, demonstration, or develop-

ment purposes only. Do not use it for other purposes. It is not intended to meet the requirements of design for finished

products.

2. This evaluation board/kit or development tool is intended for use by an electronics engineer and is not a consumer product.

The user should use it properly and in a safe manner. Seiko Epson does not assume any responsibility or liability of any

kind of damage and/or fire caused by the use of it. The user should cease to use it when any abnormal issue occurs even

during proper and safe use.

3. The part used for this evaluation board/kit or development tool may be changed without any notice.

S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1) EPSON 3

Table of Contents

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 3 Installation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Configuration DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.2 Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Chapter 4 Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1.1 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1.2 Voltage Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1.3 S1D13719 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2 Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.3 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.4 Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.4.1 Direct Host Bus Interface Support . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.4.2 Connecting to the Epson S5U13U00P00C100 USB Adapter Board . . . . . . . . . 14

4.5 LCD Panel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.6 Camera Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.7 SD Card Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.8 GPIO Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Chapter 5 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 6 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Chapter 7 S5U13719P00C100 Board Layout . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.1 Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.2 Document Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 9 Change Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4 EPSON S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1)

Chapter 1 Introduction

S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1) EPSON 5

Chapter 1 Introduction

This manual describes the setup and operation of the S5U13719P00C100 Evaluation Board. The evaluation board

is designed as an evaluation platform for the S1D13719 Mobile Graphics Engine.

The S5U13719P00C100 evaluation board can connect to the S5U13U00P00C100 USB Adapter board so that it can

be used with alaptop or desktop computer, viaUSB 2.0. The S5U13719P00C100 evaluation board can also be used

with many other native platforms via the host connectors which provide the appropriate signals to support a variety

of CPUs.

This user manual is updated as appropriate. Please check the Epson Research and Development Website at

www.erd.epson.com for the latest revision of this document before beginning any development.

We appreciate your comments on ourdocumentation. Please contact us via email at documentation@erd.epson.com.

Chapter 2 Features

6 EPSON S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1)

Chapter 2 Features

The S5U13719P00C100 Evaluation Board includes the following features:

• 180-pin PFBGA S1D13719 Mobile Graphics Engine

• Headers for connection to the S5U13U00P00C100 USB Adapter board

• Headers for connecting to various Host Bus Interfaces

• Headers for connecting to LCD panels

• Headers for connecting to cameras

• On-board 32.768kHz oscillator

• 14-pin DIP socket (if an oscillator other than 32.768kHz must be used)

• SD Card interface (optional)

• 3.3V input power

• On-board voltage regulators for 1.8V and for 2.7V

• On-board voltage regulator with adjustable 12~25V output, 60~100mA max., to provide power for LED back-

light of LCD panels.

Chapter 3 Installation and Configuration

S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1) EPSON 7

Chapter 3 Installation and Configuration

The S5U13719P00C100 evaluation board incorporates a DIP switch, jumpers, and 0 ohm resistors whichallow it to

be used with a variety of different configurations.

3.1 Configuration DIP Switch

The S1D13719 has configuration inputs (CNF[7:0]) which are read on the rising edge of RESET#. An 8-position

DIP switch (SW1) is used to configure the S1D13719 for multiple Host Bus Interfaces. The following figure shows

the location of DIP switch SW1 on the S5U13719P00C100.

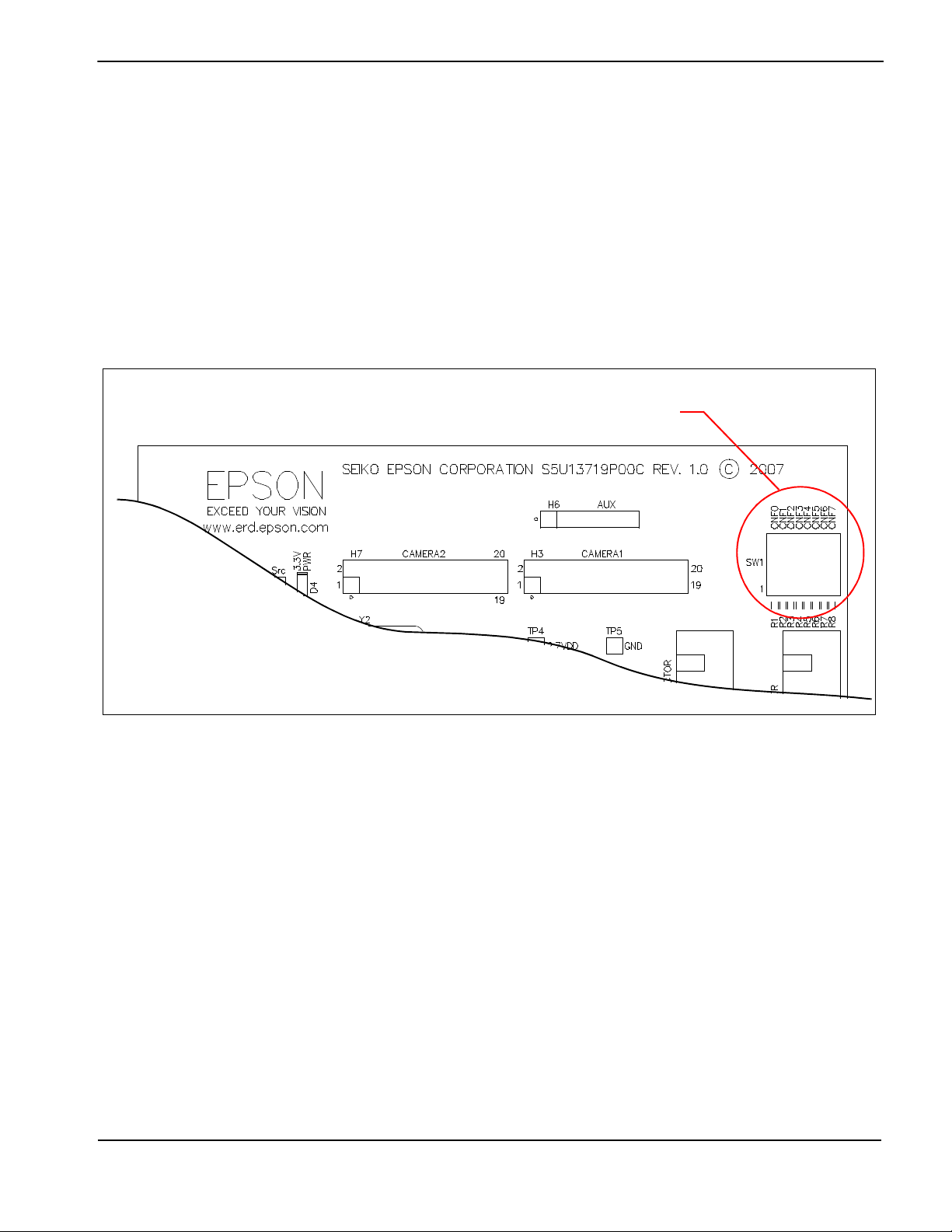

Figure 3-1: Configuration DIP Switch (SW1) Location

SW1

Chapter 3 Installation and Configuration

8 EPSON S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1)

All S1D13719 configuration inputs (CNF[7:0]) are fully configurable using DIP switch SW1 as described below.

3.2 Configuration Jumpers

The S5U13719P00C100 has 9 jumpers which configure various board settings. The jumper positions for each

function are shown below.

S5U13719P00C100

SW1-[8:1] Config

S1D13719

CNF[7:0] Config

Power-On/Reset State

1 (ON) 0 (OFF)

SW1-[8] CNF7 Camera2 power supply OFF Camera2 power supply ON

SW1-[7] CNF6 Parallel 2 CS# mode Parallel 1 CS# mode

SW1-[6] CNF5 Big endian Little Endian

SW1-[5:3] CNF[4:2]

000b Direct 80 Type 2 host interface

001b Direct 80 Type 3 host interface

010b Indirect 80 Type 2 host interface

011b Indirect 80 Type 3 host interface

100b Direct 80 Type 1 host interface

101b Direct 68 host interface

110b Indirect 80 Type 1 host interface

111b Indirect 68 host interface

SW1-[2] CNF5 GPIO[21:0] configured as inputs GPIO[21:0] configured as outputs

SW1-[1] CNF6 Camera1 power supply ON Camera1 power supply ON

= Required settings when using S5U13U00P00C100 USB Adapter board (SW1-[8:1] = 000000x0b)

Jumper Function Position 1-2 Position 2-3 No Jumper

JP1 COREVDD Normal —COREVDD current

measurement

JP2 PLLVDD Normal —PLLVDD current

measurement

JP3 HIOVDD Normal —HIOVDD current

measurement

JP4 PIOVDD Normal —PIOVDD current

measurement

JP5 HIOVDD Source H1 connector, pin 32 3.3VDD —

JP6 PIOVDD Source H4 connector, pin 8 3.3VDD —

JP7 CIO1VDD Normal —CIO1VDD current

measurement

JP8 CIO2VDD Normal —CIO2VDD current

measurement

JP9 SIOVDD Normal —SIOVDD current

measurement

= Required settings when using S5U13U00P00C100 USB Adapter board

Chapter 3 Installation and Configuration

S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1) EPSON 9

JP1-JP4 and JP7-JP9 - Power Supplies for S1D13719

JP1-JP4 and JP7-JP9 can be used to measure current consumption of each S1D13719 power supply.

When the jumper is at position 1-2, normal operation is selected.

When no jumper is installed, the current consumption for each power supply can be measured by connecting an

ammeter to pin 1 and 2 of the jumper.

The jumper associated to each power supply is as follows:

JP1 for COREVDD

JP2 for PLLVDD

JP3 for HIOVDD

JP4 for PIOVDD

JP7 for CIO1VDD

JP8 for CIO2VDD

JP9 for SIOVDD

Figure 3-2: Configuration Jumper Locations (JP1-JP4 and JP7-JP9)

JP1

JP2

JP3 JP4

JP7

JP9

JP8

Chapter 3 Installation and Configuration

10 EPSON S5U13719P00C100 Evaluation Board User Manual (Rev. 1.1)

JP5 - HIOVDD Source

JP5 is used to select the source for the HIOVDD supply voltage.

When the jumper is at position 1-2, the HIOVDD voltage must be provided to the H1 connector, pin 32.

When the jumper is at position 2-3, the HIOVDD voltage is provided by the 3.3V power supply of the board.

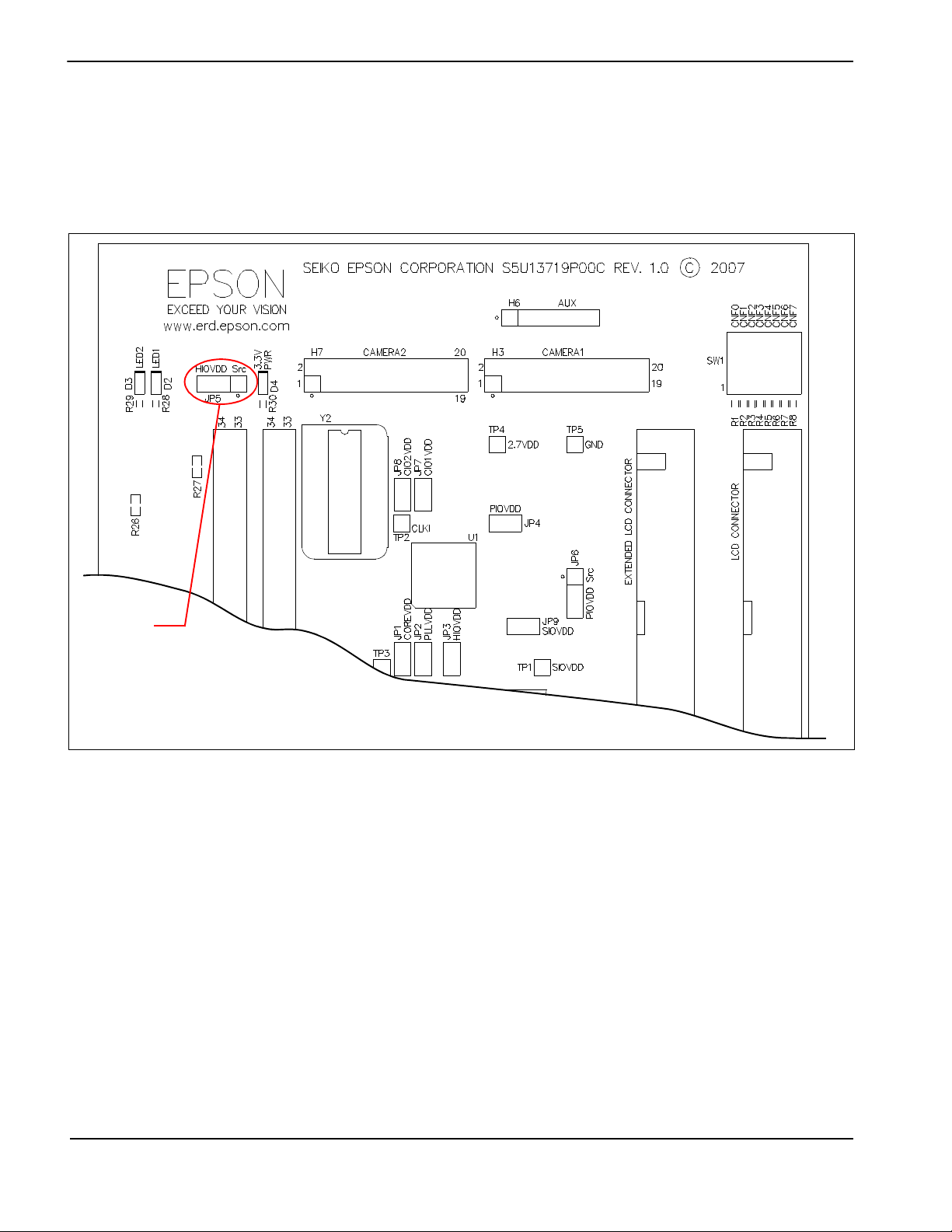

Figure 3-3: Configuration Jumper Location (JP5)

JP5
