User’s Guide Update

In order to take advantage of the latest technology, the system board

in your computer has been completely redesigned.

This update includes last-minute information that was not available

at the time your on-screen User’s Guide was created.

External Cache

Your computer supports up to 1MB of external cache. If your system

already has cache installed, it can be increased up to 1MB. However,

you cannot install cache chips yourself. Please contact your

Authorized EPSON Servicer if you want to install cache memory in

your computer.

Power Management

The Windows® 95 CD-ROM Autoplay feature operates continuously

and prevents power management from being fully effective on your

system. If you want to take advantage of your computer’s power-

saving features, you must use the Widows Device Manager to

disable Autoplay. See your Windows documentation for instructions.

System Board

Because your computer’s system board has been redesigned, the

illustrations showing the board in Chapter 4 of your User’s Guide are

incorrect. Board components such as jumpers and SIMM sockets have

been relocated. However, disk drives and other internal components

are shown correctly in the illustrations.

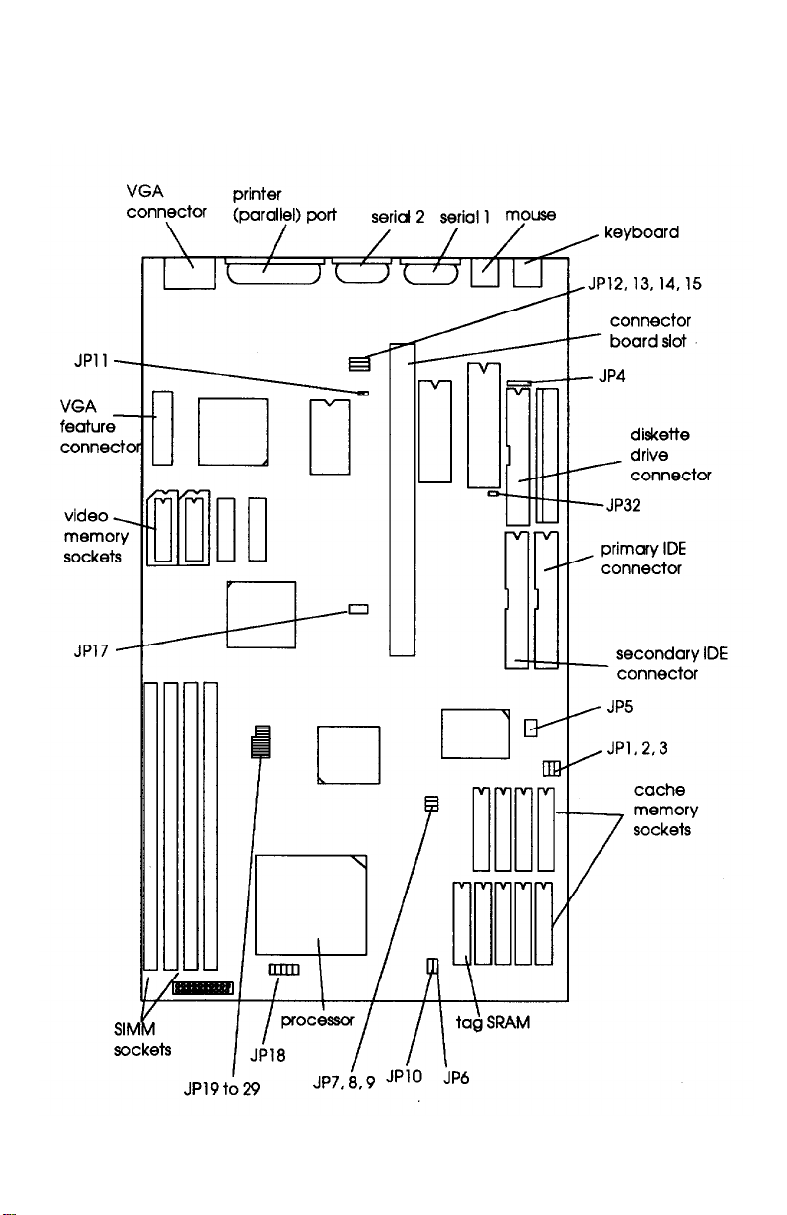

The illustration below shows the correct location of jumpers and

other components on the system board in your computer.

Jumper Settings

The jumpers on the system board have been renumbered, as shown

in the tables below. The factory default settings are indicated by an

asterisk (*).

Miscellaneous jumper settings

Clean

CMOS

memory

(resets

BElUP

values

factory

defoulis)

IJP12

k’

Emblem

on-bead

i/O

controller

Dbables

on-boad

I/o controller

IJPl5

1;;;’

Enables

oeboord

VGA controller

Dhbles

on-bootd

VGA controller

Parallel port ECP mode DRQ jumper settings

Function

JP13 JP14

DRQ1 (DACK1)

1-2 1-2

DRQ4 (DACK3) 2-3 2-3

CPU voltage jumper settings

CPU voltage

JP18

3.3V

13-4

3.45V

5-6

3.6V

7-8

4.0V 19-10

5.0V

1-2

Cache jumper settings

CPU type jumpers settings

CPU clock speed

JP17

25 Mhz

1-2

33 MHz

40 MHz

50 Mhz

1-2,3-4,5-6

1-2,3-4

5-6
