EPSON®PowerLite®

5350/7250/7350

User’s Guide

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use

of the information contained herein. Neither is any liability assumed for damages resulting from the use of the

information contained herein.

NeitherSEIKOEPSONCORPORATIONnoritsaffiliatesshallbeliabletothepurchaserofthisproductorthird

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,

or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the

U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance

instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or problems arising from the use of

any options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

EPSON and PowerLite are registered trademarks of SEIKO EPSON CORPORATION.

SoundAdvice is a service mark and FaxAdvice is a trademark of Epson America, Inc.

General Notice:Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. EPSON disclaims any and all rights in those marks.

Long Beach, California, USA 10/99

iii

Important Information About Your Projector

Important Safety Information

WARNING:Neverlook intotheprojectorlenswhen thelampisturned on;thebright lightcandamage youreyes.Never

let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers.

Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in this User’s

Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

WARNING: The projector and its accessories come packagedin plastic bags. Keep plastic bags away from small children

to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the

oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared (IR) receiver at the front and rear of

the projector. The projector may not respond to remote control commands under the following conditions:

❐There is an object between the remote control IR emitter and the IR receiver on the projector.

❐Ambient light is too bright.

❐Certain types of fluorescent lighting are used.

❐A strong light source shines into the IR receiver.

❐Other equipment that emits infrared energy, such as a radiant room heater, is in the room.

These conditions commonly cause problems for most infrared-controlled equipment. Try the following:

❐The remote control unit’s batteries may be low on power; replace them.

❐Dim the ambient lighting and/or turn off any fluorescent lights.

❐Close any window coverings and/or move the projector out of direct sunlight.

❐Turn off other equipment that emits infrared energy.

If the remote control still does not work properly, remember you can always control your computer-based

presentation directly from the computer, even in an environment containing one of the conditions listed above.

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residentialinstallation.Thisequipmentgenerates,uses,and canradiateradiofrequencyenergyand,ifnotinstalled

and used in accordance with the instructions, may cause harmful interference to radio or television reception.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause interference to radio and television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures.

❐Reorient or relocate the receiving antenna.

❐Increase the separation between the equipment and receiver.

❐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

❐Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC

Certification of this device and may cause interference levels which exceed the limits established by the FCC for

this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this

device. If this equipment has more than one interface connector, do not leave cables connected to unused

interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority

to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du

Canada.

Contents

Introduction 1

Getting the Most Out of Your Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Electronic Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automated Telephone Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1 Setting Up the Projector 13

Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installing the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Before You Connect the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Connecting to a PC Desktop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Connecting to a PC Laptop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Connecting to a PowerBook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Connecting to a High-End Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Connecting to a Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Connecting to an External Speaker or PA System . . . . . . . . . . . . . . . . . . . . . . . . .56

Turning the Equipment On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Turning the Projector On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

2 Using the Projector 61

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Calculating Image Size and Projection Distance . . . . . . . . . . . . . . . . . . . . . . .65

Focusing and Positioning the Screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Resizing the Projected Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Controlling the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Using the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Selecting a Computer 2 or BNC Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Projector Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Power Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Projection Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Temperature Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

3 Using the Projector Menus 83

Accessing the Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Changing a Menu Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

vii

Video Menu (Image Source = Computer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Video Menu (Image Source = Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Effect Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

User’s Logo Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Capturing and Saving a Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Assigning the Logo to the A/V Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . 96

Reset All Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

About Menu (Image Source = Computer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

About Menu (Image Source = Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

4 Using ELP Link IV 101

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Connecting Needed Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Installing the Software for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Installing the Software for a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Starting ELP Link IV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Starting the Program from Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Starting the Program on a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Changing the COM Port Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Customizing the Remote Control Effects Buttons . . . . . . . . . . . . . . . . . . . . . . . 107

Function Description and Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Assigning Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Setting Effects Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Assigning Functions to the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Saving and Recalling Effects Button Assignments . . . . . . . . . . . . . . . . . . . . 116

viii

Controlling Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Using the Quick Change Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Changing Projector Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Changing the Test Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Specifying an Image Gamma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Saving Projector Setting Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Opening a Projector Setting File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

Creating a User Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Creating Cursor/Stamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Exiting the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

5 Maintenance 135

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

6 Troubleshooting 143

Problems with the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Problems with the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Problems with the Image or Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

7 Technical Specifications 153

Glossary 161

Index 165

Introduction

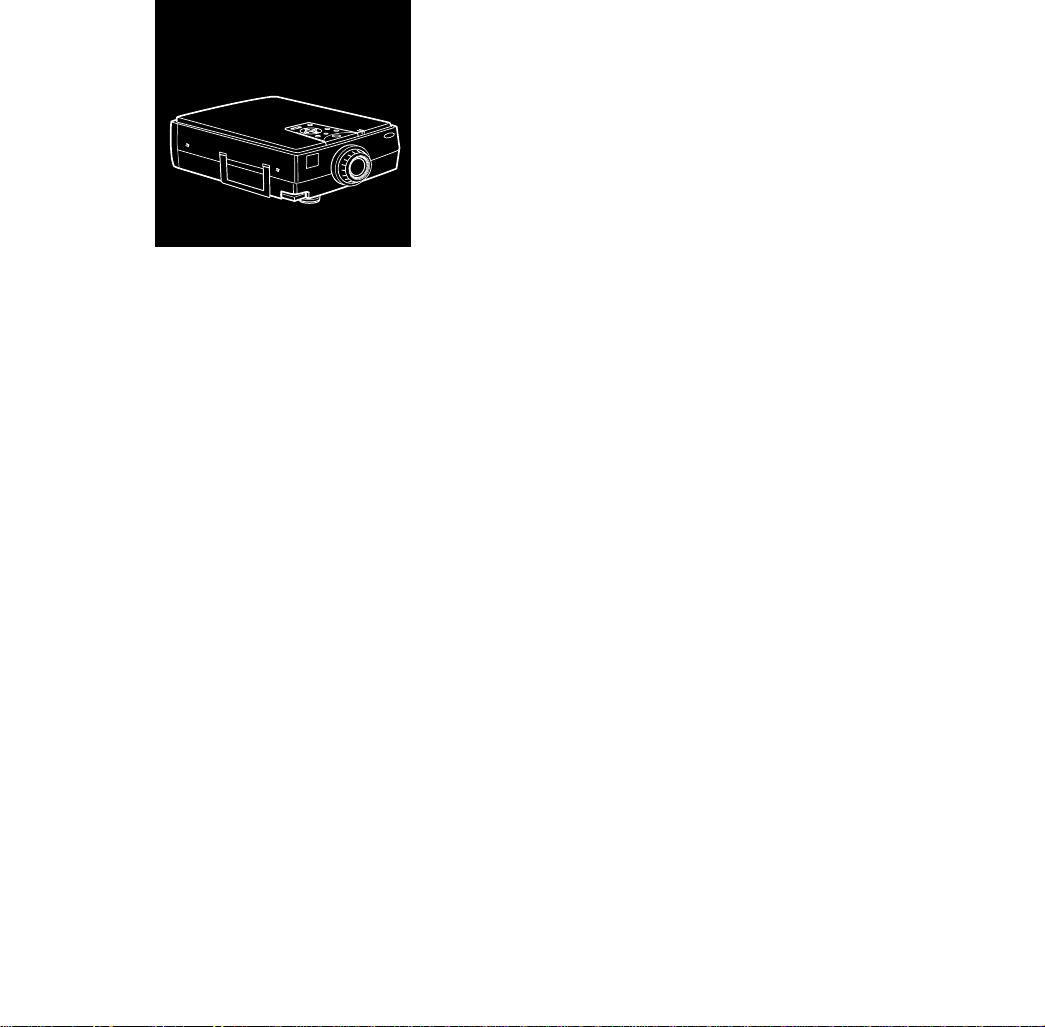

Your EPSON®PowerLite®projector is a brilliant, lightweight,

portable projector that allows you to project full-color images and

video onto a large screen for presentations. You can connect it

simultaneously to three image sources: two computers or workstation

sources, plus one video source, such as a VCR, DVD player,

camcorder, or digital camera. You can also connect audio for each

image source.

Images are displayed in full color (16,770,000 colors) at an SVGA

resolution of 800 ×600 pixels on the PowerLite 5350, and an XGA

resolution of 1024 ×768 pixels on the PowerLite 7250 and 7350. The

projectors support a wide variety of video inputs, from VGA to UXGA

with resolutions up to 1600 ×1200. It produces bright images that can

be easily seen in rooms light enough to take notes.

Introduction

Your projector’s two speakers employ a built-in SRS 3D Sound System

for rich, powerful audio output. You can even connect an external

speaker when further amplification is required.

For your presentations, you can select front, rear, or ceiling projection.

This provides maximum flexibility in choosing the best display

method for each environment.

You control your projector through a hand-held remote control unit,

with menus provided for image source switching and image

adjustment. The remote control can also act as a wireless mouse to

control operations on your computer screen during presentations.

Additionally, you can install the projector’s ELP Link IV software to

control the projector’s settings from your computer and enhance your

presentations with special effects.

Your projector features a new patented SizeWise™chip for support of

SVGA, UGA, XGA, and SXGA (PowerLite 5350), and XGA, VGA,

SXGA and UXGA (PowerLite 7250 and 7350) output. No matter

what type of computer output is used, the result is a full-size video

image of outstanding clarity.

The projector supports a wide range of computers and workstations:

IBM® compatible PCs and laptops, Apple®Macintosh,

Power

Macintosh,

™Power Macintosh G3,

™iMac,

™and PowerBook®

computers, and workstations such as the Sun®SPARCstation.

™

(The PowerLite 5350 is not recommended for use with high-end

workstations). The video source can be HDTV, NTSC, PAL, or

SECAM. The projector automatically senses the video format, which

can be composite video, S-Video, or component video. See Chapter 7

for details on supported computers and video formats.

Altri manuali per 5350 - EMP SVGA LCD Projector

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Epson Proiettore

Epson

Epson PowerLite 715c Scheda tecnica

Epson

Epson PowerLite Home Cinema 6100 Manuale del proprietario

Epson

Epson PowerLite EB-720 Scheda tecnica

Epson

Epson PowerLite 7600p Manuale utente

Epson

Epson 7600 - EMP XGA LCD Projector Manuale utente

Epson

Epson EMP 7600 Manuale utente

Epson

Epson PowerLite 7350 Manuale utente

Epson

Epson PowerLite Home Cinema 640 Scheda tecnica

Epson

Epson Ensemble HD 6100 - Home Cinema System Manuale utente

Epson

Epson EB-945 Istruzioni per l'installazione

Epson

Epson Megaplex MG-50 Manuale utente

Epson

Epson EX3200 Guida di riferimento

Epson

Epson EB-480 Manuale utente

Epson

Epson LCD projector Manuale utente

Epson

Epson EB-915W Manuale utente

Epson

Epson Powerlite Manuale utente

Epson

Epson V11H177020 - Powerlite 76C LCD Projector Guida di riferimento

Epson

Epson BrightLink 710Ui Manuale utente

Epson

Epson EB-410W Manuale utente

Epson

Epson EX7200 Manuale utente

Epson

Epson ActionTower 3000 Computer Manuale utente

Epson

Epson BrightLink 475Wi Manuale utente

Epson

Epson PowerLite 6100 Manuale utente

Epson

Epson PowerLite Pro G5350NL Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuale utente

JVC

JVC 1108TTH-AO-AO Manuale utente
