Epson BrightLink Pro 1410Wi Manuale utente

BrightLink Interaction

Three interactive modes are available:

Whiteboard mode

Use one or two interactive pens to write on the

projected “whiteboard.” You can insert images from a

thumbdrive or scanner and save, print, or email your

whiteboard “pages,” without connecting a computer.

Annotation mode

Easily switch between sources and add notes to your

projected content. Capture your screens, then save,

print, or email the images with annotations. You can

even split the screen to annotate on two images at the

same time.

Interactive computer mode

Use the interactive pen as a mouse to navigate, select,

and scroll though content from your computer. Split

the screen and interact with two projected images. You

can do even more if you install Easy Interactive Tools

on your computer.

Quick Reference

This card will help you get started using your BrightLink

Pro interactive projector.

1Turning on and Calibrating the Projector

•Using the Remote Control

2Using the Pens and Control Pad

3Using Whiteboard Mode

4Connecting a Computer and Using Annotation

Mode

5 Using Interactive Computer Mode

•Splitting the Screen

BrightLink Pro Features

•Project an image from a computer, DVD player, cable

box, USB thumbdrive, or other device

• Split the screen and project two images at the

same time

•Hold a video conference without a ﬂat panel display

•Project wirelessly from a tablet or smartphone

See the online User’s Guide for more information about

these features.

BrightLink® Pro

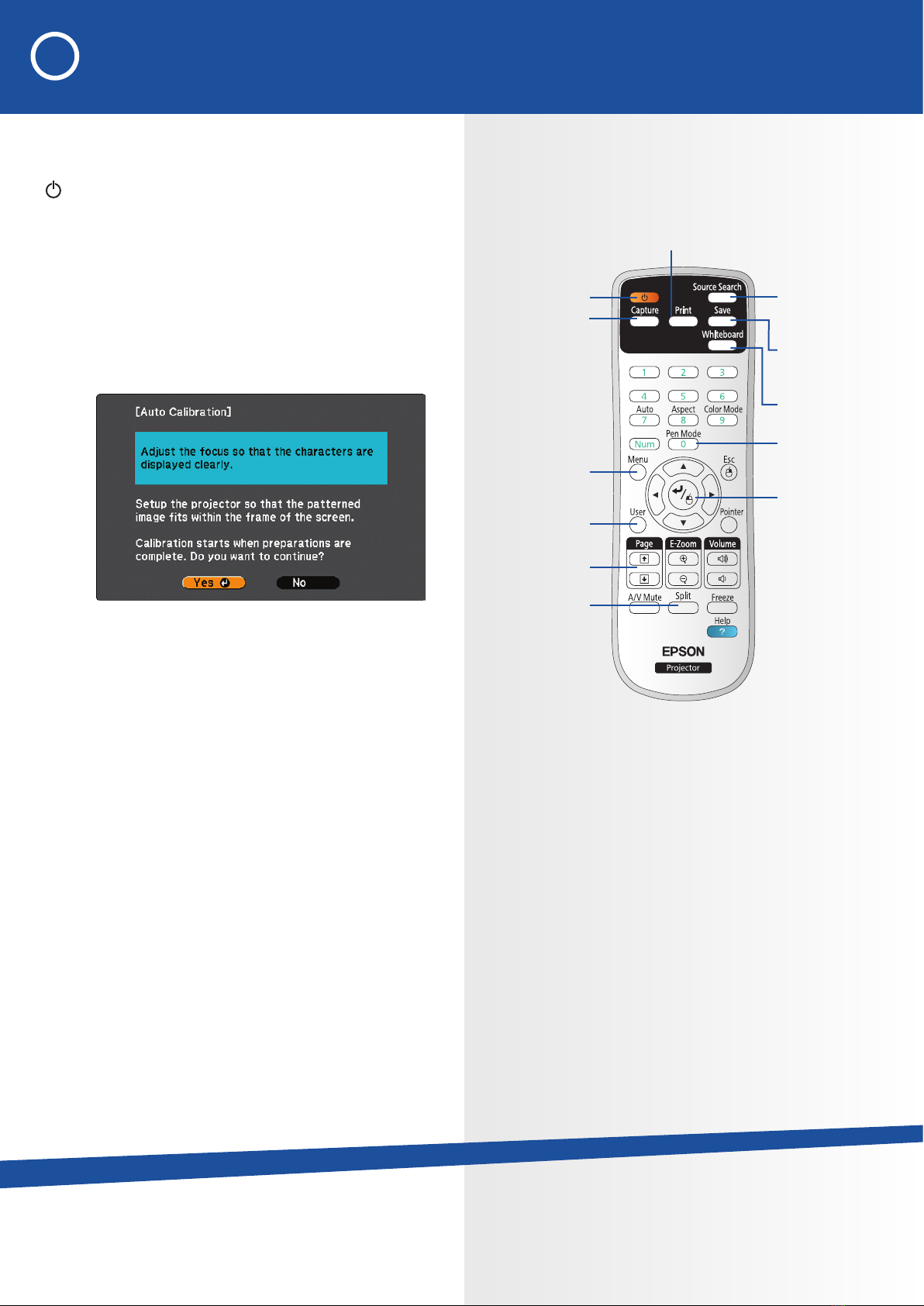

1 Turning on and Calibrating the Projector

To turn on the projector, press the red or orange

power button on the remote control, control pad, or

on the projector itself.

Calibration coordinates the position of the pen with

the location of your annotations. Your projector may

already be calibrated. If not, follow the instructions

below:

1To calibrate automatically, press the User button

on the remote control. You see the following:

2Press Enter to select Yes. A pattern appears.

3Wait until calibration is complete.

If you see a message that calibration failed,

or the pen position and cursor location don’t

match, you can calibrate manually. Press the

Menu button on the remote control, then select

Extended menu > Easy Interactive Function >

Manual Calibration and press Enter. Follow the

instructions on the screen to calibrate manually.

Using the Remote

Control

Select from various

image sources

connected to the

projector

Save the projected


Select whiteboard

mode (turns on the

projector if it is off)

Switch between

annotation mode

and interactive

computer mode

Enter

Turn projector

on/off

Capture the

projected image

Access menu

system for

additional

adjustments

Auto-calibrate

Page through

documents

Project 2

images at the

same time

Print the projected image

For more information on using the remote control, see

the online User’s Guide. You can install a link to the

User’s Guide by inserting the BrightLink Pro 1410Wi CD.

Or go to epson.com/brightlinkdownloads (U.S.) or

epson.ca/brightlinkdownloads (Canada).

•To turn on the pen, slide the power switch. The

green light comes on brieﬂy. If the battery is low, the

light ﬂashes.

•Hold the pen perpendicular to the board, as shown

below. Do not cover the black section of the pen.

Note: The pens turn off automatically after about 20

minutes of inactivity. Slide the switch to turn the pen

back on.

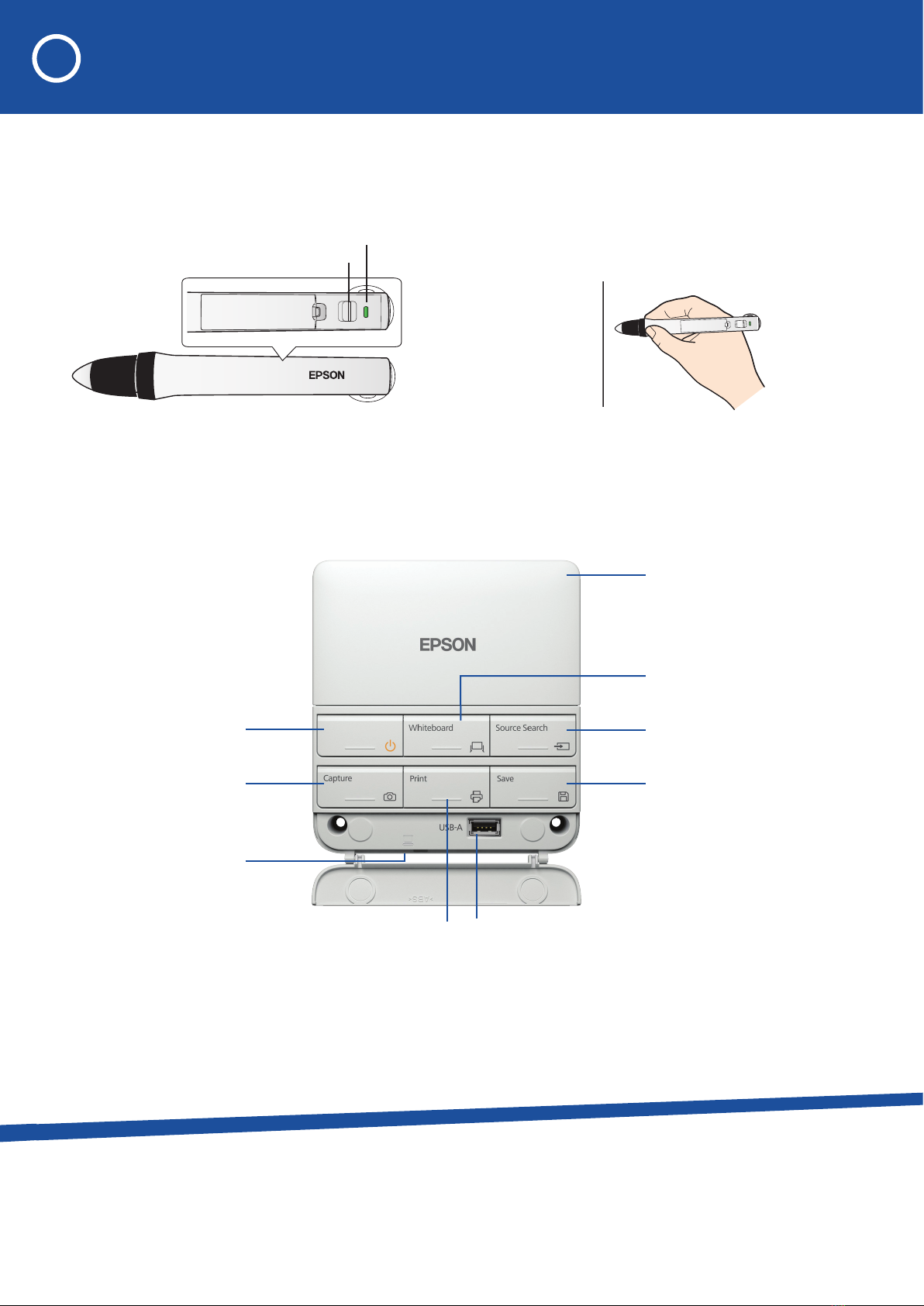

2 Using the Pens and the Control Pad

The projector came with 2 pens that have different

colored ends, orange and blue. Make sure one AA

battery is installed in each pen.

Battery light

Power switch

Remove the top cover to install

batteries or connect the control pad

to the projector or to a printer. See

the online User’s Guide for more

information.

Select whiteboard mode (turns on

the projector if it is off)

Select from various image sources

connected to the projector

Save the projected image

Turn projector on/off

Capture the projected image

(switch to whiteboard to

paste the captured image)

Connect USB cable from

computer (on bottom of

control pad)

Connect USB thumbdrivePrint the

projected image

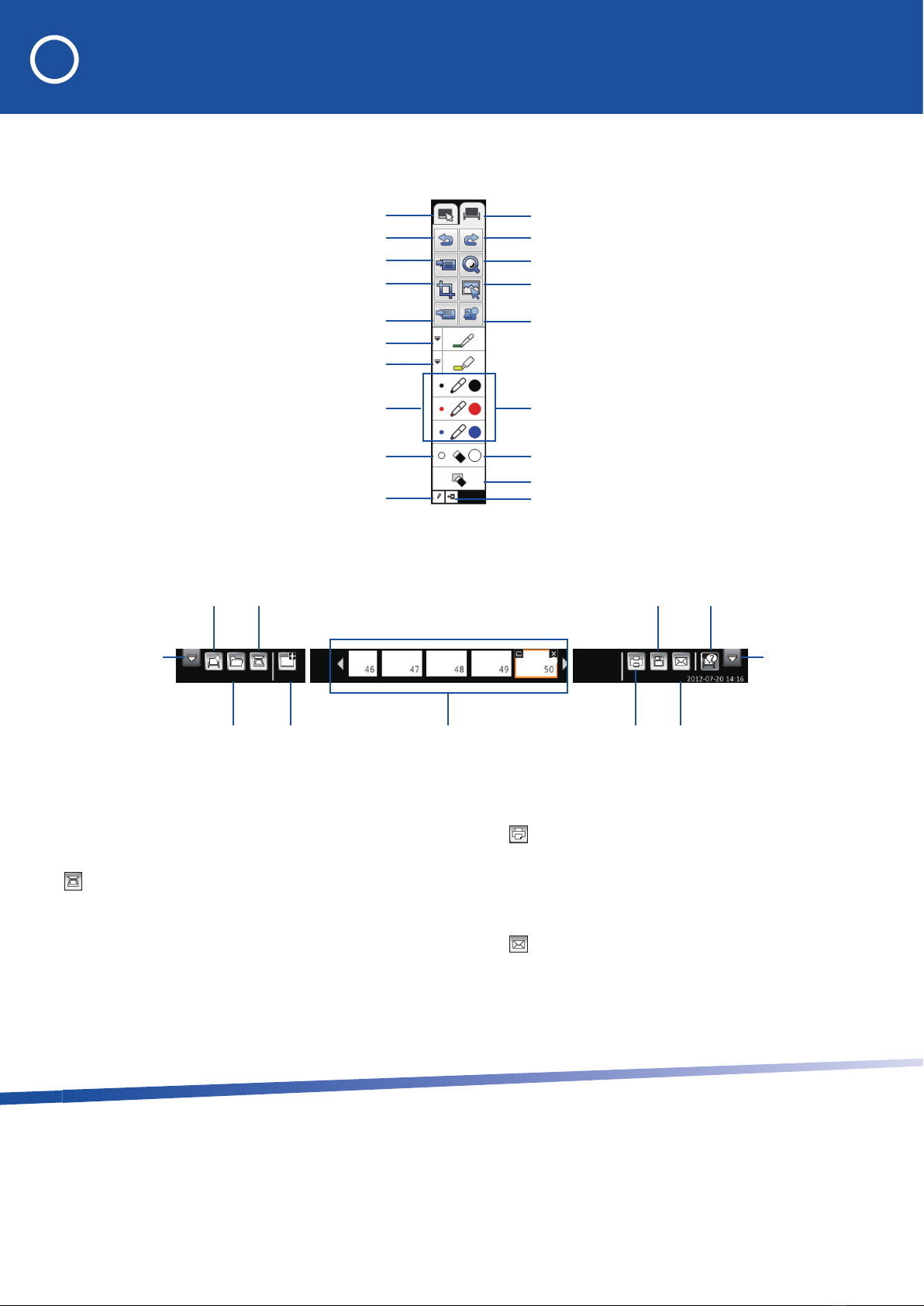

3 Using Whiteboard Mode

•To print an image or series of images, select the

Print icon (or press the Print button on the

remote control or control pad). Make sure a

supported printer is connected to the control pad (or

to your network).

• To email an image or series of images, select the

Email icon. Before you can email, you need

to set mail server options using the projector’s

Extended menu. See the online User’s Guide for

instructions.

You can use the pens to draw or write on the projection

surface.

•To scan a paper document and import it, select the

Scan icon. Make sure a supported all-in-one

device is connected to the control pad (or to your

network), then place a document on the scanner glass

or in the automatic document feeder.

•To display thumbnail images of the pages in the

current session, select the page on the bottom

toolbar. Use the arrows or drag the pen to scroll

through the pages.

Press the Whiteboard button on the remote control or control pad. You see the following toolbars:

Select whiteboard mode

Redo

Zoom in or out

Select an inserted image to move, resize, or

rotate

Insert a circle, square, triangle, or other shape

Use black, red, or blue pen—select large dot

for thick line

Erase—select large dot for thick eraser

Clear everything on screen

Close toolbar

Select annotation mode

Undo

Insert a background pattern

Crop an inserted image

Insert a jpg or png image from a thumbdrive

or network folder

Change custom pen color and width

Change highlighter pen color and width

Use black, red, or blue pen—select small dot

for thin line

Erase—select small dot for thin eraser

Hide toolbar after each annotation

Show or hide toolbar Show or hide toolbar

Start a new whiteboard

session

Scan and insert an


Save the projected image or a series of images on

a thumbdrive or network folder

Display

help

Insert a jpg, png, or pdf ﬁle from a

thumbdrive or network folder

Open a

new page

Print the projected


Email the projected image (requires

advance setup)

Thumbnail images of pages in

current session

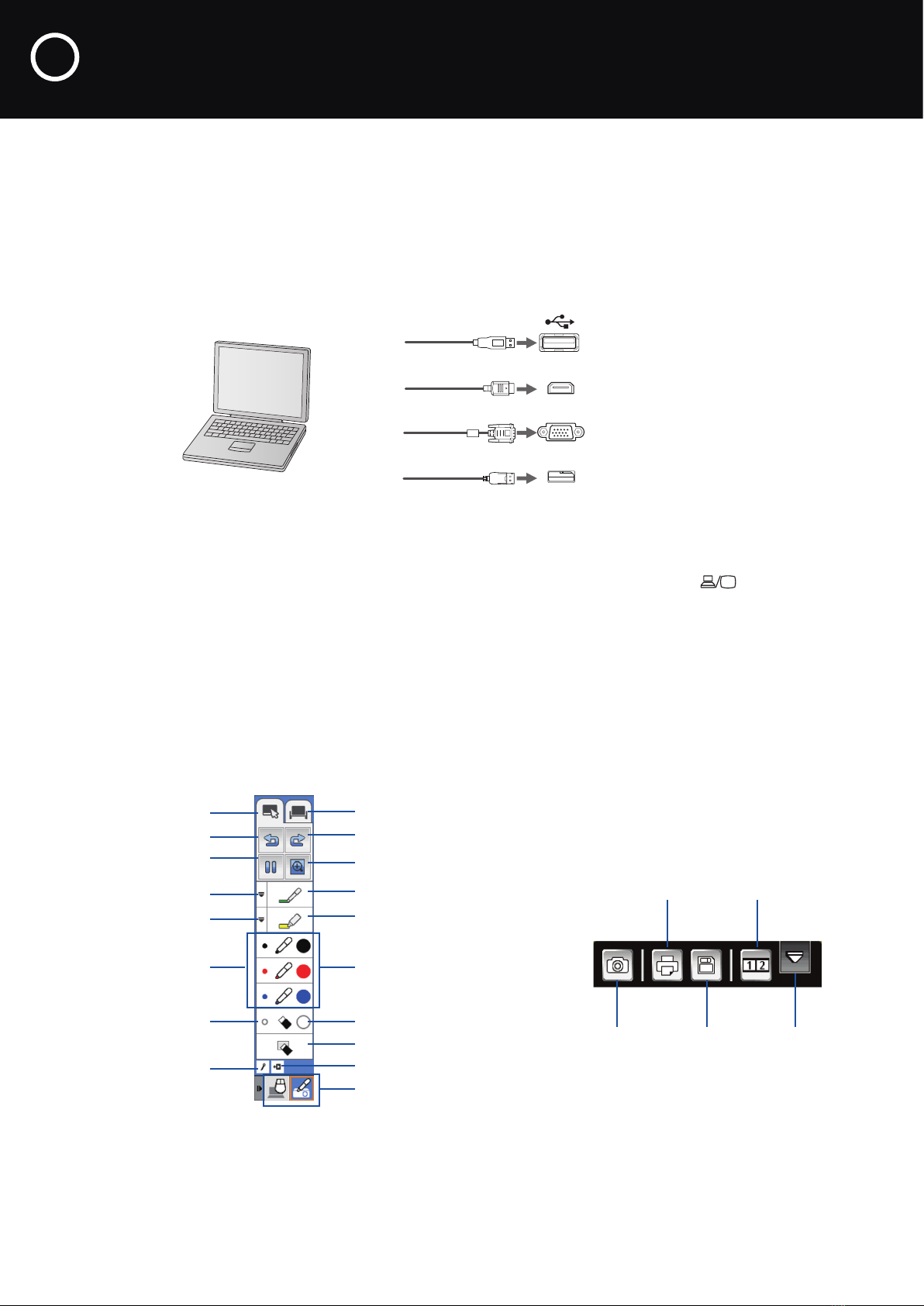

1Connect the device you want to project from.

•Connect wirelessly to a notebook computer using the Windows®Connect to a Network Projector

utility (without audio), or EasyMP Network Projection.

•Connect wirelessly to a tablet or smartphone using the EPSON iProjection app.

•Connect using a cable, as shown below.

USB

HDMI

VGA

Display Port

2Display an image from your device. If an image does not appear, try one of the following:

•On some PC laptops, you may need to hold down the Fn key on the keyboard and press F7 or the

function key that lets you display on an external monitor. It may have an icon such as , or it

may be labelled CRT/LCD.

•On a Mac, you may need to open System Preferences and select Displays. Select the VGA/HDMI

Display or Color LCD option if necessary, then click the Arrange or Arrangement tab and select

the Mirror Displays checkbox.

•Try pressing the Source Search button on the remote control or control pad.

3Turn on one of the pens and hover near or tap the projected image. You see these toolbars on your

projected image:

4 Connecting a Computer and

Using Annotation Mode

Select whiteboard mode

Redo

Zoom into image

Use custom pen

Use hightlighter

Use black, red, or blue

pen—select large dot for

thick line

Erase—select large dot for

thick eraser

Clear everything on screen

Close toolbar

Switch between annotation

mode and interactive

computer mode

Select annotation mode

Undo

Freeze action in videos

Change custom pen

color and width

Change highlighter color

and width

Use black, red, or blue

pen—select small dot for

thin line

Erase—select small dot

for thin eraser

Hide toolbar after each

annotation

Print the projected


Split the

screen

Show or hide the

bottom toolbar

Save the projected

image on a thumbdrive

or network folder

Capture the

projected image

EPSON is a registered trademark and EPSON Exceed Your Vision is a

registered logomark of Seiko Epson Corporation.

BrightLink is a registered trademark of Epson America, Inc.

General Notice: Other product names used herein are for identiﬁcation

purposes only and may be trademarks of their respective owners. Epson

disclaims any and all rights in those marks.

This information is subject to change without notice.

Printed in XXX CPD-38221

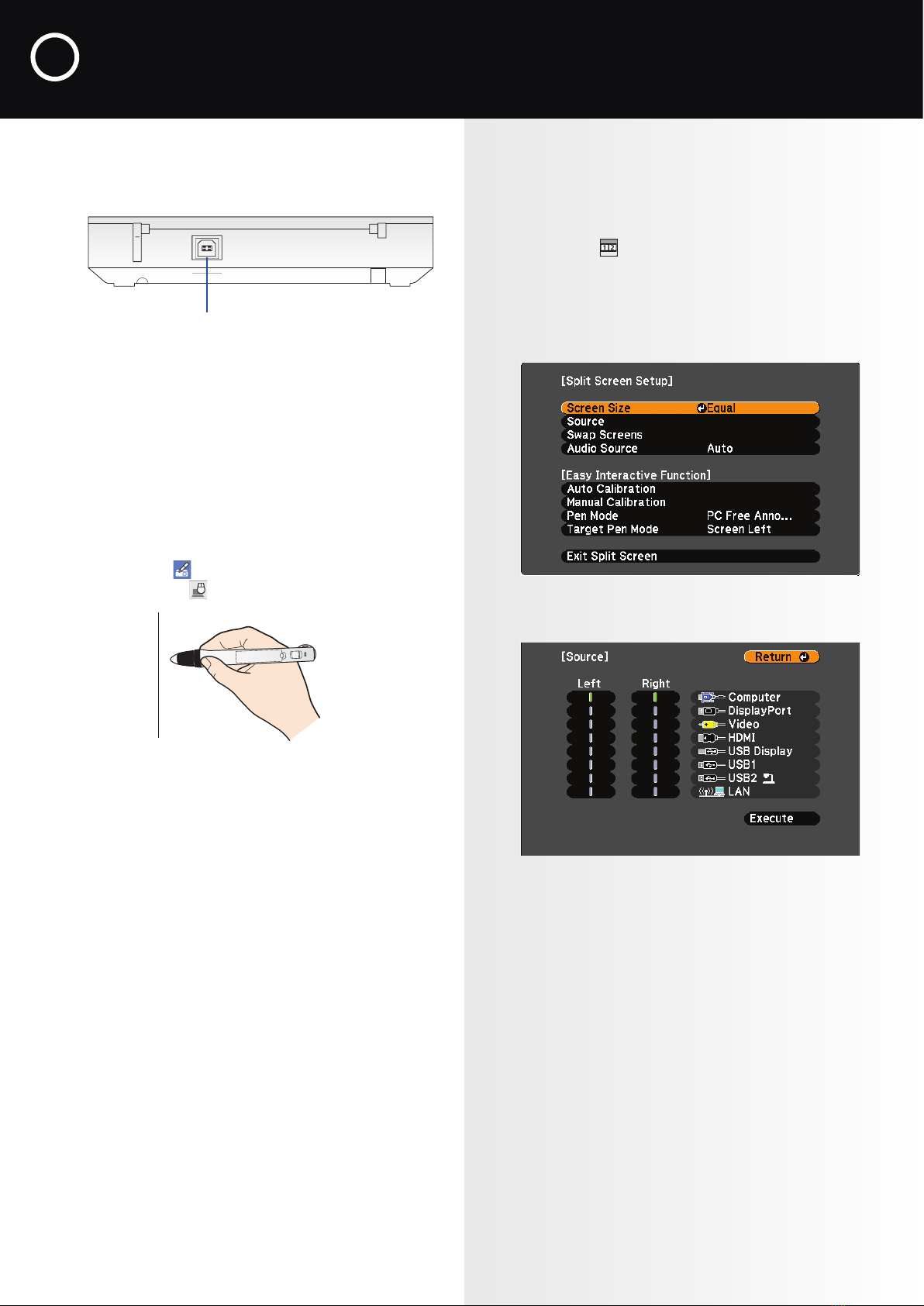

Splitting the Screen

1Press the Split button on the remote control or

select the Split icon on the screen. The current

projected image appears on the left.

2Press the Menu button on the remote control. You

see the Split Screen Setup menu:

3Select Source and press Enter.

4Select the source you want to use for the right half

of the screen. If you want to write on a blank screen,

select any unused source.

5Select Execute, then press Enter.

5 Using Interactive Computer Mode

1Connect a USB cable from your computer to the

USB-B port on the bottom of the control pad.

Connect computer to

port on the bottom

If your computer is connected to the projector

wirelessly using EasyMP Network Projection

version 2.81 or later, you don’t need a USB cable.

If you are using Mac OS X, you need to install

Easy Interactive Driver from the CD that came with

the projector, labeled “EPSON Projector Software

for Easy Interactive Function.”

2Press the Pen Mode button on the remote control

or select the Pen Mode icon on the screen,

then select the Mouse icon.

You can use the pen as a mouse to interact with the

projected image.

• To left-click, tap on the board.

• To double-click, tap twice.

• To right-click, press the board with the pen for about

3 seconds.

• To click and drag, tap and drag with the pen.

• To move the cursor, hover over the board without

touching it.

• When you are ﬁnished, slide the power switch to turn

off the pen.

For more information on any Brightlink Pro features,

see the online User’s Guide at

epson.com/brightlinkdownloads (U.S.) or

epson.ca/brightlinkdownloads (Canada).

*412409400*

Altri manuali per BrightLink Pro 1410Wi

Indice

Altri manuali Epson Proiettore

Epson

Epson 6100i - PowerLite XGA LCD Projector Manuale utente

Epson

Epson LightScene EV-110 Manuale utente

Epson

Epson 1705C - PowerLite XGA LCD Projector Manuale utente

Epson

Epson dreamio EMP-TW200H Manuale utente

Epson

Epson PowerLite Pro G5650WNL Manuale utente

Epson

Epson PowerLite X15 Manuale utente

Epson

Epson EB-L250F Manuale utente

Epson

Epson EB-L735U Manuale utente

Epson

Epson EH-TW8100 Manuale di istruzioni

Epson

Epson VS200 Manuale utente

Epson

Epson EMP EMP-81 Manuale utente

Epson

Epson PowerLite Pro Z8050WNL Manuale del sistema

Epson

Epson EMP-7550 - XGA LCD Projector Manuale utente

Epson

Epson PowerLite Home Cinema 500 Manuale utente

Epson

Epson PowerLite 61p Manuale utente

Epson

Epson EB-S11 Manuale utente

Epson

Epson 7700p - PowerLite XGA LCD Projector Dimensioni

Epson

Epson VS310 Guida di riferimento

Epson

Epson EMP-503 - SVGA LCD Projector Manuale utente

Epson

Epson BrightLink 450Wi - Interactive Projector Manuale utente

Epson

Epson EB-W8 Manuale utente

Epson

Epson PowerLite 7800pNL Manuale

Epson

Epson PowerLite 1720 Manuale utente

Epson

Epson V11H348020 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuale utente

JVC

JVC 1108TTH-AO-AO Manuale utente
