Checking Accessories

When unpacking the projector and accessories from their box, check that the

following items are included.

If any items are missing, contact your vendor or an Epson Service Center.

Some references to "the unit" or "the projector" in this Manual also refer to

accessories supplied with the projector or components sold separately from the

projector itself.

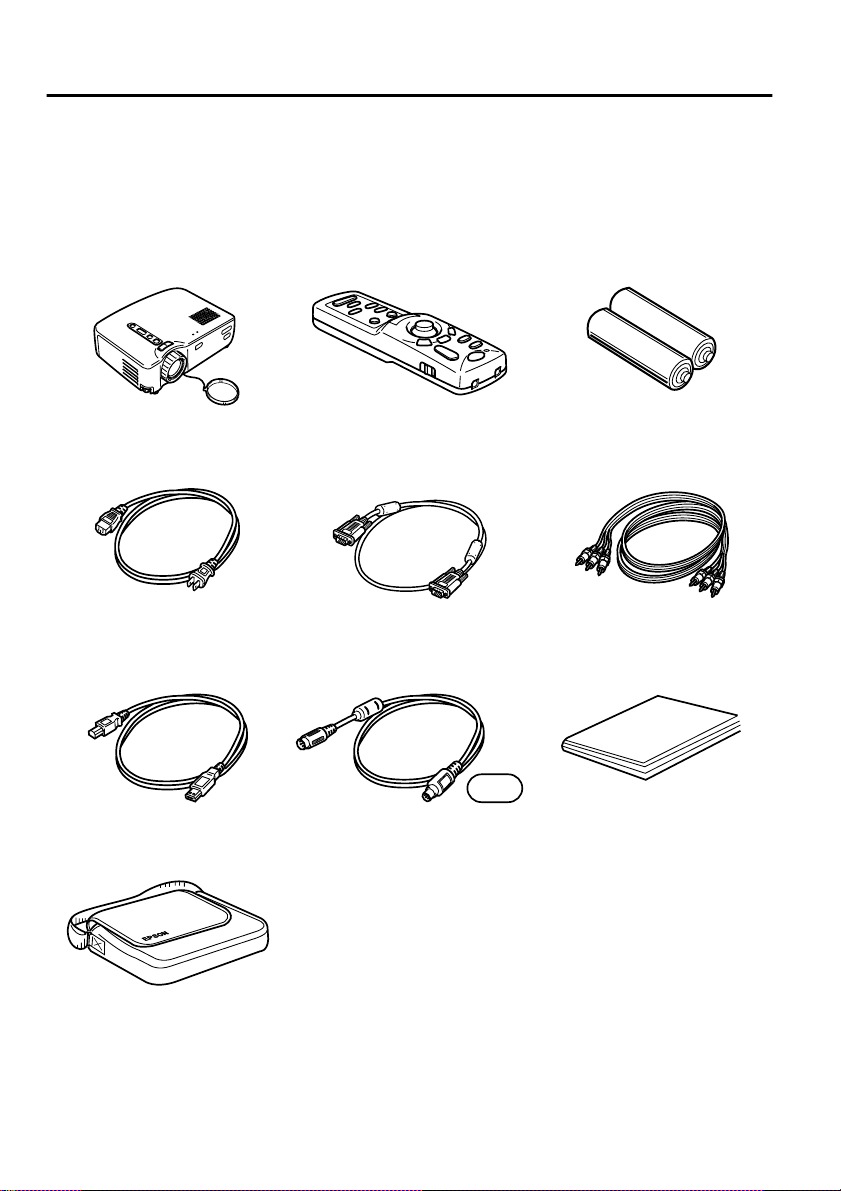

• Projector main unit

• Lens cover with cord • Remote control • Two remote control

batteries

(AA manganese, R6)

• Power cord • Computer cable • A/V cable

(red/white/yellow)

• USB mouse cable • PS/2 mouse cable • Instruction Manual

(this manual)

• Soft case

PS/2

EMP‑7050e.book1ページ２００１年１月９日火曜日午前９時２５分

In This Manual

Getting Started

Safety precautions and component names and functions

Setup

Special notes on setup, setup instructions, and screen size and projection

distance details

Projecting Images

Connecting with different devices and projecting and adjusting images

What You Can Do

Functions to get the most out of your projector

Menu Functions (Remote Control Only)

Basic menu functions and settings

Troubleshooting

Troubleshooting projection failure, bad projection, and other problems

Maintenance

Performing lamp replacement and other routine maintenance and care

General Notes

Optional parts, shipping instructions, glossary, index, specifications and

international warranty

EMP‑7050e.book1ページ２００１年１月９日火曜日午前９時２５分

Contents

In This Manual.................................................................................. 1

Contents ........................................................................................... 2

Features............................................................................................ 4

1. Getting Started

1.1 Safety Precautions..................................................................... 8

1.2 Component Names and Functions........................................... 12

1.3 Remote Control........................................................................ 15

2. Setup

2.1 Special Notes on Setup............................................................ 18

2.2 Setup Instructions..................................................................... 19

2.3 Screen Size and Projection Distance Details........................... 20

3. Projecting Images

3.1 Connecting to a Computer ....................................................... 22

3.2 Connecting to an A/V Device ................................................... 25

3.3 Providing Sound Through an External Audio Device............... 27

3.4 Projecting Images..................................................................... 28

3.5 Adjusting Images...................................................................... 32

3.6 Ending After the Projection....................................................... 35

4. What You Can Do

4.1 Using the Wireless Mouse........................................................ 38

4.2 Enlarging an Image.................................................................. 40

4.3 Adjusting Image Size................................................................ 41

4.4 Adding Image Effects............................................................... 42

4.5 Freezing and Deleting Images................................................. 43

4.6 Displaying Help Screens.......................................................... 44

EMP‑7050e.book2ページ２００１年１月９日火曜日午前９時２５分

5. Menu Functions (Remote Control Only)

5.1 Learning Basic Operations...................................................... 46

5.2 Video Menu ............................................................................. 47

5.3 Audio Menu ............................................................................. 49

5.4 Effect Menu ............................................................................. 50

5.5 Setting Menu ........................................................................... 51

5.6 Advanced Menu....................................................................... 53

5.7 About Menu............................................................................. 54

5.8 Reset All Menu........................................................................ 55

6. Troubleshooting

6.1 Possible Failures ..................................................................... 58

6.2 When Indicators Do Not Help.................................................. 60

7. Maintenance

7.1 Projector Cleaning, Lens Replacement,

Air Intake Vent Cleaning.......................................................... 66

7.2 Lamp Replacement ................................................................. 68

8. General Notes

8.1 Optional Parts.......................................................................... 72

8.2 Shipping Instructions ............................................................... 73

8.3 Glossary .................................................................................. 74

8.4 Index........................................................................................ 75

8.5 Specifications .......................................................................... 77

8.6 External Dimensions................................................................ 78

8.7 International Warranty System................................................ 79

EMP‑7050e.book3ページ２００１年１月９日火曜日午前９時２５分

Features

Compact and Lightweight

The compact, lightweight design of your projector (6.6 liters and roughly 3.1

kilograms (6.83 pounds) ) allows easy carrying.

Clear, Sharp Images

Though compact, your projector provides clear, sharp presentations even in

well-illuminated areas.

Global Video Signal Compatibility

Your unit projects virtually all of the video signal formats used world-wide,

including NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, and SECAM.

Improved Video Image Clarity

Projection of distinct video images from composite video and S-video input is

possible.

"Keystone" Correction Function (see pages 33 and 51)

This built-in function allows easy correction of trapezoidal distortion caused by

projection angle.

Wireless Mouse Remote Control for Computer Mouse Operations (see

page 38)

The remote control allows wireless operation of various projector functions,

including cursor/stamp, horizontal bar display, and image enlargement and

reduction.

Presentation Effects Function (Remote control Effect button, see page 42)

Use of the remote control Effect button creates effective presentations.

Cursor/Stamp

Horizontal bar

EMP‑7050e.book4ページ２００１年１月９日火曜日午前９時２５分

E-Zoom Function (Remote control E-Zoom button, see page 40)

Enlarges an image (from standard to 4x size vertically and horizontally).

Automatic image sizing with Wide/Tele button (see page 41)

Allows image enlargement and reduction.

Enlargement Reduction

EMP‑7050e.book5ページ２００１年１月９日火曜日午前９時２５分

EMP‑7050e.book6ページ２００１年１月９日火曜日午前９時２５分

1Getting Started

1.1 Safety Precautions...........................................8

1.2 Component Names and Functions ................12

1.3 Remote Control.............................................15

EMP‑7050e.book7ページ２００１年１月９日火曜日午前９時２５分

1.1 Safety Precautions

To ensure safe and proper use of your projector, read these safety precautions

completely.

Warning:

If any of the following malfunctions occur, immediately shut off and

unplug the projector and consult your vendor or an Epson Service Center.

•Occurrence of smoking, odour, or abnormal noise

•Failure of projection or sound

•Penetration of unit by water or a foreign object

•Dropping of unit or other damage to the cabinet

Continued use may cause fire or electric shock.

Repairing the unit yourself is hazardous and should never be attempted.

Only trained service personnel should open the projector cabinet, and the

unit should never be disassembled or modified.

The cabinet contains many high voltage components which may cause fire,

electric shock, or other accidents.

Use only a voltage indicated on the unit itself.

Use of a non-designated voltage may cause fire or electric shock.

Check that the power cord specifications are correct.

A power cord which matches the specifications in the country of purchase is

included with the projector. If the projector is used in a different country from

the country of purchase, check the power supply voltage and the shape of the

wall outlet in the destination country beforehand, and make sure that you obtain

a proper power cord which matches the specifications for that country.

Do not use a damaged power cord.

Fire or electric shock may result.

Treat the power cord as follows.

•Do not modify the power cord.

•Do not place heavy objects on the power cord.

•Do not bend, twist, or pull the power cord severely.

•Do not run the power cord near heating equipment.

If the power cord becomes damaged, consult your vendor or an Epson Service

Center.

Warning: Improper operation that disregards this symbol may

result in serious injury or death.

Caution: Improper operation that disregards this symbol may

result in injury or damage to objects.

EMP‑7050e.book8ページ２００１年１月９日火曜日午前９時２５分
