Important Information

Please read the following important information about your

projector.

Important Safety Information

Warning:

Never look into the projector lens when the lamp is

switched on as the bright light can damage your eyes. Never let

children look into the lens when it is on.

Warning:

Never open any covers on the projector except the

lamp and filter covers. Dangerous electrical voltages inside

the projector can cause severe injury. Except as specifically

directed in this Owner’s Manual, do not attempt to service

this product yourself. Refer all servicing to qualified service

personnel.

Warning:

Keep the plastic bags for the projector, accessories

and optional parts out of the reach of children. Children

covering their heads with bags may result in death by

suffocation. Be particularly careful around small children.

Caution:

When you replace the lamp, never touch the new

bulb with your bare hands. The invisible residue left by the oil

on your hands may be shorten the bulb life. Use a cloth or

gloves to handle the new bulb.

Button Function

Power Starts or stops projection.

Source Switches to Computer 1 , Computer 2, or

Video.

Menu Displays or hides the menu.

Up, down arrows

(Sync+/Sync-) Synchronizes the computer’s graphic signal.

Use these buttons to adjust an overall image

that is fuzzy or streaked, or to select menu

items during menu opera tions.

Left, right

arrows(tracking-/

tracking+)

Matches the projector’s internal clock to

various computer graphic signals (tracking

adjustment).

Use these buttons to adjust an image with

vertical fuzzy lines, or to change numeric

settings during menu opera tions.

Enter key Registers a menu selection.

Resize Switches the display dot mode and resize

mode (for VGA, SVGA, and SXGA input).

Mute Cuts off audio.

– Volume + Adjusts the volume.

operation panel

operation indicator

zoom ring

focus ring

front foot

foot adjuster lever

speaker

remoto

control

reciver

speaker

Power

BlankSource Resize

Mute Volume

Operation Panel

EMP-7300/7200/5300

UICK

TART

Button Function

Menu Displays or hides the menu.

Source Switches to Computer 1 , Computer 2*, or

Video.

Pointer button Use the pointer button to navigate the menus

or use the remote as a mouse pointer when

the projector is connected to the computer

with all cables came with the EMP-7300/

7200/5300.

Effects buttons Use to display special effects in conjunction

with the projector software.

Top multi-pur-

pose button Acts as a right mouse click, registers a menu

selection, and selects other custom

functions.

Bottom multi-pur-

pose button Acts as a left mouse click, registers a menu

selection, and selects other custom

functions.

Blank Clears the screen of special effects and

switches to a black, a blue or user logo

display.

Resize Switches the display dot mode and resize

mode (for VGA, SVGA and SXGA input).

Custom Use to assign functions to the Effects keys

using the projector software.

Freeze Keeps the current computer or video image

on the screen.

Mute Cuts off audio.

– Volume + Adjusts the volume.

Power Starts or stops the projector.

Connecting to

a PC laptop computer Connecting to

a Macintosh PowerBook

- Volume +

Power

Source

Effects

Resize

Blank

Custom

Freeze Mute

Remote control

Computer cable Computer cable

MAC

desktop

adapter

Video

cable

adapter

EMP-7300/7200/5300

UICK

TART

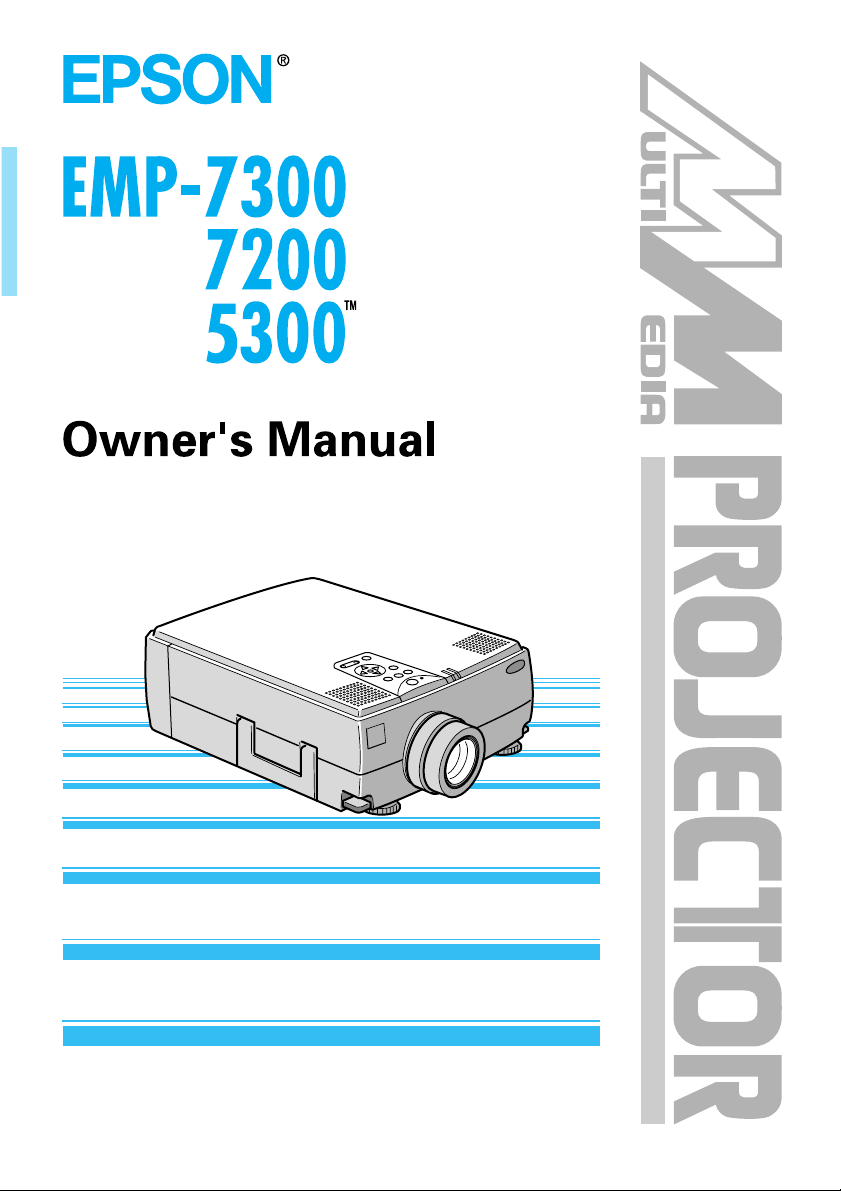

DATA/VIDEO PROJECTOR

Owner’s Manual

retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, recording, or otherwise, without the prior written

permission of SEIKO EPSON CORPORATION. No patent liability is

assumed with respect to the use of the information contained herein. Neither

is any liability assumed for damages resulting from the use of the information

contained herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to

the purchaser of this product or third parties for damages, losses, costs, or

expenses incurred by purchaser or third parties as a result of: accident, misuse,

or abuse of this product or unauthorized modifications, repairs, or alterations

to this product, or (excluding the U.S.) failure to strictly comply with SEIKO

EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or

problems arising from the use of any options or any consumable products

other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

EPSON is a registered trademark and PowerLite is a trademark of SEIKO

EPSON CORPORATION.

General Notice:

The following trademarks and registered trademarks are the

property of their respective owners and are used in this publication for

identification purposes only.

• EPSON/Seiko Epson Corp.

• Macintosh, Macintosh OS System 7, Macintosh OS System 7.5,

PowerBook, Quadra, Centris, Power Mac/Apple Computer Corp.

• IBM/International Business Machines, Inc.

• Windows 3.x, Windows 95, Windows NT4.0, WindowsNT3.51/

Microsoft Corp.

Other product names used herein are also for identification purposes only and

may be trademarks of their respective owners. EPSON disclaims any and all

rights in those marks.

Adobe, Acrobat Reader/Adobe Systems Incorporated.

■

■ ■ ■ ■ ■

■

iii

Contents

Contents iii

Introduction vii

Getting the Most Out of Your Projector................................ix

Remote control ..........................................................................ix

Sleep mode.................................................................................ix

Control Panel.............................................................................ix

Optional Accessories....................................................................x

About This Manual................................................................xi

Safety Instructions................................................................xii

Where to Get Help.............................................................. xiv

World Wide Web site.................................................................xv

Transporting your projector.......................................................xv

Installation 1

Unpacking the Projector.........................................................2

Additional Items......................................................................... 3

Setting Up the Projector.........................................................4

Connecting to a Computer.....................................................7

Connecting to a PC desktop computer ....................................... 8

Connecting to a PC laptop computer........................................12

Connecting to a Macintosh desktop computer.......................... 16

Connecting to a Macintosh PowerBook....................................20

Connecting to a Video Source.................................................. 24

Connecting to an External Speaker or PA System..................26

Contents

■ ■ ■ ■

Connecting to a Workstation

(only available for the EMP-7300/7200)..............................28

Using the Projector 29

Turning the Equipment On and Off.....................................31

Turning the Projector On and Off............................................ 31

Sleep Mode .............................................................................. 32

Focusing and Positioning the Screen Image ..........................33

Resize Button........................................................................... 35

Controlling the Projector......................................................36

Using the Remote Control.......................................................37

Using the Control Panel........................................................... 39

Projector Status Indicators....................................................41

Operation Indicator.................................................................. 41

Lamp Indicator......................................................................... 42

Temperature Indicator.............................................................. 42

Using the Projector Menus 43

Accessing the Main Menu.....................................................44

Changing a Menu Setting.....................................................44

Menu Options......................................................................47

Video Menu (Image source = Computer) .................................47

Video Menu (Image source = Video)........................................ 50

Audio Menu............................................................................. 51

Options Menu.......................................................................... 52

Custom Menu.......................................................................... 54

About Menu............................................................................. 57

RESET ALL Menu................................................................... 57

Using the Projector Software 59

Presentation support function................................................... 60

Projector setting function.........................................................60

System requirements................................................................. 60

Projector Software CD-ROM ...............................................62

Connecting the Cables..........................................................63

Connecting to your PC ............................................................63

■ ■ ■ ■ ■

■

Connecting to your Macintosh.................................................64

Installing the Projector Software on Your PC........................65

Installing ELP Link III V2.0 on your PC..................................67

Installing the Projector Software on Your Macintosh.............69

Accessing the Projector Software...........................................71

For Windows 95 and NT 4.0 users ...........................................71

For Windows 3.1 and NT 3.51 users ........................................71

For Macintosh users .................................................................72

Installing or Accessing the Projector Software on the

CD-ROM Directly................................................................73

For Windows users ................................................................... 73

For Macintosh users .................................................................74

Maintenance 75

Cleaning the Lens.................................................................76

Cleaning the Projector Case..................................................76

Cleaning the Air Filter..........................................................77

Replacing the Lamp..............................................................78

Troubleshooting 81

Problems with the Projector..................................................82

Problems with the Image or Sound.......................................84

Technical Specifications 87

Supported Monitor Displays.................................................89

Monitor and Computer In 1/2 connector pin assignments ...91

Glossary 93

Index 95

Contents

■ ■ ■ ■

Altri manuali per EMP-7300

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Epson Proiettore

Epson

Epson EB-955WH Manuale utente

Epson

Epson Elp-3500 Manuale utente

Epson

Epson 7700p - PowerLite XGA LCD Projector Manuale utente

Epson

Epson EH-TW480 Manuale utente

Epson

Epson EMP-74 Manuale utente

Epson

Epson PowerLite Cinema 500 Manuale utente

Epson

Epson V11H879541 Manuale utente

Epson

Epson PowerLite Home Cinema 640 Manuale utente

Epson

Epson PowerLite 1825 Manuale utente

Epson

Epson PowerLite Home Cinema 1080 UB Manuale utente

Epson

Epson 1925W - POWERLITE Multimedia Projector Guida di riferimento

Epson

Epson LS11000 Manuale utente

Epson

Epson V11H281020 - PowerLite 400W WXGA LCD... Guida di riferimento

Epson

Epson EB-1960 Manuale utente

Epson

Epson 1735W - PowerLite WXGA LCD Projector Scheda tecnica

Epson

Epson Pro Cinema LS12000 Manuale utente

Epson

Epson PowerLite Home Cinema 5030UB Guida di riferimento

Epson

Epson PowerLite 850p Manuale utente

Epson

Epson PowerLite 92 Scheda tecnica

Epson

Epson EMP 7800 Manuale utente

Epson

Epson EB-S9 Manuale utente

Epson

Epson PowerLite 5600p Manuale utente

Epson

Epson 755c - PowerLite XGA LCD Projector Manuale utente

Epson

Epson PowerLite 503c Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuale utente

JVC

JVC 1108TTH-AO-AO Manuale utente
