Introduction 5

Introduction

The MegaPlex MG-50/MG-850HD projector lets you enjoy theater-quality images in the

relaxing environment of your own home. Designed especially for home cinema use, it offers

these outstanding features:

■Built-in dock that allows you to display media from and charge iPods, iPhones, or iPads

■Native WXGA 720p (MG-850HD) and 540p (MG-50) resolution, and up to

2800 lumens (2200 lumens for the MG-50) of brightness (color light output) for

incredibly rich, sharp images in any room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson 3LCD technology for reliable picture quality, increased contrast ratio, and

uniform colors

■HDMI®(High-Definition Multimedia Interface®) port for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Closed captioning (MG-850HD)

■Flexible setup configurations, including front projection and ceiling mounted, plus auto

vertical keystone

■Up to seven (MG-850HD) color modes (five for the MG-50), to quickly optimize

viewing for different lighting environments, and a vast array of custom color adjustments

6Introduction

Projector Parts

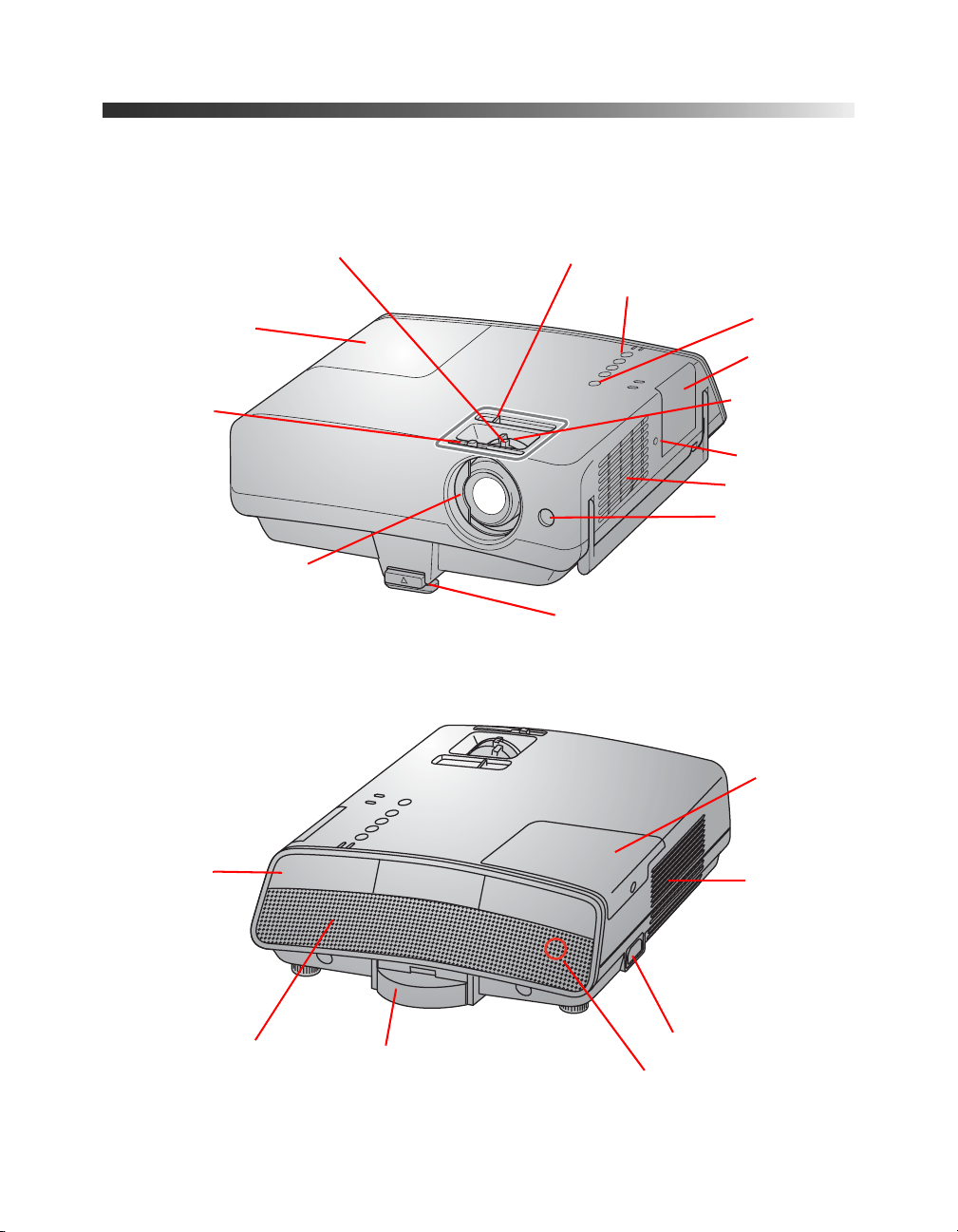

Front

Back

Control panel

Air exhaust vent

Lens cover

Horizontal keystone slider

Adjustable foot

Remote control

receiver

Focus ring

Lamp cover

Security slot

Light sensor

Port cover

A/V mute slide Zoom ring

(MG-850HD only)

AC power inlet

Air exhaust

vent

Remote control receiver

Speakers iPod dock

Lamp cover

Port cover

Projector Parts 7

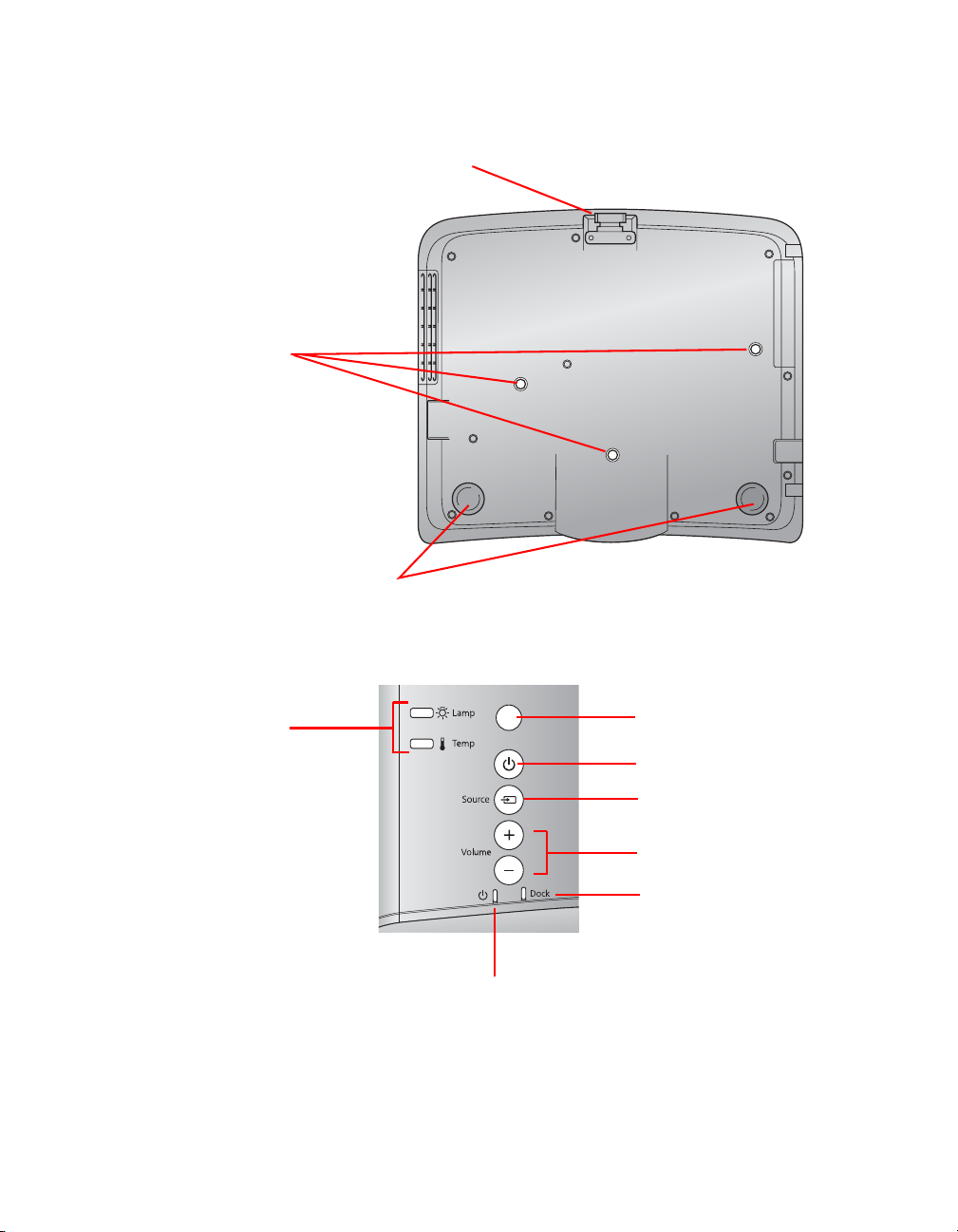

Bottom

Control Panel

Mounting bracket

attachment points

Rear adjustable feet

Front adjustable foot

Power button

Volume

Dock light

Status lights

Power light

Source button

Light sensor

8Introduction

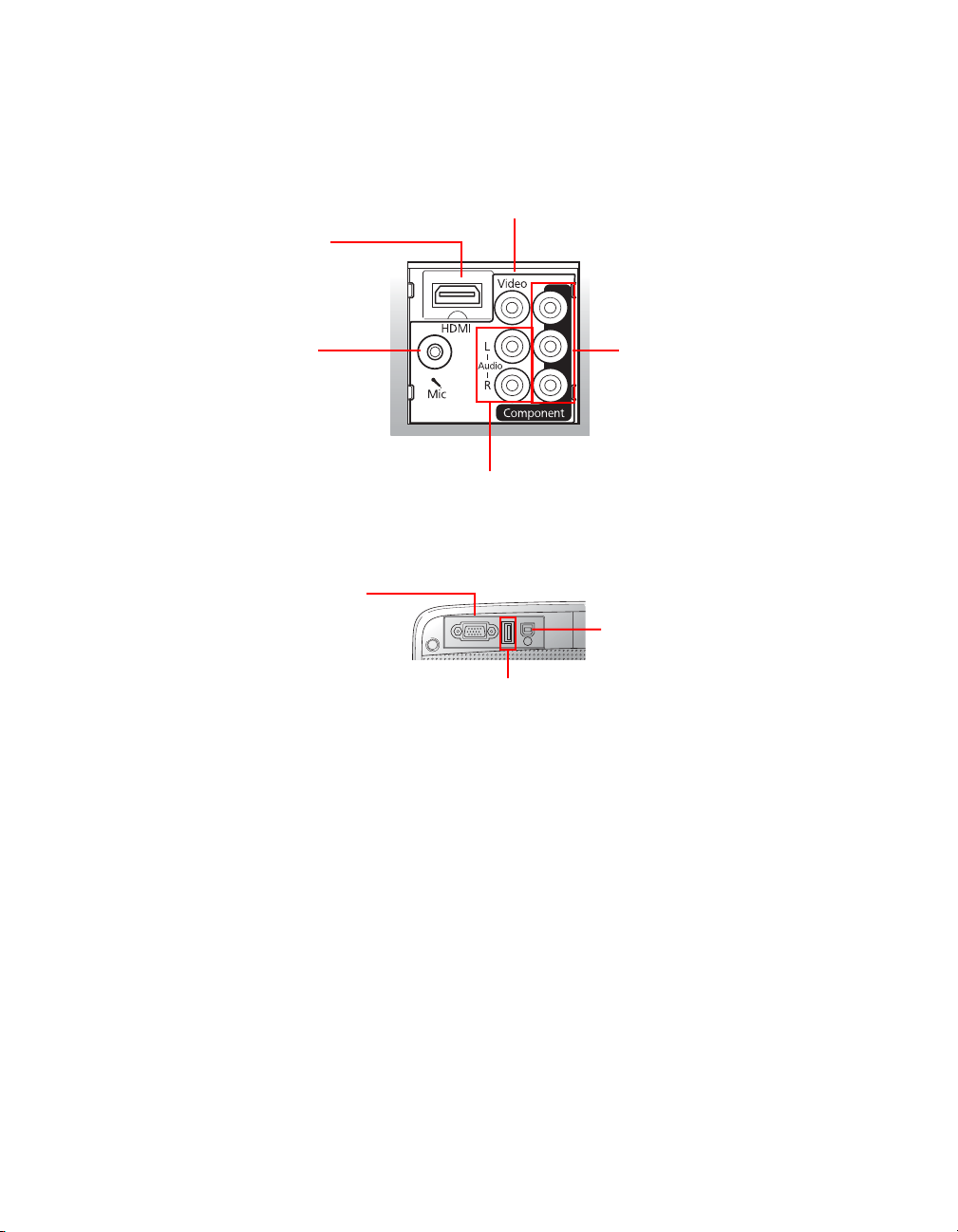

Projector Ports

Side ports

Back ports

HDMI

Component

video

Microphone

Audio (L/R)

Composite video

USB

TypeB

USB TypeA

(MG-850HD only)

PC input

Projector Parts 9

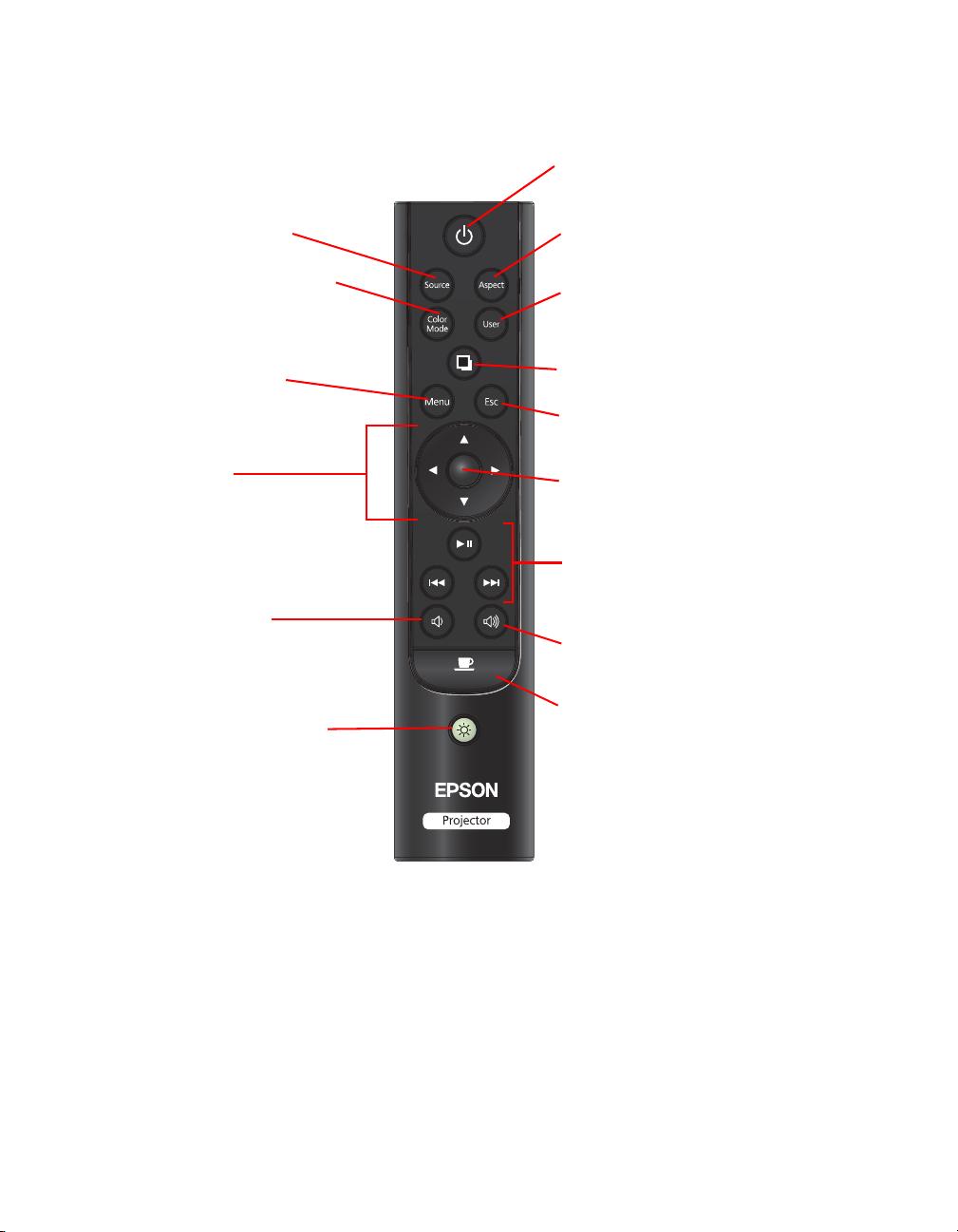

Remote Control

Source button

Switches between

image sources connected to

the projector

Power button

Turns projector on or off

navigation

buttons

Menu button

Displays the

projector’s

menus

Aspect button

Changes the picture’s aspect ratio

Esc (escape) button

Exits the current menu item

A/V mute button

Temporarily turns projected

images and audio off and on

Enter button

Selects menu items or opens

the line menu

Controls playback:

Play/Pause

Rewind

Fast-forward

Illumination button

Lights the playback and

volume buttons for easy

viewing

Color Mode button

Optimizes viewing for

different lighting

environments

Turns down

the volume Turns up the

volume

Transfers control to the iPod

when connected

User button

Shortcut to selected menu items

10 Introduction

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized Epson

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic two-year carry-in warranty. For details, see the warranty

brochure.

In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your

Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L67

Air filter replacement V13H134A37

Kensington®security lock (anti-theft device) ELPSL01

Epson DC-06 document camera (MG-850HD only) V12H321005

Projector mount V12H003B23
