Epson PowerLite 6100 Manuale utente

PowerLite®Home Cinema 6100/6500 UB

Home Theater Projector

User’s Guide

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of Seiko Epson Corporation. The information contained herein is designed only for use with

this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for

damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of

this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or

any consumable products other than those designated as Original Epson Products or Epson Approved Products by

Seiko Epson Corporation.

Trademarks

Epson is a registered trademark, 1080Perfect is a trademark, and Epson Exceed Your Vision is a registered

logomark of Seiko Epson Corporation.

PowerLite and PrivateLine are registered trademarks, DigiScan and AccuCinema are trademarks, and Extra Care

and Epson Connection are service marks of Epson America, Inc.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing, LLC.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

x.v.Color is a trademark of Sony Corporation.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

CPD-26527R1

Contents 3

Contents

Introduction 7

Projector Parts 8

Front 8

Back 8

Bottom 9

Projector Control Panel 9

Remote Control Button Map 10

Optional Accessories 11

Registration and Warranty 11

Using This Manual 12

Setting Up the Projector 13

Choosing a Location 13

Installing the Projector 17

Connecting the Cables 19

Connecting Video and Computer Equipment 19

Making Other Connections 21

Installing Batteries in the Remote Control 22

Turning the Projector On and Off 22

Turning On the Projector 22

Turning Off the Projector 23

Selecting the Image Source 24

Positioning the Image 25

Making Basic Adjustments 27

Focusing and Zooming 27

Choosing the Aspect Ratio 28

Choosing the Color Mode 29

4Contents

Advanced Color Adjustments 30

Adjusting the Gamma Setting 30

Adjusting RGBCMY 31

Locking the Projector 32

Making Detailed Adjustments 33

Using the Menu System 33

Changing How the Menus Display 35

Adjusting the Picture Quality 35

Input Brightness Settings 35

Sharpness and Picture Quality Settings 37

Color Settings 40

Adjustments for Computer Images 42

Selecting Memory Settings and Resetting the Projector 43

Selecting Memory Settings 43

Creating Memory Settings 43

Renaming Memory Settings 44

Deleting Saved Memory Settings 44

Resetting the Projector 45

Customizing Projector Features 46

Image Sizing 46

Screen Options 47

Other Setup Options 47

Maintenance 49

Cleaning the Lens 49

Cleaning the Projector Case 50

Cleaning and Replacing the Air Filter 50

Replacing the Lamp 52

Resetting the Lamp Usage Timer 55

Checking the Projector Status 55

Storing the Projector 56

Transporting the Projector 56

Contents 5

Problem Solving 57

What To Do When the Lights Come On or Flash 57

Solving Picture Problems 59

Solving Remote Control Problems 62

Where To Get Help 63

Specifications 65

General 65

Lamp 66

Remote Control 66

Dimensions 66

Electrical 66

Environmental 67

Safety 67

Compatible Video Formats 68

ESC/VP21 Command Codes 70

Notices 71

Important Safety Information 71

FCC Compliance Statement 73

Declaration of Conformity 74

Epson America, Inc. Limited Warranty 75

Index 77

6Contents

Introduction 7

Introduction

The PowerLite®Home Cinema 6100/6500 UB projector lets you enjoy theater-quality

images in the relaxing environment of your own home. Designed especially for home cinema

use, it offers these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 75000:1 (18000:1

for the Home Cinema 6100), and up to 1600 lumens (Home Cinema 6500 UB) or

1800 lumens (Home Cinema 6100) of brightness (white light output and color light

output) for incredibly rich, sharp images in any room lighting

■Auto Iris system that constantly controls the lamp intensity based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson®Crystal Fine 3LCD technology for reliable picture quality, increased contrast

ratio and uniform colors

■1080Perfect™video processing using HQV®Reon-VX technology for more film-like

images free of noise or artifacts

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■Epson AccuCinema™color management delivered by the built-in optical Cinema Filter

blocks out excess light for an expanded, purer color range and sophisticated grayscale

tracking

■HDMI™(High Definition Multimedia Interface™) port for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal offset lens shift

■Seven color modes, including x.v.Color™, to quickly optimize viewing for different

lighting environments, and a vast array of custom color adjustments

8Introduction

Projector Parts

Control panel (top)

Ventilation slots

Lens cover

Vertical lens shift dial

Adjustable foot

Video port

HDMI ports

Component

video port

AC power inlet

Infrared receiver

Kensington®

lock port

Infrared receiver

Horizontal lens shift dial

S-Video port

Control (RS-232C) port

Trigger out

port

PC port

Zoom ring

Focus ring

Main power switch

Front

Back

Lamp cover

Control panel

(side)

Air intake (filter)

Lamp cover release

Cable holder

Introduction 9

Power

button

Menu navigation

button

Esc button

Exits the current

menu item

Menu button

Displays the

menus

Warning lights

Mounting bracket

attachment points

Enter button

Selects menu items or

opens the line menu

Bottom

Projector Control Panel

Optional cable cover

attachment points

(brass colored)

Top control panel Side control panel

Source button

Switches the

video input source

10 Introduction

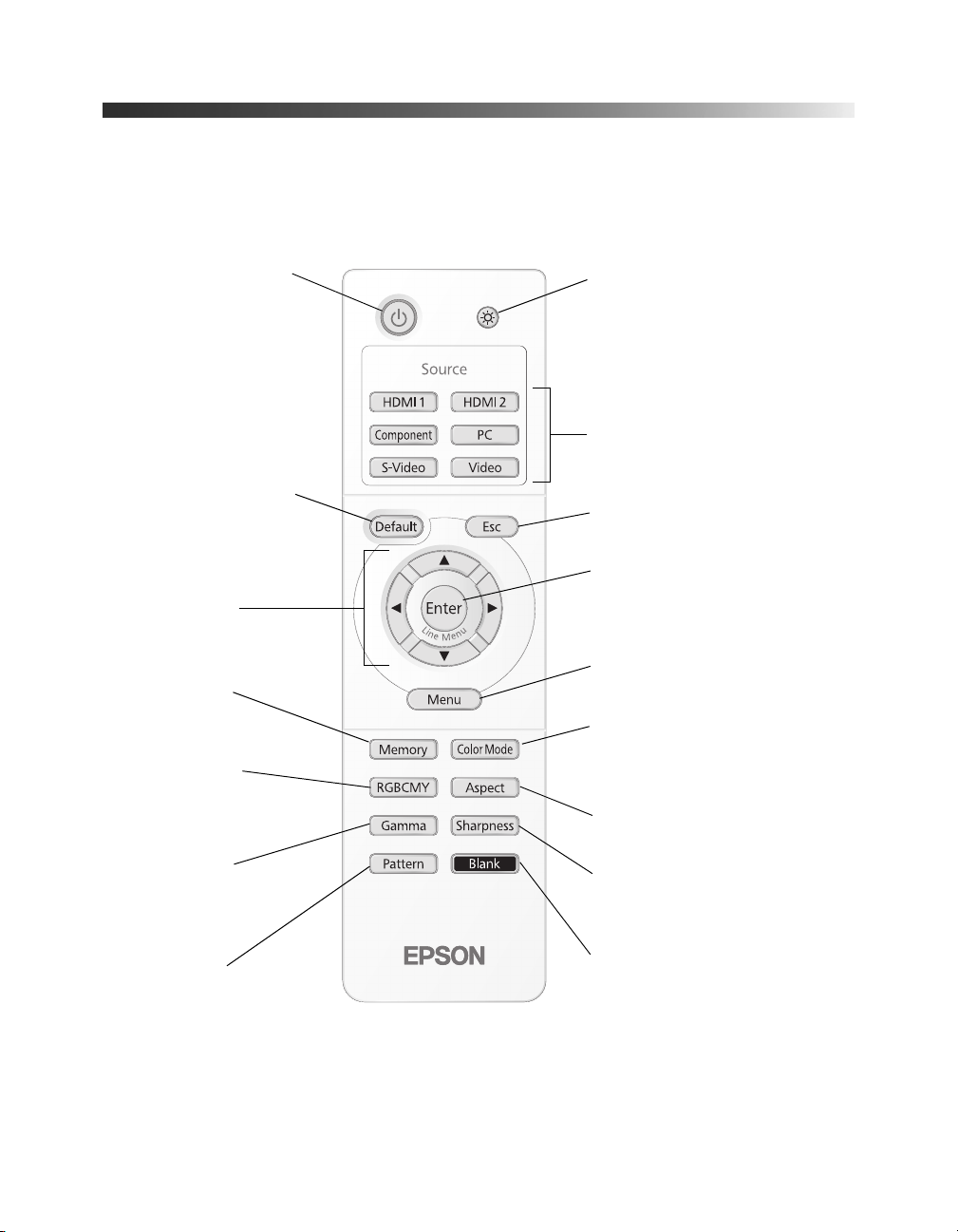

Remote Control Button Map

Source buttons

Switch between equipment

connected to the projector

Color Mode button

Optimizes viewing for

different lighting environments

Power button

Turns projector on or off

Memory button

Recalls custom

picture settings

Menu navigation

buttons

Pattern button

Displays test patterns

to adjust the image

Menu button

Displays the projector’s menus

Aspect button

Changes the picture’s aspect ratio

Esc (escape) button

Exits the current menu item

Blank button

Temporarily stops projection or

hides the menu screen

Enter/Line Menu button

Selects menu items or opens

the line menu

Gamma button

Adjusts the gamma values

of the screen display

Default button

Restores default settings

when menu is displayed

Sharpness button

Adjusts image sharpness

Illumination button

Lights the remote control

buttons for easy viewing

RGBCMY button

Adjusts the hue,

saturation, and brightness

for each color
