Epson PowerLite Cinema 200 Dimensioni

Page 1 of 144

PSB.2004.10.002

EPSON PRODUCT SUPPORT BULLETIN

Date: 10/08/2004 Originator: DS

PSB #: PSB.2004.10.002 Authorization:

Reference: TI 04-46e Rev. A Total Pages: 14

Product(s): EMP NS Connection, EMP Network Manager, EMP Monitor,

EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver

Subject: Evaluation results of Epson Projector PC applications tested in Windows XP

with SP2.

The purpose of this bulletin is to provide information on Epson PC projector applications tested

under the Windows XP SP2 (Service Pack2) environment.

Description:

Information is provided about the evaluation results and recommendations for Epson PC

projector applications functionality in Windows XP SP2 Firewall environment.

Reason:

Compatibility testing for functionality of EMP NS Connection, EMP Network Manager, EMP

Monitor, EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver in the Windows

XP SP2 environment.

Results of Windows XP SP2 installation:

Installing SP2 on PCs did not disturb the installation of the above software applications.

Also, the application software can be installed on PCs where SP2 or earlier versions are

installed without any issues.

The information contained in the following pages provides details for executing the

applications in Windows XP SP2.

Page 2 of 144

PSB.2004.10.002

Executing the Software:

When executing the software noted below for the first time after SP2 installation completes,

the following security alert messages are displayed:

[EMP NS Connection]

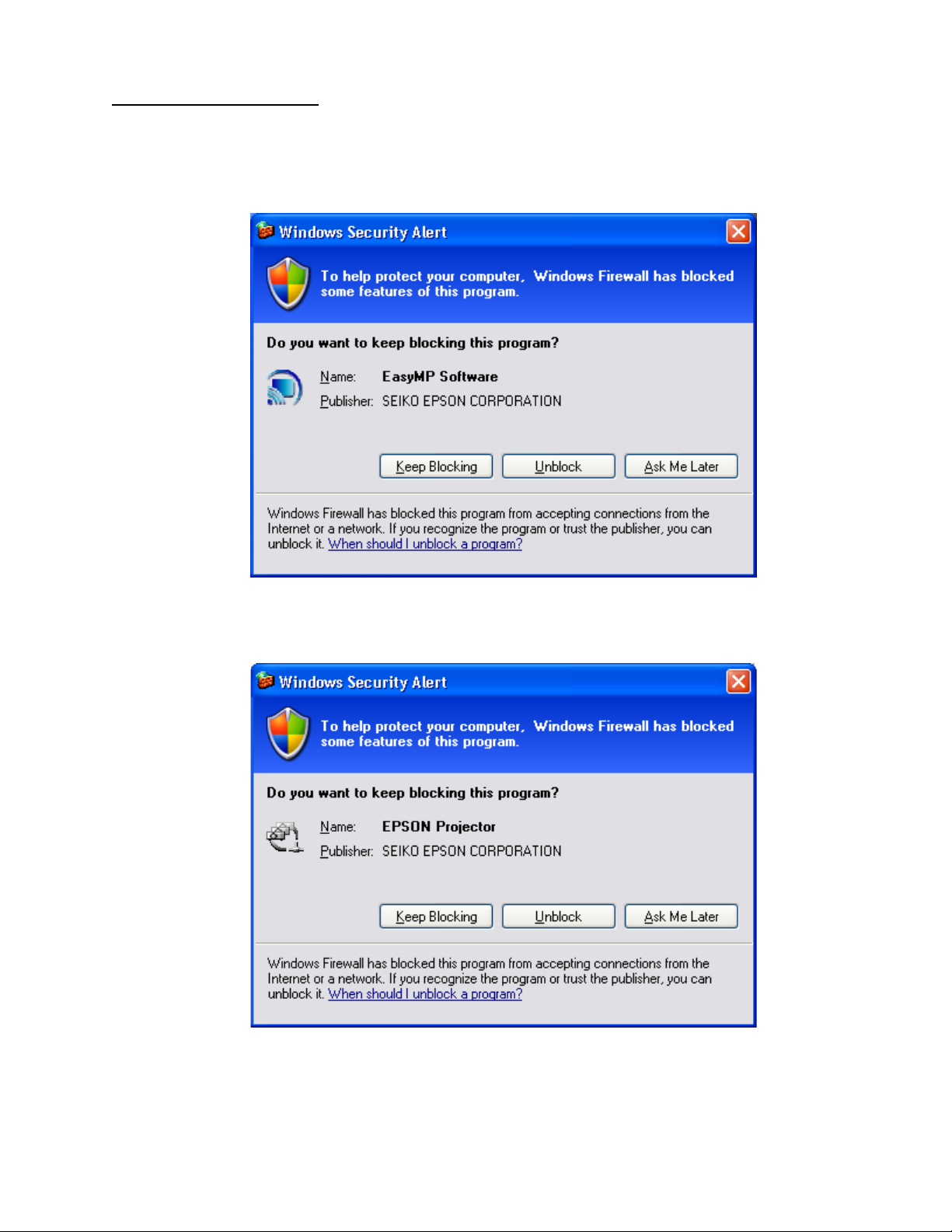

Security alert screen (EMP NS Connection)

[EMP Network Manager]

Security alert screen (EMP Network Manager)

Page 3 of 144

PSB.2004.10.002

[EMP Monitor]

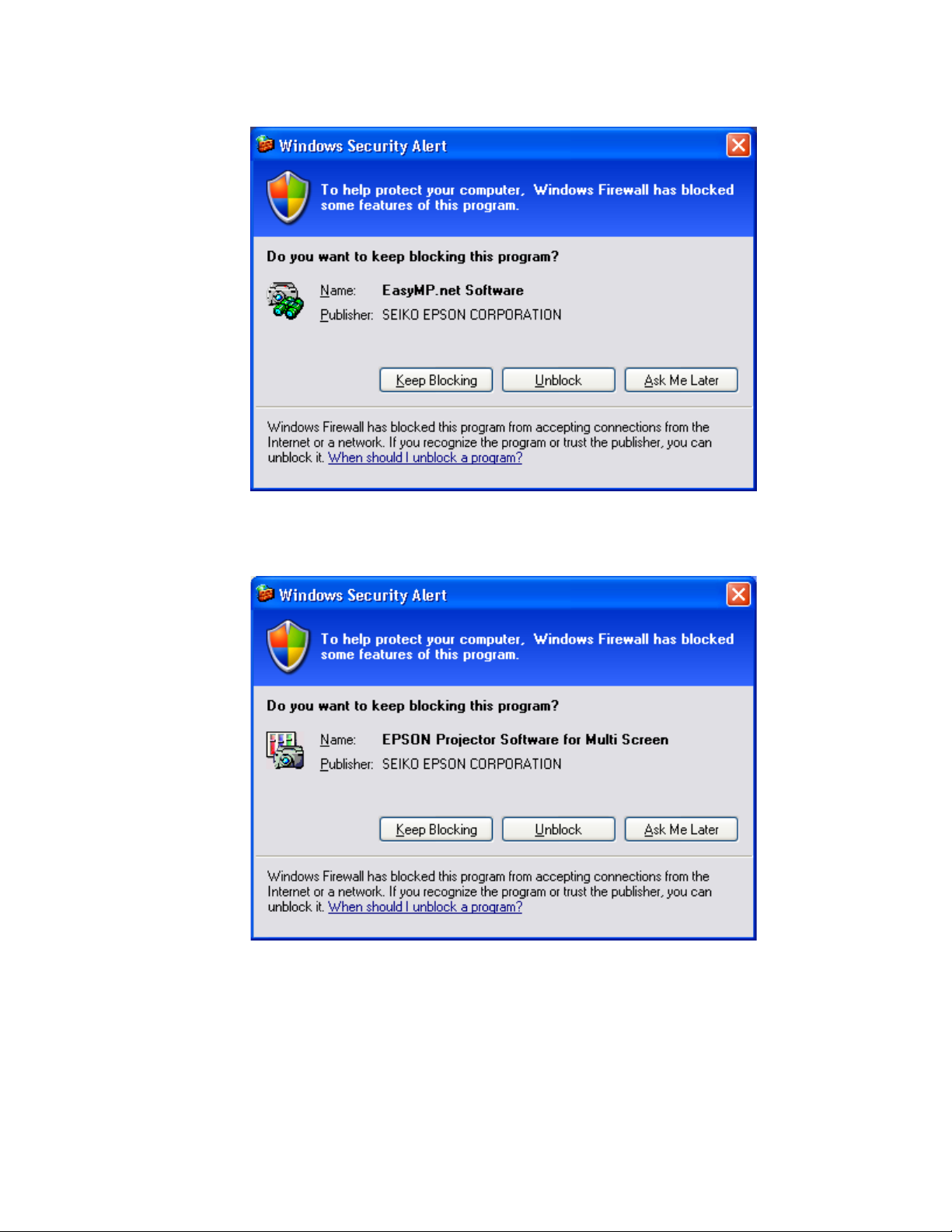

Security alert screen (EMP Monitor)

[EMP Multi Screen Adjustment]

Security alert screen (EMP Multi Screen Adjustment)

The Security Alert screen for EMP Multi Screen Adjustment is shown after clicking the

Auto button of Network or clicking the Add button after entering an IP address in the

IP Address box.

Page 4 of 144

PSB.2004.10.002

[Cinema Color Editor]

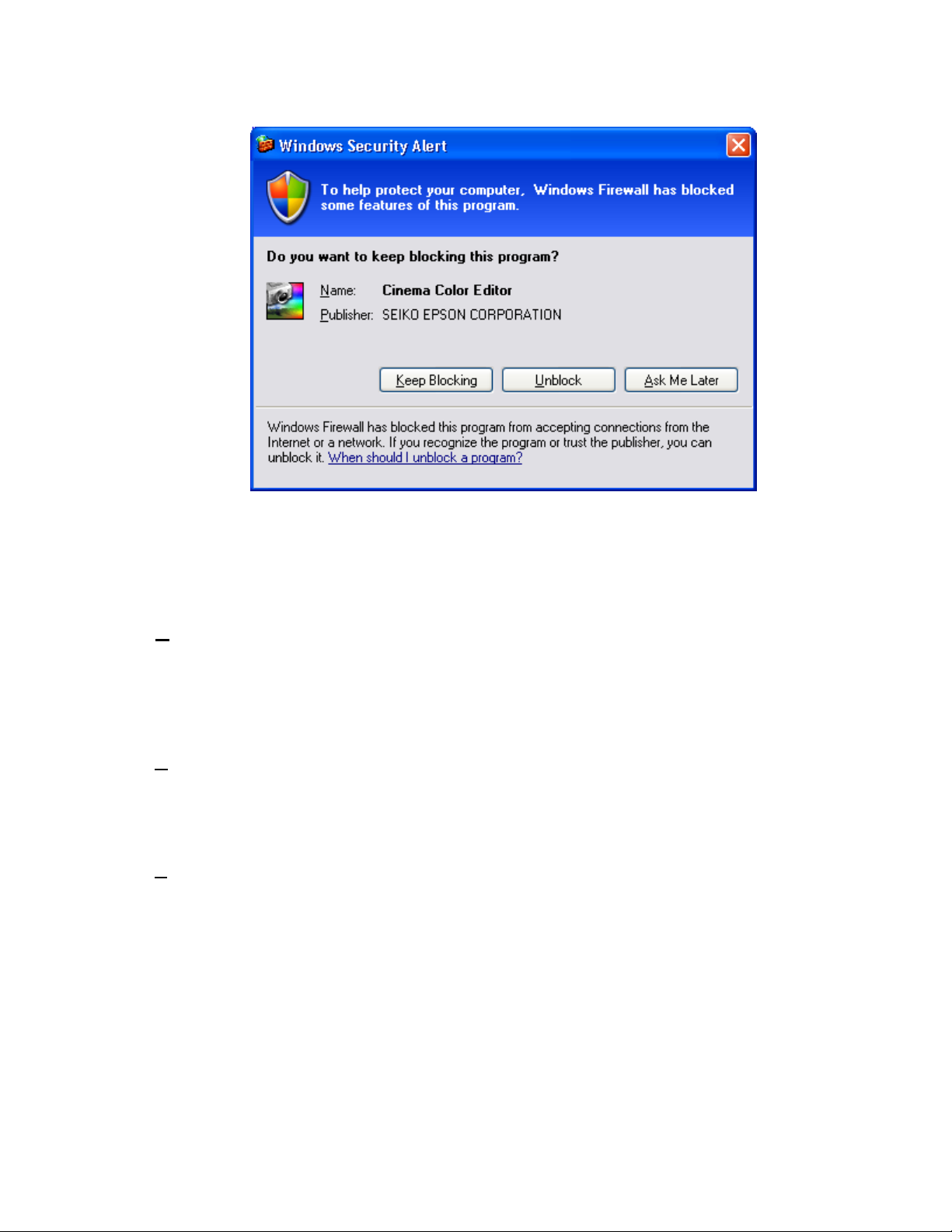

Security alert screen (Cinema Color Editor)

The functions of the three buttons displayed in the security alert screen are explained

below.

[Keep Blocking] --- Enables you to register a started application in the “Exceptions”

program of the Windows Firewall. The network port that the

application uses is blocked. By selecting this button once, this

security alert message will not be shown when starting the

application next time.

[Unblock] ------------- Enables you to register a started application in the “Exceptions”

program of the Windows Firewall and unblock the network port that

the application uses. By selecting this option once, this security alert

message will not be shown when starting the application next time.

[Ask me later]-------- When you want to select both buttons above or select either one

later, this button is selected. The started application is not registered

in the “Exceptions” program of the Windows Firewall and the

network that the application uses is not unblocked. However, when

restarting the application, the same security alert message is shown.

•PC applications will work normally on Windows XP with SP2 if the “Unblock

Item” is selected when the security alert screen is shown.

For the detail operation information of each application, please refer to the following:

Page 5 of 144

PSB.2004.10.002

Operating Status Report

When selecting the Keep Blocking button, the security alert message is closed and the

main screen of each application is displayed.

[EMP NS Connection Application]

Port 3620 is necessary for searching for projectors. If this port is blocked, projectors are not

detected.

The other applications operate normally. However, there is a case that execution of

automatic search disables automatic detection. This occurs when projectors are registered

for automatic detection in EMP Monitor before installing SP2, then the registered projectors

may not be detected again after SP2 installation. Therefore it is recommended to select

Unblock in the security alert screen.

If “Keep Blocking” has been selected when starting the application for the first

time, and the blocking needs to be removed, complete the execution of the application and

proceed with unblocking as follows:

a.) Start the Windows Security Center. Double click the icon in the shape of a shield that

is always displayed on the taskbar after the installation of SP2.

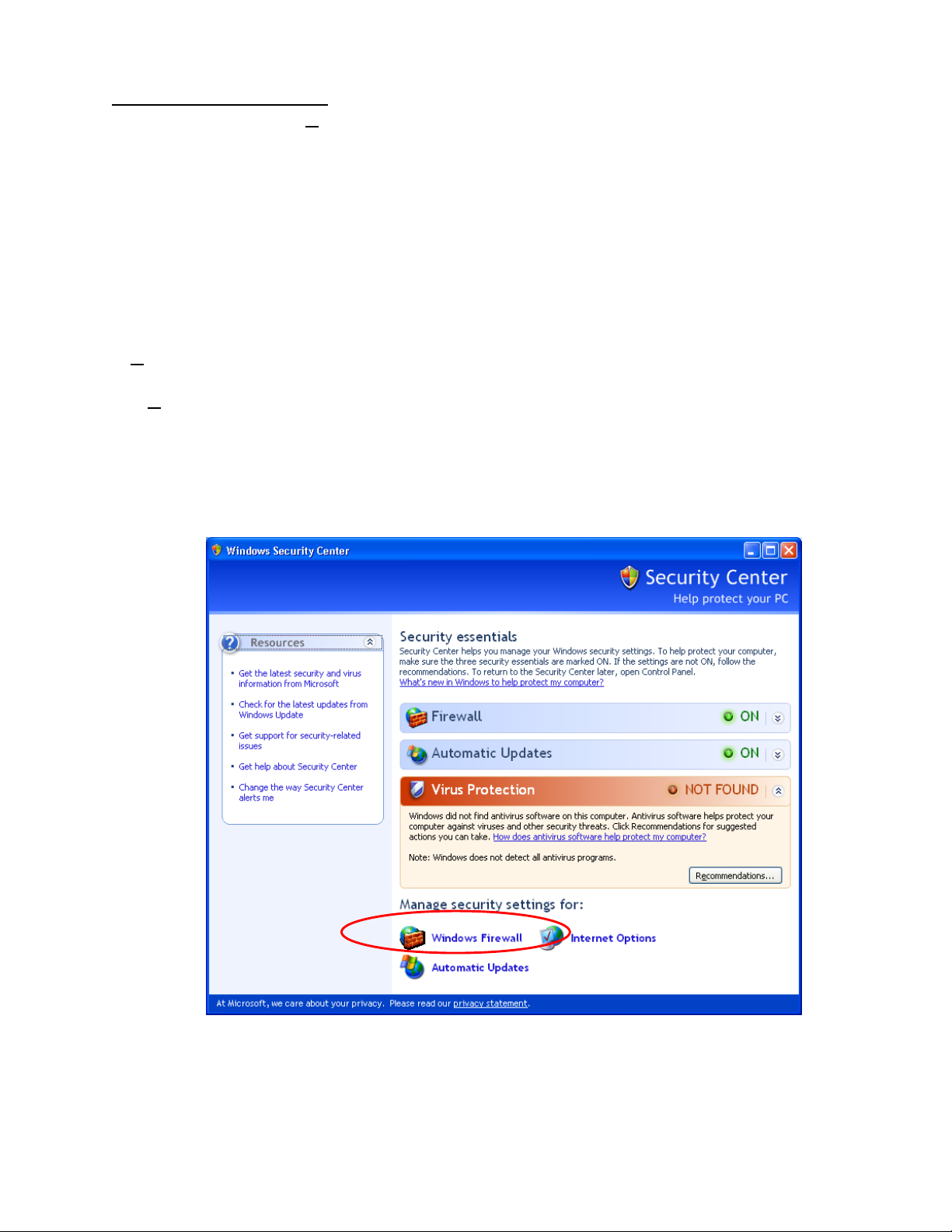

Windows Security Center screen

b.) Select and start Windows Firewall

Page 6 of 144

PSB.2004.10.002

Windows Firewall screen

[Caution]

In case the check box

for Don’t allow

exceptions

is checked (this box is

not checked at the

initial setting), a

network port for

software is not

unblocked even though

the software is checked

on Exceptions.

Make sure this option is

not selected.

Page 7 of 144

PSB.2004.10.002

c.) Select the Exceptions tab and display exceptions program.

•Exceptions screen

d.) Check the check boxes for the software you don’t want to block.

[Caution]

If this check box is

not checked, the

security alert

screen is not

displayed when

starting software.

Page 8 of 144

PSB.2004.10.002

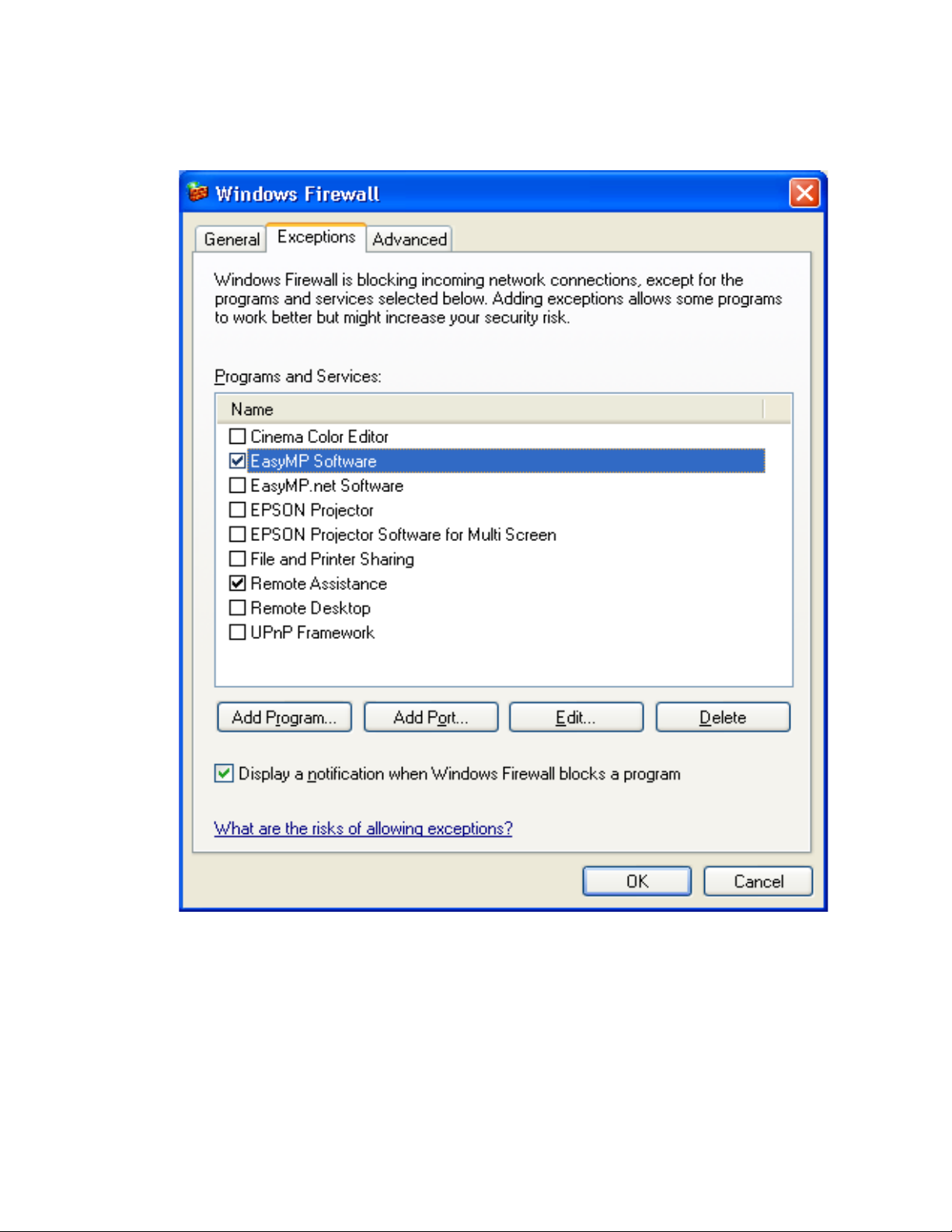

[EMP NS Connection] •Check EasyMP Software box

Unblock screen (EMP NS Connection)

Page 9 of 144

PSB.2004.10.002

[EMP Network Manager Application]•Check EPSON Projector box

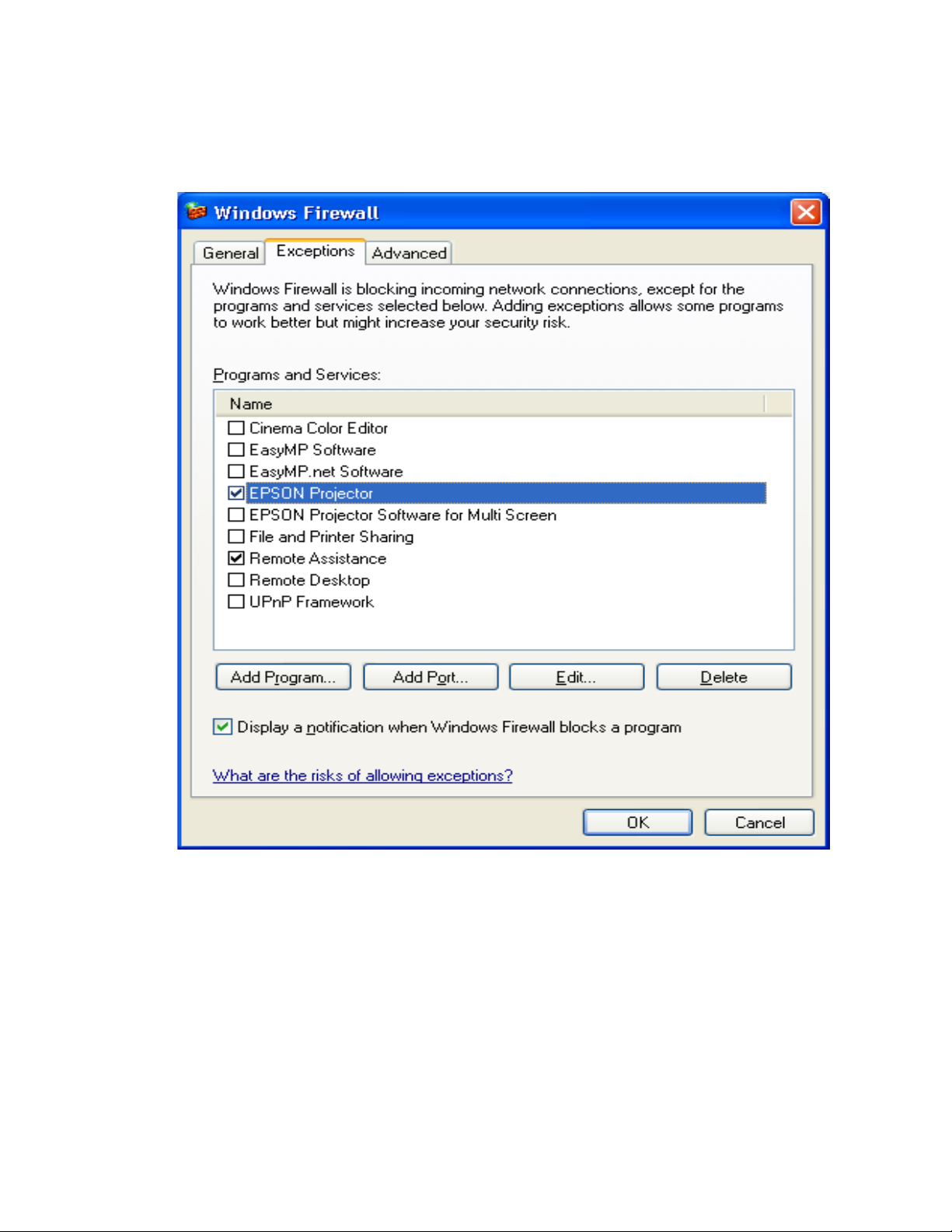

Unblock screen (EMP Network Manager)

Page 10 of 144

PSB.2004.10.002

[EMP Monitor Application]→Check EasyMP.net Software box

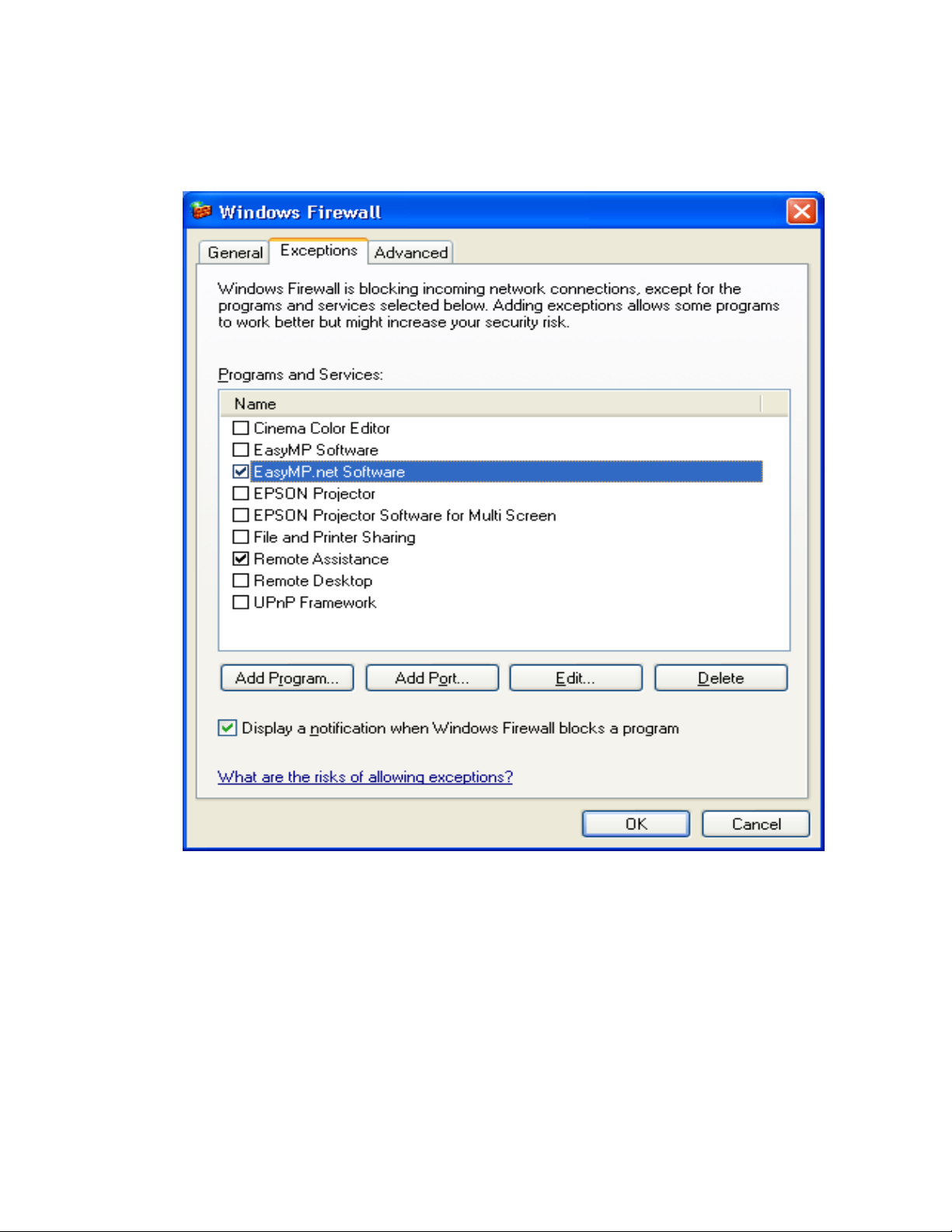

Unblock screen (EMP Monitor)
