Epson PowerLite Pro Cinema 6020UB Manuale utente

PowerLite®Pro Cinema 6020UB

Home Theater Projector

User’s Guide

2Contents

Contents

Introduction 5

Projector Parts 6

Remote Control 8

Optional Accessories 9

Registration and Warranty 9

Using This Manual 10

Setting Up the Projector 11

Choose a Location 11

Installing the Projector 15

Connecting the Cables 17

Connecting Video and Computer Equipment 17

Making Other Connections 19

Installing Batteries in the Remote Control 20

Charging the 3D Glasses 20

Turning the Projector On and Off 21

Turning On the Projector 21

Turning Off the Projector 22

Selecting the Image Source 22

Positioning the Image 23

Making Basic Adjustments 26

Focusing and Zooming 26

Choosing the Aspect Ratio 27

Viewing 3D images 28

Projecting in Split Screen mode 30

Choosing the Color Mode 31

Contents 3

Advanced Color Adjustments 32

Adjusting the Gamma Setting 33

Adjusting RGBCMY 34

Locking the Projector 34

Making Detailed Adjustments 36

Using the Menu System 36

Changing How the Menus Display 37

Adjusting the Picture Quality 38

Input Brightness Settings 38

Sharpness and Picture Quality Settings 40

Color Settings 41

3D Setup 43

Adjustments for Computer Images 45

Split Screen Setup 45

Selecting Memory Settings and Resetting the Projector 47

Creating Memory Settings 47

Selecting Memory Settings 47

Renaming Memory Settings 48

Deleting Saved Memory Settings 48

Resetting the Projector 49

Customizing Projector Features 50

Image Sizing 50

Screen Options 51

Other Setup Options 51

Adjusting the LCD Alignment 53

Using HDMI Link 56

Setting Up HDMI Link 56

Changing HDMI Link Settings 57

4Contents

Maintenance 58

Cleaning the Lens 58

Cleaning the 3D Glasses 59

Cleaning the Projector Case 60

Cleaning and Replacing the Air Filter 60

Replacing the Lamp 62

Resetting the Lamp Usage Timer 65

Checking the Projector Status 66

Storing the Projector 66

Transporting the Projector 67

Problem Solving 68

What To Do When the Lights Come On or Flash 68

Solving Picture Problems 70

Solving Remote Control Problems 74

Where to Get Help 75

Specifications 76

Notices 81

Important Safety Information 81

FCC Compliance Statement 83

A Note Concerning Responsible Use of Copyrighted Materials 84

Trademarks 85

Introduction 5

Introduction

The PowerLite®Pro Cinema 6020UB projector lets you enjoy theater-quality 2D and 3D

images in the relaxing environment of your own home. Designed especially for home cinema

use, it offers these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 320,000:1 and up

to 2400 lumens of color brightness and 2400 lumens of white brightness (light output)

for incredibly rich, sharp images in almost any setting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks now in both 2D and 3D

■Epson C2Fine®3LCD technology for reliable picture quality, increased contrast ratio and

uniform colors

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed

digital video

■THX®3D certified to deliver exquisite, natural textures and film-like movie experiences

■Built-in cinema filter and Fujinon® lens for exceptional picture quality

■True 16:9 wide-format projection

■Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal lens shift dials for offset placement

6Introduction

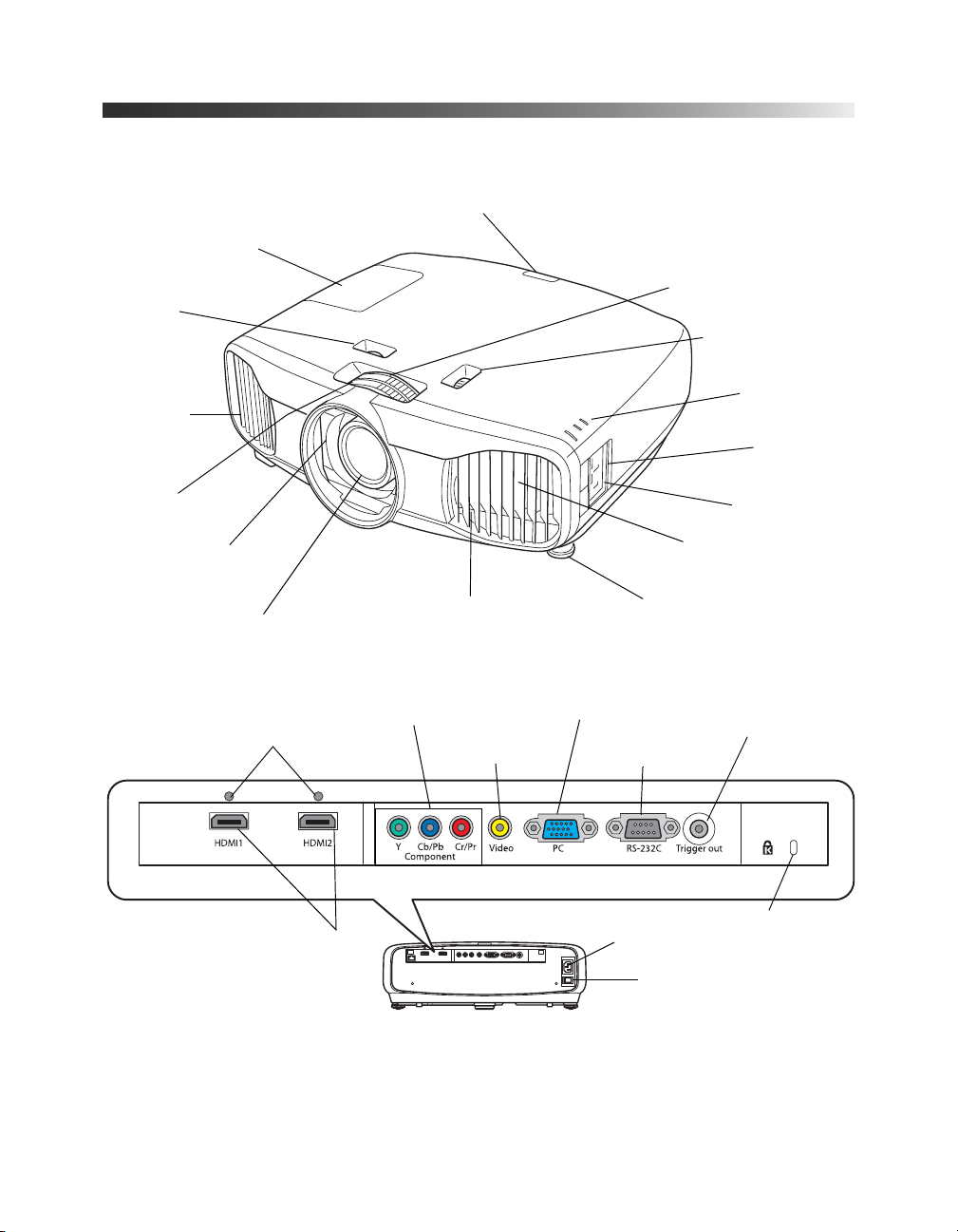

Projector Parts

Air exhaust

Projector lens

Adjustable foot

HDMI ports

Remote receiver

Vertical lens shift dial

Front

Back

Lamp cover

Air intake

Air filter cover

Power inlet Kensington®lock port

RS-232C port

Video port

PC port

Control panel

Horizontal

lens shift dial

Focus ring

Zoom ring

HDMI Cable clip holes

Component port

Power switch

Trigger out port (12V DC

200mA max)

Auto lens

shutter

Control

panel cover

Power and

warning

lights

Introduction 7

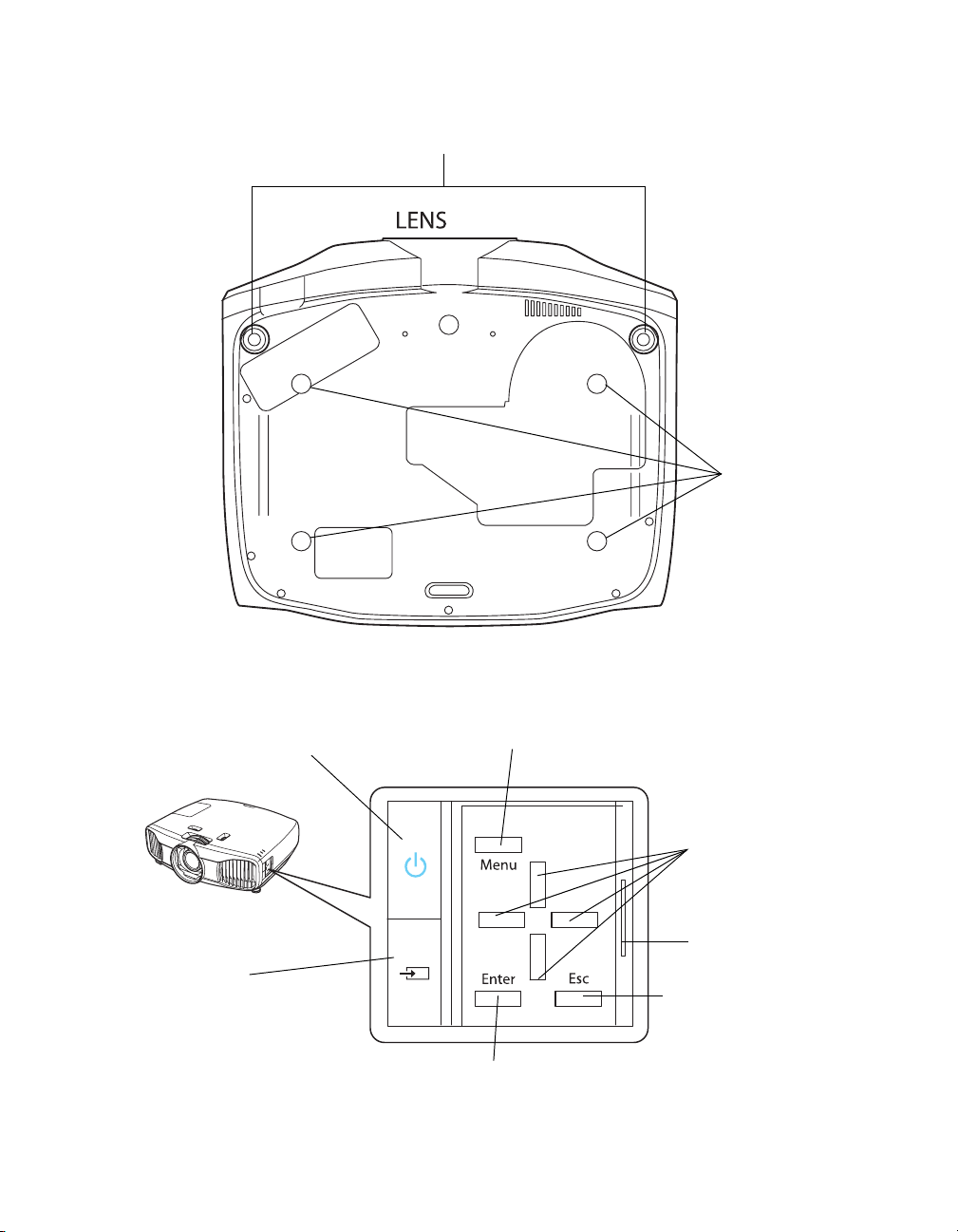

Escape button

Power button

Mounting bracket

attachment points

Bottom

Projector Control Panel

Source button

Menu navigation/

vertical keystone

buttons

Front adjustable feet

Menu button

Enter button

Retractable

cover

8Introduction

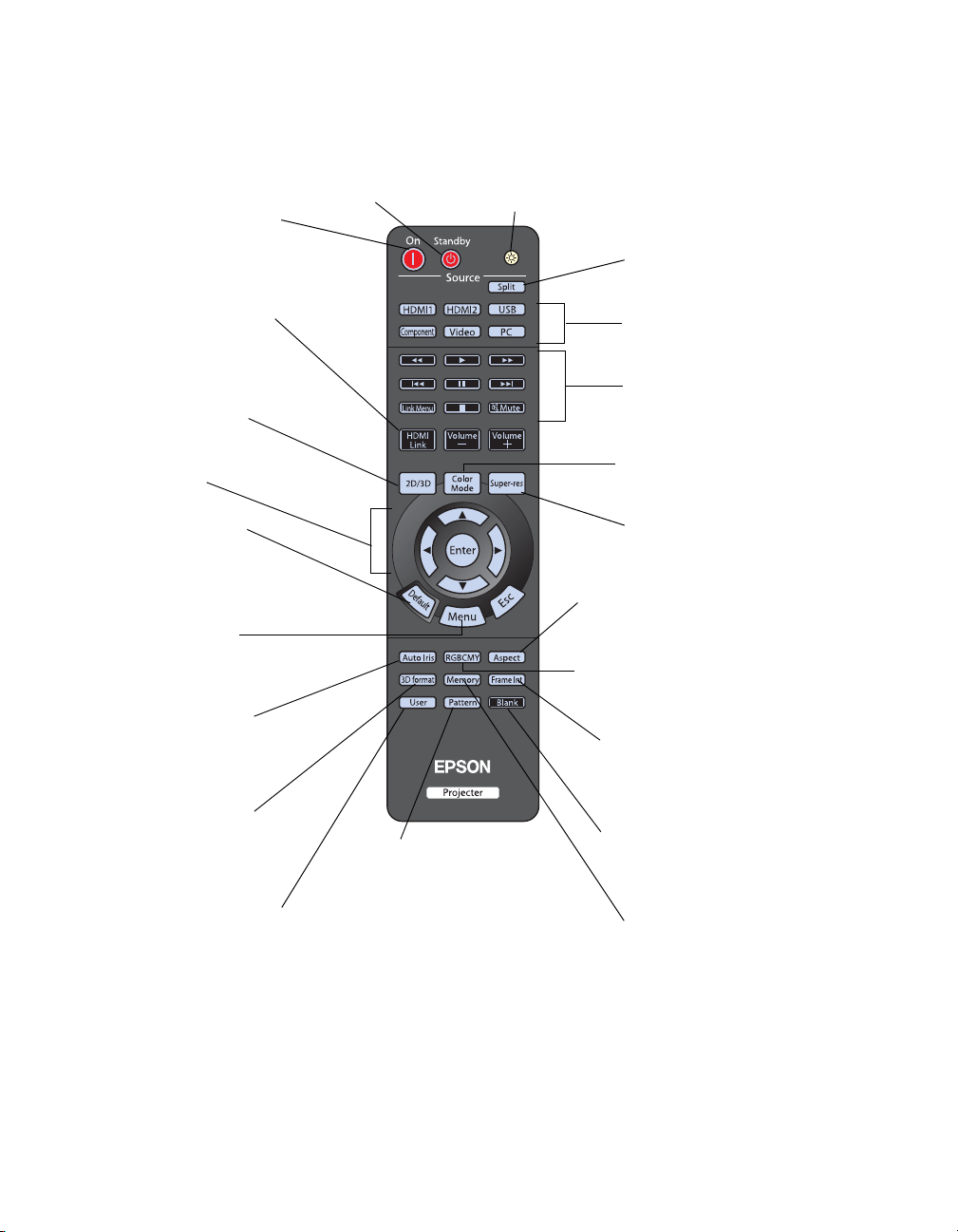

Remote Control

Source buttons

Switch between equipment

connected to the projector

On button

Turns projector on

navigation

buttons

3D format button

Adjusts the 3D

Format setting

Color Mode button

Quickly change color settings

to match room lighting

Aspect button

Changes the picture’s aspect ratio

Blank button

Temporarily stops projection or

hides the menu screen

Auto Iris button

Toggles the Auto Iris

function on or off

HDMI Link button

Enables and disables the

HDMI link function

Frame Int setting

Adjusts the Frame Interpolation

setting

Illumination button

Lights the remote control

buttons for easy viewing

Menu button

Displays the projector’s

menus

Default button

Resets menu

selection to default

values

2D/3D button

Toggles

between 2D and

3D projection

RGBCMY button

Displays the color adjustment menu

Memory button

Accesses the

memory menu

HDMI Link control buttons

Control playback of a linked

video device

Super-res button

Adjusts the Super-res setting

on or off

Standby button

Turns projector off

Split button

Toggles the Split

Screen function on or

off

User button

Programmable button

performs various

functions

Pattern button

Toggles the test

pattern on or off

Introduction 9

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized Epson

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic three-year carry-in warranty for the projector, one-year 3D

glasses warranty, and a 90 day limited warranty for the lamp. For details, see the Quick Setup

sheet.

In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your

Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L69

Air filter replacement V13H134A39

Replacement remote control 1581984

Kensington security lock (theft-deterrent device) ELPSL01

Projector mount CHF2500

RF 3D active shutter glasses V12H548006

PixiePlus control system for Epson projectors ELPSP10

Belkin Pro Series VGA / SVGA cable – 6 ft F3H982-06

Belkin PureAV HDMI audio video cable – 3 ft AV22300-03

Fixed Anamorphic Lens Kit ELPFALKED

Motorized Anamorphic Lens Kit ELPALK3

10 Introduction

Using This Manual

This book contains all the information you need to use the projector, in addition to basic

setup and maintenance instructions, troubleshooting tips, important safety instructions,

specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day

at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or

product information and e-mail Epson.

If you need more help, you can use the Epson®PrivateLine®Support service by calling

(800) 637-7661.
