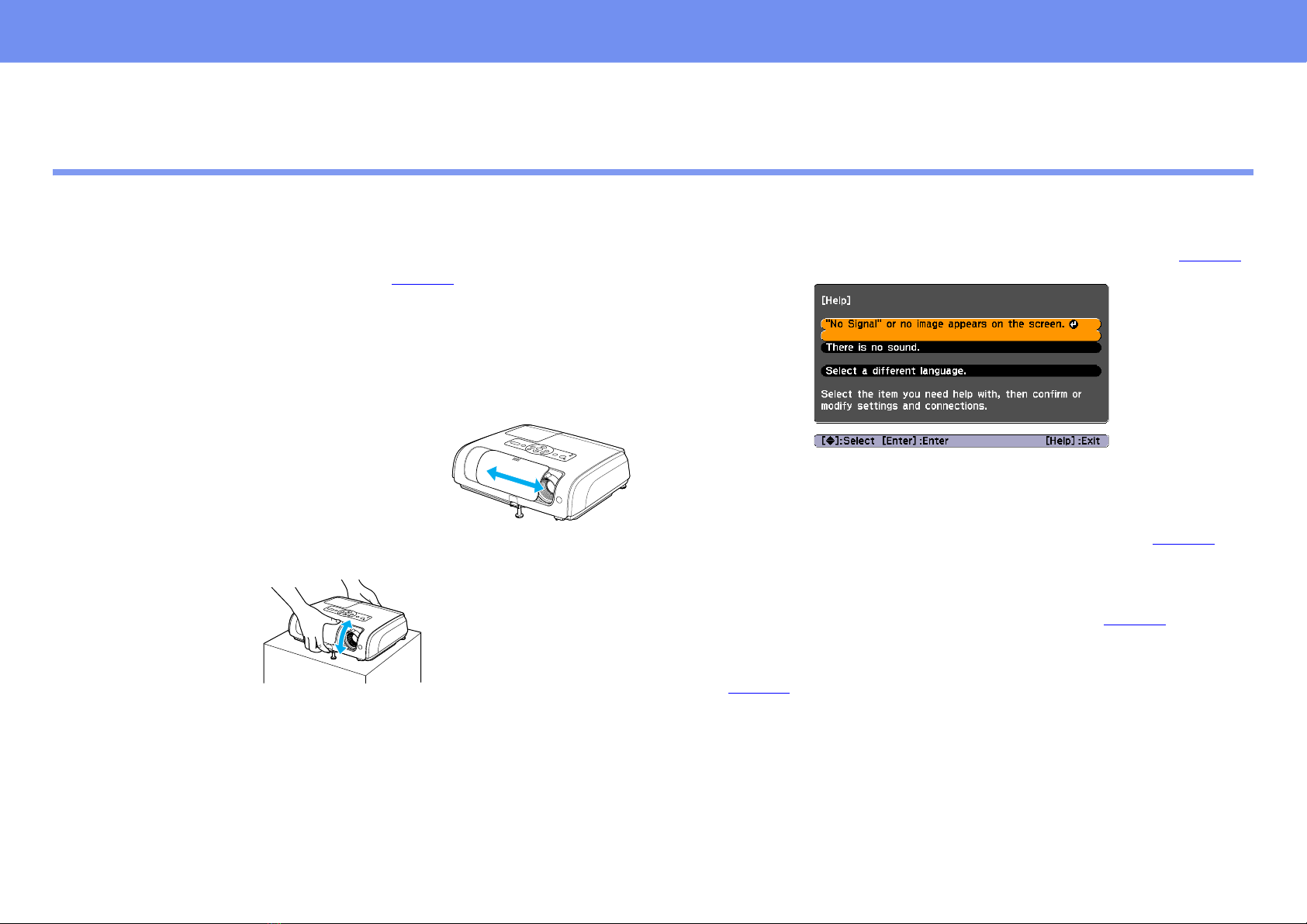

Projector Features

Direct Power On and Instant Off

Use the Direct Power On function to turn the projector on simply by plugging

the power cable into an electrical outlet. See page 36.

When you’re done using the projector, just turn it off, unplug it, and place it in

the carrying case. The projector’s Instant Off design means you don’t have to

let it cool down first.

Ease of Use

◗Lens cover

Temporarily stop projection by closing the lens

cover.

◗Single foot design

Make height adjustments quickly with one hand.

◗Easy to use, big button control panel

◗Automatic source search

Press the Source Search button to automatically detect and display the

connected picture signal.

◗On-screen Help

Quickly answer questions about common projection problems. See page 45.

Color Modes

Project movies, photos, presentations, and games in the optimum color tone

by choosing the most suitable mode for your surroundings. See page 14.

Security Function

◗Set up a password to restrict use of the projector. See page 24.

◗Disable all control panel buttons except for the Power button to prevent

your settings being changed when the projector is used in a public place.

See page 26.

Setting Up the Projector

The projector supports the following four projection methods, allowing you to

choose the best method for displaying your images.

c• For ceiling mount installation (suspending from the ceiling), a special

installation procedure is required. Failure to install correctly may

result in injury or damage if the projector falls.

• Do not turn the projector on its side during projection, or malfunctions

may occur.

• To prolong the life of the projector, turn it off when not in use.

◗Front projection (Front projection)

◗Rear projection using a translucent screen (Rear projection)

p• The optional ceiling mount is required when installing the projector on

a ceiling. See page 58.

• When using ceiling projection or projection using a translucent

screen, set the "Projection" command in the "Extended" menu to

match the installation method. See page 35.

◗Front/ceiling projection (Front/Ceiling projection)

◗Rear/ceiling projection using a translucent screen

(Rear/Ceiling projection)

Part Names and Functions

Front/Top

Lamp cover

Open this cover when replacing the

projector's lamp.

Control panel

Remote control light-receiving area

Receives signals from the remote control.

Front adjustable foot

Raises the projector to adjust the projection

angle.

Lens cover

Slide shut when not using the projector to

protect the lens.

If you close it while projecting, the image and

sound are termporarily stopped.

Focus ring

Adjusts the image focus.

Foot release lever

Extends the front foot.

Air exhaust vent

Security lock

Part Names and Functions

Control Panel

[Power] button

Turns the projector power on or off.

[Help] button

Displays and closes the help, which shows

solutions if a problem occurs.

[Menu] button

Displays and closes the configuration menu.

[Esc] button

Stops the current function.

Displays the previous screen

or menu while viewing a

configuration menu.

[Source Search] button

The input source is automatically searched for in the

following order, and the input image from the connected

equipment is projected.

Computer port

S-Video port

Video port

[Enter] button

Automatically adjusts analog RGB images from computers

and RGB video images to the optimum images.

If a configuration menu or help screen is displayed, it

accepts and enters the current selection.

[ ] [ ] button

Press to correct keystone distortion.

If a configuration menu or help screen is

displayed, it selects menu items and

setting values.

[Wide] [Tele] button

Adjusts the image size. If a configuration menu or help

screen is displayed, it selects menu items and setting

values.

LED indicators

The color of the

indicators and whether

they are flashing or lit

shows the state of this

projector.

Part Names and Functions

Rear

Remote control light-receiving area

Receives signals from the remote control.

Power inlet

Connects to the power cable.

Computer port

Inputs analog RGB video signals from a

computer and RGB video signals and

component video signals from other video

sources.

Video port

Inputs component

video signals to the

projector from other

video sources.

S-Video port

Inputs S-video signals

to the projector from

other video sources.

USB port

Connects the projector to a computer via the

USB cable when using the wireless mouse

function.

Computer images cannot be projected by using

the USB cable to connect the computer.

Monitor Out port

Outputs the projected computer's analog RGB

signals or RGB video signals to an external

monitor from the source that is connected to

the Computer port. This feature is not available

for video equipment signals.

Speaker

Rear adjustable foot

Lets you level the image.

Audio input

Input audio signals from connected external

equipment.

When you are connecting two or more pieces of

external equipment that use the same input port,

you need to disconnect one before connecting the

other, or use an audio selector.

Part Names and Functions

Base

Air filter (air intake vent)

This prevents dust and other foreign particles

from getting inside the projector when air is

drawn in. It should be cleaned and replaced

periodically.

Suspension bracket fixing points (3 points)

Attach the optional ceiling mount here when suspending the projector from a ceiling.

Front adjustable footFoot adjust lever

Air intake vent

Clean the air intake vent

periodically.
