EPSON Perfection 3170

8/03 EPSON Perfection 3170 - 1

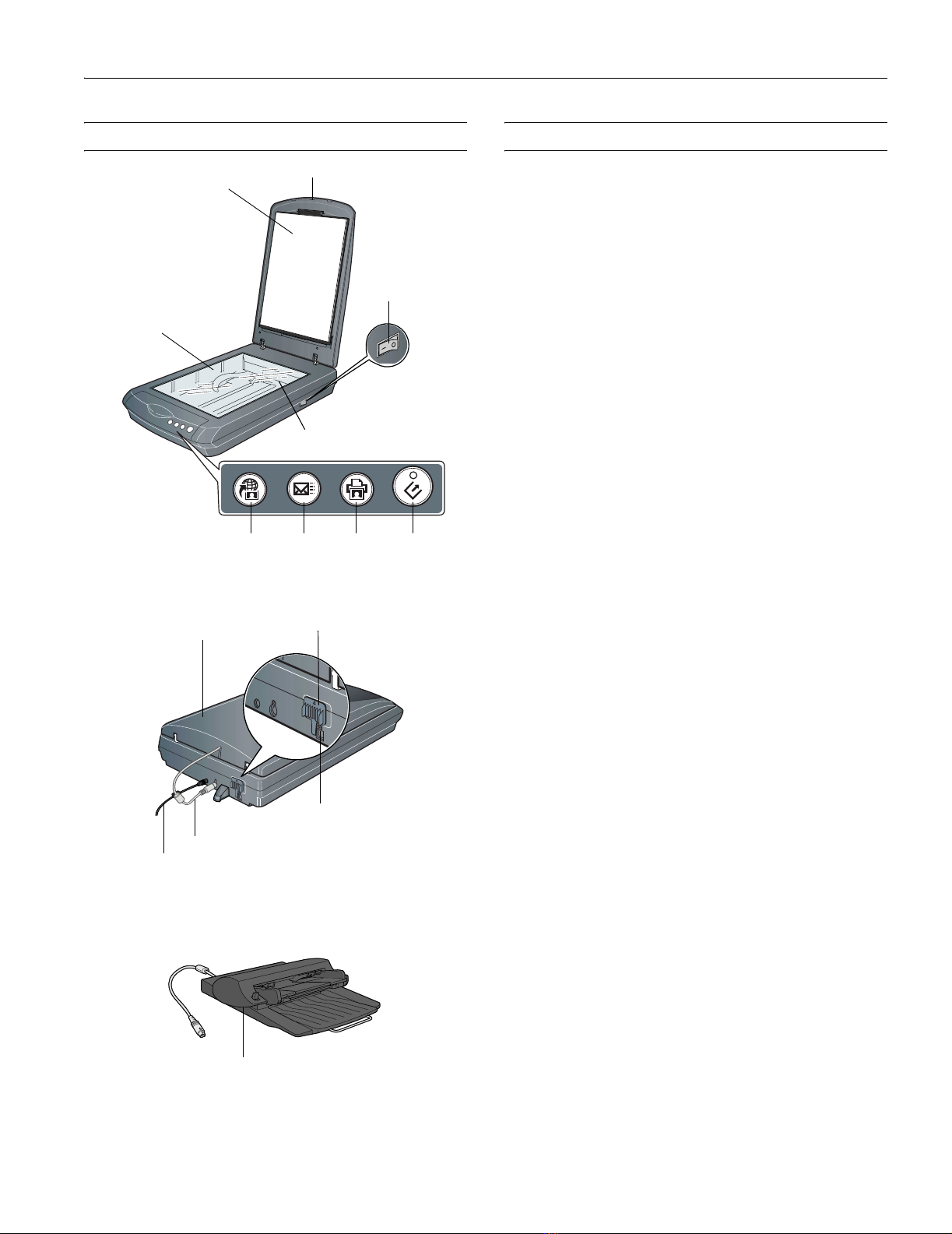

Scanner Parts Scanner Specifications

Basic Specifications

Scanner type Flatbed, color

Photoelectric Color EPSON MatrixCCDTM line sensor

device

Effective pixels 27,200 ×37,440 pixels at 3200 dpi,

100% scaling

Maximum US letter or A4 size

document size (8.5 ×11.7 inches [216 ×297 mm])

Optical resolution 3200 dpi

Maximum 3200 dpi (main scan) ×6400 dpi hardware

resolution* (sub scan)

* The maximum hardware resolution of 3200 ×6400 dpi is achieved

using EPSON’s Micro Step Drive™technology.

Maximum 12,800 dpi

interpolated

resolution

Speed (color) 8.7 msec/line at 3200 dpi (draft mode)

2.8 msec/line at 600 dpi (draft mode)

Pixel depth 16 bits per pixel (input/output)

Line art settings Fixed threshold

Gamma correction 1 type for user-defined

Interface

USB 1.1/2.0 (Type B receptacle connector)

Light source White cold cathode fluorescent lamp

Dimensions Width: 10.9 inches (276 mm)

Depth: 18.0 inches (458 mm)

Height: 4.6 inches (117 mm)

Weight Approx. 8.9 lb (3.8 kg)

Electrical

Input voltage range 100-120 VAC

Rated frequency 50 to 60 Hz

Rated input 0.7 A

current

Rated output 1.1 A

current

Power Approx. 23 W operating

consumption approx. 19 W in stand-by mode

approx. 5.5 W in power saving mode

Note: Scanners sold outside the US market may operate at a different

voltage. Check the label on the back of the scanner for voltage

information.

TPU indicator light

Document

table

Carriage and lamp

(in the home position)

USB port

Power cord

Transparency unit

(TPU) connector

Transportation lock

(in unlocked position)

Start

button

Power button

Transparency unit

(TPU) under lid

Document

cover

Copy

button

Scan to

e-mail

button

Scan to

Web

button

Automatic Document Feeder

(ADF) (optional)

Note: 3 film holders are included (not shown)

EPSON Perfection 3170

2 - EPSON Perfection 3170 8/03

Environmental

Temperature Operation: 41 to 95 °F (5 to 35 °C)

Storage: –13 to 140 °F (–25 to 60 °C)

Humidity Operation: 10% to 80%

(without Storage: 10% to 85%

condensation)

Operating Ordinary office or home conditions; avoid

conditions extreme dust, direct sunlight, and strong

light sources.

Safety Approvals

Safety UL 60950

CSA C22.2 No. 60950

EMC FCC part 15 subpart B class B

CSA C108.8 class B

USB Interface

Interface type Universal Serial Bus Specification

Revision 2.0

Connector type One receptacle (Type B)

Electrical Full Speed mode (12 Mbps) and High

standard Speed mode (480 Mbps), Universal

Serial Bus Specification Revision 2.0

Connector pin arrangement

AC Adapter

Input 100-120 VAC, 50 to 60 Hz

Output 24.0-26.4 VDC, 1.1 A

Transparency Unit

The transparency unit (film adapter) is built into the scanner

lid.

Electrical Supply voltage: DC 24.0 to 26.4 V

Rated current: 0.5 A

Document Positive or negative film in these sizes:

specifications 35 mm strips

35 mm slides

120/220 (6 ×9-cm) film

Readable area 2.6 ×9.1 inches (66 ×231 mm)

Optional Automatic Document Feeder

(B12B813341) Specifications

Basic Specifications

Paper supply Face up load

Paper out Face down eject

Paper setting

quantity 30 sheets (55 g/m2 paper, maximum total

thickness under 6 mm)

Reliability load/eject:

(mean cycles plain paper sheets - 20,000

between failure) transparency film - 10,000

hinge: 12,000 cycles

Electrical

Input voltage 24-26.4 VDC

Input current 0.8 A

Note: Optional ADFs sold outside the US market may operate at a

different voltage. Check the label on the back of the scanner for

voltage information.

Environmental

Temperature Operation: 50 to 90 °F (10 to 32 °C

Storage: -4 to 140 °F (-20 to 60 °C)

Humidity Operation: 20 to 80%

(without Storage:10% to 85%

condensation)

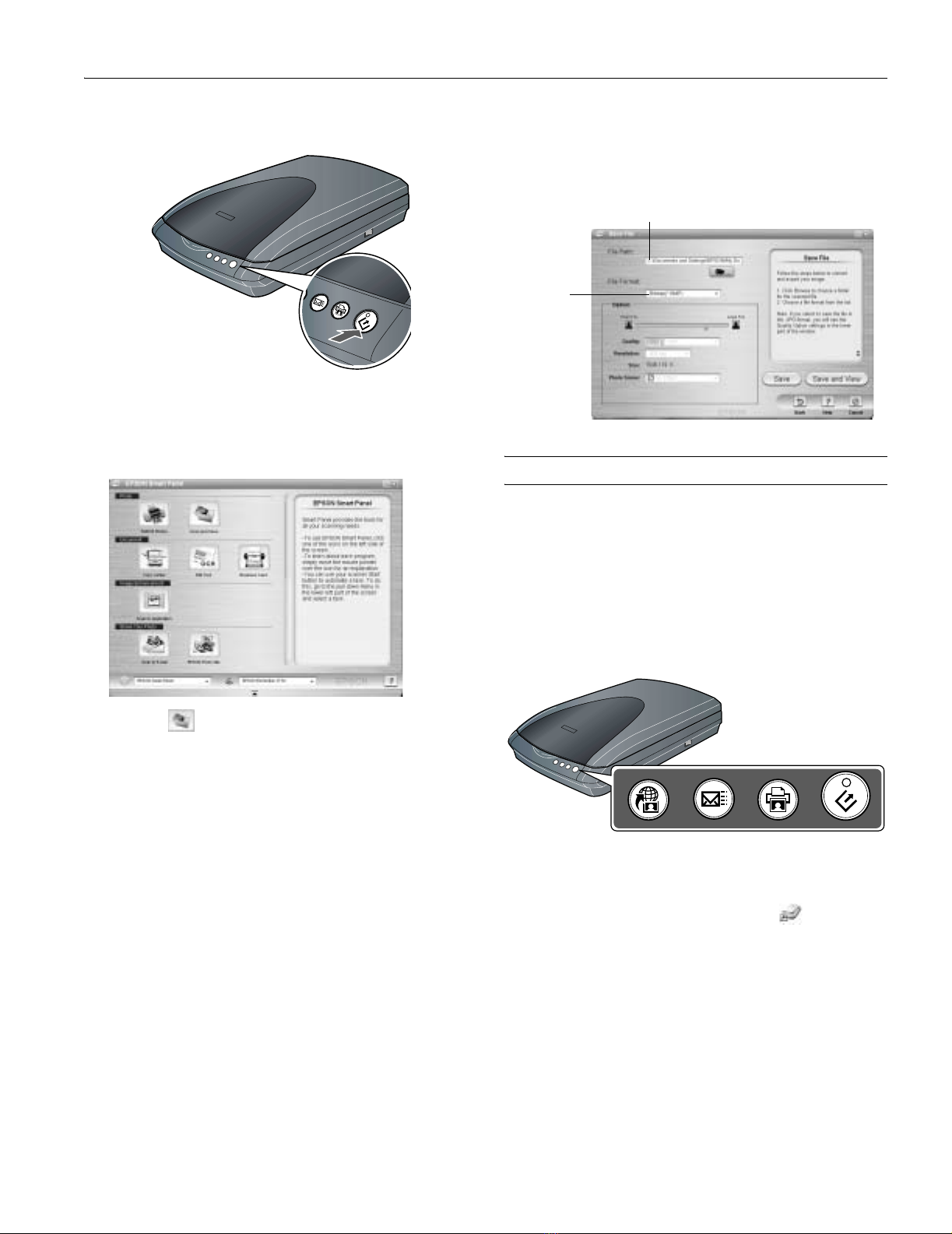

How to Scan

The ]Start button on your scanner automatically opens the

EPSON Smart Panel, making it easy for you to scan your

images for many different uses. Here’s how you can use the

]Start button and Smart Panel to scan photos and save them

as files.

1. Raise the scanner cover and place your photo face down on

the glass. Make sure the top right corner of the photo is

aligned with the top right corner of the scanner.

Then close the cover.

Pin number Signal Connector

1VCC

2–DATA

3+DATA

4GND

EPSON Perfection 3170

8/03 EPSON Perfection 3170 - 3

2. Press the ]Start button on your scanner.

Note: In Windows XP, you will see a message the first time you press

the ]Start button. Select EPSON Smart Panel, click Always

use this program for this action, then click OK.

EPSON Smart Panel opens on your computer.

3. Click the Scan and Save icon.

A progress meter appears on the screen and your photo is

automatically scanned. After your photo is scanned, the

View Image screen opens.

4. Click Next to continue.

5. When you see the following screen, select a location and file

type for your scanned image, then click Save.

Starting a Scan

You can start a scan in several different ways:

❏You can use the scanner buttons. Press the button for the

type of scan you want. Smart Panel automatically opens and

scans your documents. Then follow the easy on-screen

instructions to finish your task.

Note: If you are using Windows XP, you will have to select EPSON

Smart Panel and Always use this program for this action the

first time you press each of the buttons.

❏You can start Smart Panel by clicking the icon on your

desktop, and use it to perform various types of scans.

❏You can start EPSON Scan from Adobe Photoshop

Elements or any other TWAIN-compliant program. You

can also start the EPSON Scan program directly from your

computer.

Select a

file format

Specify the path to the folder

where you want to save your

scanned image

Scan to

Web

Copy

Scan to

E-mail

Start

EPSON Perfection 3170

4 - EPSON Perfection 3170 8/03

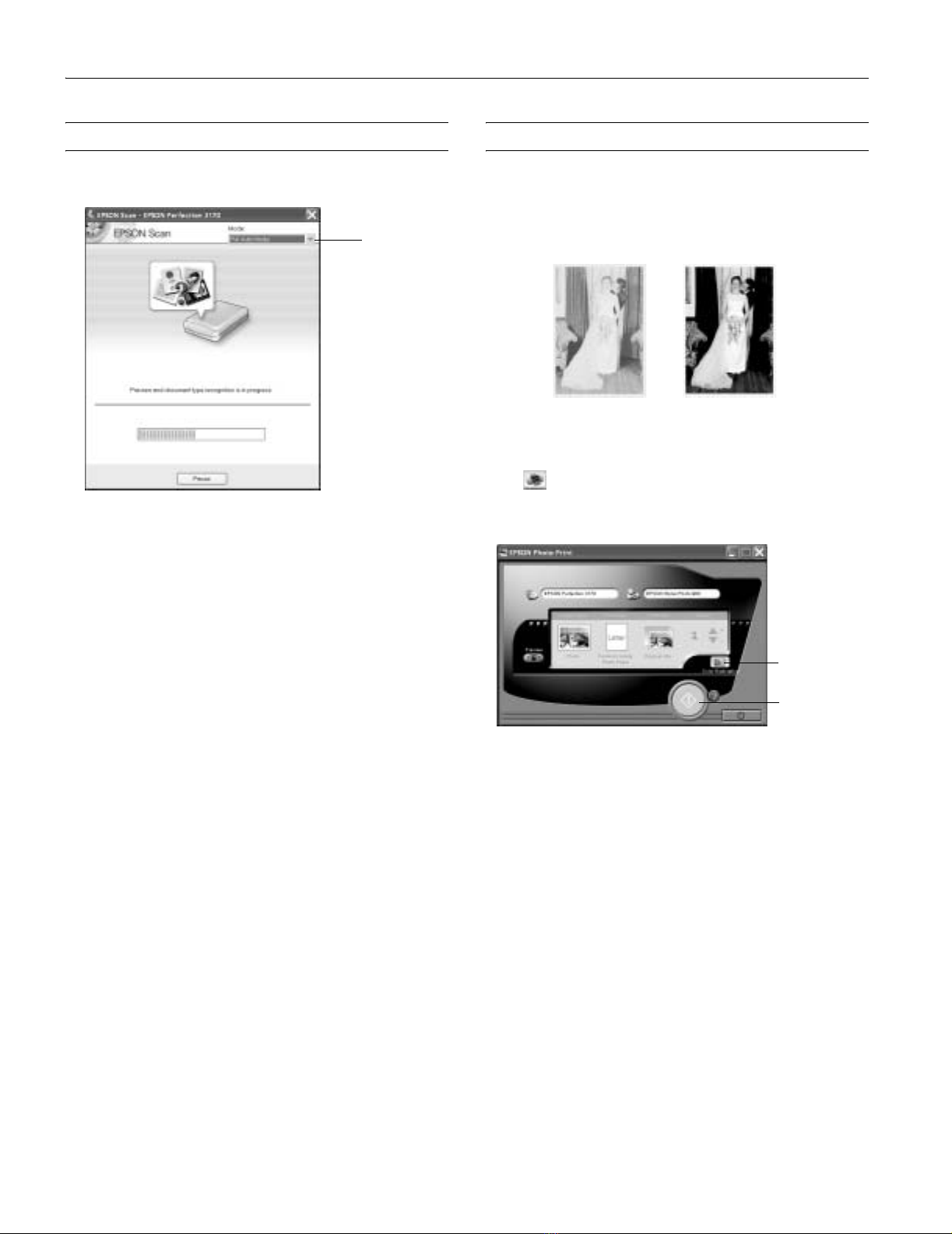

Selecting the Scanning Mode

EPSON Scan has four scanning modes:

❏Full Auto Mode for automatic control of scan settings.

❏Home Mode for scanning film and more control over scan

settings, including Color Restoration.

❏Office Mode for scanning text and multiple pages (available

only if the optional automatic document feeder

[B12B813341] is installed).

❏Professional Mode for full control over all scan settings.

To change the scanning mode, choose the mode you want to

use from the list box at the top right of the window.

To change settings in Full Auto Mode, click the Pause button,

then click Options. If you’re using Home, Professional, or

Office Mode, the options window automatically appears. Then

select the settings you want to use for your scan.

Note: The selected mode and settings remain in effect until they are

changed.

Restoring Color in Photos

If you have faded photos or negatives, you can use the Color

Restoration setting in your software to improve the color of

your scan. You can select this setting in Smart Panel or in

EPSON Scan.

Smart Panel

To select the Color Restoration setting, open Smart Panel and

select

RePrint Photo. You see the screen below. Click the

Color Restoration icon. (It is highlighted in blue when it is

selected.)

Choose your

scanning

mode

Click Color

Restoration

Click here to

scan and print

EPSON Perfection 3170

8/03 EPSON Perfection 3170 - 5

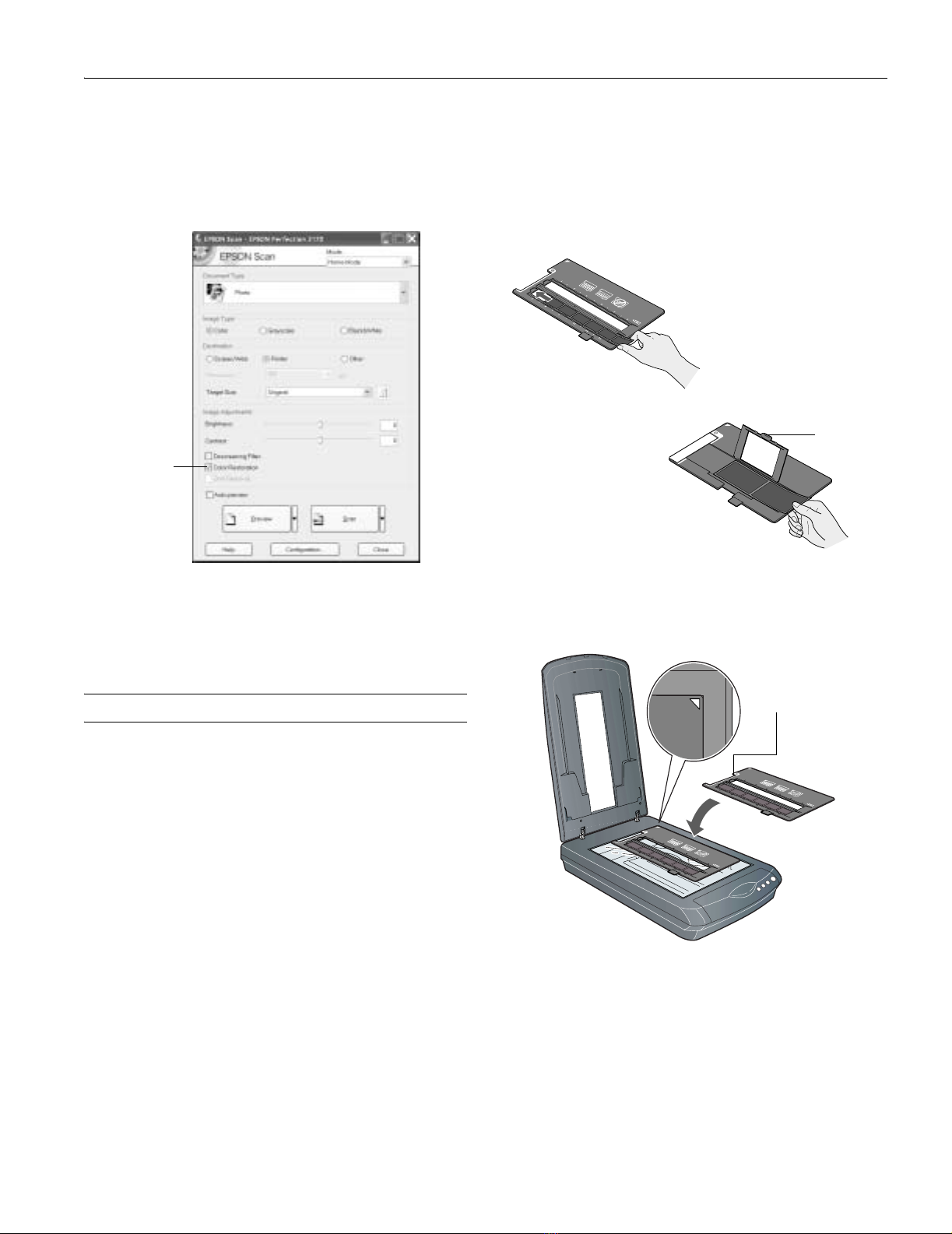

EPSON Scan

Color Restoration is available in Home and Professional Modes.

1. To select Color Restoration, start EPSON Scan. You see a

screen similar to this.

2. Click the Preview button at the bottom of the screen.

3. Select the Color Restoration checkbox. (If you’re using

Professional Mode, you may need to scroll to the bottom of

the screen.)

Scanning Film and Transparencies

The scanner cover has a built-in transparency unit (film

adapter). To scan film or negative strips, slides, or

transparencies, you need to remove the document mat from the

scanner cover and insert the film in a holder.

The scanner comes with 3 different film holders: one for 35 mm

film or negative strips, one for 35 mm slides, and one for

medium-format (120/220) transparencies.

1. Make sure the film adapter cable is connected to

the scanner (see the Start Here sheet for instructions).

If you need to connect the cable, first turn the

scanner off. Then turn it back on again after

you connect the cable.

2. Lift the scanner cover all the way up and slide

the reflective document mat up and off of the

scanner cover.

3. Follow the instructions for the type of film you are

scanning:

If you are scanning 35 mm film or negative strips or

medium-format (120/220) transparencies, slide the film

into the corresponding holder, with the film’s shiny side

facing down.

Place the film holder on the scanner as shown. Make sure

the white triangle on the holder points to the upper-right

corner of the scanner.

Click Color

Restoration

35 mm film or negative strips

Medium-format

transparencies: Slide the

film into the holder as

shown. Then lower the

cover and press the tab to

lock it in place.

Cover tab

Make sure this

calibration space

is uncovered

EPSON Perfection 3170

6 - EPSON Perfection 3170 8/03

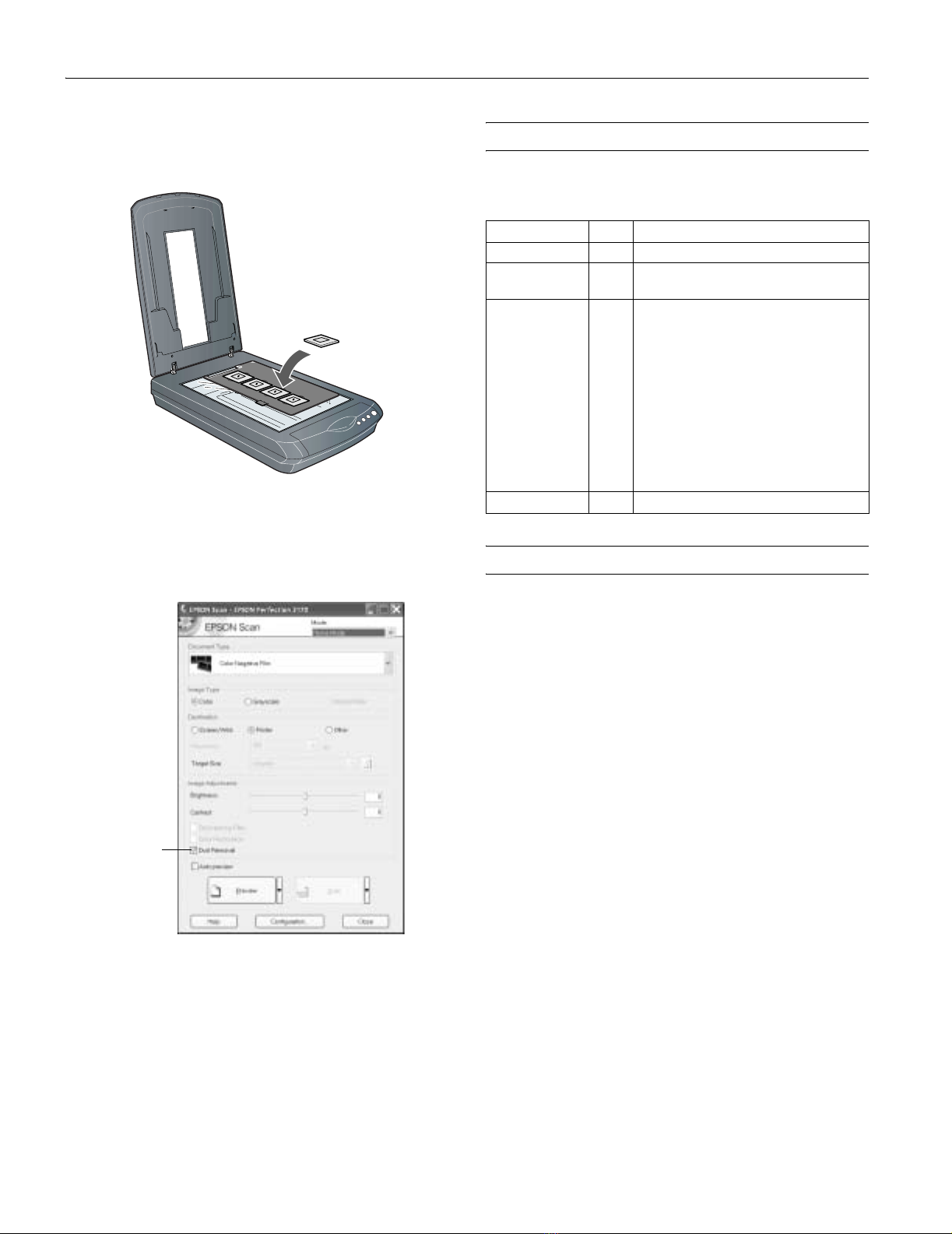

If you are scanning slides, place the holder on the scanner.

Then place the slides in the holder. (Place the slides so the

“this side to lamp” indication is facing down.)

4. Close the scanner cover.

5. Start EPSON Scan and make sure the correct Document

Type is selected: either Color Negative Film, B&W

Negative Film, or Positive Film (for slides and

transparencies).

Tip: Make sure your film is dust-free for the best scan. You can also

select the Dust Removal setting in EPSON Scan, as shown

above.

Indicator Light

The indicator light (on the ] Start button) indicates the status

of the scanner, as described below.
