Equinox Systems PREDATOR Manuale utente

Order code: EQLED32

user manual

www.prolight.co.uk

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

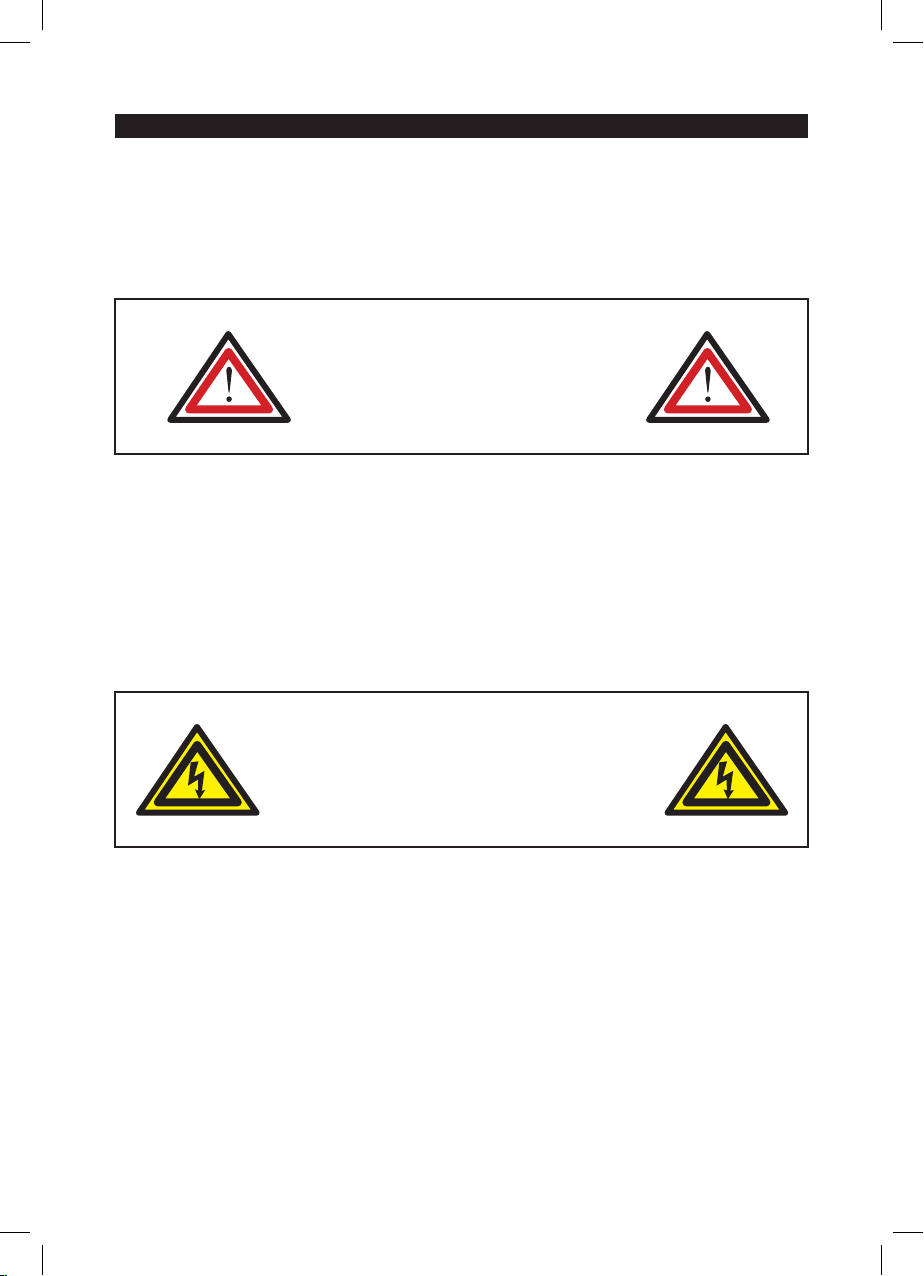

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

Equinox Predator Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

You should nd inside the Equinox carton the following items:

1, Equinox Predator 2, Power cable 3, Instruction manual

Technical Specications:

DMX channels: 4

Voltage: AC 240V - 50Hz

122 Ultra Bright LEDs (R: 32, G: 48, B: 42)

Fuse: 5 Amp

Power Consumption: 20W

Dimensions: 395 x 305 x 305mm

Weight: 4.0Kgs

Operations:

There are 3 operating modes to choose from:

1, DMX Mode 2, Auto Run 3, Master/slave mode

DMX Mode

To select DMX mode, set dipswitches 1 and 10 to ON. You can now set the required DMX address using

dipswitches 2 to 9. The start address for this xture is 1. Please refer to the chart overleaf for DMX

functions.

Auto Run Function Mode

To select auto pattern mode, set dipswitches 7, 8 and 9 to the ON position. The unit will now cycle

through all it’s built-in patterns. In this mode the LEDs will remain constantly chasing until the power is

turned OFF or the mode is changed.

Master/Slave Mode

To select the Slave mode, set dipswitches 1 and 10 to the ON position. The slave unit/s will now run in

sequence with the master unit in the above auto run function mode.

Sound Active Function

Please note that the sound active function will work on all modes including DMX.

Dipswich Functions:

To control the unit via the dipswitches please follow the dipswitch settings below.

For Strobe set dipswitch 9 to ON and use dipswitch 1 for speed.

For Red on only use dipswitches 1 - 3 (1 = dim, 1+2= med 1, 2 + 3 = full on).

For Green on only use dipswitches 4 - 6 (4 = dim, 4+5= med 4, 5 + 6 = full on).

For Blue on only use dipswitches 7 - 8 (8 = dim, 7 + 8 = full on).

For pattern 1 set dipswitches 1, 2 + 9 to the ON position and use dipswitches 4 - 7 for speed control.

For pattern 2 set dipswitches 4 + 9 to the ON position and use dipswitches 5 - 7 for speed control.

For the fade pattern set dipswitches 1, 2 , 3 + 9 to the ON position.

Equinox Predator Technical specications

Master/Slave connection

1) Connect the 3-pin (male) connector of the DMX

cable to the output 3-pin (female) connector on

the master unit

2) Now connect the opposite end of the DMX cable

to the input socket on the slave unit/s.

Proceed to connect from the output as stated above

into the following xture and so on.

DMX Function Chart

Equinox Predator Overview

Identication:

1, Hanging bracket

2, DMX input

3, DMX output

4, Dipswitches

5, Power input

6, Mirophone

7, Power output

8, Sound sensitivity control

9, Fuse

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the DATA

“IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have a data “out”

terminal).

DATA Cable (DMX cable) requirements (for DMX operation):

• The Equinox Predator can be controlled via DMX-512 protocol. The DMX address is set on the back of

the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output

(gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased from

all good sound and lighting suppliers or

Prolight dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Equinox Predator DMX Set up

Notice:

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.

Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of

erratic behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

Equinox Predator DMX Set up

Equinox Predator Dip Switch Reference Chart

DMX Dip Switch Quick Reference Chart

Dip Switch Position

Dip Switch position DMX Address

www.prolight.co.uk
