ErgoAV ERTSM2-01B Manuale utente
Model: ERTSM2-01B
Table Top TV Stand Instruction Manual
V1.0
THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!
At ErgoAV, we want to add value to your AV experience by providing the highest
quality products and services in the industry. If you have any concerns or
comments, please contact us.
ErgoAV Customer Care
Phone (877) 419-7832 M-F 8am to 8pm CST
email: [email protected]
website: www.ergoav.com
address: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445
English pages: 01-17 French pages: 18-33 Spanish pages: 34-42
Before getting starting, let's make sure this mount is perfect for you!
IMPORTANT SAFETY INFORMATION
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
Please carefully read all instructions before attempting assembly. If you do
not understand the instructions or have any concerns or questions, please
contact our Technical Support line at (877) 419-7832 or customer service at
88lbs/
39.9kg
1

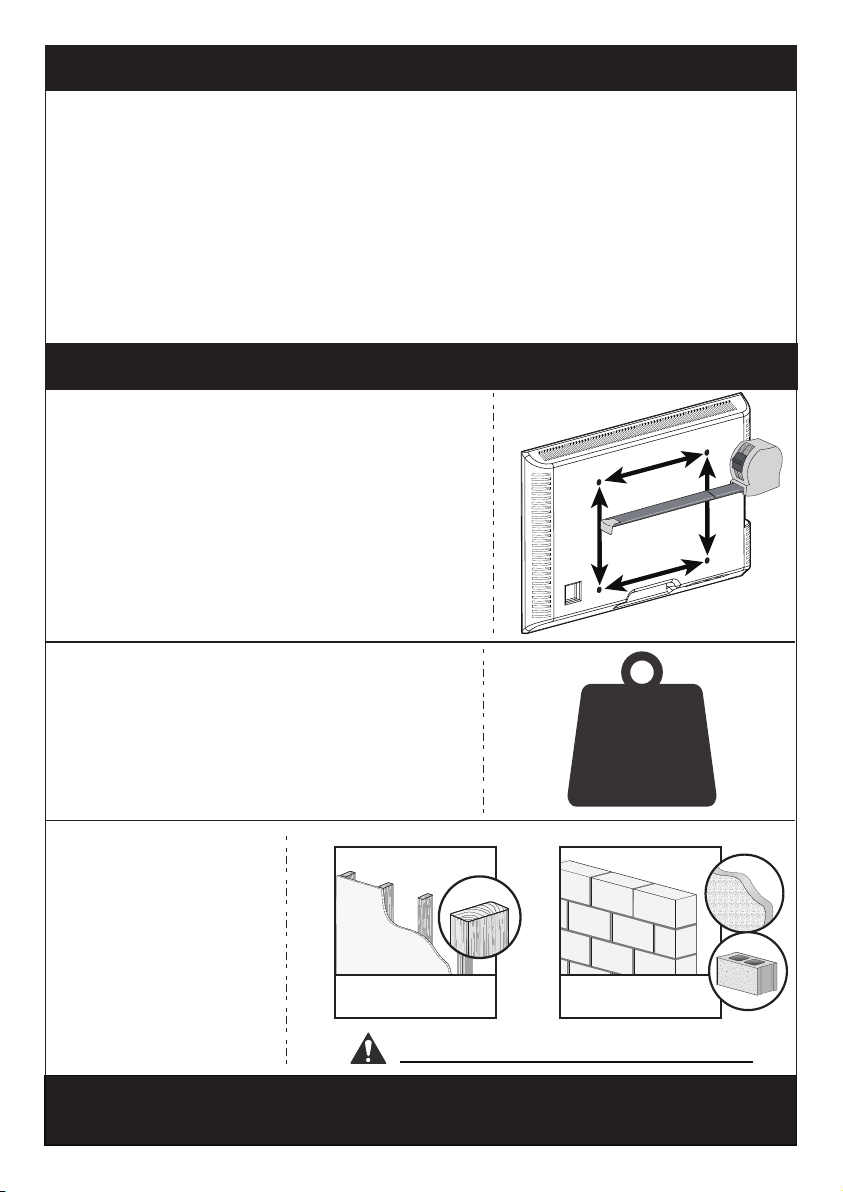

Measure Your TV VESA Pattern:
Minimum: 100 x 100mm/4 x 4in(W x H)
Maximum: 400 x 400mm/15.7 x 15.7in(W x H)
1
W
H
Solid Concrete
or Concrete Block
DO NOT install into drywall alone.
Wood Studs
(with Drywall)
For safety strap
installations, you will
need to verify your
wall construction.
If this TV stand is NOT compatible, please contact our Technical Support line at
mount.
If your TV is not between the minimum and
maximum measurements, do not use this
product.
If your TV weighs more than 88 lbs,
do not use this product.
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking
hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, please
contact our Technical Support line at (877) 419-7832 or customer service at
• PLEASE NOTE: Not all hardware included in this package will be used.
Tools Needed (Not lncluded)
AwlStud Finder
Tape Measure
Tape
Measure
Tape
Measure Pencil
Pencil
1/8in(3mm)
Wood Drill Bit
5/16in(8mm)
Concrete Drill Bit Hammer
Drill
Drill
Phillips
Screwdriver
Phillips
Screwdriver
Phillips
Screwdriver
For safety straps installation into concrete wall
For safety strap installatcon into wood table/furniture and wood stud applications
For TV stand assembly
(B1) x4
M4/M5
Washer
(B2) x4
M6/M8
Washer
Supplied Parts and Hardware for Step 1
x2
TV Bracket
2
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

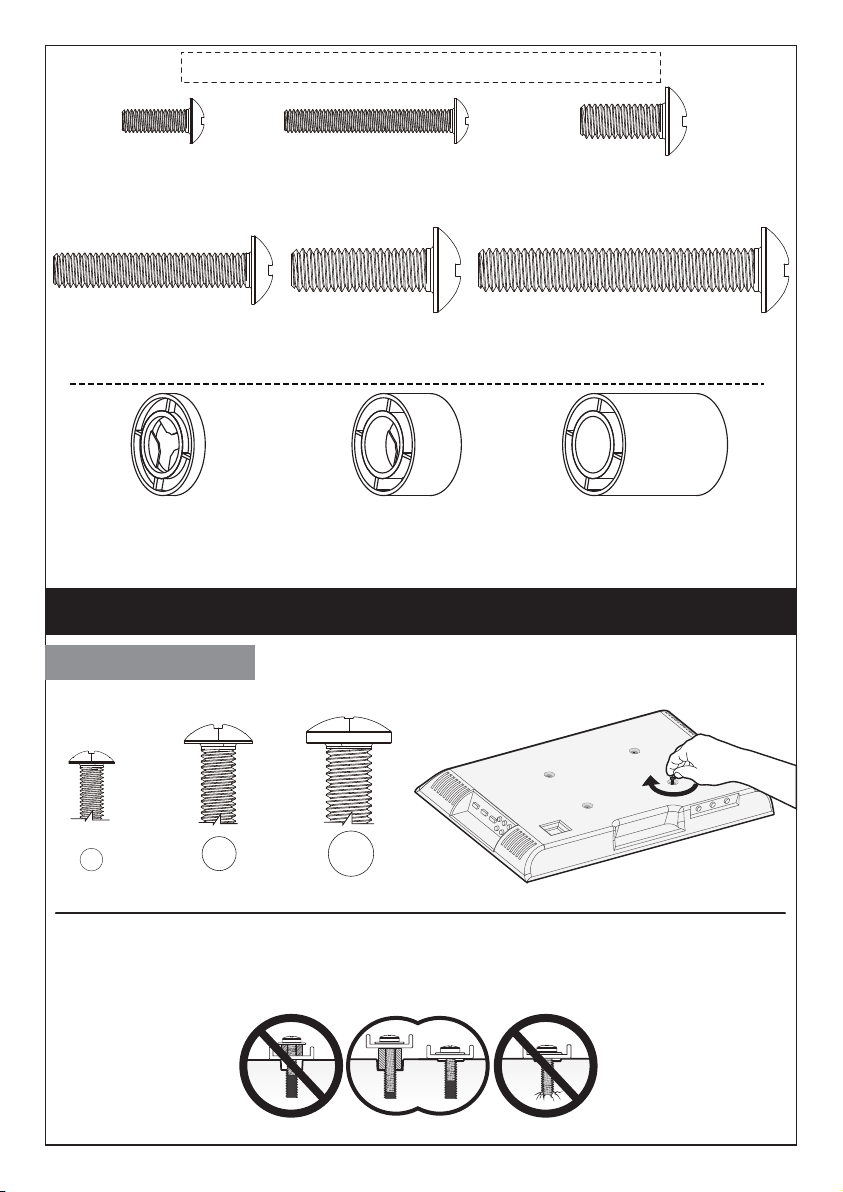

Step 1 Secure the TV Brackets [N] to TV
Select TV Bolts
Only one bolt size fits your TV.
(C1) x4
M4x12mm
Bolt
(C2) x4
M4x30mm
Bolt
(D1) x4
M6x15mm
Bolt
(D2) x4
M6x35mm
Bolt
(E1) x4
M8x25mm
Bolt
(E2) x4
M8x50mm
Bolt
(F1) x8
L2.5mm
Spacer
(F2) x4
L10mm
Spacer
(F3) x4
L22mm
Spacer
Bolts and spacers are shown in actual size.
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
OR OR
Too Short Correct Too Long
M6 M8M4
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

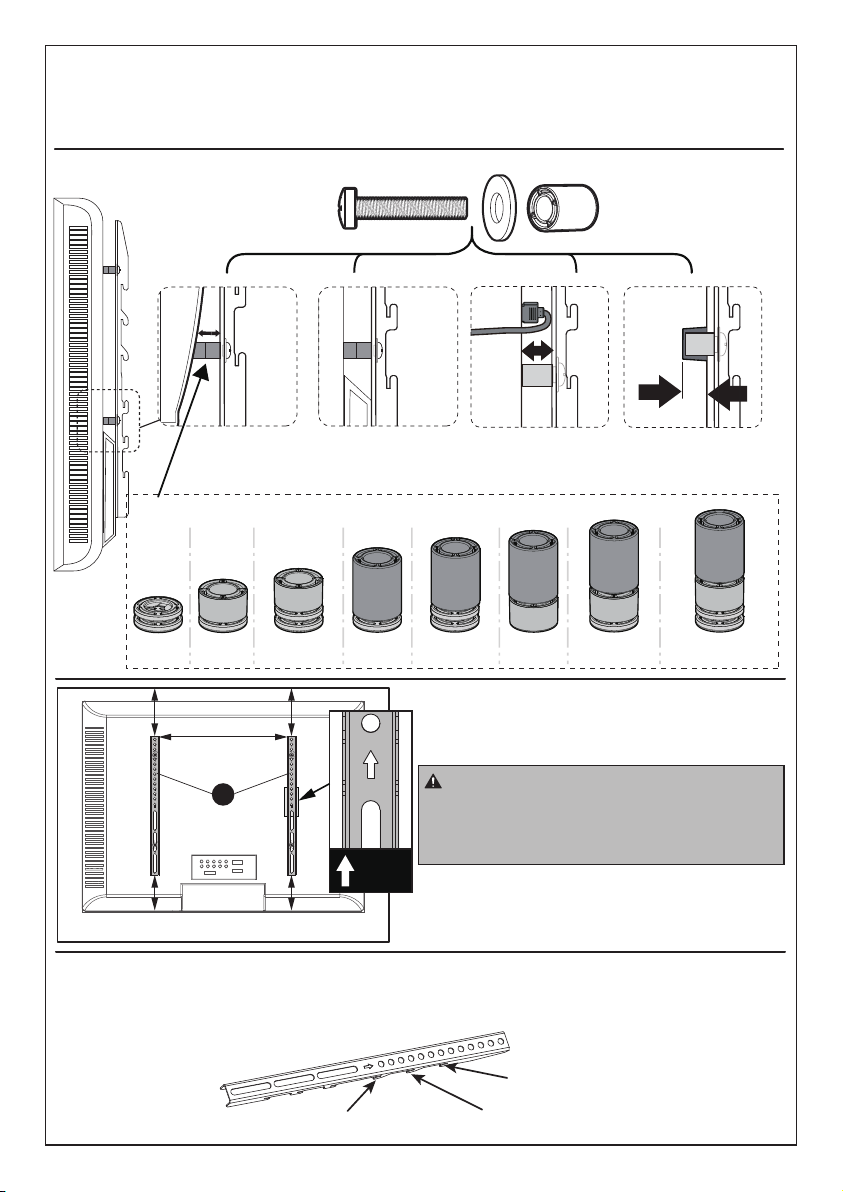

PLEASE NOTE: When using the spacers it is important to note that they can be used
in multi-layers (meaning stacked). If you have any difficulty understanding how to
install the TV bolts or spacers, please contact our Technical Support line at
2When attaching the TV brackets to the
back of the TV, ensure the Up Arrows are
pointing to the top of the TV and are
equally centered on the back of the TV.
UP
Height Location #1
Height Location #3
TV Brackets have “three height locations”, which determines the height position
of your TV while attaching your TV on the stand in Step 6 on page 12.
You can choose the proper height.
Bump
See Option C Cables
See Option D Recessed Holes
See Option E
Spacers
Parts Needed if You Have a TV as Shown Below
F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3
Curved TV
See Option B
Height Location #2
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

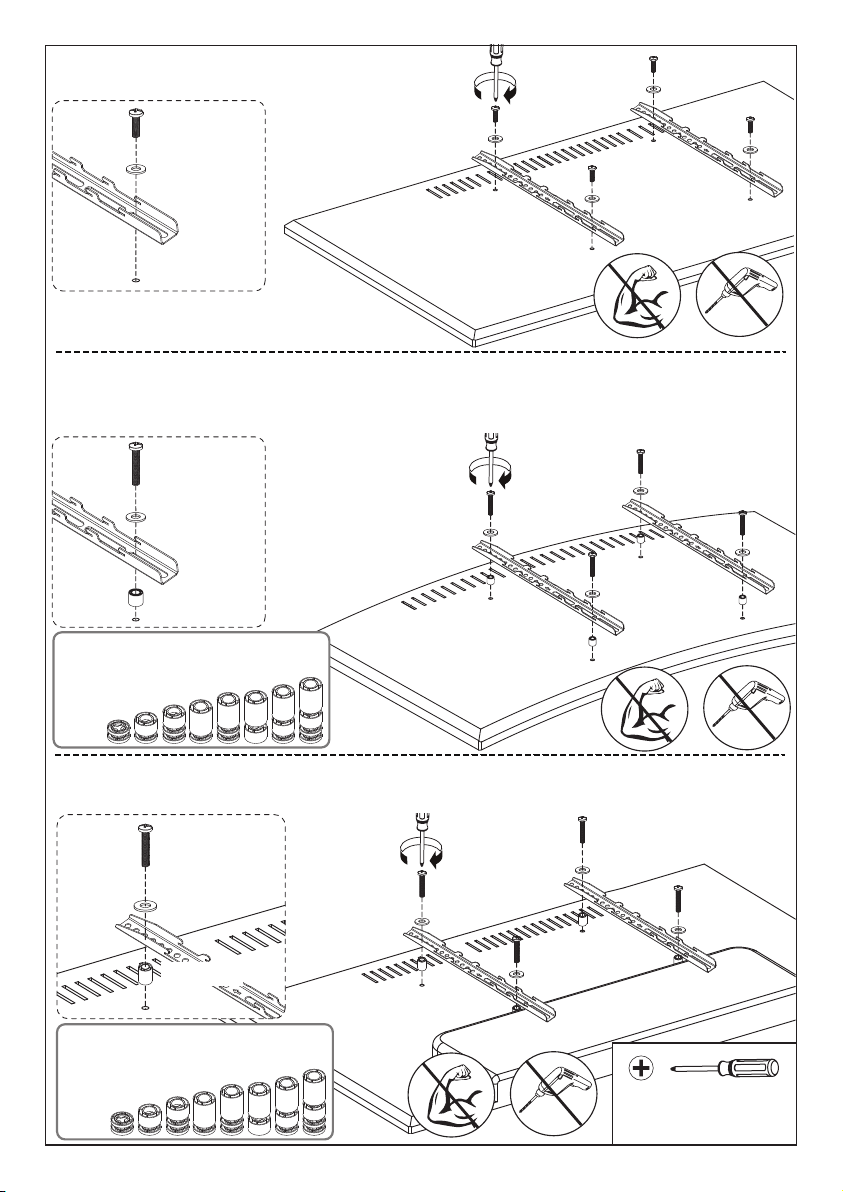

Option A (For Flat Back TV )
B1/B2
C1/D1/E1
B1/B2
F1/F2/F3
C2/D2/E2
Option B (For Curved Back TV)
Option C (For TV with A “Bump”)
B1/B2
C2/D2/E2
F1/F2/F3
Phillips Screwdriver
(Not lncluded)
Refer back to Spacer Instructions
on Page 5, If needed
Spacers must be large enough so TV bracekts are flush (NO GAP) on bump
Refer back to Spacer Instructions
on Page 5, If needed
Spacers must be tall enough so that the curve on the back of the TV will not
interfere with the mounting plate.
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

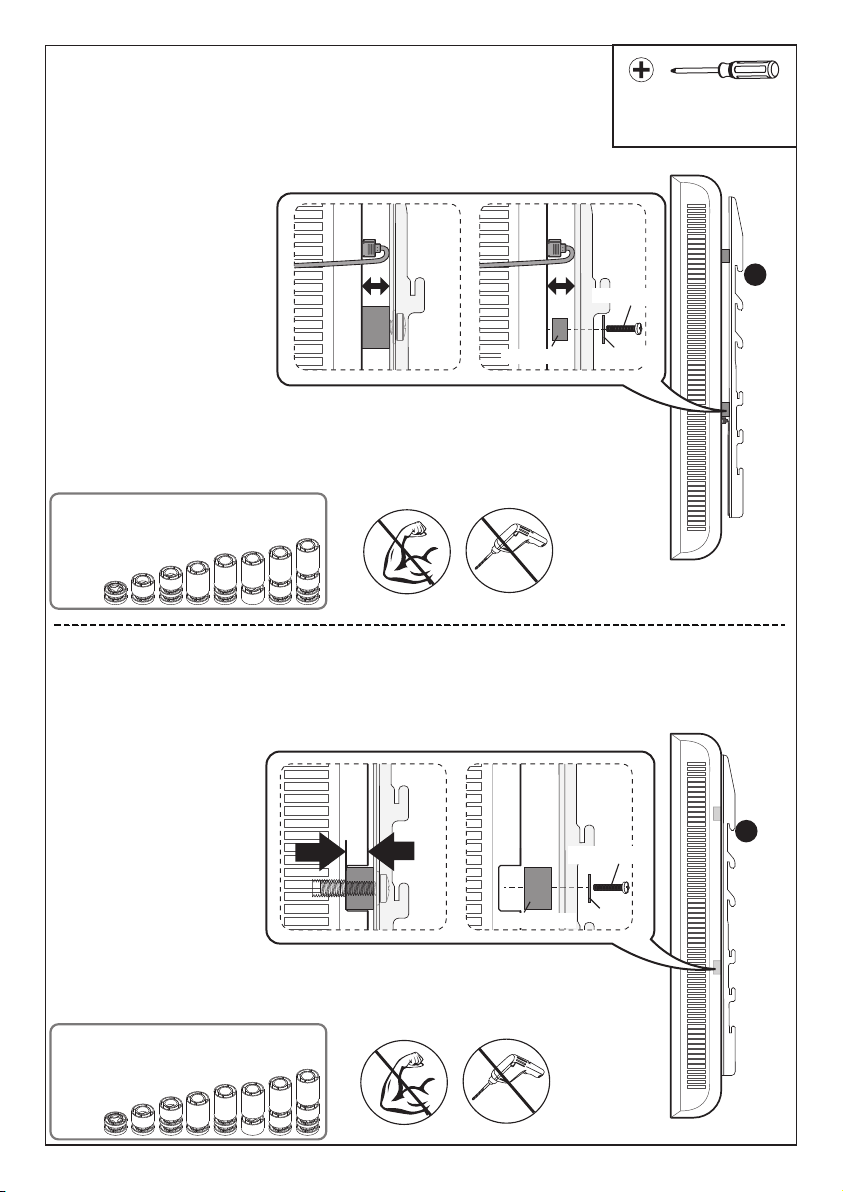

Option D (for TV with Cable Interference)
Option E (For Recessed Holes ）
For cable interference, use spacers [F1], [F2] and [F3] to
create extra space between the TV and TV brackets. Phillips Screwdriver
(Not lncluded)
Refer back to Spacer Instructions
on Page 5, If needed
Refer back to Spacer Instructions
on Page 5, If needed
F1/F2/F3
C2/D2/E2
B1/B2
F1/F2/F3
The spacer need to fill in the recessed holes on the basis of the TV so that
the TV brackets are as close to the TV as possible.
B1/B2
C2/D2/E2
2
2
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702
I
3
5
G
I
J
Table
3
7
7

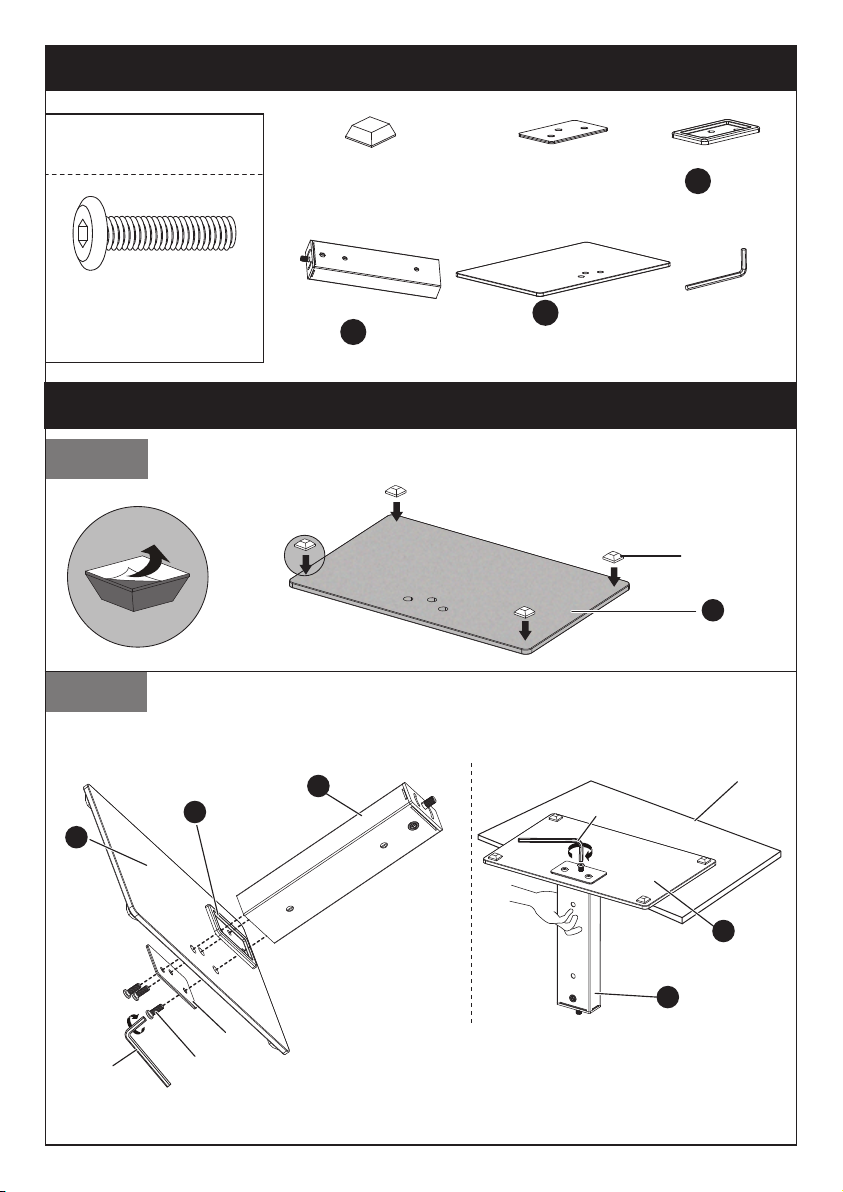

Step 2-1
Step 2-2
(H) x4
Foot Pad
(J) x1
Reinforcement
Plate
Supplied Parts and Hardware for Step 2
This bolt is shown in
actual size.
(G) x3
M8x25mm Bolt (I) x1
13/64in(5mm)
Allen Key
Place foot pads [H] to the painted side of the tempered glass
base [7] in the corners.
Step 2 Assemble the Base
Connect the lower support pillar [3] to tempered glass base [7].
When assembling the pillar, ensure the side of the
reinforcing plate [J] with paper is facing the glass
base [7].
Do Not overtighten the bolts [G].
x1
Lower Support Pillar
3
x1
Tempered
Glass Base
7
x1
Trim Ring
5
H
7
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

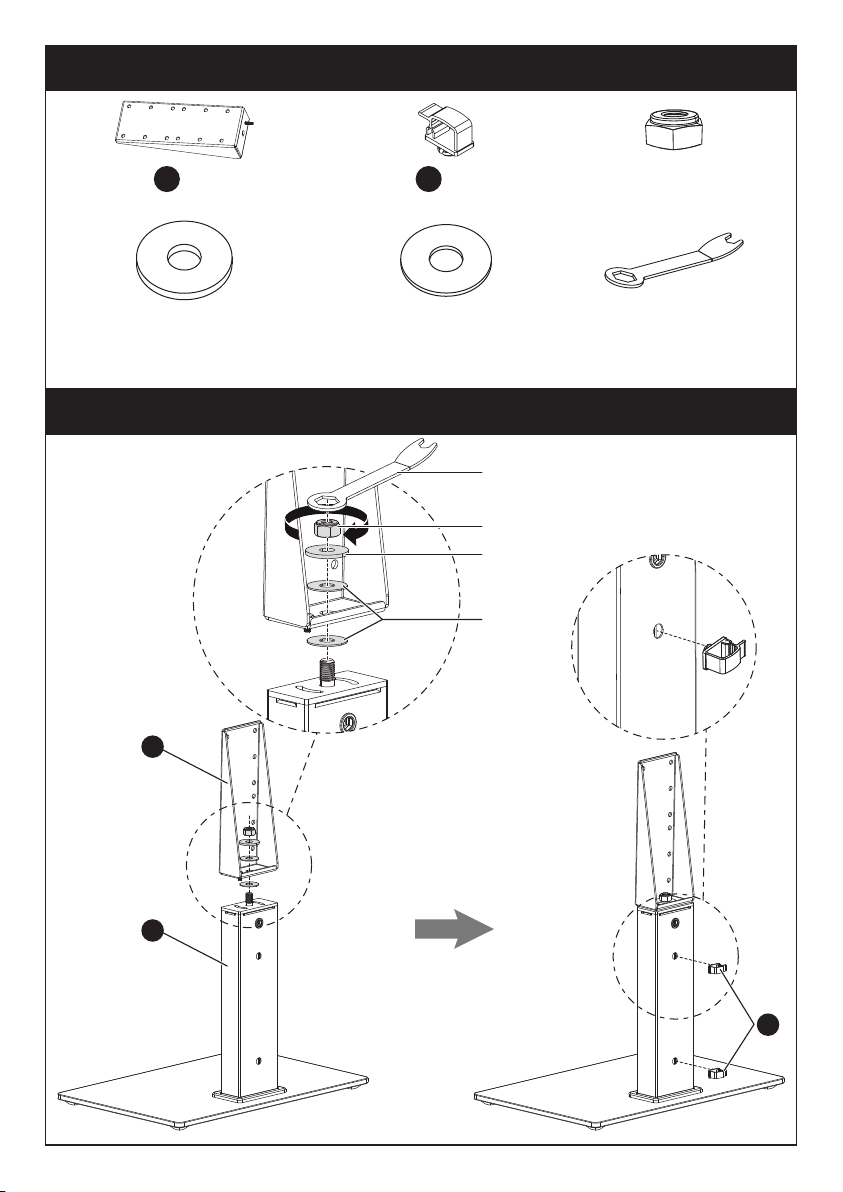

Step 3 Connect the Upper Support Pillar [4] to Lower Support Pillar [3]
Supplied Parts and Hardware for Step 3
(L) x1
D10.5xD30.0x2.5mm
Washer
(M) x2
D10.5xD28.0x1.0mm
Plastic Washer
x1
Upper Support Pillar
4
(K) x1
M10 Nut
(N) x1
M6-M10
Wrench
x2
Cable Clip
8
8
K
L
M
N
4
3
Tighten the nut to keep
the swivel tight.
03 04 05 06 07 08 09 10 11 12 13 14 15 16 1702

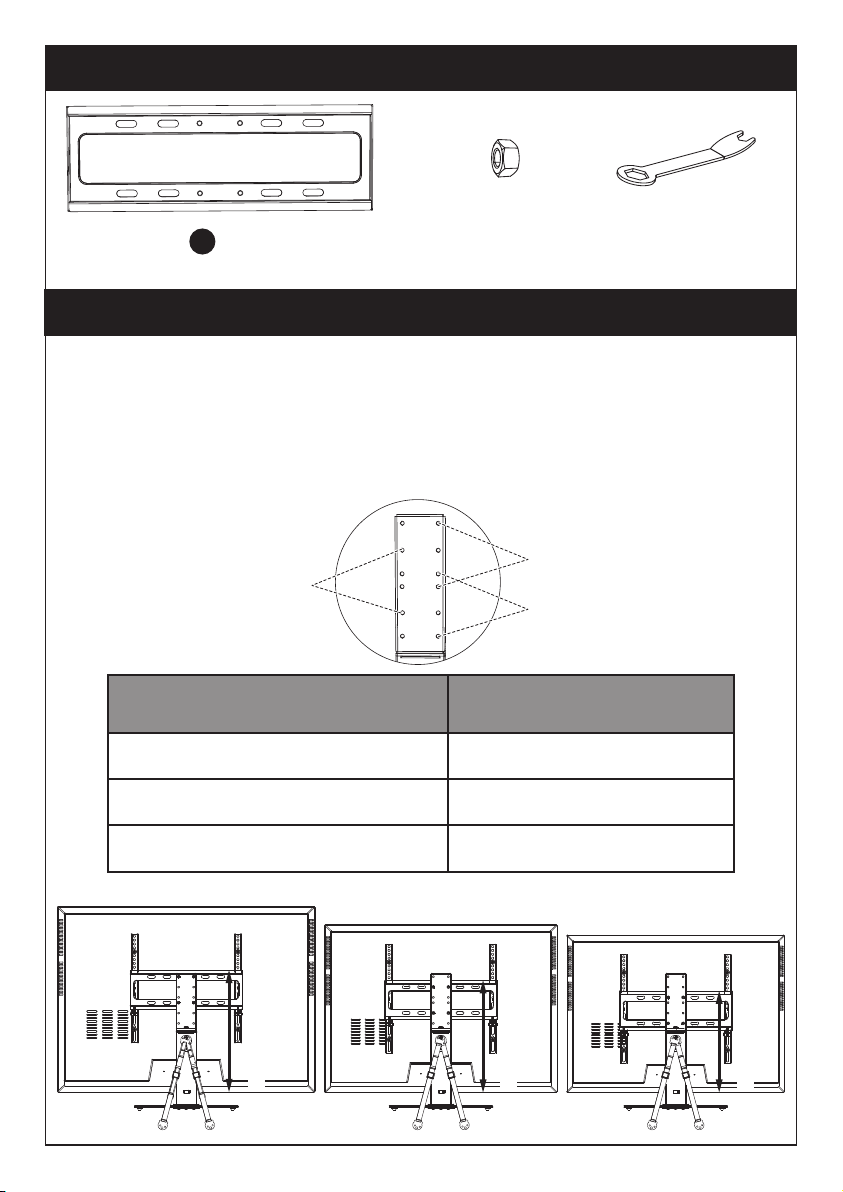

Distance from the hooks on the TV
Brackets to the bottom of the TV
Recommended TV Mounting
Plate Location
17" to 18 1/2"
15 1/2" to 17"
Less Than 15 1/2"
Location #1
Location #2
Location #3
Note: Before attaching the TV Mounting Plate to the pillar, measure the
distance from the upper hook on the TV Bracket to the bottom of the TV.
Then refer to chart below for the recommended mounting location. To add an
additional 2” of space between your TV and the base, use the lower hooks
located on the TV Brackets. We always recommend using the lowest possible
attachment location for the safest assembly.
Step 4 Connect the TV Plate [1] to Upper Support Pillar [4]
Supplied Part and Hardware for Step 4
x1
TV Plate
1(O) x4
M6 Nut
(N) x1
M6-M10
Wrench
Mounting Location #1
Mounting Location #2
Mounting Location #3
Location #1
Location #2
Location #3
