Ergotron StyleView Sit Stand Combo Arm Extender Manuale utente

888-45-204-W-00rev. D • 01/14

1 of 5

13 mm17 mm

StyleView Sit Stand Combo Arm Extender

AB CD

180˚*

360˚

3 mm

6 mm

1x 1x

User's Guide - English

Guía del usuario - Español

Manuel de l’utilisateur - Français

Gebruikersgids - Deutsch

Benutzerhandbuch - Nederlands

Guida per l’utente - Italiano

Användarhandbok - svenska

ユーザーガイド:日本語

用户指南 : 汉语

ENGLISH

For the latest User Installation Guide please visit: www.ergotron.com

User's Guide

*Product shipped with rotation stop in place to prevent the Extender from hitting the wall.

888-45-204-W-00rev. D • 01/14

2 of 5

5.63”

(143 mm)

6.93”

(176 mm)

1.38”

(35 mm) Ø0.43”

(11 mm)

2.64”

(67 mm)

Back View

5’3”-5’9”

(160-175cm)

21”

(533 mm)

27.25”

(692mm)

< 26.25”

(667mm)

5’3”-5’9”

(160-175cm)

21”

(533 mm)

31.5”

(800mm)

< 30.5”

(775mm)

Combo Arm With Worksurface

Combo Arm Without Worksurface

Combo Arm Extender

6”

(152 mm)

29.2”

(741mm)

13.7”

(347mm)

8.3”

(211mm) 4.1”

(105mm)

33.7”

(856mm)

24.5”

(621mm)

24.5”

(621mm)

33.7”

(856mm)

25.8”

(656mm)

33.6”

(854mm)

0.28”

(7mm)

29”

(734mm)

10” (252mm)

4.4”

(122mm)

7.7”

(196mm)

30”

(759mm)

20.6”

(524mm)

20.6”

(524mm)

30”

(759mm)

26”

(622mm)

33.4”

(848mm)

0.08”

(2mm)

ENGLISH

NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting

solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before

installation to prevent back-out.

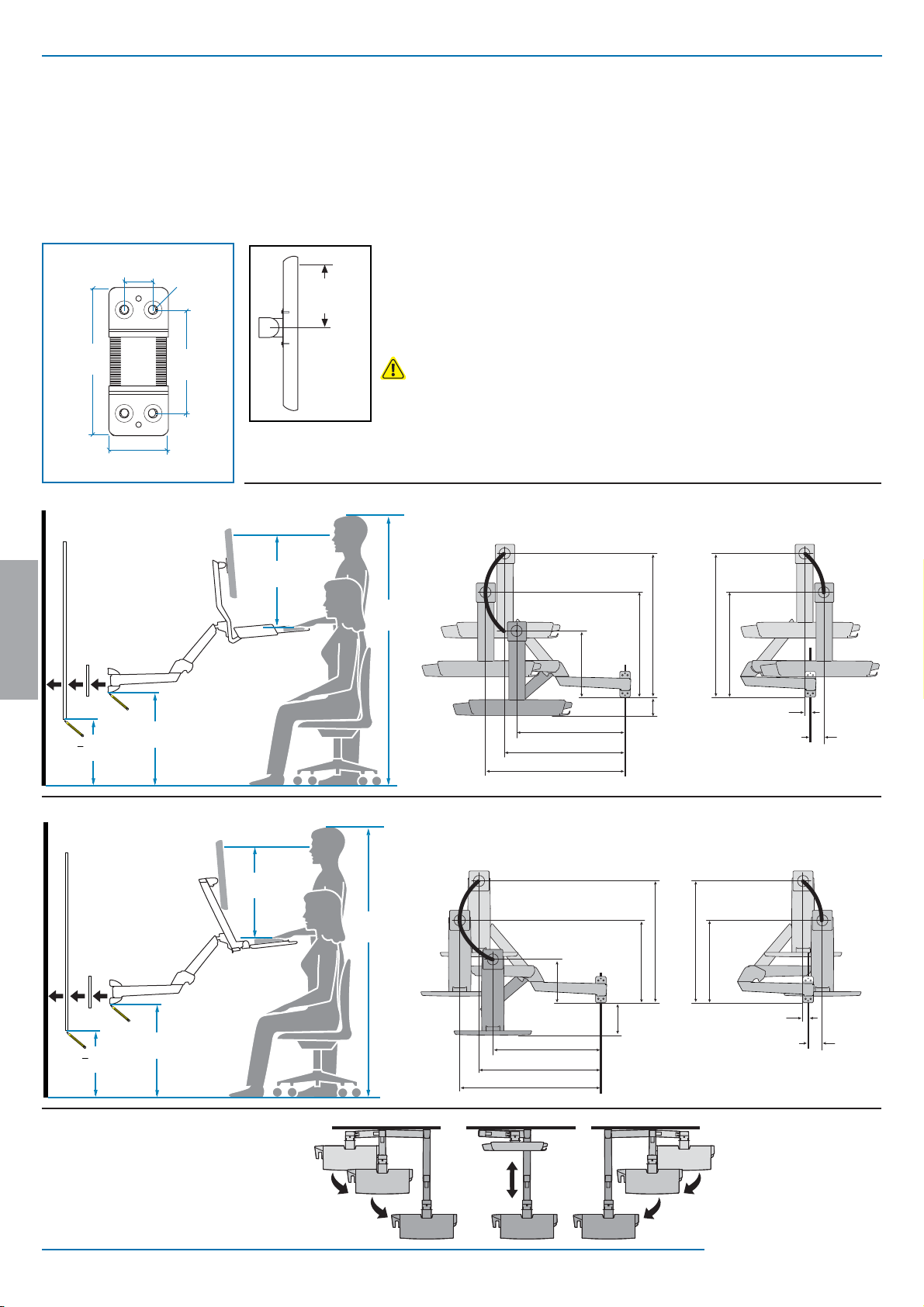

Mounting Height for Ergonomic Workstation

This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’3”-5’9” (160-175cm).

If user heights are dierent than this, you should change mounting height to accommodate user heights. (Change mounting height

one inch for every one inch dierence in user heights).

Mounting height assumes there is a 6” (152 mm) distance between the center

of your monitor mounting holes and the top of the screen. If your distance is

smaller, you should increase mounting height accordingly, if your distance is

larger, you should decrease your mounting height accordingly.

Determine mounting location:

Top view showing range of motion when pulled out

from the wall.

Front view with arm pushed back against the wall.

888-45-204-W-00rev. D • 01/14

3 of 5

3 mm

17 mm

1/4"

(6.4mm)

ENGLISH

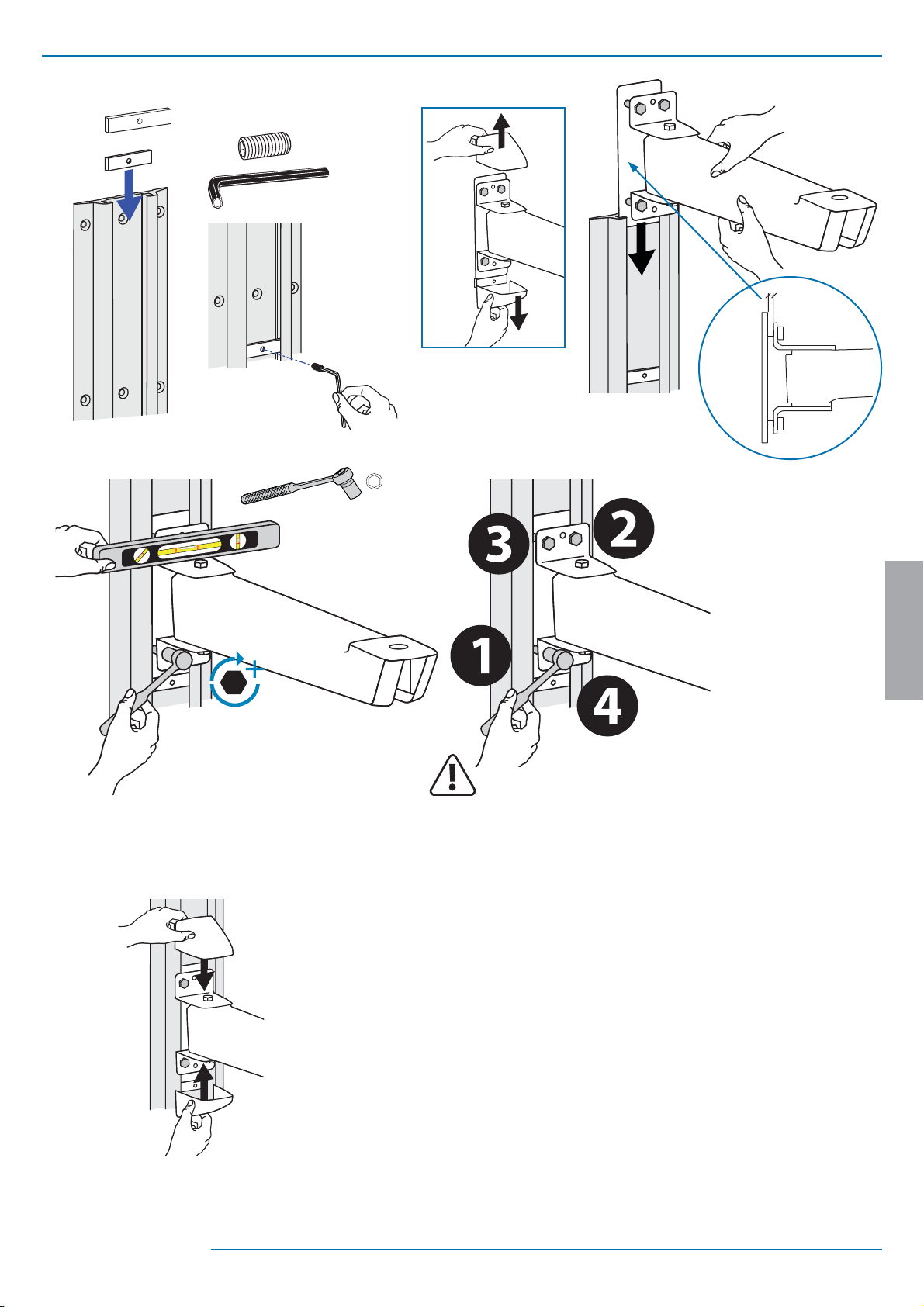

IMPORTANT! Torque bolts in the sequence shown above to a minimum of 50 lb-ft (6.91 kgf-m).

888-45-204-W-00rev. D • 01/14

4 of 5

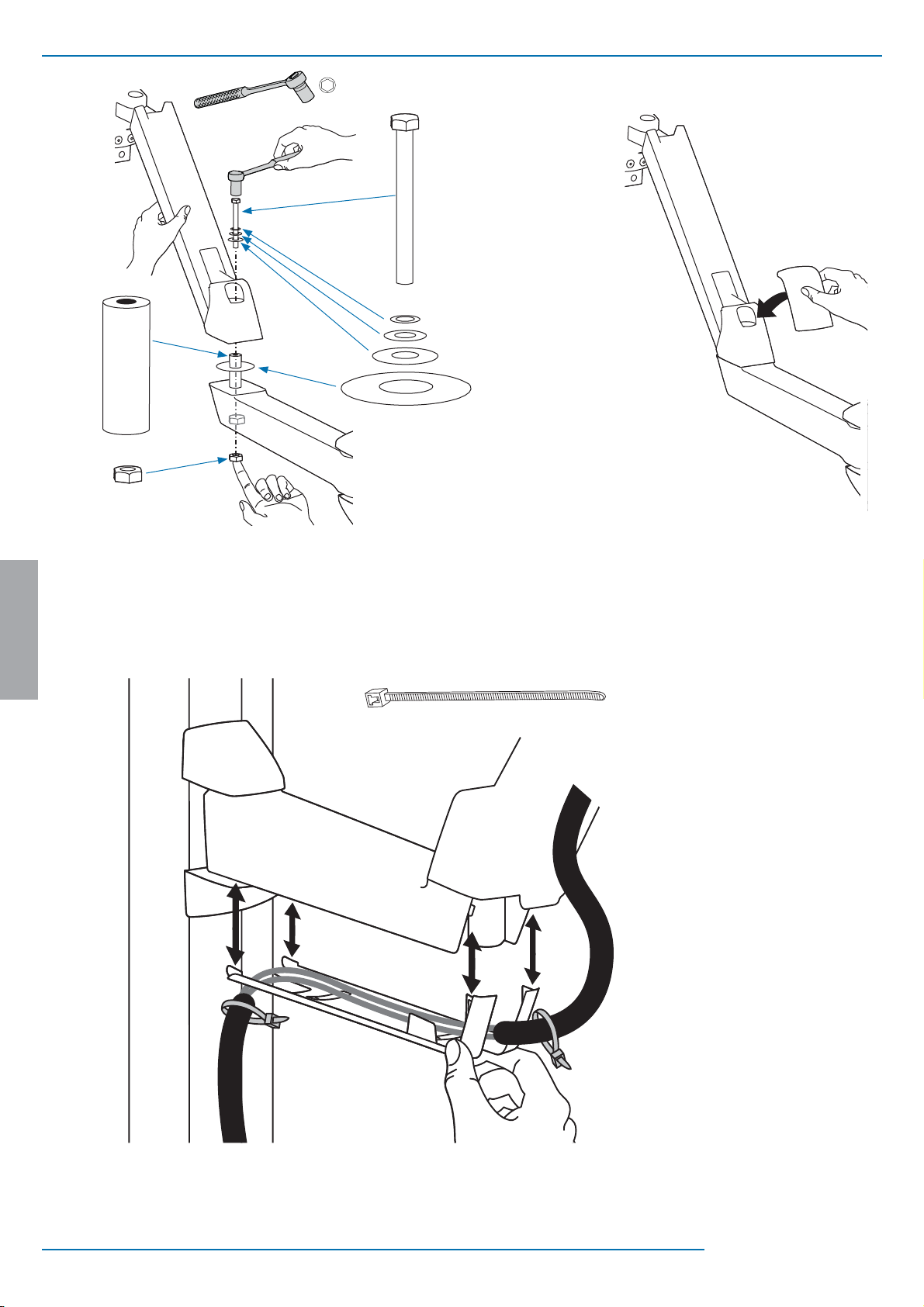

13 mm

ENGLISH

888-45-204-W-00rev. D • 01/14

5 of 5

ENGLISH

For local customer care phone numbers visit: http://contact.ergotron.com

Learn more about ergonomic computer use at:

www.computingcomfort.org

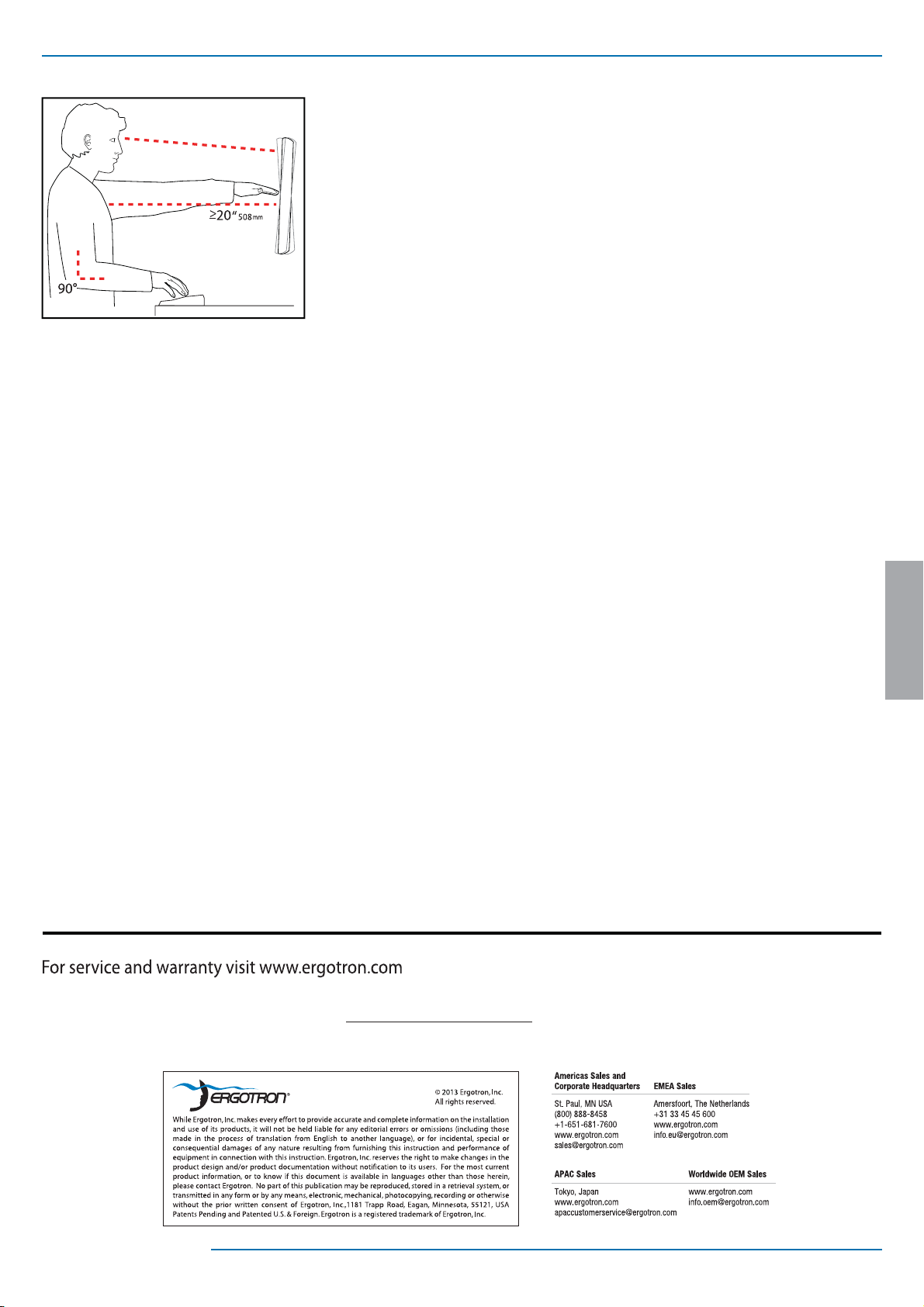

Set Your Workstation to Work For YOU!

Height Position top of screen slightly below eye level.

Position keyboard at about elbow height with wrists at.

Distance Position screen an arm's length from face—at least 20” (508mm).

Position keyboard close enough to create a 90˚ angle in elbow.

Angle Tilt screen to eliminate glare.

Tilt the keyboard back 10° so that your wrists remain at.

To Reduce Fatigue

Breathe - Breathe deeply through your nose.

Blink - Blink often to avoid dry eyes.

Break • 2 to 3 minutes every 20 minutes

• 15 to 20 minutes every 2 hours.
