Ergotron SV Combo Manuale utente

1 of 6

888-97-398-G-00 rev. B • 08/19

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语

SV Combo 9" Extension

User's Guide

English

For the latest User Installation Guide please visit: www.ergotron.com

*Product shipped with rotation stop in place to prevent the Extender from hitting the wall.

2 of 6

888-97-398-G-00 rev. B • 08/19

17 mm

AB CD

180˚*

360˚

3 mm

6 mm

1x 1x

13mm

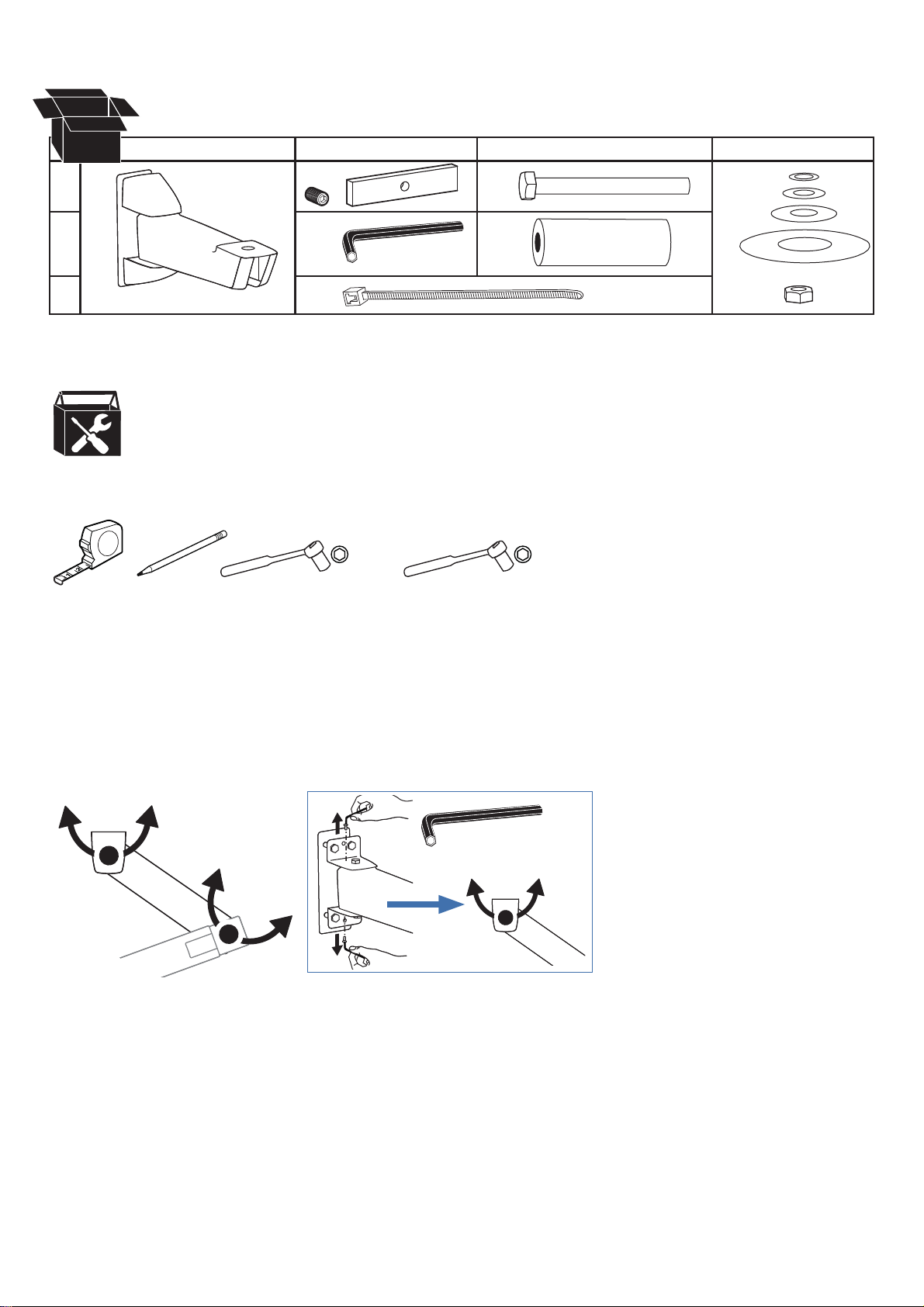

Components

Tools Needed

Set-up

Features & Speciﬁ cations

3 of 6

888-97-398-G-00 rev. B • 08/19

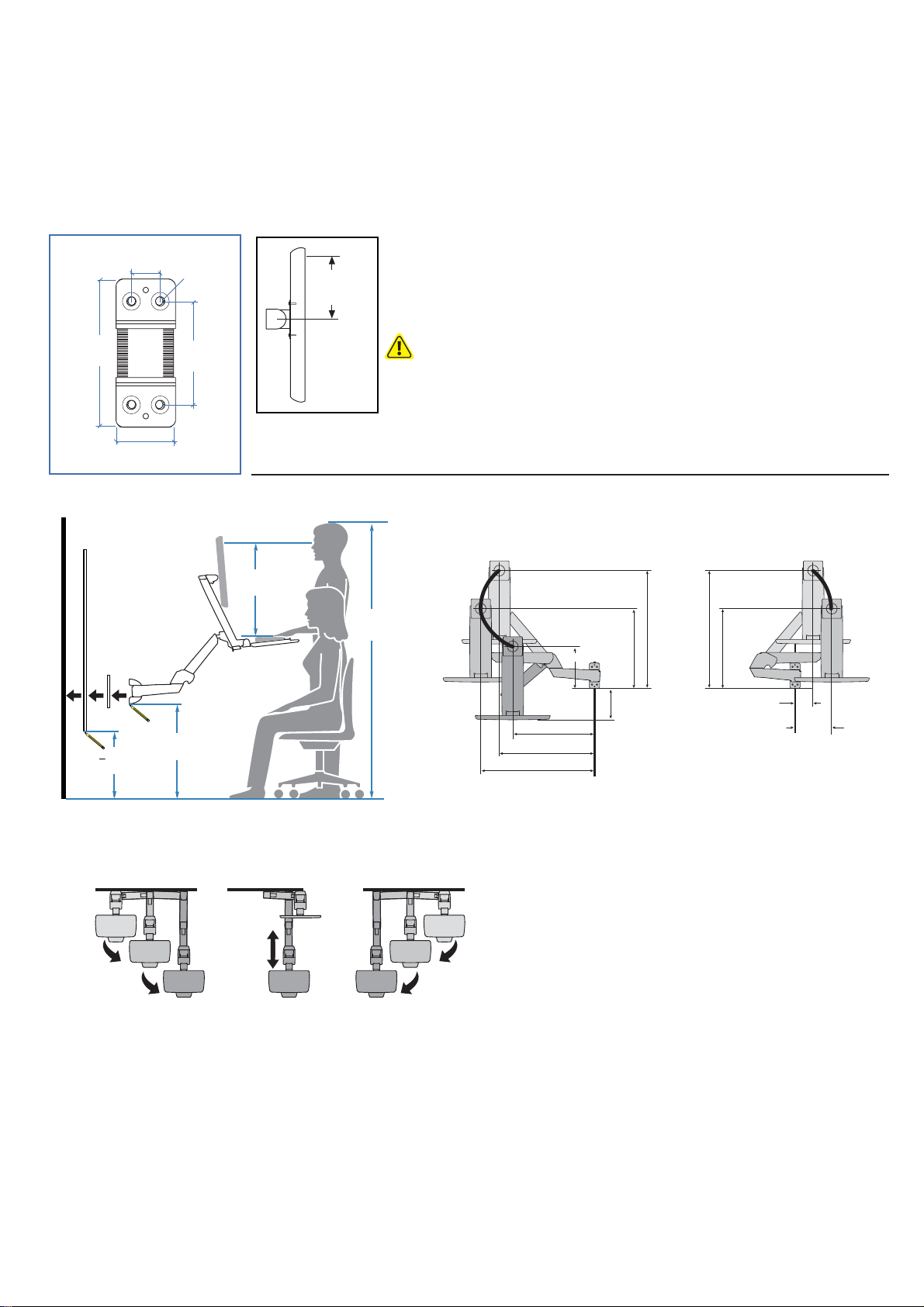

5.63”

(143 mm)

6.93”

(176 mm)

1.38”

(35 mm) Ø 0.43”

(11 mm)

2.64”

(67 mm)

Back View

5’3”-5’9”

(160-175cm)

21”

(533 mm)

31.5”

(800mm)

< 30.5”

(775mm)

Combo Arm Without Worksurface

Combo Arm Extender

6”

(152 mm)

24”

(610mm)

7.8”

(200mm)

7.7”

(196mm)

29”

(737mm)

19.6”

(498mm)

20.6”

(524mm)

30”

(759mm)

21”

(533mm)

28.5”

(723mm)

2.56”

(65mm)

10” (252mm)

NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time. Inspect mounting

solution for loose fasteners on a routine basis. If desired, apply a light duty thread locking adhesive to fasteners before

installation to prevent back-out.

Mounting Height for Ergonomic Workstation

This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’3”-5’9” (160-

175cm).

If user heights are dierent than this, you should change mounting height to accommodate user heights. (Change mounting

height one inch for every one inch dierence in user heights).

Mounting height assumes there is a 6” (152 mm) distance between the

center of your monitor mounting holes and the top of the screen. If your

distance is smaller, you should increase mounting height accordingly, if

your distance is larger, you should decrease your mounting height ac-

cordingly.

Determine mounting location:

Front view with arm pushed back against the wall.

Top view showing range of motion when pulled out

from the wall.

4 of 6

888-97-398-G-00 rev. B • 08/19

3 mm

17 mm

1/4"

(6.4mm)

IMPORTANT! Torque bolts in the sequence shown above to a minimum of 50 lb-ft (6.91 kgf-m).

5 of 6

888-97-398-G-00 rev. B • 08/19

13 mm

6 of 6

888-97-398-G-00 rev. B • 08/19

www.ergotron.com |

USA: 1-800-888-8458

Europe: +31 (0)33-45 45 600

China: 400-120-3051

Japan: [email protected]

NOTE: When contacting customer service, reference the serial number.

For local customer care phone numbers visit: http://contact.ergotron.com

For Service visit: www.ergotron.com

For Warranty visit: www.ergotron.com/warranty

Learn more about ergonomic computer use at: www.ergotron.com/ergonomics
