Ergotron Neo-Flex Manuale utente

1 of 12

888-61-038-G-00 rev. B • 02/13

Max screen size: 65”

Max weight 125lbs – 56.7 kg

CAUTION: DO NOT EXCEED MAX-

IMUM LISTED WEIGHT CAPACITY.

SERIOUS INJURY OR PROPERTY

DAMAGE MAY OCCUR! Reduce.Reuse.Recycle

User's Guide - English

Guía del usuario - Español

Manuel de l’utilisateur - Français

Gebruikersgids - Nederlands

Benutzerhandbuch - Deutsch

Guida per l’utente - Italiano

Användarhandbok - svenska

ユーザーガイド: 日本語

用户指南 :汉语

www.ergotron.com

ENGLISH

Neo-Flex® Ceiling Mount

2 of 12

888-61-038-G-00 rev. B • 02/13

ENGLISH

These symbols alert users of a safety condition that

demands attention. All users should be able to

recognize and understand the signicance of the fol-

lowing Safety Hazards if encountered on the product

or within the documentation. Children who are not

able to recognize and respond appropriately to Safety

Alerts should not use this product without adult

supervision!

Hazard Symbols Review Symbol Signal Word Level of Hazard

NOTE A NOTE indicates important information that helps you

make better use of this product.

CAUTION

A CAUTION indicates either potential damage to

hardware or loss of data and tells you how to avoid the

problem.

WARNING A WARNING indicates either potential for property dam-

age, personal injury, or death.

ELECTRICAL

An Electrical indicates an impending electrical hazard

which, if not avoided, may result in personal injury, re

and/or death.

Safety

WARNING: FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT

IN SERIOUS PERSONAL INJURY, DAMAGE TO PERSONAL PROPERTY, OR VOIDING OF FACTORY WARRANTY!

For ceiling mounted products, professional installation is highly recommended. The included mounting

plate and hardware has been designed for wood beams and joists 2”x4”and greater. For a safe installation,

the ceiling must support 4 times the weight of the total load. The installer is responsible for verifying that

the ceiling structure will safely support the total load of the product using the selected mounting hardware

for the particular installation.

Do not attempt to install or assemble this product if the product or hardware is damaged or missing. In the

event that replacement parts or hardware are needed, please contact Customer Service

3 of 12

888-61-038-G-00 rev. B • 02/13

1/4”

14mm

Screws / Hardware for Flat Panel (PN: 697-613)

Part # Qty Description

M-A 4 Philips screws M4 x 15mm

M-B 4 Philips screws M4 x 30mm

M-C 4 Philips screws M5 x 15mm

M-D 4 Philips screws M5 x 30mm

M-E 4 Philips screws M6 x 15mm

M-F 4 Philips screws M6 x 30mm

M-G 4 Philips screws M8 x 15mm

M-H 4 Philips screws M8 x 30mm

M-I 4 Round Spacers: M6-M8 x 5mm

M-J 4 Round Spacers: M6-M8 x 10mm

M-K 4 Round Washers: M4-M5

M-L 4 Round Washers: M6-M8

Specialty Hardware Kit

Part # Qty Description

P-A 4 Lag Bolts

P-B 4 M10 Steel Washers

Specialty Hardware Kit

Part # Qty Description

P-C 2 M6x8mm Long Hex Head Screw

P-D 2 M6 Steel Washer

P-E 1 Allen Wrench 2.5mm

Contents

Part # Qty Description

1 1 Ceiling Plate

2 1 Celing Plate Cover

31NPTpipe

4 1 NPT Pipe Set Scew

5 1 Single Tilt Head

6 1 Tilt Head Adjustment Screw

71TiltPins

8 1 VESA Monitor Plate

94M8HexScrew

10 1 Universal Monitor Adapter

11 4 M8Nylock Nut

M-A M-B M-C M-D M-E M-F M-G M-H

M-I M-J M-K M-L

P-A P-B

P-C P-D

P-E

ENGLISH

Components

Tools Needed

4 of 12

888-61-038-G-00 rev. B • 02/13

200mm

100mm

≤660mm

≤300mm

≤450mm

ENGLISH

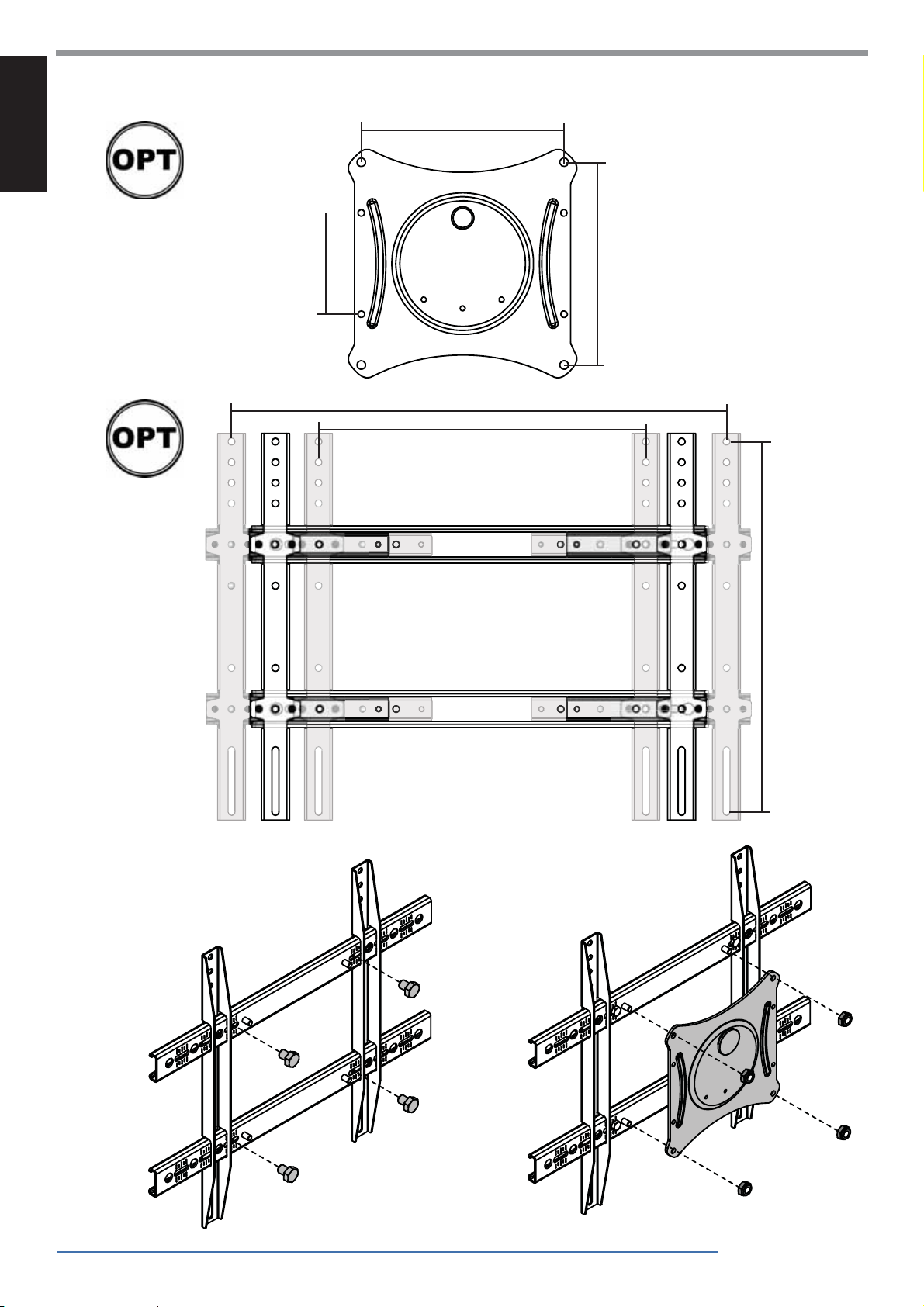

OPTION B: Step 2OPTION B: Step 1

Monitor Plate Options

5 of 12

888-61-038-G-00 rev. B • 02/13

M-A

M-B

M-C

M-D M-E M-F M-G

M-H

M-I

M-J

M-K

M-L

OR OR

M-A

M-B

M-C

M-D M-E M-F M-G

M-I

M-J

M-K

M-L

ENGLISH

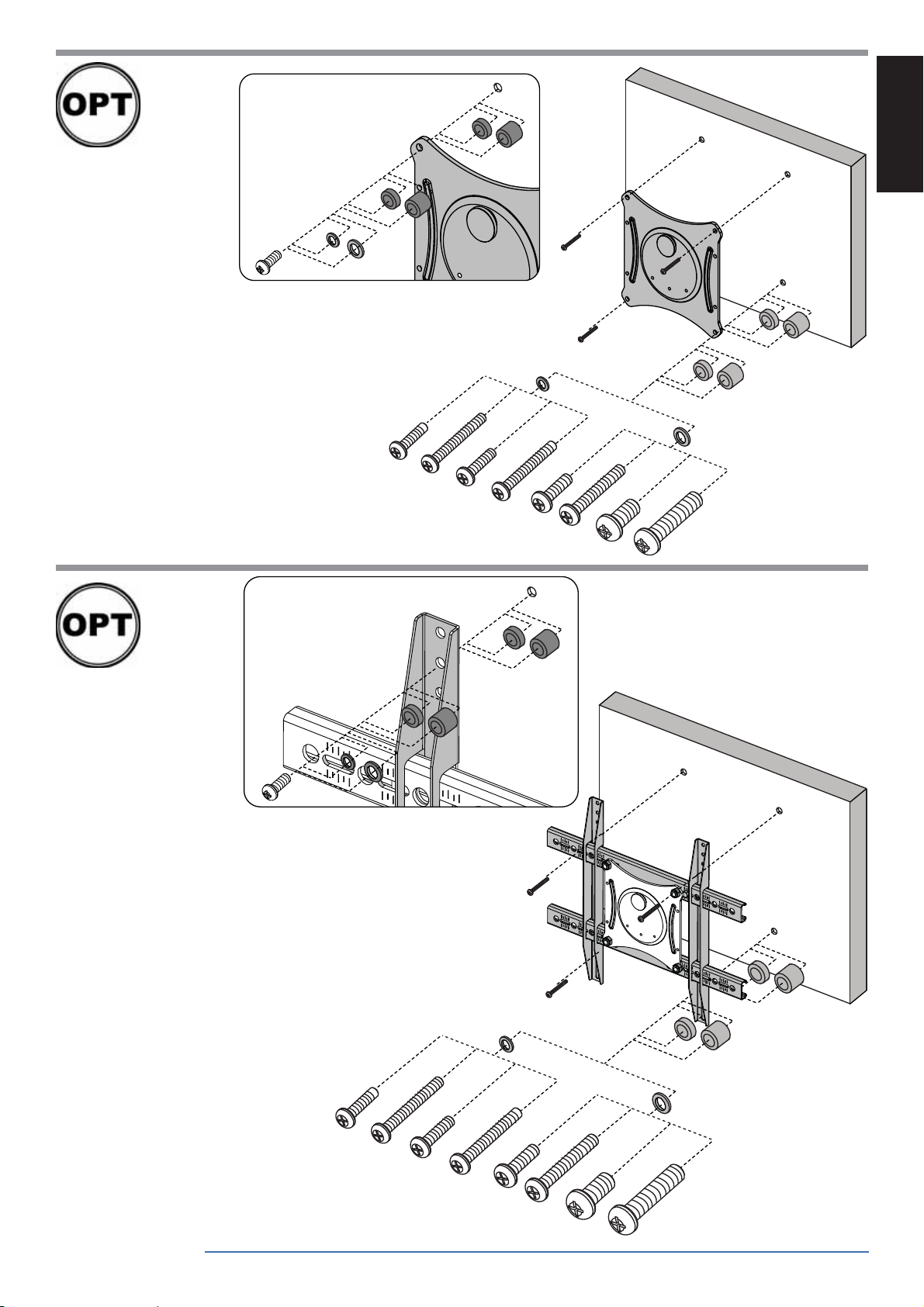

OPTION A: Step 1

OPTION B: Step 3

Connect adapter

to at panel

Connect adapter

to at panel

6 of 12

888-61-038-G-00 rev. B • 02/13

ENGLISH

Find stud and mark edge and center locations

Drill pilot hole

7 of 12

888-61-038-G-00 rev. B • 02/13

NOTE: Security Screw Must be installed

for safe and proper installation

P-A

P-B

P-E

ENGLISH

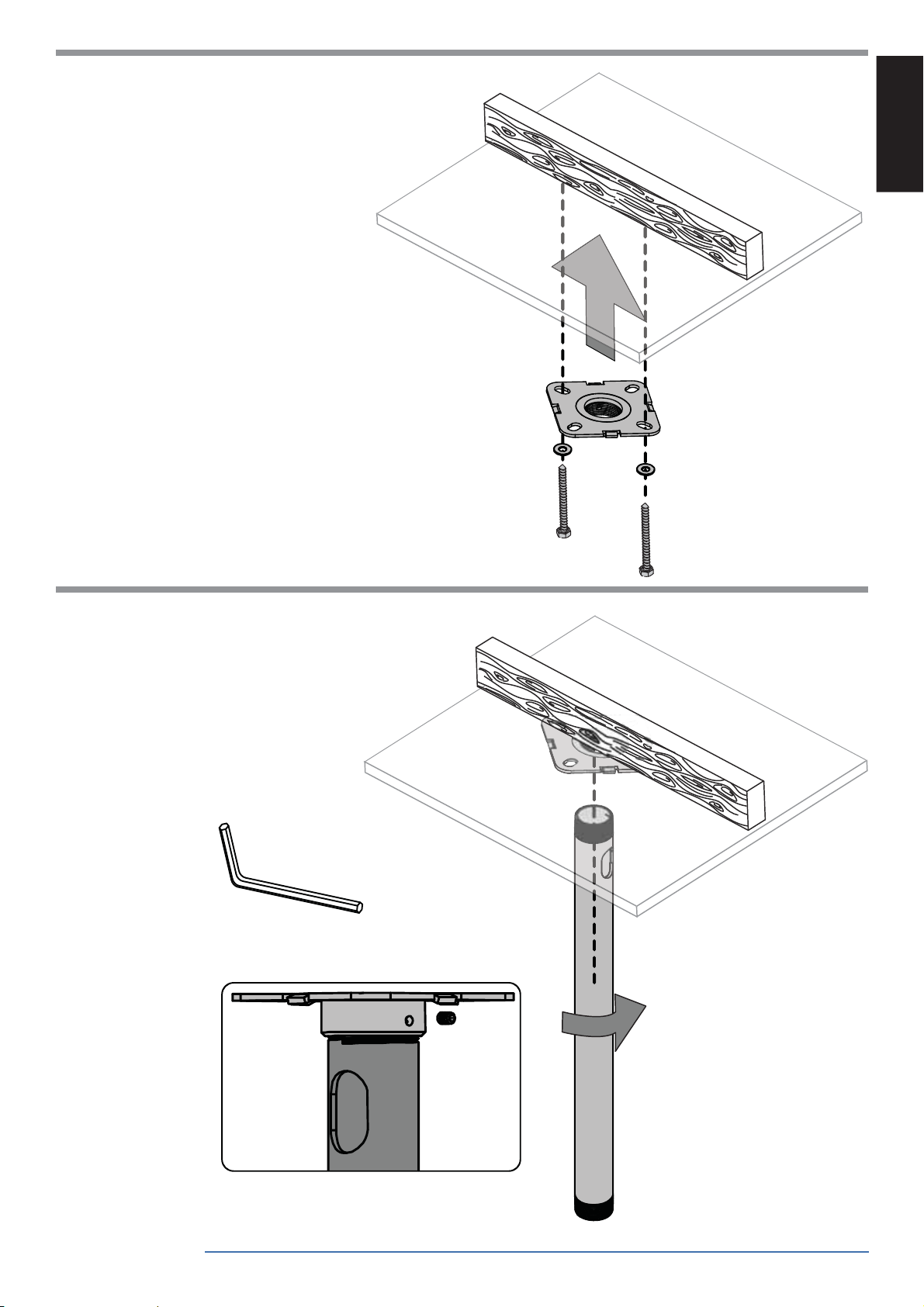

Mount ceiling plate

Assemble

8 of 12

888-61-038-G-00 rev. B • 02/13

NOTE: Security Screw Must be installed

for safe and proper installation

P-E

ENGLISH

Attach cover

Assemble

9 of 12

888-61-038-G-00 rev. B • 02/13

NOTE: Security Screws Must be in-

stalled for safe and proper installation

P-C P-D

ENGLISH

Hang with monitor attached

10 of 12

888-61-038-G-00 rev. B • 02/13

ENGLISH

Adjust to Desired Location or Tilt

Adjustment Step
