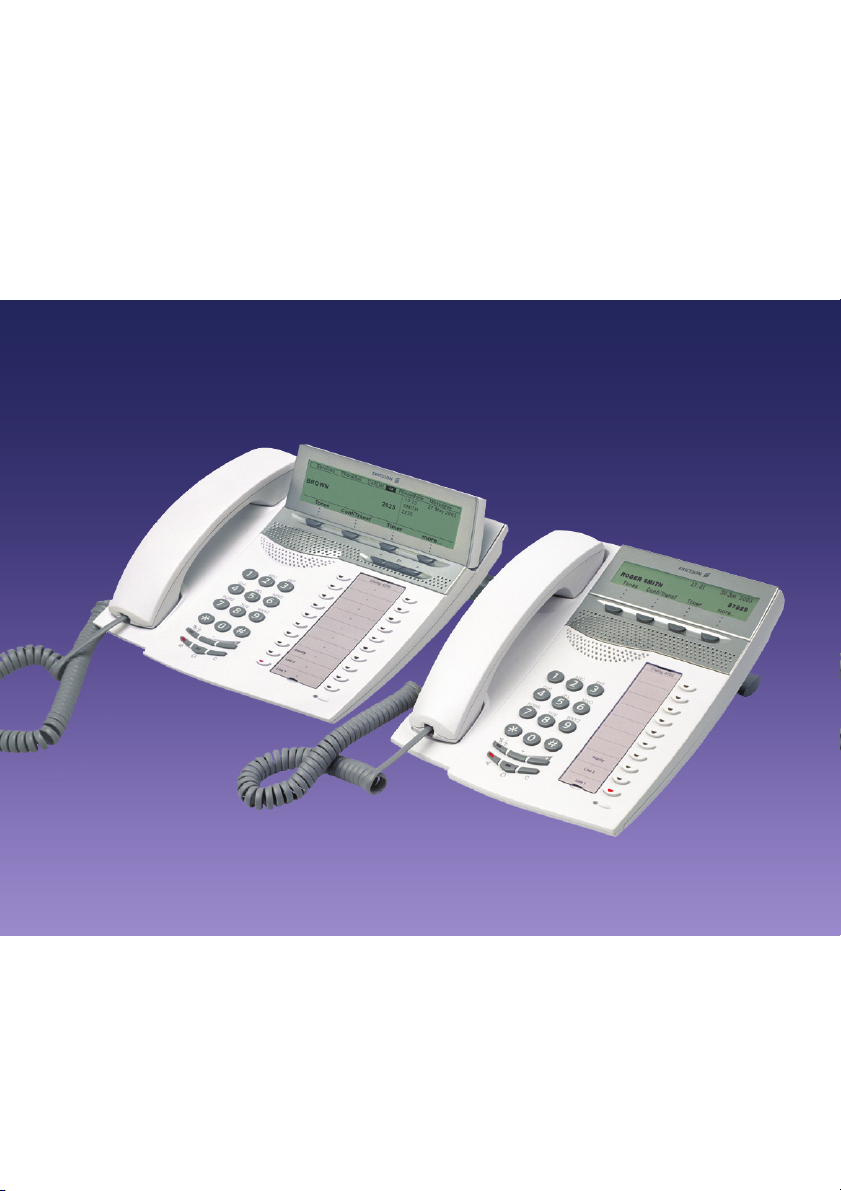

Dialog 4223 Professional/Dialog 4225 Vision

System Telephones for Ericsson MX-ONE™ Telephony System and Ericsson MD110

D4 Mode

User Guide

EN/LZT 103 68 R5A

3Dialog 4223 Professional/Dialog 4225 Vision

Table of Contents

Welcome .......................................................... 4

Important User Information ............................... 6

Description ....................................................... 7

Free Seating ................................................... 28

Incoming Calls ............................................... 29

Outgoing Calls ............................................... 35

During Calls .................................................... 52

Call Metering .................................................. 59

Call Forwarding .............................................. 62

Absence Information ...................................... 76

Messages ...................................................... 79

Group features ............................................... 85

Other Useful features ...................................... 89

Settings .......................................................... 98

Accessories ................................................. 117

Installation .................................................... 124

Troubleshooting ............................................ 132

Glossary ....................................................... 135

Index ............................................................ 136

Welcome

Dialog 4223 Professional/Dialog 4225 Vision4

Welcome

Welcome to the user guide for the Ericsson Dialog 4223

Professional and Ericsson Dialog 4225 Vision. This guide

describes the available features of the telephones when they are

connected to Ericsson MX-ONE™ Telephony System or

Ericsson MD110.

The functions and features available with these telephones are

designed for easy use in all different telephone handling situations.

Depending on the version and configuration of the exchange that

your telephone is connected to, some of the functions and features

that are described in this user guide may not be available. There

may also be some differences in the way your telephone is

programmed. Please consult your system administrator if you need

further information.

Some markets use differing codes for some features. In this guide

they are described using the most common code.

The latest version of the user guide can be downloaded from:

http://www.ericsson.com/enterprise/library/manuals.shtml

5Dialog 4223 Professional/Dialog 4225 Vision

Welcome

stored in retrieval systems, or transmitted in any form or by any

means, electronic, mechanical, photocopying, recording or

otherwise, without prior written permission of the publisher except

in accordance with the following terms.

When this publication is made available on Ericsson media,

Ericsson gives its consent to downloading and printing copies of

the content provided in this file only for private use and not for

redistribution. No parts of this publication may be subject to

alteration, modification or commercial use. Ericsson will not be

liable for any damages arising from use of an illegal modified or

altered publication.

Warranty

ERICSSON MAKES NO WARRANTY OF ANY KIND WITH

REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. Ericsson shall not be

liable for errors contained herein nor for incidental or consequential

damages in connection with the furnishing, performance or use of

this material.

Declaration of conformity

Hereby, Ericsson AB, declares that this telephone, is in

conformity with the essential requirements and other relevant

provisions of the European R&TTE directive 1999/5/EC.

Details to be found at: http://www.ericsson.com/sdoc.

Important User Information

Dialog 4223 Professional/Dialog 4225 Vision6

Important User Information

Safety instructions

Save these instructions.

Read these safety instructions before use!

Note: When using your telephone or connected

equipment, the following basic safety precautions should

always be followed to reduce risk of fire, electrical shock

and other personal injury.

• Follow instructions in the equipment's user guide or other

documentation.

• Always install equipment in a location and environment for which it is

designed.

• For mains powered telephones: Only operate with the mains power

voltage indicated. If you are uncertain of the type of power supplied to the

building, consult property management or your local power company.

• For mains powered telephones: Avoid placing the telephone's power

cable where it can be exposed to mechanical pressure as this may

damage the cable. If the power supply cord or plug is damaged,

disconnect the product and contact qualified service personnel.

• Headsets used with this equipment must comply with EN/IEC 60950-1

and for Australia AS/NZS 60950: 2000.

• Do not make any changes or modifications to equipment without seeking

approval from the party responsible for compliance. Unauthorized

changes or modifications could void the user's authority to operate the

equipment.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

• Do not spill liquid of any kind on the product or use the equipment near

water, for example, near a bathtub, washbowl, and kitchen sink, in a wet

basement or near a swimming pool.

• Do not insert any object into equipment slots that is not part of the

product or auxiliary product.

• Do not disassemble the product. Contact a qualified service agency

when service or repair work is required.

• Do not use a telephone (other than cordless type) during an electrical

storm.

Disposal of the product

Your product should not be placed in municipal waste. Please check local

regulations for disposal of electronic products.

7Dialog 4223 Professional/Dialog 4225 Vision

Description

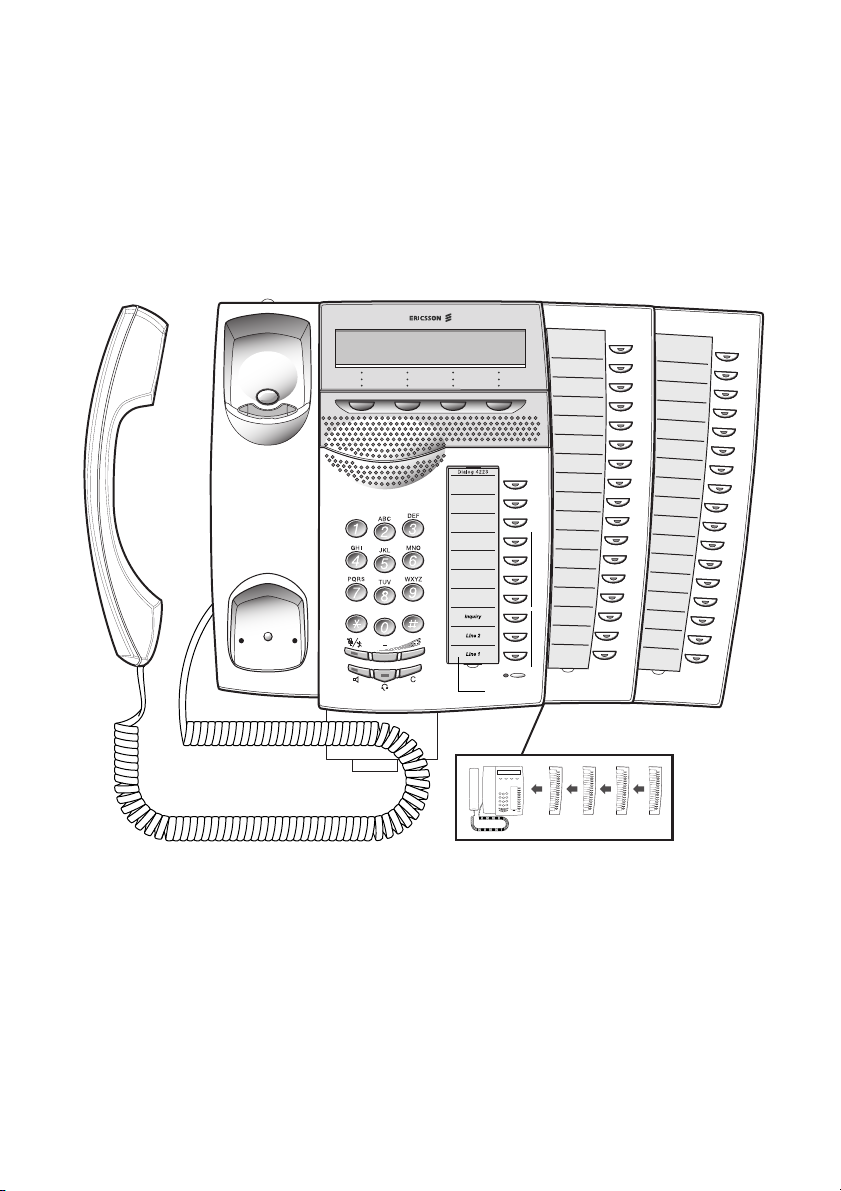

Dialog 4223 Professional

1Display

See section “Display information” on page 16.

2 Display menu keys

The key functions depend on the traffic state. When you are

requested “(see display)”, press the required key to access the

feature.

3Callback

Indicating/activating Callback. See section “When you receive a

busy tone” on page 40. The feature can be removed or moved to

another programmable function key by your system administrator.

16 16

Description

Dialog 4223 Professional/Dialog 4225 Vision8

4 Diversion (Follow-me)

Indicating/activating and deactivating Diversion (Follow-me). See

section “Call Forwarding” on page 62. The feature can be removed

or moved to another programmable function key by your system

administrator.

5 Programmable function keys

Program numbers or features. See section “Programming of

function keys” on page 98.

Note: The key marked with a “b” is also used to program a

melody, see section “Melody Ringing” on page 109.

6 Triple Access Line

Handle calls. Line 1 and 2 are available both for incoming and

outgoing calls. Inquiry can only be used for outgoing calls.

7 Microphone

Used for handsfree conversation.

8Clear

Disconnect calls or exit a feature. Can always be pressed instead of

replacing the handset.

9 Headset key

Handle headset calls and activate Headset Preset. See section

“Headset (optional)” on page 118.

10 Loudspeaker on/off

a. Activate handsfree conversation. See section “During Calls” on

page 52.

b. Activate Loudspeaker Preset. See section “Headset Preset” on

page 119.

11 Mute

a Switch the microphone on or off during a call. See section

“Mute” on page 53.

b Switch off the ring signal in idle mode or when ringing. See

section “Mute ring signal” on page 108 and “Silent Ringing” on

page 108.

12 Volume control

Adjust the volume. See section “Settings” on page 98.

13 Loudspeaker

9Dialog 4223 Professional/Dialog 4225 Vision

Description

14 Handset

Supplied with hearing aid feature as standard. An extra handset

can be connected, see section “Accessories” on page 117.

Please note: The handset can attract and trap small metal

objects in the earcap region.

15 Pull-out leaf for easy guide (optional)

See section “Pull-out leaf (optional)” on page 121.

16 Key panel

With 17 programmable keys. Up to four panels can be connected.

See section “Key panel” on page 117. Use the Designation Card

Manager to make and print your own key panel designation cards,

see below.

17 Designation card

Use the DCM (Designation Card Manager) to make and print your

own designation cards. DCM is included on the Enterprise

Telephone Toolbox CD or it can be downloaded from:

http://www.ericsson.com/enterprise/library/manuals.shtml

For more information, please contact your Ericsson Enterprise

certified sales partner.

D4 mode information

The Dialog 4223 Professional phone can be connected to the

exchange in two different modes (user interfaces), either D3 mode,

or D4 mode. There is one user guide for each mode.

To find out the mode for your telephone, check the right hand side

of the second row of the display (see picture), when the telephone

is in idle mode:

• No extension number is shown (i.e. blank) - your telephone is

using D4 mode = This is the correct guide.

• Extension number is shown - your telephone is using D3 mode

= This is not the correct guide, download the user guide from:

http://www.ericsson.com/enterprise/library/manuals.shtml

Note: This user guide is not valid for the Dialog 4223

Professional in D3 mode.

Brown James 2222 11:06 28 Aug 2003

Absence Account Authority more...

Description

Dialog 4223 Professional/Dialog 4225 Vision10

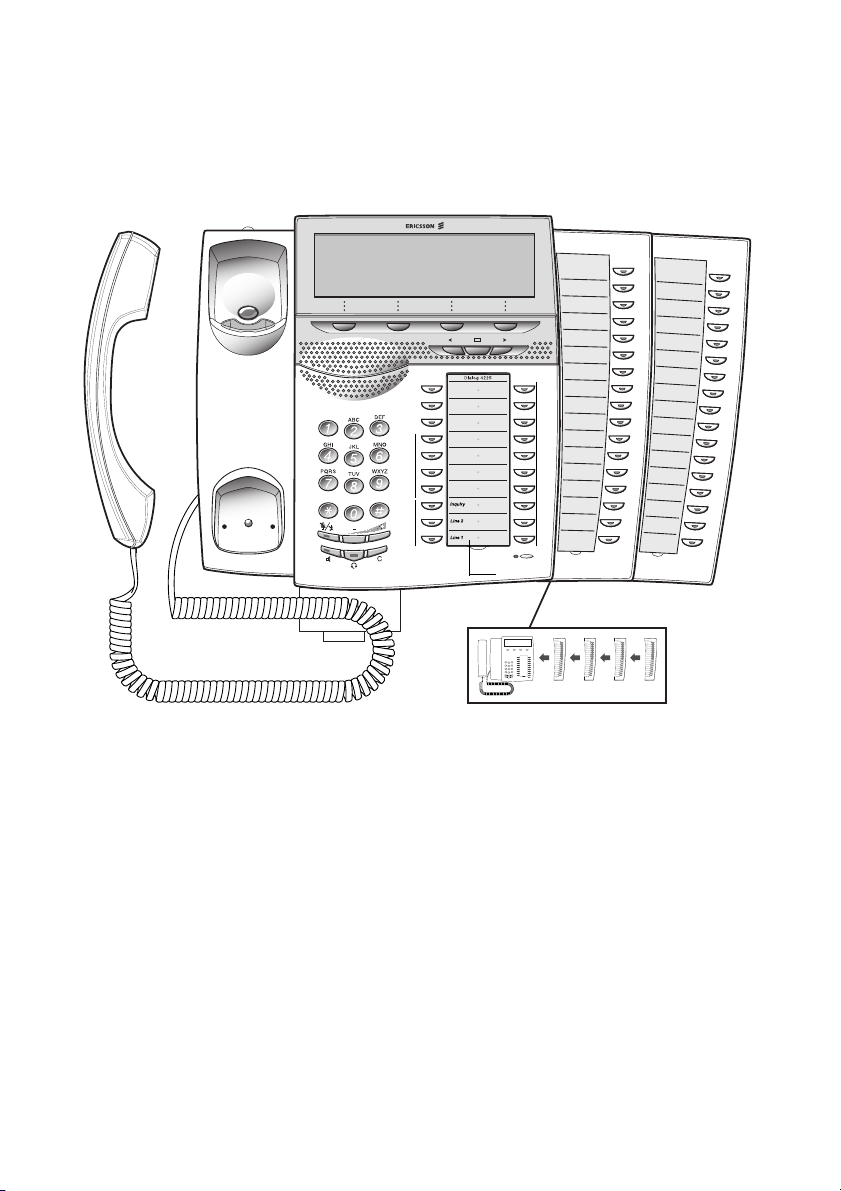

Dialog 4225 Vision

1Display

See section “Display information” on page 16.

2 Display menu keys

The key functions depend on the traffic state. When you are

requested “(see display)”, press the required key to access the

feature.

3 Navigation key left

Navigate one step to the left in the top menu. See section “Display

information” on page 16.

4Home

Return to home position (idle mode), when you are navigating the

top menu. See section “Display information” on page 16.

5 Navigation key right

Navigate one step to the right in the top menu. See section

“Display information” on page 16.

14 15

Altri manuali per Dialog 4223 Professional

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ericsson Telefono

Ericsson

Ericsson BusinessPhone 250 Manuale utente

Ericsson

Ericsson BUSINESSPHONE 50 Manuale utente

Ericsson

Ericsson Dialog 4223 Professional Manuale utente

Ericsson

Ericsson Dialog 4223 Professional Manuale utente

Ericsson

Ericsson DIALOG 4222 OFFICE Manuale utente

Ericsson

Ericsson Dialog 3210 Manuale utente

Ericsson

Ericsson BusinessPhone 250 Manuale utente

Ericsson

Ericsson DIALOG 4220 LITE Manuale utente

Ericsson

Ericsson DIALOG 4220 LITE Manuale utente

Ericsson

Ericsson BusinessPhone 250 Manuale utente

Ericsson

Ericsson Dialog 4223 Professional Manuale utente

Ericsson

Ericsson dialog 4106 Manuale utente

Ericsson

Ericsson Basic telephone Manuale utente

Ericsson

Ericsson MD110 Manuale utente

Ericsson

Ericsson BusinessPhone 250 Manuale utente

Ericsson

Ericsson BusinessPhone 250 Manuale utente

Ericsson

Ericsson Dialog 4223 Professional Manuale utente

Ericsson

Ericsson Dialog 4223 Manuale utente

Ericsson

Ericsson Dialog 4106 Basic Manuale utente

Ericsson

Ericsson Dialog 3105MW Manuale utente

Ericsson

Ericsson DIALOG 4222 OFFICE Manuale utente

Ericsson

Ericsson Dialog 3210 Manuale utente

Ericsson

Ericsson Dialog 3105MW Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
