Ericsson LDP-7208D Manuale utente

Important Safety Information

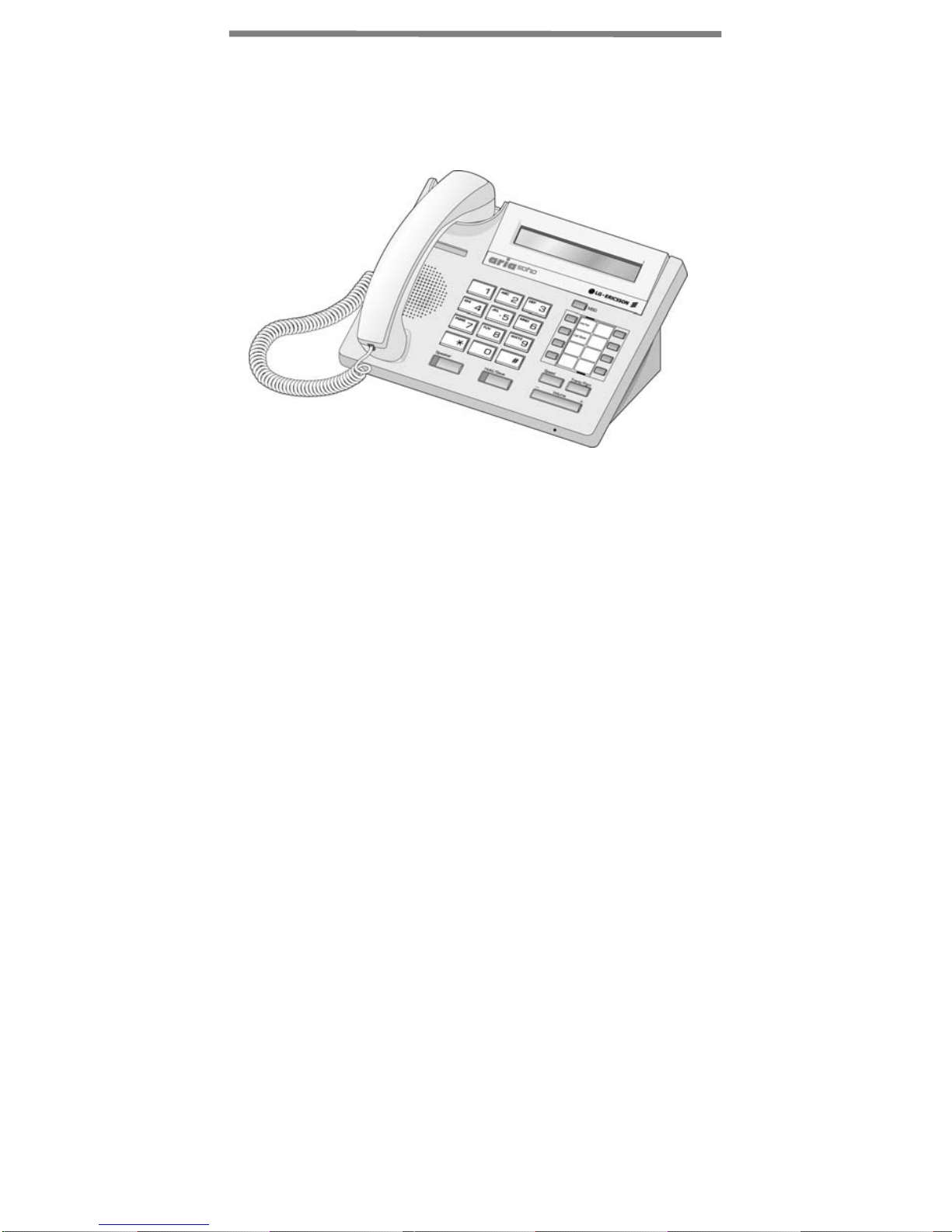

LDP-7208D Model

LDP-7208D is an advanced, user-friendly digital keyset,

offering the convenience of flexible and pre-programmed

buttons for quick access to commonly used functions.

•Features

- Trendy and stylish LDP Family product design

- LCD interface

- Easy to use features

- Wall mountable (bracket not included - optional)

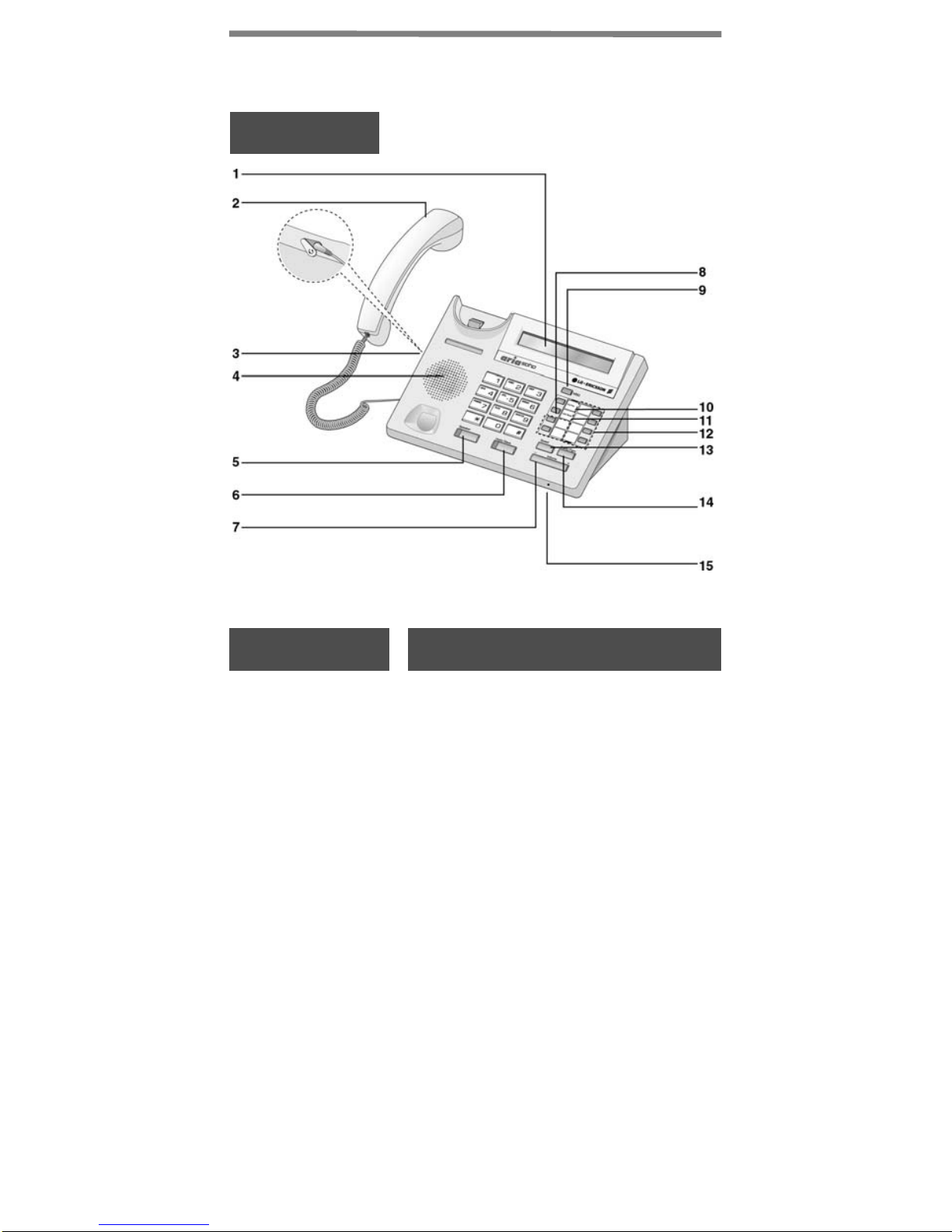

Input/Output Devices and Button

Description

LDP-7208D

Shows incoming caller info.,

status, and menus.

Transmits outgoing and

incoming sound.

Install an optional earphone

for hands-free conversation.

Outputs tones and voice.

Toggles speaker-phone

status; red LED is illuminated

when the speakerphone is ON.

1 LCD Display

2 Handset

3 Headphone

Socket

(Ear/Mic)

4 Speaker

5 Speaker

Button

Item Description

Places a call on hold or saves

programming information.

Adjusts audio to desired level.

Receive calls where no CO

Line appearance is available.

Illuminates if MSG is waiting.

Blocks all incoming calls; red

LED is illuminated when ON.

Forwards calls (ex., to another

station or voicemail); the red

LED flashes when active.

When calling a busy station to

request a return call when idle.

Program features to a button.

Speed dial and program, and

saved number redial access.

Used to initiate a call transfer

(TRS) or to enter programming

mode (PGM).

Microphone for Handsfree

phone operation.

6 Hold/Save

Button

7 Volume

8 Loop

9 MSG LED

10 DND/Fwd

Button

11 Call Back

12 Flex

13 Speed

15 TRANS/

PGM

16 Handsfree

Item Description

Input/Output Devices and Button

Description

Cable Connection

A Connect the telephone cord (spiral cord)

to the handset and the other end to

the handset jack at the bottom of the

telephone.

B Connect the line cable to the port at the

bottom of telephone and the other end

to the wall socket.

C Connect the Headphone to the headphone

jack on the left side of the telephone

(when viewed from the front).

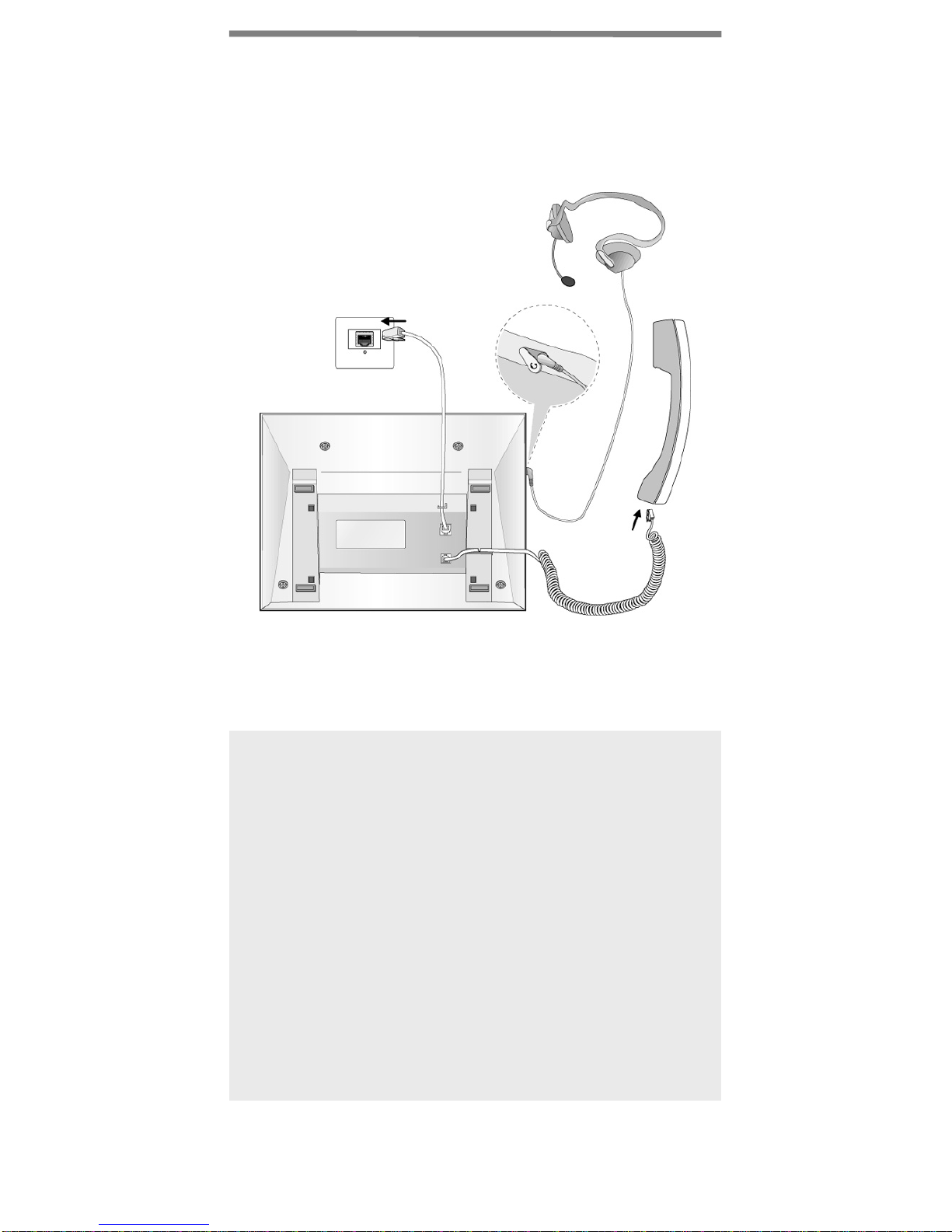

The diagram (shown) depicts cable connections for

the LDP-7208D; connection points are described

below.

Placing an Outside Call

●

Lift handset or press the Speaker button (also may dial

without pressing Speaker or lifting handset).

●

Dial 9 on keypad.

●

Dial the desired number.

Placing an Intercom Call

Placing an Outside Call on Hold

Retrieving a Outside Call on Hold

Answering a Waiting Call

Basic Function

●

Lift handset or press the Speaker button (also may dial without

pressing Speaker or lifting handset).

●

Dial the station number using the keypad.

●

While connected to an external call, press the [HOLD] button.

●

Press the flashing flexible button.

※NOTE: calls will automatically recall after the pre-set time.

●

Press the flashing CO button.

Camp-on at a Busy Station

●

After receiving a busy tone when calling a Station, press

the＊key; the Camp-on tone is heard at the called station.

●

When the called party answers, complete call as initiated.

Call Transfer

●

Press [TRANS/PGM] button and dial the appropriate

Station to transfer the call to.

●

When the called party answers, talk, or hang up to

complete transferred call to the called party.

Basic Function

Last Number Redial

Storing Station Speed Dial Numbers

Using Station Speed Dial Numbers

●

Press the [SPEED] button.

●

Dial the desired speed dial bin number.

Group Call Pick-up

When hearing an unattended phone ringing in your area:

●

Lift the handset.

●

Dial 5 6 6; the call will be connected automatically.

※NOTE: you must be in the same pick-up group as the

ringing phone.

●

Lift handset, or press the Speaker button (also may dial without

pressing Speaker or lifting handset).

●

Dial 5 5 2 or press the speed button + dial ‘＊’+Hold/Save

button.

●

Press the [TRANS/PGM] and [SPEED] Buttons.

●

Dial speed bin number (range=000-099).

●

Enter the desired speed dial number to store.

●

Press the [HOLD/SAVE] button.

●

Enter the name associated to the number (refer to

Character Entry chart).

●

Press the [HOLD/SAVE] button; a confirmation tone will

be heard.

Accessing an Incoming Call to Another

Station (Call Pick-up)

When you hear another phone ringing in your area:

●

Lift handset, or press the Speaker button (also may dial without

pressing Speaker or lifting handset).

●

Dial 7.

●

Dial the extension number of the ringing station; you will be

connected automatically to the caller.

Code for Flexible Button Programming

Registering Flexible Buttons

Trans/Pgm

Hold/Save

Press the [Trans/Pgm] button.

Press the desired [Flexible] button.

Trans/Pgm

Press the [Trans/Pgm] button.

Enter code number (refer to list

next page).

Press the [Hold/Save] button.
