3 INTRODUCTION

The Feed L302 with control panel M08 and Feed L304 with control panel M09 wire

feed units are intended for MIG/MAG welding with the Mig L405 power source.

They come in different variants, see page 16.

The feed units can be used together with wire on ESAB's MarathonPact, or on wire

bobbin Ø 300 mm.

They can be installed either at the power source, suspended above the workplace,

on a support arm or on the floor with or without wheel set.

ESAB's accessories for the product can be found on page 21.

3.1 Equipment

The wire feed units are supplied with an instruction manual and stickers.

4 TECHNICAL DATA

Feed L302 Feed L304

Power supply 42 V 50-60 Hz 42 V 50-60 Hz

Power requirement 150 VA 150 VA

Motor current Imax 3.5 A 3.5 A

Settings data

Wire feed speed

Burnback time

Spot welding time

1.5-22.0 m/min

0-0.7 s

1.5-22.0 m/min

0-0.7 s

0.2-5 s

Gun connection EURO EURO

Max. diameter wire bobbin 300 mm 300 mm

Wire dimension

Cored wire

0.6-1.2 mm

1.0-1.2 mm

0.8-1.2 mm

0.6-1.6 mm

0.6-1.2 mm

1.0-1.6 mm

0.8-1.6 mm

Weight 12.6 kg 13.2 kg

Dimensions (l x b x h) 569 x 259 x 355 mm 569 x 259 x 355 mm

Operating temperature -10 to +40°C-10 to +40°C

Shielding gas

max pressure Gases for MIG/MAG welding

5 bar Gases for MIG/MAG welding

5 bar

-6-

bm38d1ea

Feed L304Feed L302

Coolant

max pressure -

-50% water / 50% glycol

5 bar

Maximum permissible load at

60% duty cycle

100% duty cycle 365 A

280 A 365 A

280 A

Enclosure class

basic version

with sealed bobbin holder*

with MarathonPact

IP2X

IP23

IP2X

IP23

* Accessories, see page 21.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Apparatus marked IP2X are intended for indoor use.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at

a certain load without overloading. The duty cycle is valid for 40°C.

5 INSTALLATION

The installation must be executed by a professional.

CAUTION

This product is intended for industrial use. In a domestic environment this product may

cause radio interference. It is the user's responsibility to take adequate precautions.

WARNING

When welding in an environment with increased electrical danger, only power

sources intended for this environment may be used. These power sources are

marked with the symbol

-7-

bm38d1ea

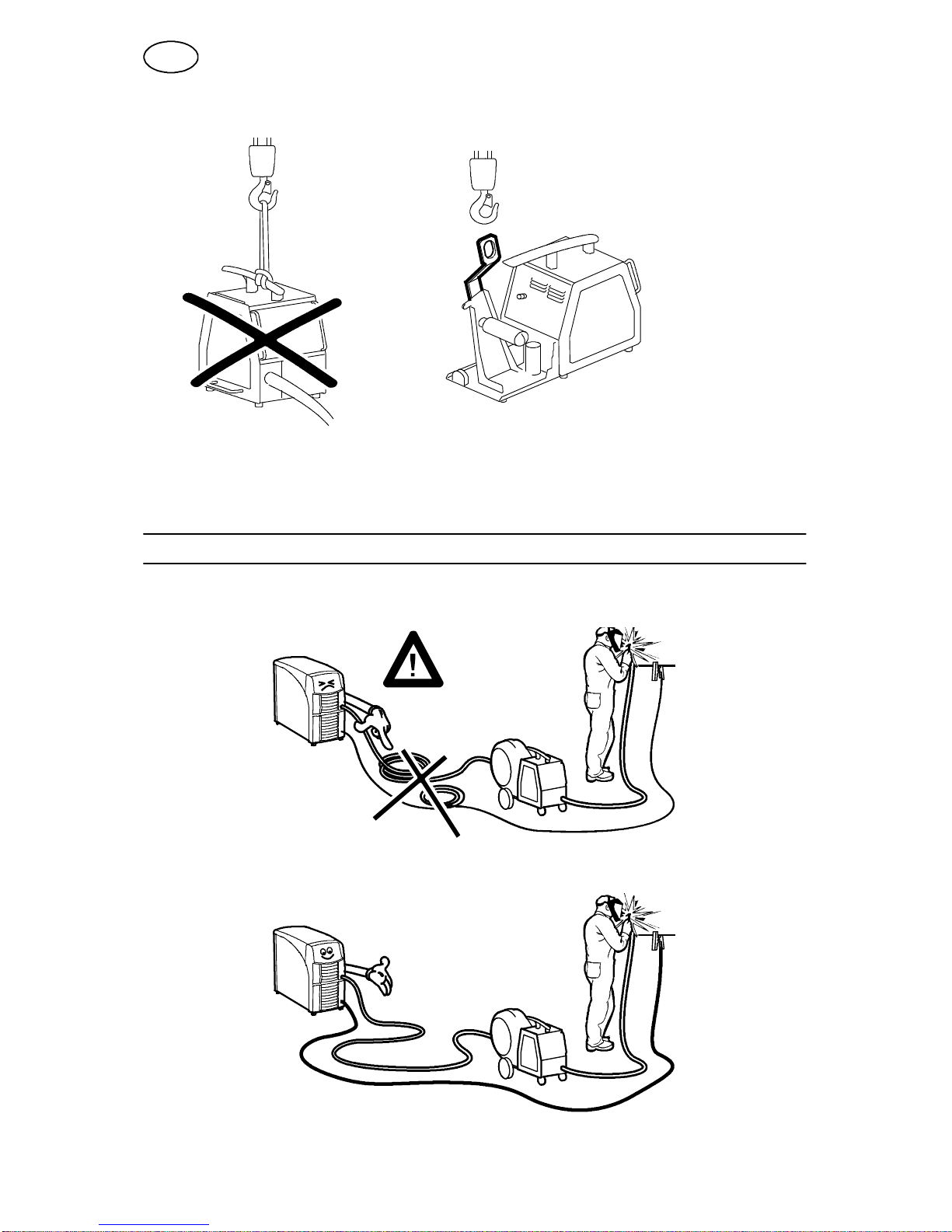

5.1 Lifting instructions

Order number for lifting eyelet can be found on page 21.

Note! If another mounting device is used, this should be insulated from the wire feed

unit.

6OPERATION

General safety regulations for the handling of the equipment can be found on

page 3. Read through before you start using the equipment!

H 0935

-8-

bm38d1ea

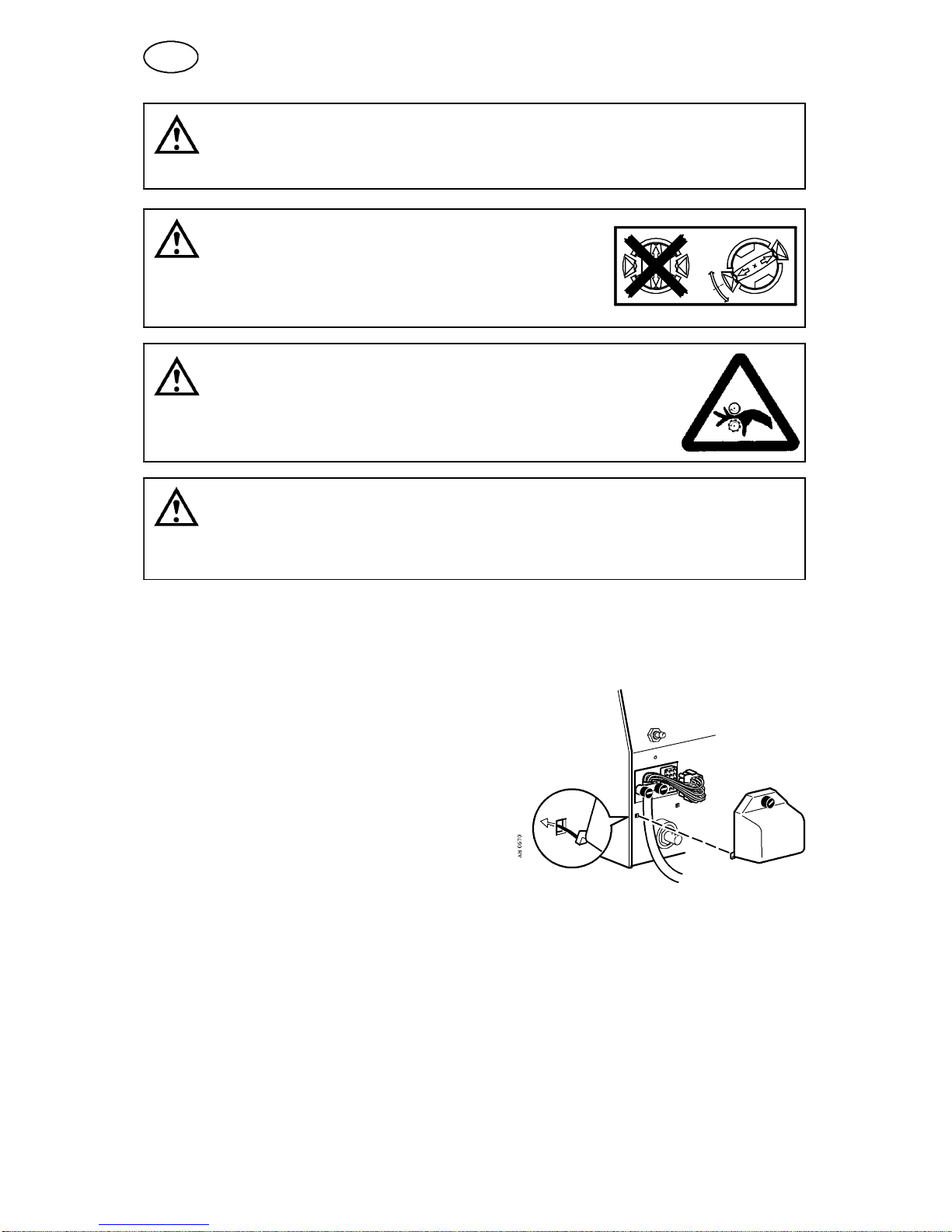

WARNING

Assure that the side panels are closed during operation.

WARNING

To prevent the reel from sliding off the hub: Lock the

reel in place by turning the red knob as shown on the

warning label attached next to the hub.

WARNING

Rotating parts can cause injury, take great care.

WARNING

There is a risk of tipping if the wire feed unit is fitted with a counterbalance arm.

Secure the equipment, especially if used on an uneven or sloping surface.

NOTE: When moving the equipment use intended handle. Never pull on the gun.

6.1 Connections and control devices

Connecting control cable

When connecting the control cable, it is

important to secure the cable with the

load-removing grommet.

Ensure that the cover is properly screwed

into place.

-9-

bm38d1ea

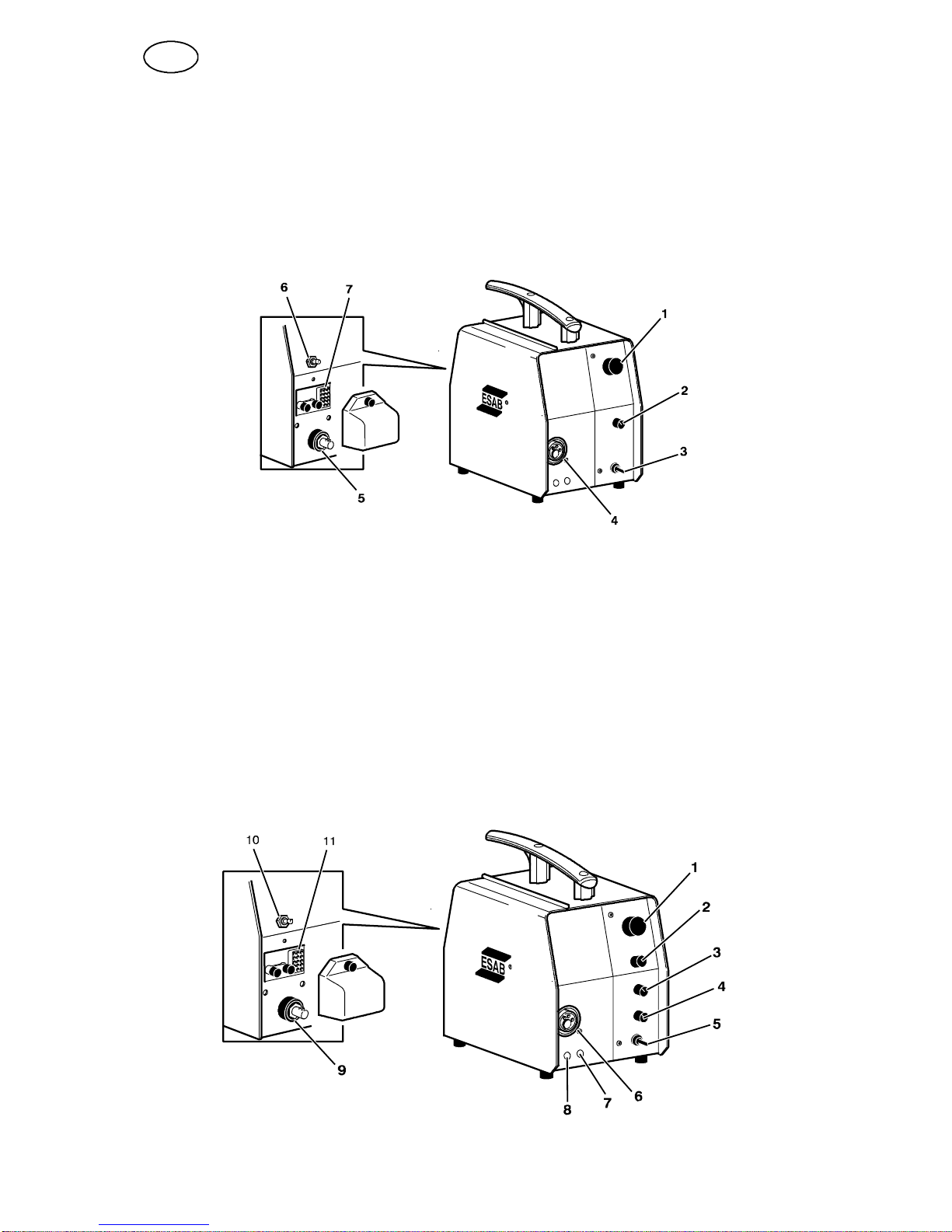

Feed L302

1Knob for setting wire feed speed 4Connection for welding gun

2Knob for setting burnback time 5Connection for welding current from power

source, (OKC)

3Switch for 2-stroke / 4-stroke 6Connection for shielding gas

7Connection for control cable from power

source

Feed L304

1Knob for setting wire feed

speed 7Connection RED for cooling water from

welding gun

2Switch for activation of 2/4 stroke, spot

welding, cold wire feed or gas purging 8Connection BLUE, for cooling water to

welding gun

3Knob for setting spot welding time 9Connection for welding current from power

source, (OKC)

4Knob for setting burnback time 10 Connection for shielding gas

5Switch for creep start OFF / ON 11 Connection for control cable from power

source

6Connection for welding gun

NOTE! Cooling water connections only available on certain models.

-10-

bm38d1ea

6.2 Explanation of function

Wire feed speed

This sets the required feed speed of the filler wire in m/minute.

2stroke

With 2-stroke, the gas flow starts followed by the wire feed when the trigger switch is

pressed in. The welding process is concluded when the trigger switch is released,

the wire feed stops and the gas stops flowing.

4stroke

With 4 stroke, the gas flow starts when the trigger switch is pressed in and the wire

feed starts when it is released. The welding process continues until the switch is

pressed in again, the wire feed stops and when the switch is released the gas stops

flowing.

Spot welding

Spot welding is used when you want to weld on short, repeated occasions with a

pre-set time.

When the trigger switch is pressed in, the gas flow starts for a period of time

governed by the printed circuit board. After this the welding process starts for the set

time. When the welding process is complete, the gas flow stops.

Cold wire feed

Cold wire feed is used to feed wire without welding voltage and gas flow.

Activation of cold wire feed: press in the trigger switch and the wire feed starts.

Gas purging

Gas purging is used to measure that gas flow or to flush the gas hoses to clean them

of any air and moisture before commencing welding. Gas purging is carried out with

the voltage and wire feed switched off.

Activation of gas purging: press in the trigger switch and gas purging starts.

Burnback time

Burnback time is a delay between the time when the wire brakes until the time when

the power source switches off the welding voltage. Too short burnback time results

in a long wire stickout after completion of welding, with a risk of the wire being

caught in the weld pool. Too long a burnback time results in a shorter stickout, with

increased risk of the arc striking back to the contact tip.

Creep start

Creep start means that the wire is fed at 50% lower speed until it comes into

electrical contact with the workpiece, at which point the speed increases to the set

speed.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ESAB Sistema di saldatura

ESAB

ESAB LHF 405 PIPEWELD Manuale utente

ESAB

ESAB Aristo 1000 AC/DC SAW Manuale utente

ESAB

ESAB ST-21M Manuale utente

ESAB

ESAB EMP 255ic Manuale utente

ESAB

ESAB PCM-875A Manuale utente

ESAB

ESAB PCM-875 Manuale utente

ESAB

ESAB Caddyt Tig 150i Manuale utente

ESAB

ESAB Aristo WeldCloud Mig U5000i Manuale utente

ESAB

ESAB Jesse James SIGNATURE Series Manuale utente

ESAB

ESAB Cadd Tig 1500i TA34 Manuale utente

ESAB

ESAB DTG 405 Manuale utente

ESAB

ESAB Aristo Mig 5000i 460 V Manuale utente

ESAB

ESAB Origo Tig 3000i Manuale utente

ESAB

ESAB AristoMig U400 Manuale utente

ESAB

ESAB TAE 800 Manuale utente

ESAB

ESAB ESP-150 Manuale utente

ESAB

ESAB Origo Arc 458T Guida

ESAB

ESAB Warrior 500 Manuale utente

ESAB

ESAB ESP-50 Manuale utente

ESAB

ESAB Origo Arc 250 edw Guida

ESAB

ESAB EMP 320ic Manuale utente

ESAB

ESAB Powercut 875 Manuale utente

ESAB

ESAB A2 Multitrac Guida

ESAB

ESAB Aristo 500ix Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuale utente
