ESAB Origo Mig 3001i Manuale utente

Valid for serial no. 835--xxx--xxxx0460 739 001 GB 090127

OrigotAristot

Mig 3001i

Instruction manual

-- 2 --

TOCe

Rights reserved to alter specifications without notice.

1 DIRECTIVE 3........................................................

2SAFETY 3...........................................................

3 INTRODUCTION 5...................................................

3.1 Equipment 5................................................................

3.2 Control panel A24 5.........................................................

4 TECHNICAL DATA 6.................................................

5 INSTALLATION 7....................................................

5.1 Lifting instructions 7.........................................................

5.2 Location 8..................................................................

5.3 Mains supply 8..............................................................

6 OPERATION 9.......................................................

6.1 Connections and control devices 9............................................

6.2 Connection of welding and return cable 9.......................................

6.3 Fan control 10...............................................................

6.4 Overheating protection 10.....................................................

6.5 MIG/MAG and FCAW--S welding 10............................................

6.6 TIG welding 10...............................................................

6.7 MMA welding 11.............................................................

7 MAINTENANCE 11....................................................

7.1 Power source 11.............................................................

7.2 Welding torch 11.............................................................

8 FAULT--TRACING 12..................................................

9 ORDERING SPARE PARTS 12..........................................

DIAGRAM 14............................................................

ORDERING NUMBER 16.................................................

ACCESSORIES 17.......................................................

-- 3 --

ba41d1ea

1DIRECTIVE

DECLARATION OF CONFORMITY

ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld-

ing power source Mig 3001i from serial number 835 are constructed and tested in compliance with the

standard EN 60974--1 and EN 60974--10 (Class A) in accordance with the requirements of directive

(2006/95/EC) and (2004/108/EEC).

-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --------

Kent Eimbrodt

Global Director

Equipment and Automation

Laxå 2008--08--14

2SAFETY

Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety precautions

must meet the requirements that apply to this type of welding equipment. The following recommen-

dations should be observed in addition to the standard regulations that apply to the workplace.

All work must be carried out by trained personnel well--acquainted with the operation of the welding

equipment. Incorrect operation of the equipment may lead to hazardous situations which can result

in injury to the operator and damage to the equipment.

1. Anyone who uses the welding equipment must be familiar with:

Sits operation

Slocation of emergency stops

Sits function

Srelevant safety precautions

Swelding

2. The operator must ensure that:

Sno unauthorized person is stationed within the working area of the equipment when it is

started up.

Sno--one is unprotected when the arc is struck

3. The workplace must:

Sbe suitable for the purpose

Sbe free from drafts

4. Personal safety equipment

SAlways wear recommended personal safety equipment, such as safety glasses, flame--proof

clothing, safety gloves.

SDo not wear loose--fitting items, such as scarves, bracelets, rings, etc., which could become

trapped or cause burns.

5. General precautions

SMake sure the return cable is connected securely.

SWork on high voltage equipment may only be carried out by a qualified electrician.

SAppropriate fire extinquishing equipment must be clearly marked and close at hand.

SLubrication and maintenance must not be carried out on the equipment during operation.

-- 4 --

ba41d1ea

WARNING

Read and understand the instruction manual before installing or operating.

Arc welding and cutting can be injurious to yourself and others. Take precausions when welding.

Ask for your employer’s safety practices which should be based on manufacturers’ hazard data.

ELECTRIC SHOCK - Can kill

SInstall and earth the welding unit in accordance with applicable standards.

SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

SInsulate yourself from earth and the workpiece.

SEnsure your working stance is safe.

FUMES AND GASES - Can be dangerous to health

SKeep your head out of the fumes.

SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS - Can injure eyes and burn skin.

SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

SProtect bystanders with suitable screens or curtains.

FIRE HAZARD

SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE - Excessive noise can damage hearing

SProtect your ears. Use earmuffs or other hearing protection.

SWarn bystanders of the risk.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Class A equipment is not intended for use in residential locations where

the electrical power is provided by the public low--voltage supply

system. There may be potential difficulties in ensuring electromagnic

compatibility of class A equipment in those locations, due to conducted

as well as radiated disturbances.

CAUTION!

This product is solely intended for arc welding.

CAUTION!

Read and understand the instruction manual before

installing or operating.

-- 5 --

ba41d1ea

Do not dispose of electrical equipment together with normal waste!

In observance of European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment and its implementation in accordance with national law, electrical equipment

that has reached the end of its life must be collected separately and returned to an

environmentally compatible recycling facility. As the owner of the equipment, you should

get information on approved collection systems from our local representative.

By applying this European Directive you will improve the environment and human

health!

ESAB can provide you with all necessary welding protection and accessories.

3 INTRODUCTION

Mig 3001i is a welding power source intended for MIG/MAG welding, as well as for

welding with powder filled cored wire (FCAW--S), TIG welding and for welding with

coated electrodes (MMA).

ESAB’s accessories for the product can be found on page 17.

3.1 Equipment

Mig 3001i can be supplied with or without cooling unit. The cooling unit can be retro

fitted. Installation kit for the cooling unit is available as an accessory, see page 17 .

The power source is supplied with:

S4.5 m return cable with contact clamp

S5 m mains cable with 32 ampere connector

Sinstruction manual for the welding power source

Sinstruction manual in English for the control panel (if applicable)

Sinstruction manual for the cooling unit (if applicable)

Instruction manuals in other languages can be downloaded from the website,

http://www.esab.com.

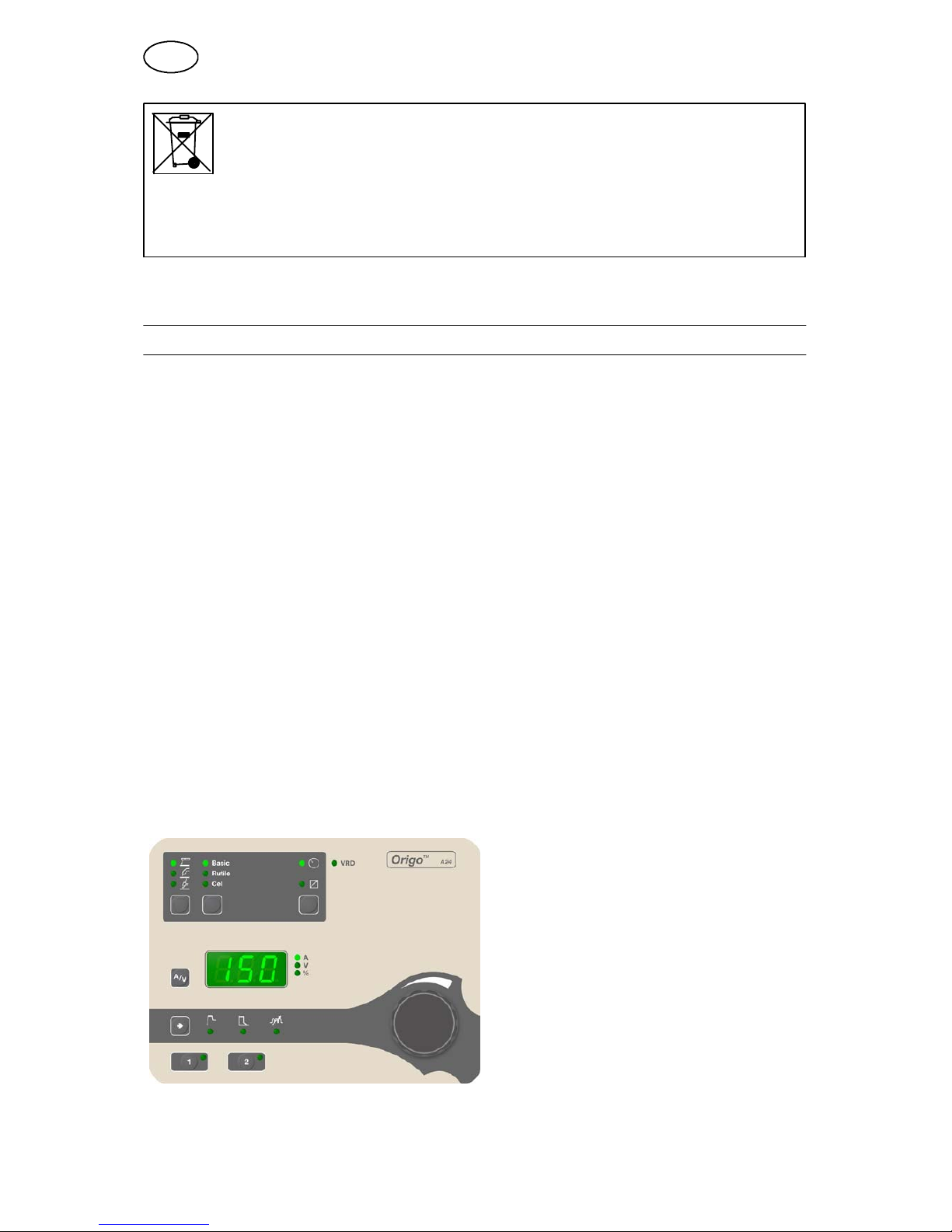

3.2 Control panel A24

Welding process parameters are controlled via the control panel. See the separate

instruction manual for a detailed description of the panels.

-- 6 --

ba41d1ea

4 TECHNICAL DATA

Mig 3001i

Mains voltage 400 V ±10%, 3 ∼50/60 Hz

Mains supply Ssc min 1.4 MVA

Primary current

Imax MIG/MAG

Imax TIG

Imax MMA

16 A

13 A

19 A

No--load power demand when in the

energy--saving mode, 6.5 min. after welding

30 W

Setting range

MIG/MAG

TIG

MMA

16 A / 8 V -- 300 A / 48 V

4 -- 300 A

16 -- 300 A

Permissible load at MIG/MAG

35 % duty cycle

60 % duty cycle

100% duty cycle

300 A / 29 V

240 A / 26 V

200 A / 24 V

Permissible load at TIG

35 % duty cycle

60 % duty cycle

100% duty cycle

300 A / 22 V

240 A / 19.6 V

200 A / 18 V

Permissible load at MMA

30 % duty cycle

60 % duty cycle

100% duty cycle

300 A / 32 V

230 A / 29,2 V

190 A / 27.6 V

Power factor at maximum current

MIG/MAG

TIG

MMA

0.90

0.89

0.90

Efficiency at maximum current

MIG/MAG

TIG

MMA

85 %

82%

84 %

Open--circuit voltage 67 V

Operating temperature -- 1 0 t o + 4 0 ˚C

Transportation temperature -- 2 0 t o + 5 5 ˚C

Continual sound pressure at no--load <70db(A)

Dimensions lxwxh

with cooling unit

652 x 249 x 423 mm

714 x 249 x 693 mm

Weight

with cooling unit

33 kg

53.5 kg

Insulation class transformer H

Enclosure class IP23

Application class

Mains supply, Ssc min

Minimum short circuit power on the network in accordance with IEC 61000--3--12

-- 7 --

ba41d1ea

Duty cycle

The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer-

tain load without overloading. The duty cycle is valid for 40˚C.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

5 INSTALLATION

The installation must be executed by a professional.

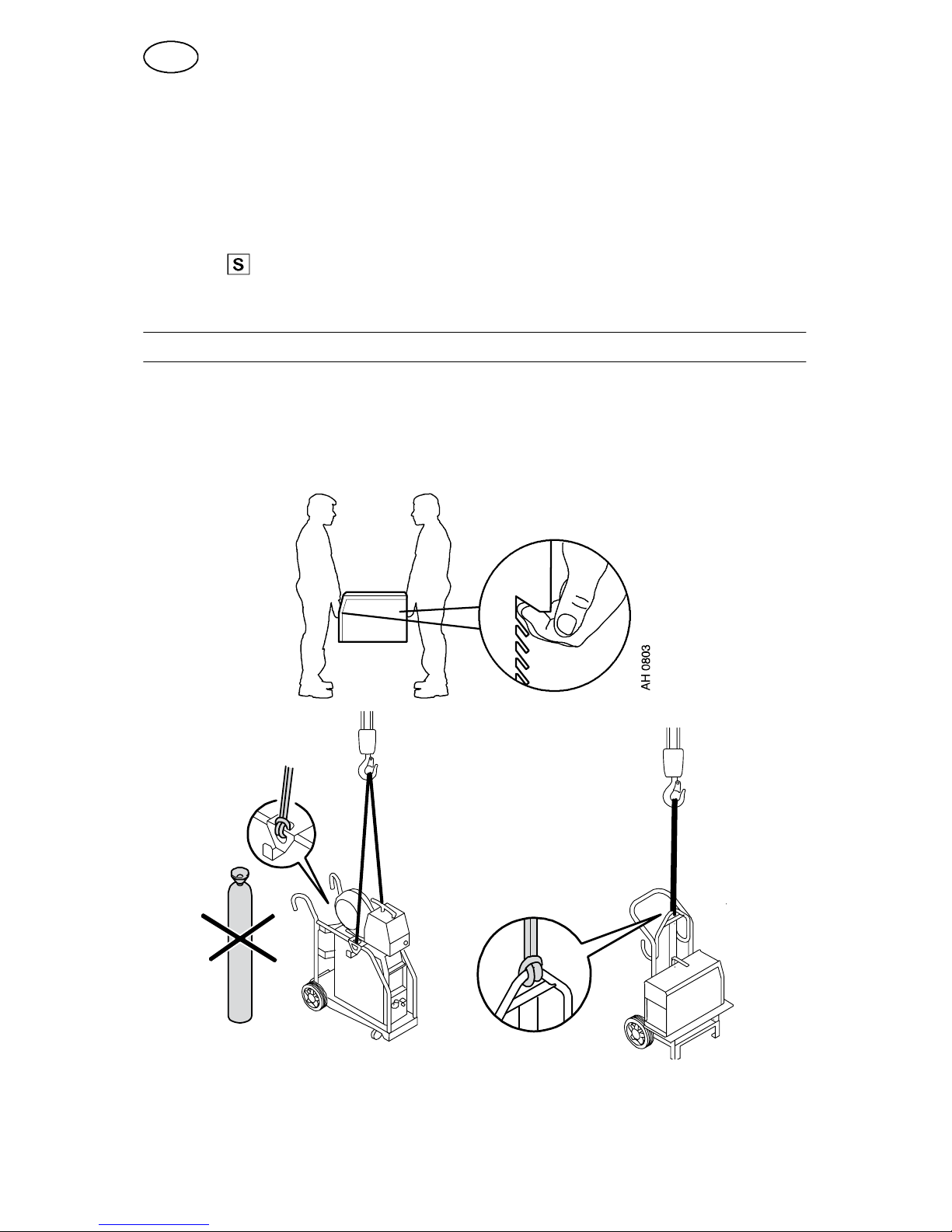

5.1 Lifting instructions

-- 8 --

ba41d1ea

5.2 Location

Position the welding power source such that its cooling air inlets and outlets are not

obstructed.

5.3 Mains supply

Note!

Mains supply requirements

High power equipment may, due to the primary current drawn from the mains supply, influence the

power quality of the grid. Therefore connection restrictions or requirements regarding the

maximum permissible mains impedance or the required minimum supply capacity at the interface

point to the public grid may apply for some types of equipment (see technical data). In this case it

is the responsibility of the installer or user of the equipment to ensure, by consultation with the

distrubution network operator if necessary, that the equipment may be connected.

Make sure that the welding power source is connected to the correct supply voltage

and that it is protected by the correct fuse rating. A protective earth connection must

be made in accordance with regulations.

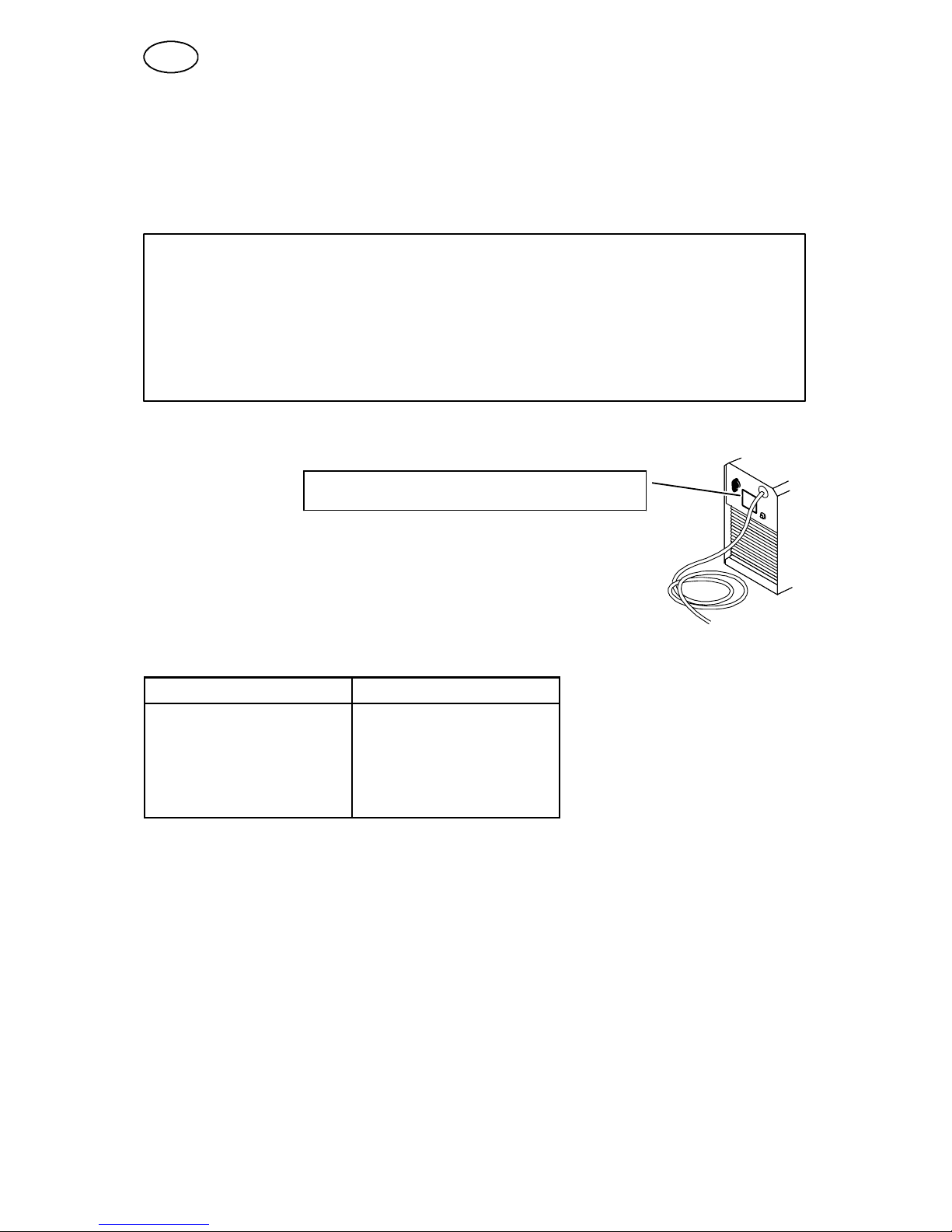

Rating plate with supply connection data

NOTE! The welding power source is designed for connection to a 400 volt

system with four conductors.

If the power source is to be used in countries with a higher or lower supply

voltage, the power source must be connected via a safety transformer.

Recommended fuse sizes and minimum cable area

Mig 3001i

Mains voltage 400 V 3μ50 Hz

Mains cable area mm24G2.5 mm2

Phase current Ieff 10 A

Fuse

anti--surge

type C MCB

16 A

NOTE! The mains cable areas and fuse sizes as shown above are in accordance with Swedish

regulations. Use the welding power source in accordance with the relevant national regulations.

-- 9 --

ba41d1ea

6 OPERATION

General safety regulations for the handling of the equipment can be found on

page 3. Read through before you start using the equipment!

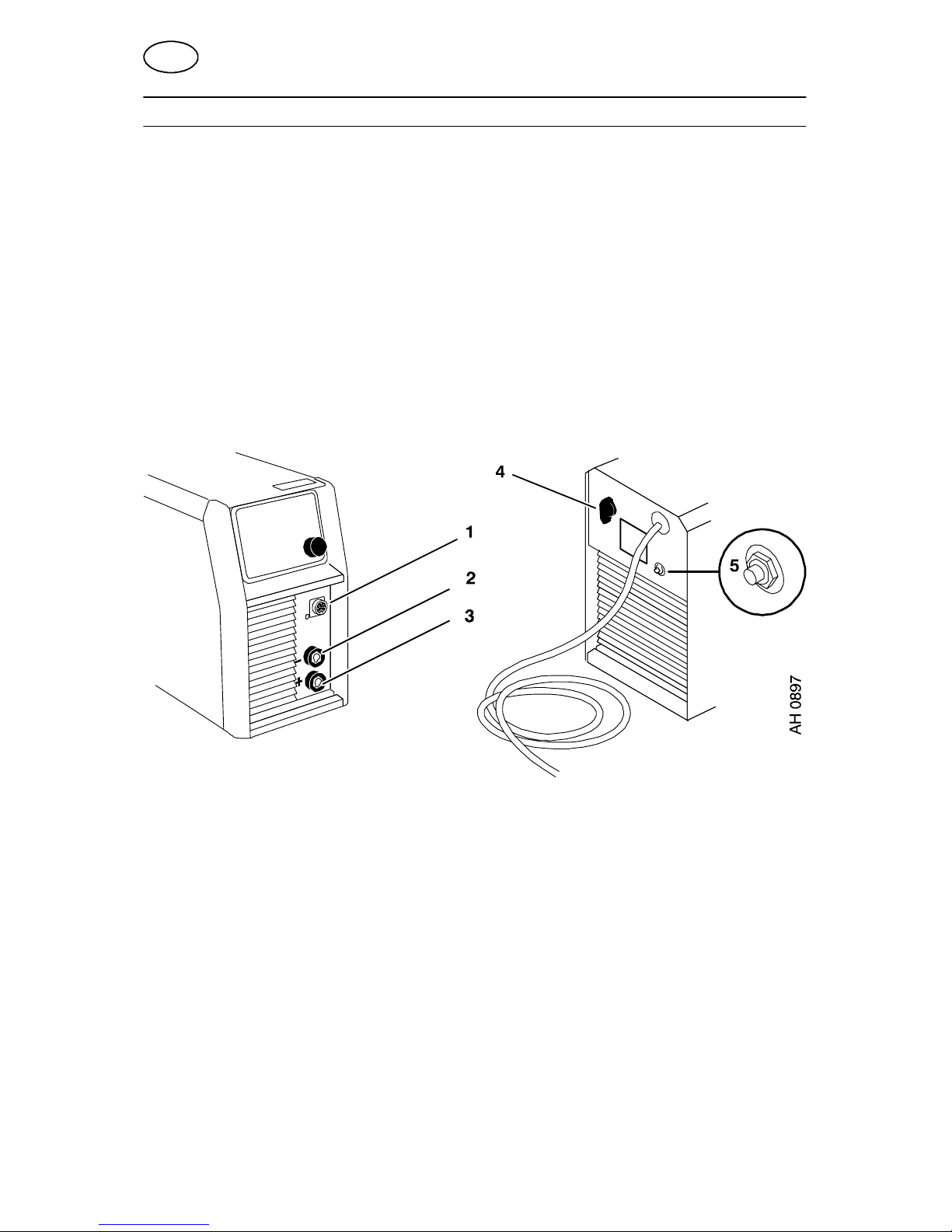

6.1 Connections and control devices

1Connection for wire feed unit or remote

control unit

4Mains voltage switch 1 / 0

2Connection (--) MIG/MAG: Return cable

TIG: Welding torch

MMA: Return cable or welding cable

5Fuse for supply voltage for feeder unit,

42 V

3Connection (+) MIG/MAG: Welding cable

TIG: Return cable

MMA: Welding cable or return cable

6.2 Connection of welding and return cable

The power source has two outputs, a positive terminal (+) and a negative terminal

(--), for connecting welding and return cables. The output to which the welding cable

is connected depends on the welding method or type of electrode used.

Connect the return cable to the other output on the power source. Secure the return

cable’s contact clamp to the work piece and ensure that there is good contact be-

tween the work piece and the output for the return cable on the power source.

For MMA welding, the welding cable can be connected to the positive terminal (+) or

negative terminal (--) depending on the type of electrode used. The connecting polar-

ity is stated on the electrode packaging.

-- 1 0 --

ba41d1ea

6.3 Fan control

The power source has a time control that means that the fans continue to run for 6.5

minutes after welding has stopped, and the unit switches to energy--saving mode.

The fans start again when welding restarts.

The fans run at reduced speed for welding currents up to 110 A, and at full speed for

higher currents.

6.4 Overheating protection

The welding power source has overheating protection that operates if the

temperature becomes too high. When this occurs the welding current is interrupted

and a fault code is displayed on the control panel.

The overheating protection resets automatically when the temperature has fallen.

6.5 MIG/MAG and FCAW--S welding

An arc melts a continuously supplied wire. The weld pool is protected by shielding

gas.

For MIG/MAG and FCAW--S welding, the power source is supplemented with:

Swire feed unit

Swelding torch

Sconnection cable between power source and wire feed unit

Sgas bottle

To ensure problem--free operation, the installation height from the cooling unit to the

welding gun must be max. 7 m. Heights in excess of this can cause problems, such

as long starting times, air bubbles, vacuums, etc.

If an installation height in excess of 7 m is required, we recommend an installation kit

comprising a non--return valve and a solenoid valve, refer to accessories on page

17. Once these valves have been installed, the hose package must be horizontal

during the initial startup so that everything fills with water. Then raise the wire feed

unit and hose package to the high height. Continued safe operation at installation

heights of up to 12 m can now commence.

6.6 TIG welding

TIG welding melts the metal of the workpiece, using an arc struck from a tungsten

electrode, which does not itself melt. The weld pool and the electrode are protected

by shielding gas.

For TIG welding, the welding power source is supplemented with:

Sa TIG torch with gas valve

San argon gas cylinder

San argon gas regulator

Stungsten electrode

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ESAB Sistema di saldatura

ESAB

ESAB EMS 215ic Manuale utente

ESAB

ESAB EMP 285ic 1ph Manuale utente

ESAB

ESAB EPP-200 Manuale utente

ESAB

ESAB Origo Arc 810c Manuale utente

ESAB

ESAB A6 DK Manuale utente

ESAB

ESAB Origo Mig 4001i Manuale utente

ESAB

ESAB LHJ 750 Manuale utente

ESAB

ESAB Aristo Origo Feed 3004 Manuale utente

ESAB

ESAB ESABMig 400t Manuale utente

ESAB

ESAB Caddy Tig 1500i VRD Manuale utente

ESAB

ESAB MobileFeed 300 AVS Manuale utente

ESAB

ESAB Origo Feed 302N P0 Guida

ESAB

ESAB Origo Feed 484 P5 Manuale utente

ESAB

ESAB Aristo Mig U5000i 400 V Manuale utente

ESAB

ESAB LAF Series Manuale utente

ESAB

ESAB DTB 250 Manuale utente

ESAB

ESAB ET 186i AC/DC Manuale utente

ESAB

ESAB Heliarc 283i AC/DC Manuale utente

ESAB

ESAB ES 300i Manuale utente

ESAB

ESAB LAF 1000 Manuale utente

ESAB

ESAB SDE-100 Manuale utente

ESAB

ESAB Caddy 150 Manuale utente

ESAB

ESAB TIG 300i Manuale utente

ESAB

ESAB EMP 255ic Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuale utente
