ASSEMBLY/ADJUSTMENT
E-AMT
MONITOR ARM ADAPTER
FOR KNOLL®ANTENNA
E-AMT Rev A 10/17
Model E-AMT-SLV
1
E-AMT MONITOR ARM ADAPTER
PLEASE REVIEW these instructions before beginning the installation. Check that
all parts and tools shown below were provided with your order. Contact your
supplier if any parts are missing. Do not discard the packaging until satised
that the product operates to your satisfaction.
The E-AMT monitor arm adapter enables attachment of select Evolve monitor
arms to Knoll®Antenna benching systems. After the E-AMT installation is
complete, follow the instructions that came with the Evolve system. The E-AMT
can work with the EVOLVE single, dual, or triple congurations.
PARTS AND TOOLS PROVIDED
CAUTION: Hand-tighten screws only. Do not use power tools.
EDGE-AMT Mount (1) Button Head Screw (2)
Square Nut (2)
M8x16
2
E-AMT MONITOR ARM ADAPTER
Attach Pole Assembly to Table

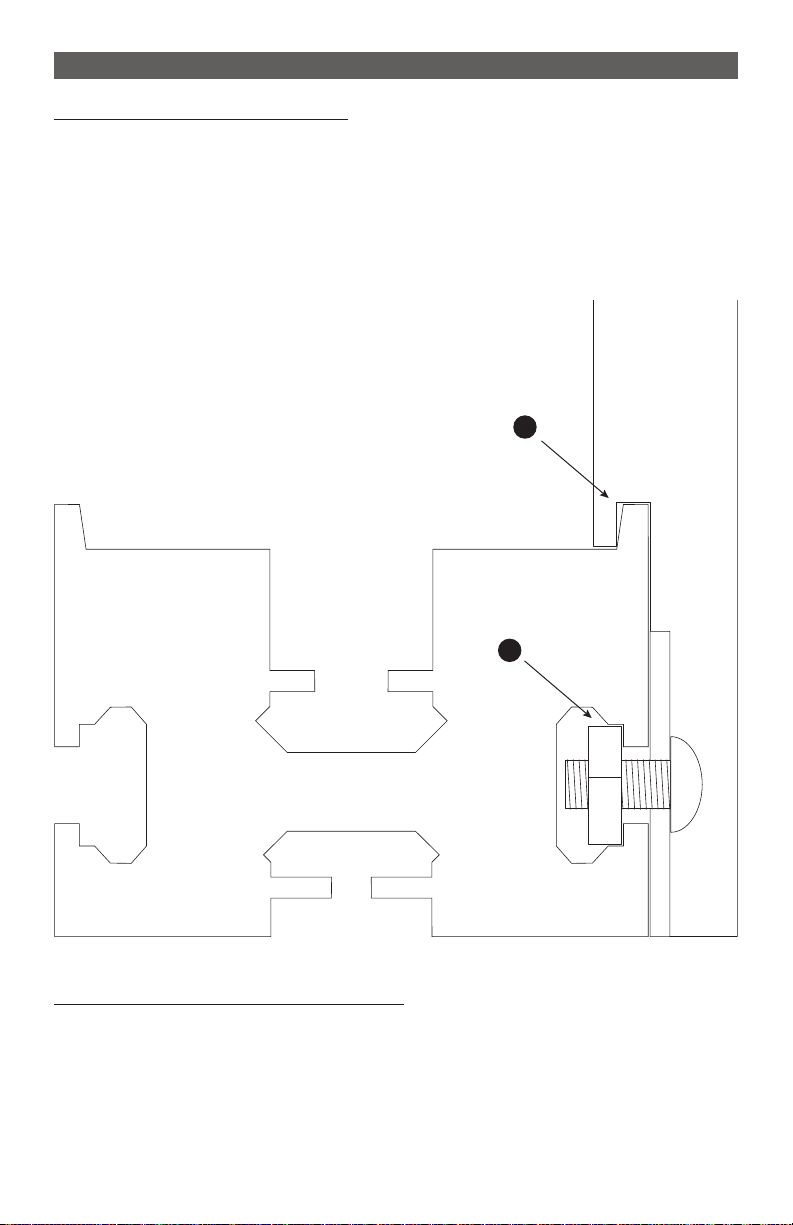

1. Attach the Edge-AMT assembly to the rear beam rail mount on the
Antenna table system. Utilize the pole base end tabs to catch the end of
the rail.
2. Insert the two square nuts in the rear rail internal groove and align the holes
of the Edge-AMT assembly to the nut holes. Fasten both securely to the
Antenna rear beam rail using the button head screws and a 4mm Allen
key.
Proceed with Monitor Arm Assembly
• Begin by attaching the arm stem(s) on the Edge-AMT and build the
remaining Evolve product on the pole. Follow the standard instructions that
came with the Evolve system.
1
2
800.833.3746esiergo.com
© 2017 ESI Ergonomic Solutions. All rights reserved. E-AMT Rev A 10/17
