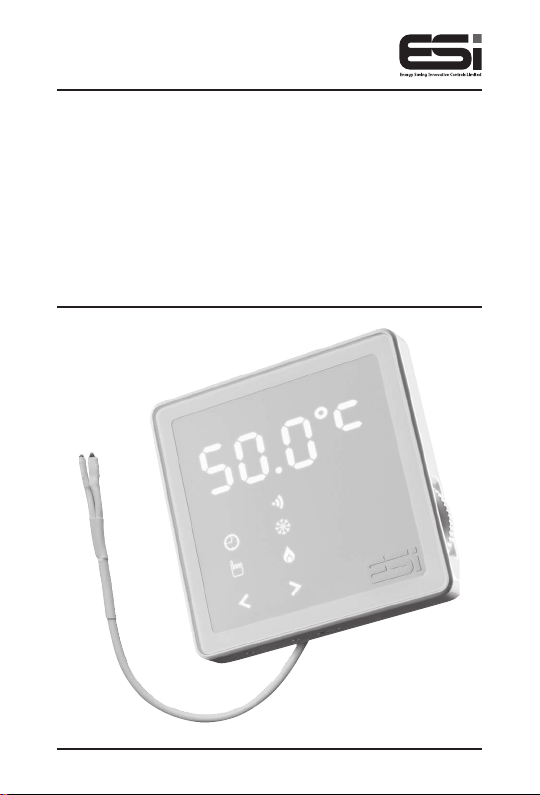

ESI ESCTP5-RF Manuale utente
ESCTP5-RF and ESCTP5-W
Programmable Cylinder
Thermostat
User instructions
Thank you for choosing ESi Controls.
All our products are tested in the UK so we are
confident this product will reach you in perfect
condition and give you many years of service.
However, for additional peace of mind, we
recommend you register your product online at
www.esicontrols.co.uk/warranty for your
extended warranty.
2
User instructions
1. Quick operating guide
1.1 Display and button functions 6
2. Setting the time and date (tInE) 8
3. Operation modes
3.1 Auto 9
3.2 Manual 10
3.3 Off 10
4. Extra operation modes
4.1 Boost 12
4.2 Advance (ADV) 12
4.3 Holiday mode (HOLI) 13
5. Main menu
5.1 Time and date (tinE) 14
5.2 Set temperature (tEnP) 14
5.3 Number of programs (NOP) 15
5.4 Program (PrOG) 15
5.5 Hysteresis (HYSt) 15
5.6 Sterilise (StEr) 15
5.7 Display illumination (LIGH) 16
5.8 RF pairing (rF) 16
5.9 Wi-Fi pairing (WIFI) 17
5.10 Lock (LOC) 17
5.11 Firmware version (vErS) 17
5.12 Factory reset (RESE) 17
Contents
3
4
6. Program settings
6.1 Factory pre-set programme 17
6.1.1 Default program settings: 5/2 day 17
6.1.2 Program settings: 7 day 17
6.1.3 Program settings: 24 hours 17
6.2 Setting the operation mode
(5/2 day, 7 day, 24hr) (ProG) 18
6.3 Setting the programme (ProG) 18
6.3.1 5/2 day 18
6.3.2 7 day 19
6.3 24 hour 19
5
User instructions
6
1. Quick operating guide

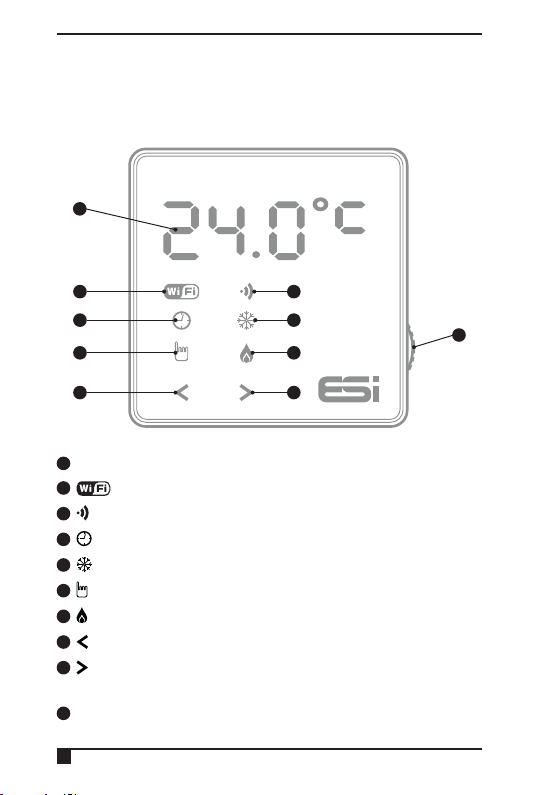

1.1 Display and button functions
1
2 3
4
6
8
7
9
10
5
1Temperature, time and data display
2WiFi working status (for ESCTP5-W WiFi model only)
3RF working status (for ESCTP5-RF model only)
4Auto operation mode
5Off mode
6Manual operation mode
7Flame symbol when system calling for heat
8Cancels and returns to the previous menu
9Either confirms and saves the setting, or moves you to
next option within a function
10 Dial to adjust temperature and parameters
7
2. Setting the time and date (tInE)
N.B. Please note, when first powered or in the event of a
power loss the time will be flashing and the time and date
will need to be set. Follow steps 2-6 to set the time on first
setup. Changes between summer and winter time are handled
automatically by the unit.
1. Press and hold until the display shows tInE then press .
2. Turn the dial to adjust the hour then press .
3. Turn the dial to adjust the minute then press .
4. Turn the dial to adjust to the current day then press .
5. Turn the dial to adjust to the current month then press .
6. Turn the dial to adjust to the current year then press .
7. Press to return to previous menu or wait for 1 minute to
automatically return to homescreen.
8
3. Operation modes
Operation Modes: AUTO , MAN , OFF .
Press and hold in home screen to change operation mode.
3.1 AUTO
In Auto mode, the thermostat will work as per the user’s
programming setting. See section 6 for details.
3.2 MAN
Permanent manual override of set temperature.
1. In Home screen, turn the dial to adjust temperature.
2. The display will be flashing the set temperature.
3. After 3 seconds, the display will return to the
home screen.
3.3 OFF
Turn the heating off permanently.
1. In Home screen, press and hold to select OFF .
9
4. Extra operation modes
4.1 Boost
Temporary override of set temperature.
1. When in AUTO or OFF mode, in the home screen,
press to make display show bOSt.
2. Press to select bOSt.
3. Turn the dial to select the number of hours, press
to confirm.
4. Turn the dial to adjust set temperature, press
to confirm and return to the home screen.
The display will alternate between: bOSt - Hours(Boost) -
bOSt - Current cylinder temperature.
Press in the home screen to exit Boost mode and return
to previous mode.
Boost mode hours setting range: 1-6 hours. Default: 2 hours.
Set temperature range: 25°C-65°C. Default: 55°C.
N.B: The hours (Boost) will numerically countdown. Once the
countdown has finished normal operation will resume.
10
4.2 Advance (ADV)
The Advance function allows the user to move to the next
ON/OFF programme for a “one off” event, without having to
change the programme or use the Manual mode.
1. When in AUTO mode, in the home screen, press to
select ADV. This will turn ON the heat, if it is in an OFF
period, or it will turn OFF the heat if it is in an
ON period.
2. It will stay in this state until either the button is
pressed again, or until a programmed ON/OFF period
commences.
The display will alternate between: ADV and current cylinder
temperature.
Press to exit ADV mode and return to AUTO mode schedule.
4.3 Holiday mode (HOLI)
1. In home screen, press and hold and at the same
time to make the display show HOLI.
2. Press to select HOLI.
3. Turn the dial to select the number of days, press to
confirm.
4. Turn the dial to adjust set temperature, press to
confirm and return to the home screen.
The display will alternate between: HOLI-Days(Holiday)-HOLI-
Current room temperature.
To adjust the settings in Holiday mode, turn the dial to adjust
holiday days, press to confirm. Then turn the dial to adjust
set temperature, press to confirm and return to the home
screen.
