XX--0011
SERVICE MANUAL
SUPER AUDIO CD PLAYER
Effective : September, 2004 8C0365 S-0128A
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 ADJUSTMENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
3 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・4
4 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・10
5 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・22
For U.S.A.
1 SPECIFICATIONS
−2−
General
System ......................................................................SACD and CD
Power supply ........................................................AC 120 V, 60 Hz
Power consumption ..............................................................40 W
Weight................................................................25 kg (55-1/16 lb)
External dimensions (W x H x D) ..................442 x 153 x 353 mm
(17-3/8" x 6" x 13-7/8")
Operating temperature ................................................+5˚C - +35˚C
Operating humidity..........................5% to 85% (no condensation)
Storage temperature ................................................–20˚C - +55˚C
Audio output (Analog Audio)
Jacks ......................................................XLR jacks (2 channel) x 1
RCA jacks (5.1 channel) x 1
Maximum Output level (1 kHz, full scale) ..............2.5 Vrms (RCA)
2.3 Vrms (XLR)
Nominal Output level (1 kHz, full scale –20dB)..250 mVrms (RCA)
230 mVrms (XLR)
Frequency response ......................................5Hz - 58 kHz (SACD)
Signal-to-Noise Ratio (S/N)..........................112 dB (SACD, 1 kHz)
Dynamic range ............................................106 dB (SACD, 1 kHz)
Total harmonic distortion............................0.001% (SACD, 1 kHz)
Audio output (Digital Audio)
OPTICAL ..........................Optical digital jack x 1, –15 to –21 dBm
COAXIAL ............................................RCA jack x 1, 0.5 Vp-p/75 Ω
Word Synchronization input format
Jack ........................................................................................BNC
Input level ................................................................4.5 Vp-p/75 Ω
The main unit can accept and synchronize to the following
frequencies received from external devices:
44.1kHz, 88.2kHz, 176.4kHz
Accessories
Power cord x 1
Remote Control Unit (RC-941) x 1
Batteries (AA, R6, SUM-3) x 2
Screwdriver x 1
Felt x 3
Warranty card x 1
Owner’s manual x 1
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

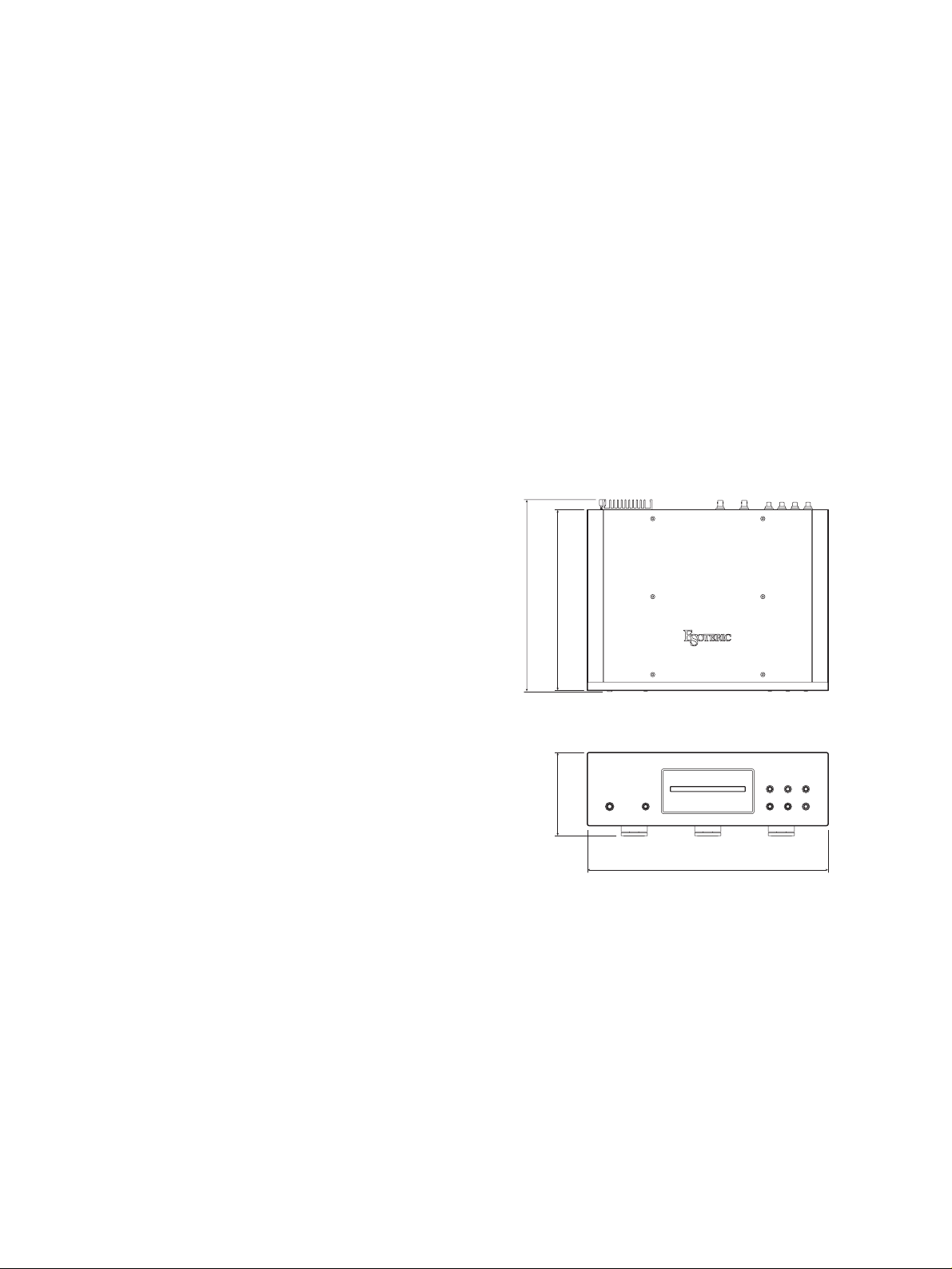

353mm
332mm153mm
442mm
2 ADJUSTMENTS
−3−
2-1 Sled Offset Adjustment
1. Connect the probe of oscilloscope to pin 1 (SLCNT) of P205 on
CORE PCB, and the probe earth to pin 2 (SL18V).
2. Set the oscilloscope's voltage range to DC100mV, and the time
calibration to 10mS.
3. Adjust potentiometer R232 for a potential difference of 0V
between pins 1 and 2.
2-2 Sled Gain Adjustment
1. Connect the probe of oscilloscope to pin 3 (H1OUT) of P205 on
CORE PCB, and the probe earth to pin 2 (SL18V).
2. Set the oscilloscope's voltage range to AC200mV, and the time
calibration to 10mS.
3. Press the DF range button on RC-668 (P/No. E00380000A), a
remote controller for VRDS-8, to activate the sled, and adjust
potentiometer R235 for a sine wave output of 1Vp-p at pin 3.
Pressing the DF range button again beings the unit back to the
normal mode.
R232
R235
CORE PCB
P205 (Bottom Side)
SAFETY INFORMATION
This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation
Control for Health and Safety Act of 1968", and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
operation because invisible laser radiation emitted inside of this product
is completely confined in the protective housings.
The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
Type : GH20707A2A
Manufacturer : SHARP CORPORATION
Laser output : Less than 1mW on the objective lens
Wavelength : 788±5 nm (CD)
1For U.S.A.

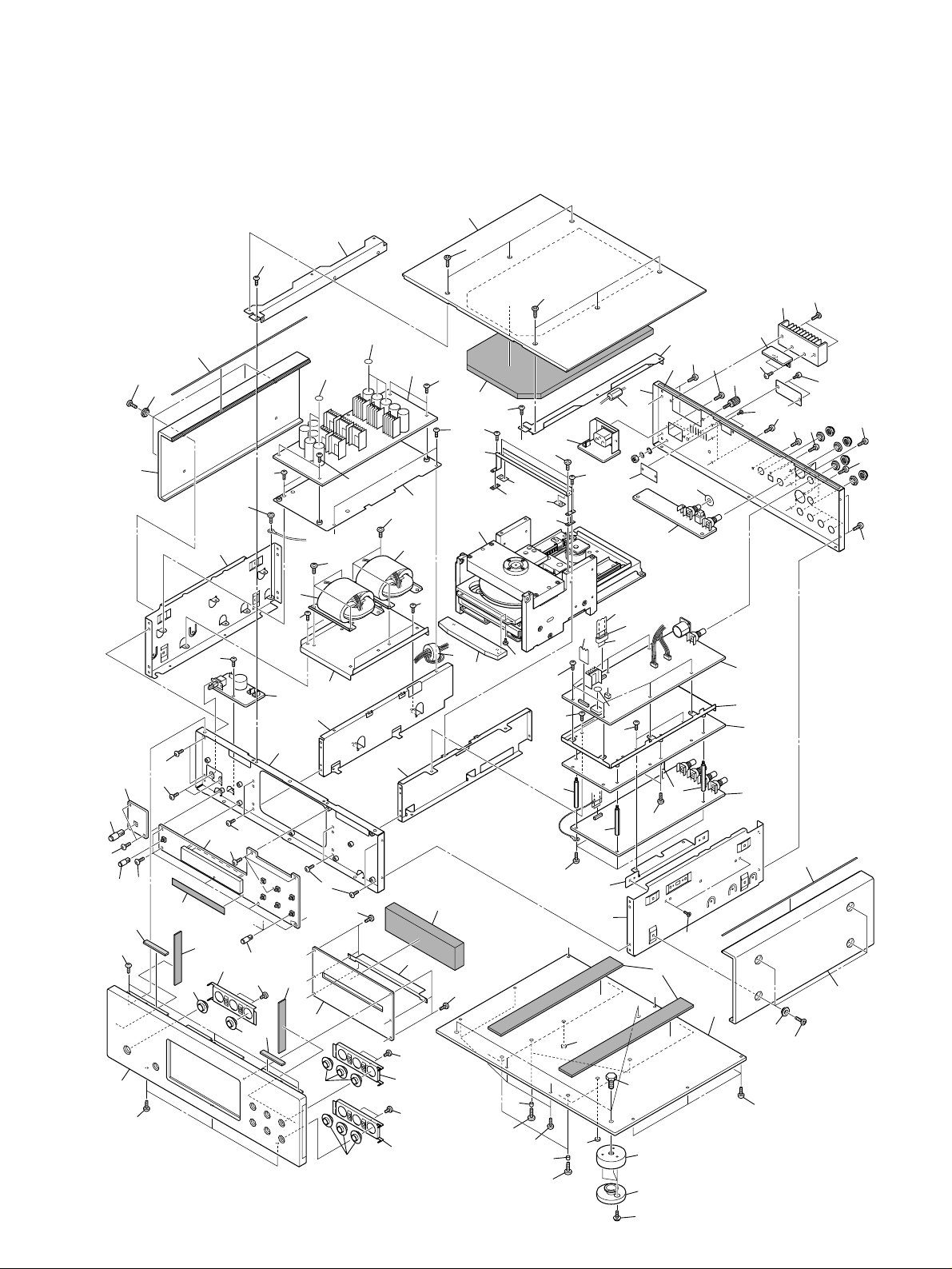

3 EXPLODED VIEWS AND PARTS LIST
EXPLODED VIEW-1
−4−
1
2
3
4
8
9
t
y
u
i
p
s
d
f
g
h
a
j
k
k
m
,
/
$
%
Q
E
(
T
)
Y
U
I
R
H
P
S
D
F
G
G
££
£
£
£
£
£
£
£
£
£
¢
¢
¡
¡
™
™
™
™
™
™
∞
∞∞
∞
∞
∞
∞
•
•
•
ª
º
´
†
œ
¨
¨
®
∞
∞
™
T
¨
0
w
w
q
e
r¥
l
l
;
z
z
z
x
x
x
c
v
b
n
∞
∞
§
§
§
¶
¶
V
V
7™
K
K
™
ˆ
C
B
5
6
¡
J
L
A
O
A
6¡
J
T
ª
A
B
W
Z
X
.
:
K
B
B
−5−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
1‑1 M01724000A TOPPANEL,X‑01
1‑2 M01777500A CUSHION,FOAMTOP
1‑3 M01766810A FRAME,TOPREXP
1‑4 M01766710A FRAME,TOPLEXP
1‑5 M01648100B SIDEPANEL,L
1‑6 M00387502A COLLAR,SCREW(N01SP)
1‑7 E95182300A PCBASSY,POWER
1‑8 M01724500A PLATE,PCBPWR
1‑9 M01766900A BRACKET,MECHA
1‑10 M01839400A POLYESTSH,MECHAT0.25
1‑11 M01839500A POLYESTSH,MECHAT0.35
1‑12 M01782900A RUBBERSH,BRACKET
1‑13 M01719000A MECHASSY,UNIT
1‑14 M01712700A PANEL,TRAYX‑01
1‑15 M00389310B CHASSIS,SIDELEXP
1‑16£E00857220A TRANS,ANALOGT/C
1‑17£E00857120A TRANS,DIGITALT/C
1‑18 M01724400A CHASSIS,TRANS
1‑20 M01724210A FRAME,LEXP
1‑21 M01724310A FRAME,REXP
1‑22 E95182500A PCBASSY,PSW
1‑23 M01724110A CHASSIS,FRONTEXP
1‑24 E95182000A PCBASSY,PWRLED
1‑25 E95181900A PCBASSY,FRONT
1‑26 M01838900B RUBBERSH,PORONT5135X15
1‑27 M01723600A BUTTON,D10
1‑28 M01723500A BUTTON,D8
1‑29 M01717600B CUSHION,PORONT3105X12
1‑30 M01723800A LENS,D10
1‑31 M01723900A BRACKET,LENS
1‑32 M01723700A LENS,D8
1‑33 M01722700A FRONTPNLASSY,X‑01
1‑34 M01723300B WINDOW,FRONT
1‑35 M01723400A PLATE,BLIND
1‑36 M01777600A CUSHION,FOAMFRONT
1‑37 M01480700A HEATSINK
1‑38 E95182400A PCBASSY,REG
1‑39 M01723120A REARPANEL,T/C
1‑40 E00768700A TERMINAL,GNDD12
1‑44 E95182600A PCBASSY,INLET
1‑45 M01781200A COVER,PLATEREAR
1‑49 M01259600A POLYESTWSHR,10.5X20X0.2T
1‑50 E95182100A PCBASSY,D‑OUT
1‑51 E95181100A PCBASSY,DAC2CHA‑L
1‑52 E00862300A FLATCABLE,DAC2‑DAC4
1‑53 E00862100A FLATCABLE,CORE‑DAC2
1‑54 M01480201A BRACKET,PCB
1‑55 16359645 SPCR,SQ‑50
1‑56 E95191800A PCBASSY,DAC4CHA
1‑57 M01724700A BRACKET,SIDE
1‑58 M00389410A CHASSIS,SIDEREXP
1‑59 M01648200B SIDEPANEL,R
1‑60 M01781100B RUBBERSH,BOTTOM
1‑61 M01724600A PLATE,BOTTOM
1‑62 M01494802A FOOT(A)HEX15
−6−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
1‑63 M01495001A STAND,FOOT13
1‑64 M01494901A FOOT(B)11
1‑65 M01839300B SPACER,ZNCM4X4
1‑66 E95181200A PCBASSY,DAC2CHA‑R
1‑67 M01939700A GASKET,E02F4T/3X310
1‑68 M01571300A SHEET,SHIELD(CU)‑10
1‑69 E0096620 CORE,E04SR130525ABBLACK
1‑70 M01939800A GASKET,E02F4T/5X420
1‑71 M01937300A SHRINKSHIELD,20X180
1‑72 E0096950 CORE,E04FG221308
1‑73 E0081410 CORE,E04RC281613
1‑74 M01939600A GASKET,E02S080030ET/50MM
1‑75 M01847300A RUBBERSH,D9XT2PORON
1‑81 5801532510 SCREW,HEXAGON3X8SILVER
1‑82 B00132900A SCREW,VPC3X6FZC
1‑83 B00132600A SCREW,VPB3X8FZC
1‑84 B0010020 SCREW,PPSU4X8FNB
1‑85 B00090900A SCREW,VPBR3X8FNB
1‑86 5780003004 SCREW,BPA3X4FZC
1‑87 5780003006 SCREW,BPA3X6FZC
1‑88 5783613008 SCREW,VPCR3X8NB
1‑89 B00132901A SCREW,VPC3X8FZC
1‑90 5780122610 SCREW,PANM2.6X10NB
1‑91 5781702606 SCREW,HEXAGONM2.6X6(NI)
1‑93 5801148000 SCREW,BINDM3X4(BLK)
1‑94 5783113006 SCREW,ZPAT3X6NB
1‑95 5780012004 SCREW,BPAM2X4FNI
1‑96 5780013003 SCREW,BPA3X3FNI
1‑97 5780024008 SCREW,BPA4X8FNB
1‑98 B00197708A SCREW,PPSU4X8FZBG

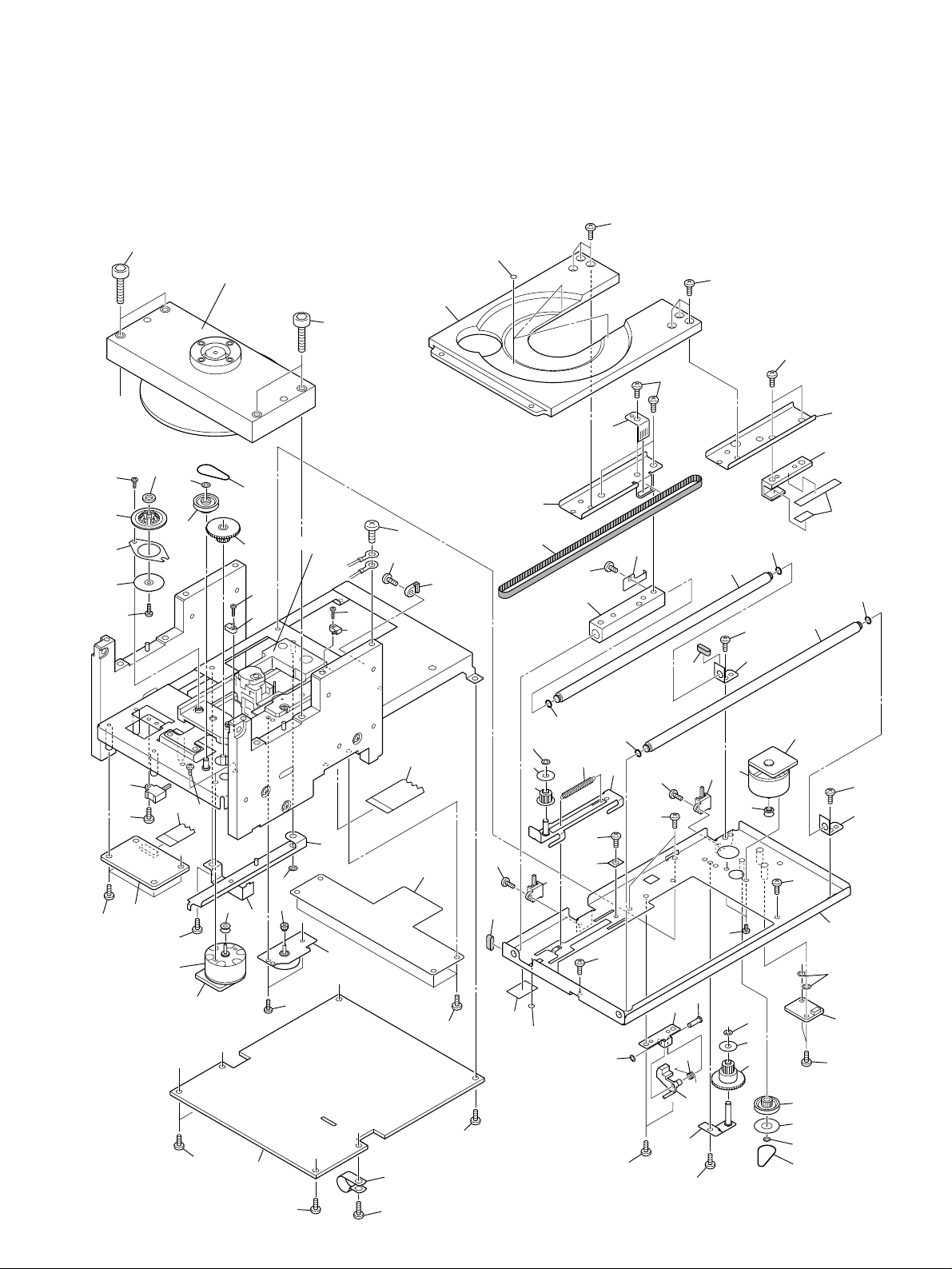

EXPLODED VIEW-2
−7−
1
2
3
4
5
6
6
7
8
9
9
qq
q
w
e
r
t
y
u
i
o
p
a
s
d
f
h
j
kl
;
z
x
c
v
v
v
v
b
b
n
n
m
m
,.
/
!
Q
(
S
D
F
F
H
H
H
K
K
K
K
L
A
A
6
/
6
u
i
)
W
$
E
R
T
7
5
6
0
G
K
K
K
K
K
K
K
K
K
K
K
J
J
g
%
Y
K
K
G
G
:
#
@
&
^
*
Z
X
U
BASE ASSY,PU
HOUSING ASSY,MOTOR
CAUTION
Avoid disassembling MECH UNIT without clear intention (See page 9)!
−8−
EXPLODED VIEW-2
REF.NO. PARTSNO. DESCRIPTION REMARKS
2‑1 M01717900A MAGNET,CLAMPER
2‑2 M01717800A CLAMPER,DISC
2‑3 M01716900A HOLDER,CLAMPER
2‑4 M01716800A PLATE,CLAMPER
2‑5 5800979500 LOADINGBELT
2‑6 M01771500A WASHER,3.6X7.2X0.5TCUT
2‑7 M01711300A GEAR(B)
2‑8 M00350500A GEAR(A)
2‑9 5300060100 SW,PUSHSPPB12
2‑10 M0181760 CABLECLAMP,TIEMOUNTMB1
2‑11 E0038180 SW,1‑2NSSCF21R‑1
2‑12 E00859900A FLATCABLE,FFCSW
2‑13 E95180500A PCBASSY,SW‑JOINT
2‑14 E00859700A FLATCABLE,FFCPU
2‑15 M01767500A LEVER,RELEASE
2‑16 M01767600A LIMITER,LEVER
2‑17 5800979201 MOTORPULLEY
2‑18 5370009200 DCMOTOR,RF‑500TB
2‑19 E95180700A PCBASSY,C‑MOTOR
2‑20 M00883900A GEAR,SLEDA
2‑21 M00895910A SLEDMOTASSY,SA
2‑22 M01767800A PLATE,FFC
2‑23 E00922700A PCBASSY,COREA‑ID
2‑24 M01711000A TRAY,UX1
2‑25 M01821700B CUSHION,TRAY
2‑26 M01710300A HOLDER,BELT
2‑27 M01709700A PLATE,TRAYL
2‑28 M0172140 TIMINGBELT,B222MXL6.4
2‑29 M01709900A PLATE,PUSHSW
2‑30 M01710400A HOLDER,BEARINGL
2‑31 M01709800A PLATE,TRAYR
2‑32 M01710500A HOLDER,BEARINGR
2‑33 M01710900A SHEET,BEARING
2‑34 16362530 ORING(P3)
2‑35 M01710600A SHAFT,TRAY
2‑36 5801132601 CUSH
2‑37 M01710000A HOLDER,SHAFT
2‑38 M01711100A TNSNSPRING,PULLEY
2‑39 M01709600A PLATE,PULLEY(B)
2‑40 M01711500A FLANGE(A)
2‑41 M01711400A PULLEY(B)
2‑42 M01710100A PLATE,STOPPERBELT
2‑43 E95180600A PCBASSY,T‑MOTOR
2‑44 M01781400B SHEET,CUSHIONEPT
2‑45 M01821900A SPACER,CHASTRAY
2‑46 M01709400B CHASSIS,TRAY
2‑47 M01759600A HOLDER,LOCK
2‑48 M01759800A SHAFT,LOCK
2‑49 5785342400 WASHER,2.1X5X0.25CUT
2‑50 M01759500A LEVER,LOCK
2‑51 M01759700A TRSNSPRING,LOCK
2‑52 M01711200A PULLEY(A)
2‑53 M01710200A HOLDER,PULLEY(A)
2‑54 M01710800A SHEET,PHOTOINT
2‑55 E95180800A PCBASSY,PHOTOINT
−9−
EXPLODED VIEW-2
REF.NO. PARTSNO. DESCRIPTION REMARKS
2‑565785304100WASHER,POLY4.1X6.5X0.25T
2‑57M0187931CABLECLAMP,NYLONAB‑5N
2‑61B00145800ASCREW,JHA4X20FZC
2‑62 B00053800A SCREW,MPAR2X3FNI
2‑63 B0006360 SCREW,MPPR1.7X5.0
2‑64 5780102008 SCREW,PANM2X8
2‑65 5780013006 SCREW,BPA3X6FNI
2‑66 5780102604 SCREW,PANM2.6X4
2‑67 5780002603 SCREW,BPA2.6X3FZC
2‑68 5780103004 SCREW,PANM3X4
2‑69 5780102606 SCREW,PANM2.6X6
2‑705780103003SCREW,PANM3X3
2‑715780024008SCREW,BPA4X8FNB
2‑725780023008SCREW,BPA3X8FNB

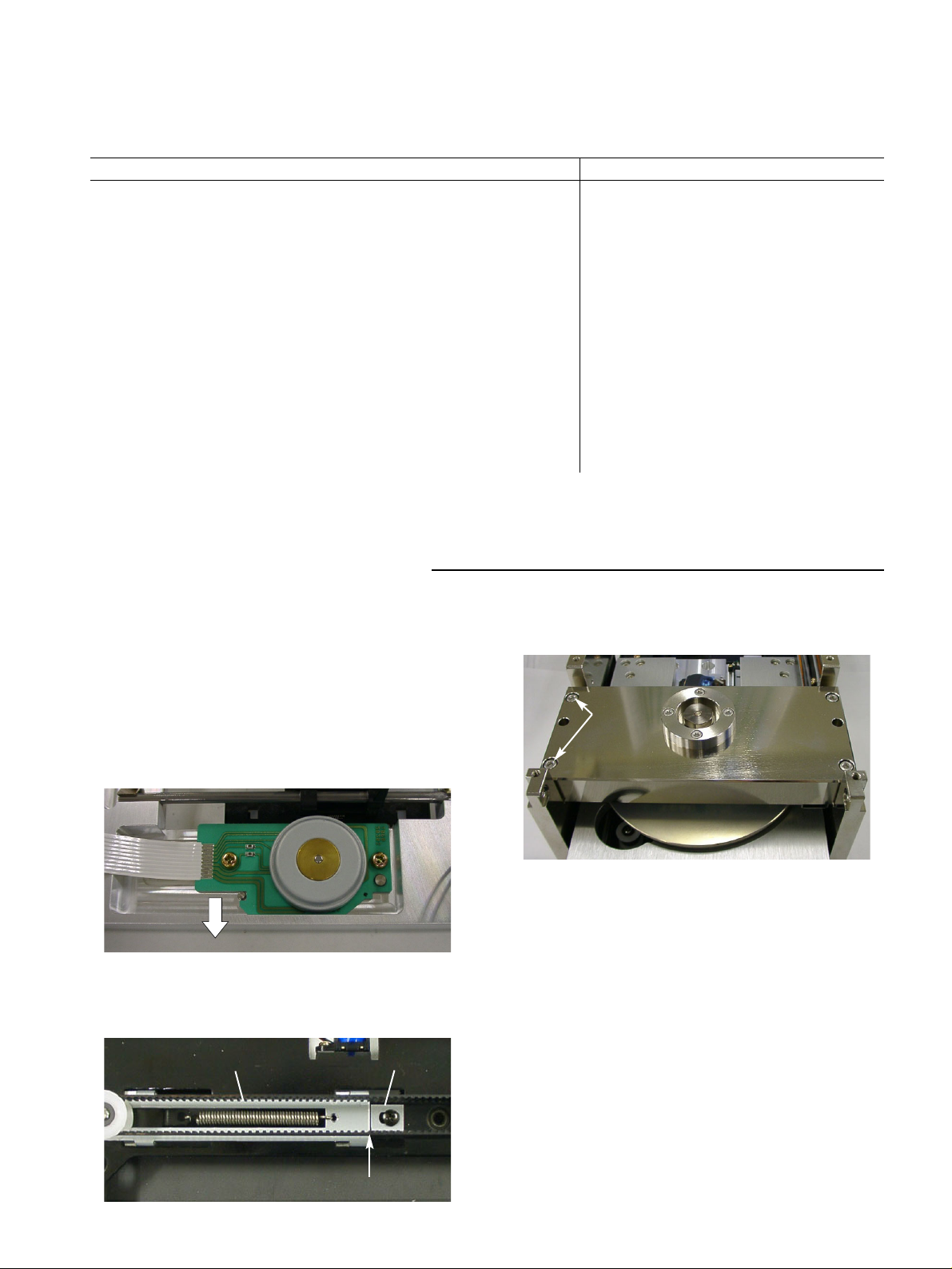

Cautions about Disassembly and Mounting
●After joining CLAMPER MAGNET 1and DISC CLAMPER 2
with adhesive, ThreeBond 1359D, harden forced out surplus
adhesive with UV irradiation.
●Avoid applying a strong pushing force to the PU BASE ASSY
when removing/installing the PUSH SW 9.
●When fastening the SA SLED MOT ASSY a, push it against
the locating pin.
●Fasten the STOPPER BELT PLATE @so that there is a
clearance of 1 mm between it and PULLEY (B) PLATE ..
●For the MOTOR HOUSING ASSY, first fully tighten down the
screws on the left end viewed from the front.
●Avoid disassembling parts that are not "exploded" in the
diagram (such as PU BASE ASSY, MOTOR HOUSING ASSY).
Dedicated tools are required to assemble them. When those
parts are needed to replace, the MECH UNIT itself should be
replaced.
1mm
PLATE,PULLEY(B) PLATE,STOPPER BELT
First tighten
down these
screws
HOUSING ASSY,MOTOR
−10−
4 PC BOARDS AND PARTS LIST

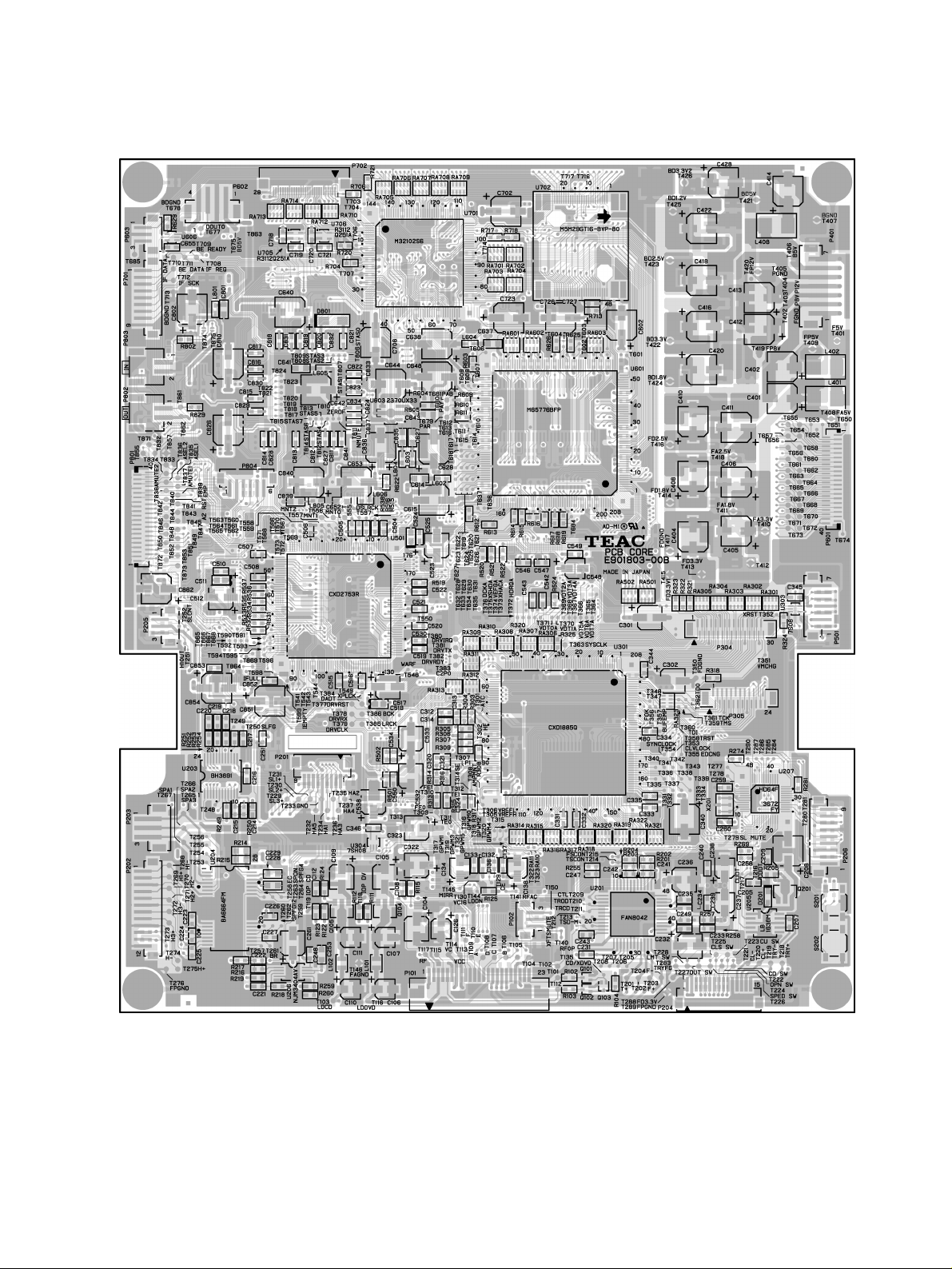

CORE PCB (SIDE A)
This PCB is a six-layered board.
Altri manuali per X-01
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Esoteric Lettore CD
Esoteric
Esoteric Grandioso K1X Manuale utente
Esoteric
Esoteric K-07 Manuale utente
Esoteric
Esoteric X-03 Manuale utente
Esoteric
Esoteric K-01 Manuale utente
Esoteric
Esoteric SA-50 Manuale utente
Esoteric
Esoteric X-01 Manuale utente
Esoteric
Esoteric Grandioso P1X Manuale utente
Esoteric
Esoteric K-01Xs Manuale utente
Esoteric
Esoteric K-05 Manuale utente
Esoteric
Esoteric Grandioso K1X Manuale per l'uso e la cura
Esoteric
Esoteric K-01 Manuale utente
Esoteric
Esoteric P-02X Manuale utente
Esoteric
Esoteric K-03 Manuale utente
Esoteric
Esoteric P-01 Manuale utente
Esoteric
Esoteric K-05X Manuale utente
Esoteric
Esoteric Esoteric X-03SE Manuale utente
Esoteric
Esoteric P-02 s Manuale utente
Esoteric
Esoteric K-01XD Manuale utente
Esoteric
Esoteric K-07 Manuale utente
Esoteric
Esoteric K-01 Manuale utente
