Thank you for purchasing this ESOTERIC
product.
Read this manual carefully to get the best
performance from this product.
After reading it, keep it in a safe place with
the warranty card for future reference.
Contents
Before use ..................................4
Supported tonearms ....................4
Package contents .......................4
Included accessories ....................4
Installation procedures .....................5
Arm base post installation diagram .........7
Arm base installation diagrams .............8
IT-345 installation........................8
IT-407 installation........................9
4
Before use
This product is an arm base kit for mounting
a tonearm on a GrandiosoT1.
Supported tonearms
IKEDA
IT-345 (9-inch)
IT-407 (12-inch)
ATTENTION
IT-345 tonearms cannot be installed on the
front left of the GrandiosoT1.

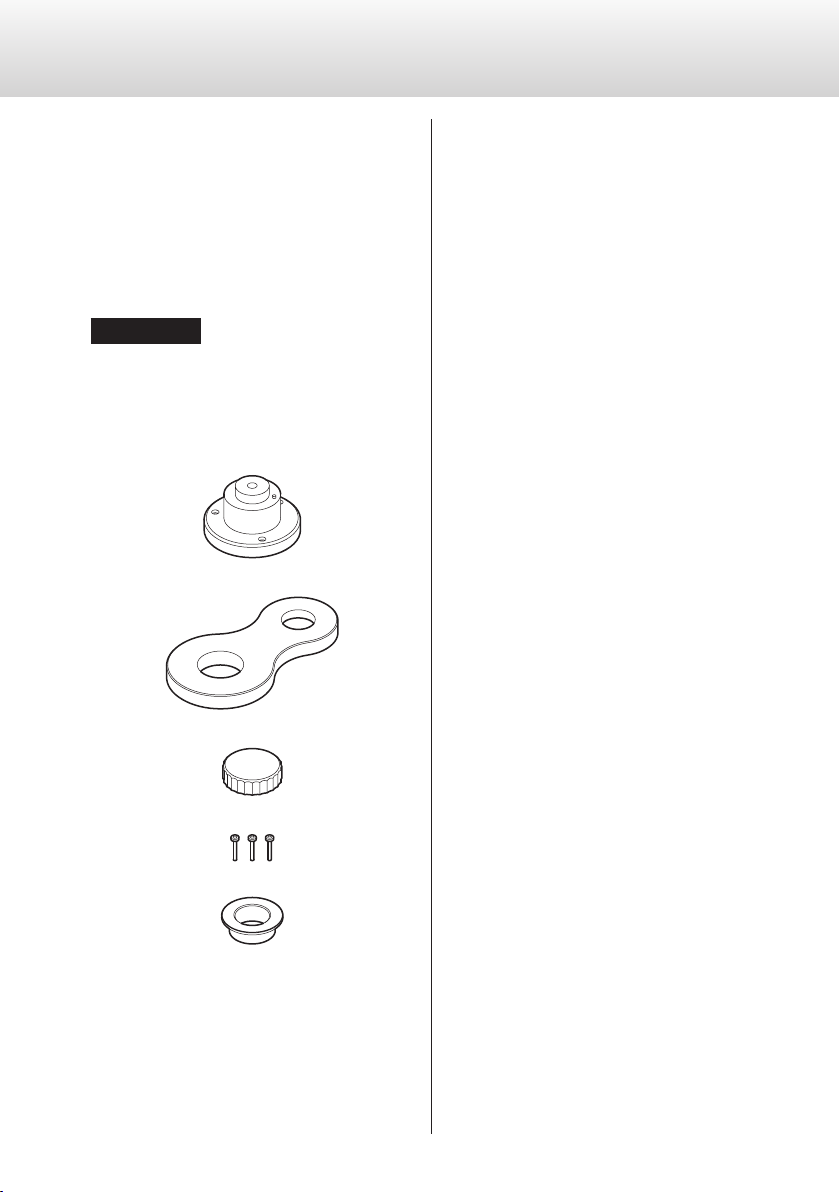

Package contents
Arm base post × 1
Arm base × 1
Arm base attachment thumbscrew × 1
Arm base post attachment screws × 3
Adapter × 1
(not used when VTA elevator used)
Included accessories
Hex wrench × 1
Owner’s manual (this document) × 1
Please contact the store where you purchased
this product if any of these package contents
or accessories are missing or have been dam-
aged during transportation.
5
English
If the motor unit has been installed, follow
the procedures beginning on page19 of the
GrandiosoT1 Owner’s Manual to remove it
before installing the arm base kit.
1 Remove the top of the leg
from the base unit.
Top of the leg
At the location where you want to
install the tonearm, turn the top of the
leg counterclockwise and remove it.
oTonearms can be installed in three
locations: the back right, the back
left and the front left.
ATTENTION
IT-345 tonearms cannot be installed on
the front left.
Installation procedures
2 Install the arm base post on
the base unit.
Pin
Referring to “Arm base post installation
diagram” on page 7, attach the arm
base post with the attachment screws.
3 Install the arm base.
Align a positioning indentation on the
underside of the arm base with the pin
on the arm base post when installing it.
The two different positioning indenta-
tions are for IT-345 and IT-407 tonearms.
Select the indentation to use according
to the tonearm being installed.
Continued on the next page e
6
Positioning indentation
for IT-345
Positioning indentation
for IT-407
When placed correctly, the tops of the
arm base and the arm base post should
be almost the same height.
If there is a large height difference
between the arm base and the arm
base post, the positioning indentation
and the pin might not be aligned. Try
installing the arm base again.
4 Fix the arm base in place.
Tighten the arm base attachment
thumbscrew to fix it in place.
oAfter fixing it in place, confirm that
there is no looseness in the arm base.
5 Attach the tonearm to the
arm base.
Refer to the tonearm owner’s manual
for installation procedures.
When not using a VTA elevator, insert
the adapter included with this kit into
the hole in the arm base before install-
ing the tonearm.
Adapter
6 Install the motor unit.
Following the instructions starting
with procedure10 on page 16 of the
GrandiosoT1 Owner’s Manual, install the
motor unit.
Installation procedures (continued)
7
English

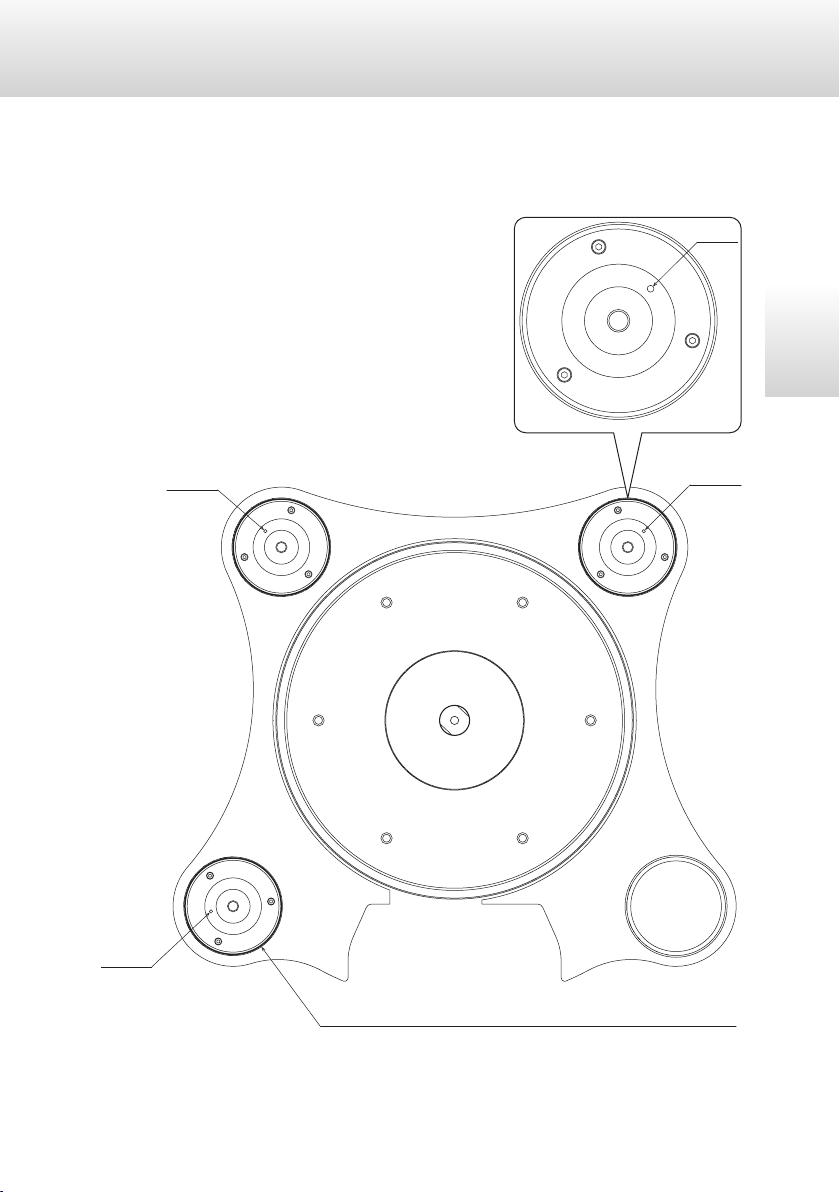

Arm base post installation diagram
Pin Pin
IT-345 tonearms cannot be installed here.
Pin
Pin
8
Arm base installation diagrams
IT-345 installation
IT-345 tonearms cannot be installed here.
9
English
IT-407 installation
