ESPRIT 642BL Manuale utente

642BL LCD KEYPAD V1.20

Installation Guide

English, Français, Español

Includes the Standard, Greek, Hebrew

and Russian character tables.

TABLE OF CONTENTS

English ................................................................................3

Keypad Options ..................................................................4

Keypad Zone........................................................................... 5

Keypad Zone Requires 1kW EOL Resistor............................. 5

Keypad Zone Set To Zone 1/Zone 2....................................... 5

Keypad Communication Supervision ...................................... 6

Keypad Tamper Supervision................................................... 6

Partitioning .............................................................................. 6

Master/Slave ........................................................................... 7

Arming Display for Systems that Support >/< 12 zones.......... 7

Zone Display ........................................................................... 7

Display AC Status on LCD Screen.......................................... 8

Time Format............................................................................ 8

Backlight Functionality ............................................................ 8

Keypad Code .......................................................................9

Read Key .............................................................................9

Write Key .............................................................................9

Set Language ....................................................................10

Keypad Lock .....................................................................10

Francais ............................................................................11

Options du clavier ............................................................12

Zone de clavier...................................................................... 13

Zone de clavier nécessitant une résistance d’EDL de 1kW .. 13

Zone de clavier réglée à zone 1/zone 2 ................................ 13

Supervision de la communication du clavier ......................... 14

Supervision de sabotage du clavier ...................................... 14

Partitionnement ..................................................................... 14

Maître/Esclave ...................................................................... 15

Affichage d’armement pour les systèmes acceptant >/< 12 zones

Affichage des zones.............................................................. 15

Affichage de l’état du c.a. à l’écran à ACL ............................ 16

Base horaire.......................................................................... 16

Nouvelle fonctionnalité du rétroéclairage .............................. 16

Code du clavier .................................................................17

Lecture de la clé ...............................................................17

Écriture sur la clé .............................................................18

Sélection de la langue ......................................................18

Verrouillage du clavier .....................................................18

Español .............................................................................20

Opciones del Teclado ......................................................21

Zona en Teclado ................................................................... 22

Zona en Teclado Requiere Resistencia RFL de 1kW ........... 22

Zona en Teclado Configurada como Zona 1 / Zona 2 .......... 22

Supervisión de Comunicación en Teclado............................ 22

Supervisión de Antisabotaje en Teclado............................... 23

Particiones ............................................................................ 23

Maestro/Esclavo.................................................................... 23

Visualizar Armado en Sistemas que Admiten >/< 12 zonas . 24

Visualizar Múltiples Zonas .................................................... 24

Mostrar Estado de CA en la Pantalla LCD............................ 25

Formato de Hora ................................................................... 25

Función de la Luz de Fondo.................................................. 25

Código del Teclado ..........................................................26

Leer Llave ..........................................................................26

Escribir Llave ....................................................................26

Seleccionar Idioma ...........................................................27

Bloqueo del Teclado ........................................................27

Esprit+ (642BL) 3

English

All of the Esprit 642BL LCD keypad’s features and options are set

through the keypad’s programming mode:

1. Press and hold the [ENTER]key for three seconds.

2. Enter the [KEYPAD CODE]. Default: 0000

Press the key corresponding to the desired section or use the

[U]&

[V]

keys to scroll through the available sections and press

[ENTER].

[1] = Labels [4] = Read Key [7] = Keypad Lock

[2] = Keypad Options [5] = Write Key

[3] = Keypad Code [6] = Set Language

[1] Labels

This option allows you to program some of the messages that appear

on the keypad’s LCD screen. After entering Keypad Programming

Mode, select section [1]. Enter the three-digit value that corresponds

to the message you wish to change.

[101] to [124] = Zone 1 to Zone 24

[125] = Partition A; [126] = Partition B; [127] = Partition A & B

[201] to [208] = Notes

Cursor indicates the selected character. Press the [U] or [V] keys

to scroll the characters. Press the numerical keys from [0] to [9] to

replace the selected character. See Table 1 on page 30 on

page 30.

Indicates current character style.

Press the [2ND] key to change. See

Table 1 on page 30.

[UC] = Upper Case

[LC] = Lower Case

[SP] = Special

4 Installation Guide

[2] Keypad Options

After entering Keypad Programming Mode, select section [2]. Press

the corresponding keys until all desired options are set, and then

press [ENTER].

Bold = Default

Key Description Off On

[1] Keypad zone NDisabled NEnabled

[2] Keypad zone requires 1kΩ

EOL resistor

NNo NYes

[3] Keypad zone set to: NZone 1 NZone 2

[4] Keypad communication

supervision

NDisabled NEnabled

[5] Keypad tamper supervision NDisabled NEnabled

[6] Partitioning NDisabled NEnabled

[7] Master/Slave NMaster NSlave

[8] Arming display for systems

that support:

N< 12 zones N> 12 zones

[9] Multiple zone display NDisabled NEnabled

[ARM]

AScrolling zone display NDisabled (only if

[9] = On)

NEnabled

[STAY]

BFuture Use NN/A NN/A

[FORCE]

CDisplay AC status on LCD

screen

NYes NNo

[BYP]

DTime format of clock NIntl. (24hr) NUS (AM/PM)

Esprit+ (642BL) 5

Keypad Zone

Section [2] — Option [1]

Off = Disabled

On = Enabled (default)

This option enables/disables the keypad’s on-board zone. Only two

keypad zones are available on an Esprit control panel, and only one

on-board zone per keypad.

Keypad Zone Requires 1kΩEOL Resistor

Section [2] — Option [2]

Off = No (default)

On = Yes

When option [2] is off, you do not need to install an EOL resistor.

When option [2] is on, you must install an external 1kΩEOL resistor

as shown in Figure 1 on page 29.

Keypad Zone Set To Zone 1/Zone 2

Section [2] — Option [3]

Off = Keypad Zone 1 (default)

On = Keypad Zone 2

The Esprit system supports two keypad zones, and this option

determines whether the on-board keypad zone input is identified as

keypad zone 1 or keypad zone 2.

6 Installation Guide

Keypad Communication Supervision

Section [2] — Option [4]

Off = Disabled (default)

On = Enabled

Enable this option to monitor the communication between the control

panel and the keypad. If there is a loss of communication with the

keypad, the control panel generates an open keypad zone. This

option must be enabled on the control panel as well as the keypad

(enable “keypad zone supervision” on control panel section [090] key

[11] “on” for keypad zone 1, and key [12] “on” for keypad zone 2). For

this option to work, the keypad zone option [1] must be enabled.

Keypad Tamper Supervision

Section [2] — Option [5]

Off = Disabled (default)

On = Enabled

The keypad can be ordered with or without an anti-tamper switch. If

you want the system to supervise the status of the anti-tamper

switch, you must turn on option [5]. If the tamper switch is open, the

keypad will send the message “Keypad zone open”. If you do not

have an anti-tamper switch or if you do not want the system to

supervise its status, turn off option [5].

Partitioning

Section [2] — Option [6]

Off = Disabled (default)

On = Enabled

This option must be enabled if the system that the 642BL keypad is

connected to is partitioned.

Esprit+ (642BL) 7

Master/Slave

Section [2] — Option [7]

Off = Master (default)

On = Slave

Activate this option with control panels using more than 12 zones. If

there are more than 12 zones being used in the system, only one

LCD keypad can be master and all other keypads are slaves. If using

more than 12 zones in the system and more than one keypad is set

as a “master”, a display problem will result. All slave LED keypads

must be used in “mute” mode. Any of the keypads connected to the

control panel will be able to display open zones.

Arming Display for Systems that Support >/< 12 zones

Section [2] — Option [8]

Off = Less than 12 zones (728+, 738EX+, 728ULT) (default)

On = More than 12 zones (738+, 748+)

Make sure that this option is set to match the control panel being

used. If the control panel is incompatible with the keypad, there will

be a display problem.

Zone Display

Section [2] — Option [9] and Option [ARM] = A

[9] [ARM] Result

OFF OFF Scrolling Zone Display

OFF ON Scrolling Zone Display

ON OFF Multiple Zone Display

ON ON Scrolling and Multiple Zone Display

Multiple Zone Display shows the status of several zones on a single

screen without zone labels. If zones 3 and 4 were open, the screen

would read: Zones Open 3 4. This screen alternates with the

system status screen.

8 Installation Guide

Scrolling Zone Display shows the zone label and status of one zone

per screen. If zone 3 was open, the screen would read: zones

open [3] zone label.

Display AC Status on LCD Screen

Section [2] — Option [FORCE] = C

Off = Yes (default)

On = No

This option, when enabled, displays AC or No AC on the lower

right-hand side of the screen, indicating whether the panel is

connected to the AC supply or not. It is recommended that you turn

on the option (No) for the 748/748ES panels since they do not

support this function.

Time Format

Section [2] — Option [BYP] = D

Off = International 24-hour clock (default)

On = U.S. 12-hour clock

The 642BL LCD Keypad can display the time using the 24-hour clock

(option [D] off) or using the 12-hour (US) clock with the AM and PM

indications (option [D] on).

• 18:00 = International (option [D] off)

• 6:00 pm = U.S. (option [D] on)

Backlight Functionality

When the system is Stay or Instant armed, the intensity of the

keypad’s backlight automatically decreases to a Level 1 setting.

During this time, if a key is pressed on the keypad, the backlight

switches to regular intensity and then returns to the Level 1 setting

when all actions on the keypad cease. The backlight returns to

regular intensity when the system is no longer Stay or Instant armed.

Indice

Lingue:

Altri manuali ESPRIT Tastiera

ESPRIT

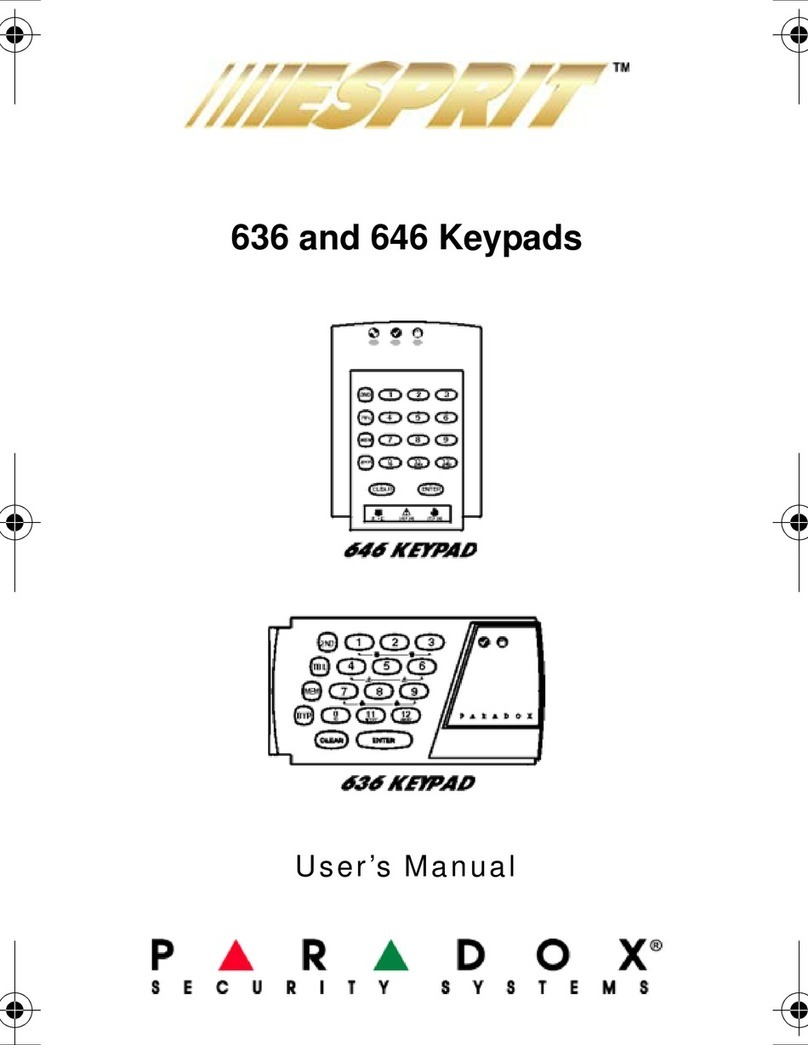

ESPRIT 636 Manuale utente

Manuali Tastiera popolari di altre marche

BFT

BFT SELETTO Manuale utente

Micro Id

Micro Id MP7G3BL Manuale di istruzioni

WindowMaster

WindowMaster WLI 130 Manuale utente

ACT

ACT ACT PRO 1030 Manuale utente

Cardin

Cardin SSB Series Manuale utente

Harman Kardon

Harman Kardon KP 1 Manuale utente

Chamberlain

Chamberlain KPR2000 Guida utente

CYP

CYP CR-KP1 Manuale utente

Aeware

Aeware k-35 Series Guida di riferimento

Aritech

Aritech CS-175 Series Manuale utente

GE NetworX NX-1600E Series Manuale utente

Lenze AC Tech

Lenze AC Tech MC SERIES Manuale utente

Burg Wächter

Burg Wächter secuENTRY 7711 Manuale utente

Aeware

Aeware in.k450 Manuale utente

Lenze

Lenze EPM-H410 Manuale utente

Toshiba

Toshiba RKP007Z Manuale utente

Gemini

Gemini GEM-DXK1 KEYPAD Manuale utente

Russound

Russound MDK-C5 Manuale operativo
