USER MANUAL

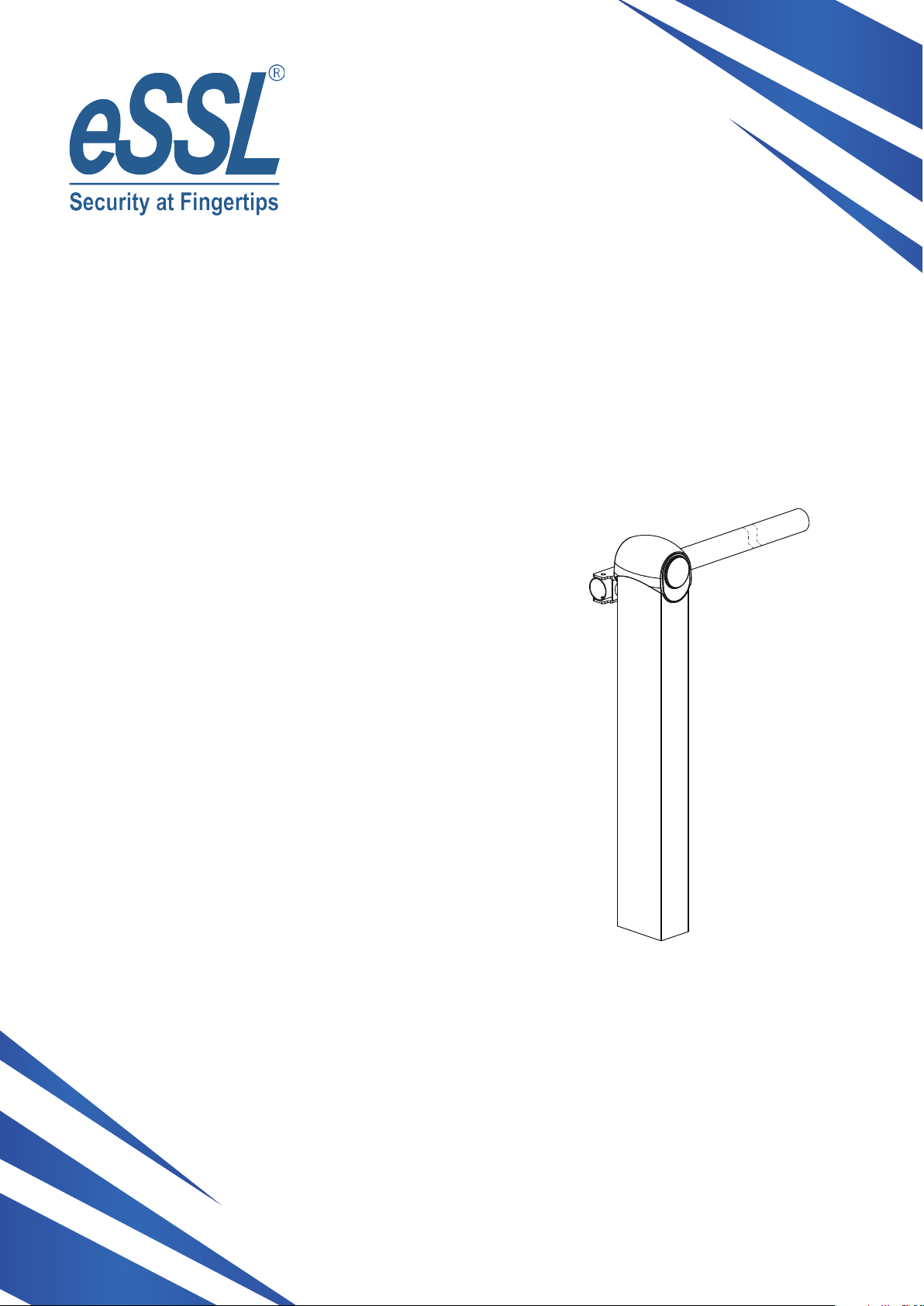

Boom Barrier BG-CM-300
WARNING
To reduce the risk of INJURY or DEATH, read and follow all
instructions.
NEVER let children operate or play with barrier control. Controller MUST be installed at
least 1.5m above the ground.
PEDESTRIANS SHOULD NOT CROSS THE PATH OF THE MOVING BARRIER.
Automatic boom barrier is designed for vehicles ONLY. Pedestrians MUST use sepa-
rate entrance.
Installation and maintenance MUST be executed by qualified service person. Keep
boom barriers properly maintained.
Ground wire and current breaker MUST be connected.
Power MUST be cut off when performing installation or maintenance.
When power outage, power MUST be cut off before using the manual release under the
motor to open the barrier.
ONLY operate when the boom barrier is in sight.
NEVER perform operating or setting without the boom installed. This WILL result in
severe injury.
NEVER dismount the boom when barrier is at close status with spring attached. This
WILL result in sever injury, even death.
DO NOT replace the original wire.
SAVE THESE INSTRUCTIONS.
1
AUTOMATIC BARRIERS ARE NOT FOR PEDESTRIAN!
!
1. Direction Definition and Main Components of the Machine
2
A.Close to Right B.Close to Left
Limit stopper
Mounting Bracket
C.Main Components of the Motor
Boom Holder
Motor
3
2. Features
A. Remote control is allowed.
B. During power outage, product can be manual operated.
C. Control board contains various ports for parking lot management system,
infrared sensor, radar, etc.
D. Product contains multiple limit protection functions to keep a long life time.
3. Specification
Rated Power 24VDC Brushless 240W
220V±10% 50/60Hz
110V±10% 50/60Hz
-40℃~+60℃
2M
1~6s adjustable
Power Supply
Working Temperature
Max. Boom Length
Operating Speed
4. Installation
4.1 Cabinet Installation
4.2 Boom Installation
4
Fig.1
Fig.2
Fixed bars
Ground
Concrete Fixed bars
Cabinet
Expansion
bolts (2-M14)
Open the Cabinet door and take out the attachment pack.
Place the Cabinet at desired position.
Place Fixed Bars on the bottom of the Cabinet inside.
Mark out the boreholes for Expansion Bolts (Fig. 3: L and W) according to the Fixed Bars.
Move away the cabinet.
Use an electric drill with 21mm to drill the boreholes. The depth of the boreholes should be 110
~ 120mm. Place the Expansion Bolts.
Move the cabinet back to the desired position and place the Fixed Bars on the bottom of the
cabinet inside.
Tighten the Expansion Bolts.
L
w
1
1
3
2
2
2
3
4.2.1 Install the boom according to Fig2:
5
5.1 Spring Quantity and Size
5. Setting Springs’ Balance with Boom Weight
Attention: The springs are set to be balanced in factory. DO NOT change the boom length or
weight if it is not necessary. If the boom length or weight must be changed (e.g.: adding a
Stop Sign on the boom), the balance must be adjusted by a qualified service person.
Boom Length
x≤2m
Quantity of spring
1
Spring Size
Φ3
6
Power V+
Power V-
Moto yellow
Wire
Moto Green
Wire
Moto Blue
Wire
LED V-
LED V+
Battery V-
Battery V+
Green Light
NO COM NC
RS485-B
RS485-A
COM
Postiton Output Of Open
Position Output Of Close
12V/500mA
PT
Infrared Sensor
COM
LOOP Detector
COM
STOP
CLOSE
OPEN
Brown Wire
Black Wire
White Wire
Blue Wire
Red Light
Red Light
Control Signal Input Logic Signal Input Position Output RS485
CND A B 12V OPEN CLOSE STOP GND LOOP GND PHOTOPT 12V CL-P OP-P COM A B
Encoder
Power V+
Green Light
Moto HallConnector
6.1Electrical connections
6. Control Board Diagram
7
6.2 Limits Setting
Attention: Limits are set well in factory any change made on length, or maintain and change
controller. Please follow steps below.
Before power on, manually adjustboom to middle position<45°> .
Power on
Press and hold “SET”
till display “P1"
Is the barrier
Press “OPEN” and see
the boom moving
open?
Adjust “F7" to change the
motor’s running direction
NO
YES
Press and hold “OPEN”
till the barrier is vertical
Press and hold “CLOSE”
Press “SET” to save open
limit, display “P2”
till the barrier is horizotal
Press “SET” to
save close limit
Display “--”
8
Power on
Shortly press “Set”
Display “77”
Display “77” or “81”
Press “Set”
“79” : Function
Parameter
“81” : Timer
Parameter
Press “Stop”
End
Press “Open” or “Close” to change corresponding value
Press “Open” or “Close” to change value
6.3 Function Parameter setting
6.3.1 Function Parameters
(=(>D!@>/86D
:(6D=:((&D,;!&(D
:(6D=:((&D,;!&(D
@>8$28=(D>/4(;D=D
8@6>D48&(D8;4!2D48&(D&(*!@2>D
D&(*!@2>D
8;D#!$1D@:D
8>8;D;@66/6,D&/;($>/86D&(*!B2>DD;(B(;=(D
:(6$28=(D=>!>(D
82>!,(D@;;(6>D
:((&D
@22DB!2@(D;!B(2D
!B(D28,D
)+"A3?DDA33D3050?D
)"<D
97?.D
"CD
9A<D
07A?)D
)%97'D
0-.?97D9A<D)+"A3?D D
0-.?97D07A?)D )+"A3?D
0-.?9A?D9A<D )+"A3?D
0-.?9A?D07A?)D )+"A3?D
