eSSL SDO-PK23 Manuale utente
Swing Door Motor
www.esslsecurity.com
User Manual
SDO-PK23
1
1) CAUTION! For personal safety it is important to follow all the instructions
carefully. Incorrect installation or misuse of the product may cause serious
injury to people .
2) This product must be installed, debugged and maintained by professional
and qualied personnel.
3) The power supply voltage must match the design requirements of this
product and comply with electrical safety regulations.
4) This product was designed and manufactured strictly for the use indicated
in this document. Any other usage not expressly indicated in this
Document, may damage the product and/or be a source of danger.
5) The company is not responsible for losses caused by improper use .
6) Before carrying out any work on the product, turn off the Power supply.
7) This product must be equipped with an independent 6 A circuit breaker.
8) Do not make any alterations to the components of the automatic mach- ine
( Opener and Accessory).
9) Keep the instructions in a safe place for future reference.
WARNING TO THE INSTALLER GENERAL
SAFETY OBLIGATIONS
2

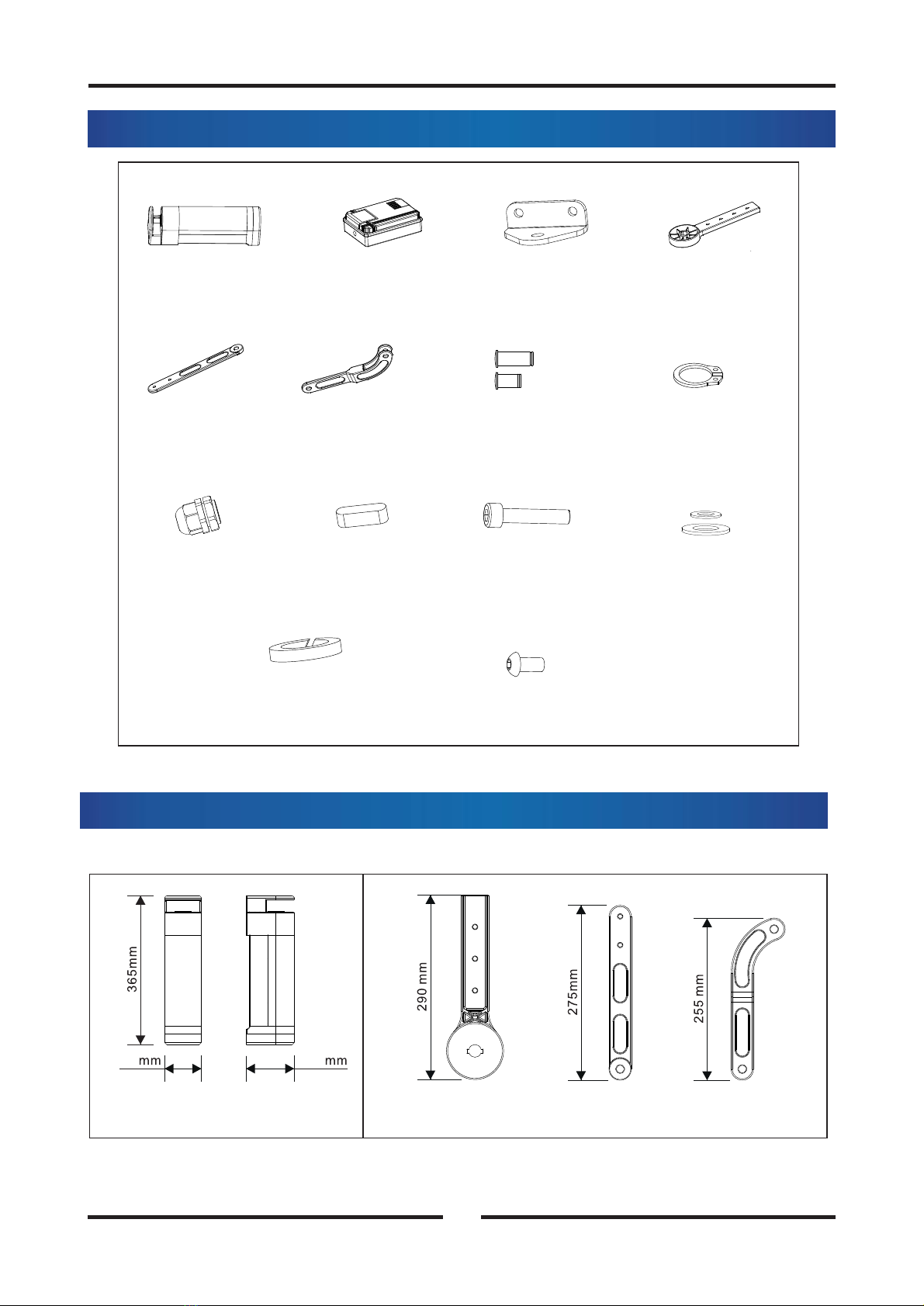

1. Main Parts
2.Dimensions
Long&Short Pin one each
PK23,swing door opener Power supply 1pcs Support 1pcs Adaptor arm 1pcs
Straight arm 1pcs Bent arm 1pcs Circlip 12pcs
Anti-water joint 1pcs Flat key 1pcs
M8x20 6pcs
M8x20 6pcs
Spring washer 6pcs
φ12
φ8
Flat washer φ8 8pcs
Flat washer φ12 6pcs
Hexagon socket head cap screws
Hexagon socket button head screws
118
90
PK23,swing door opener Arms
5
0
100V~240V AC
3
3.Technical Data
Power supply
Power of motor 24VDC/40W
Rpm of motor
Open/close time 3-10S(adjustable)
Maximum door width 1 00mm
Maximum door weight 15 Kg
Working temperature -20℃～50℃
4.Features
* Pull or push to activate the door opener operation.
* Automatic learning open-limits and close-limits when power on.
* Soft stop before open and close limits.
* Automatically Return when encountering resistance.
* Protection and access control equipment can be connected, such as radar,
infrared sensor, card reader, electromagnetic lock, electric bolt lock, etc.
* With Fire alarm linkage interface.
5.Installation
3000rpm±10%
2.8A±10%
20°~90° adjustable
Current of motor
Maximum opening angle
4

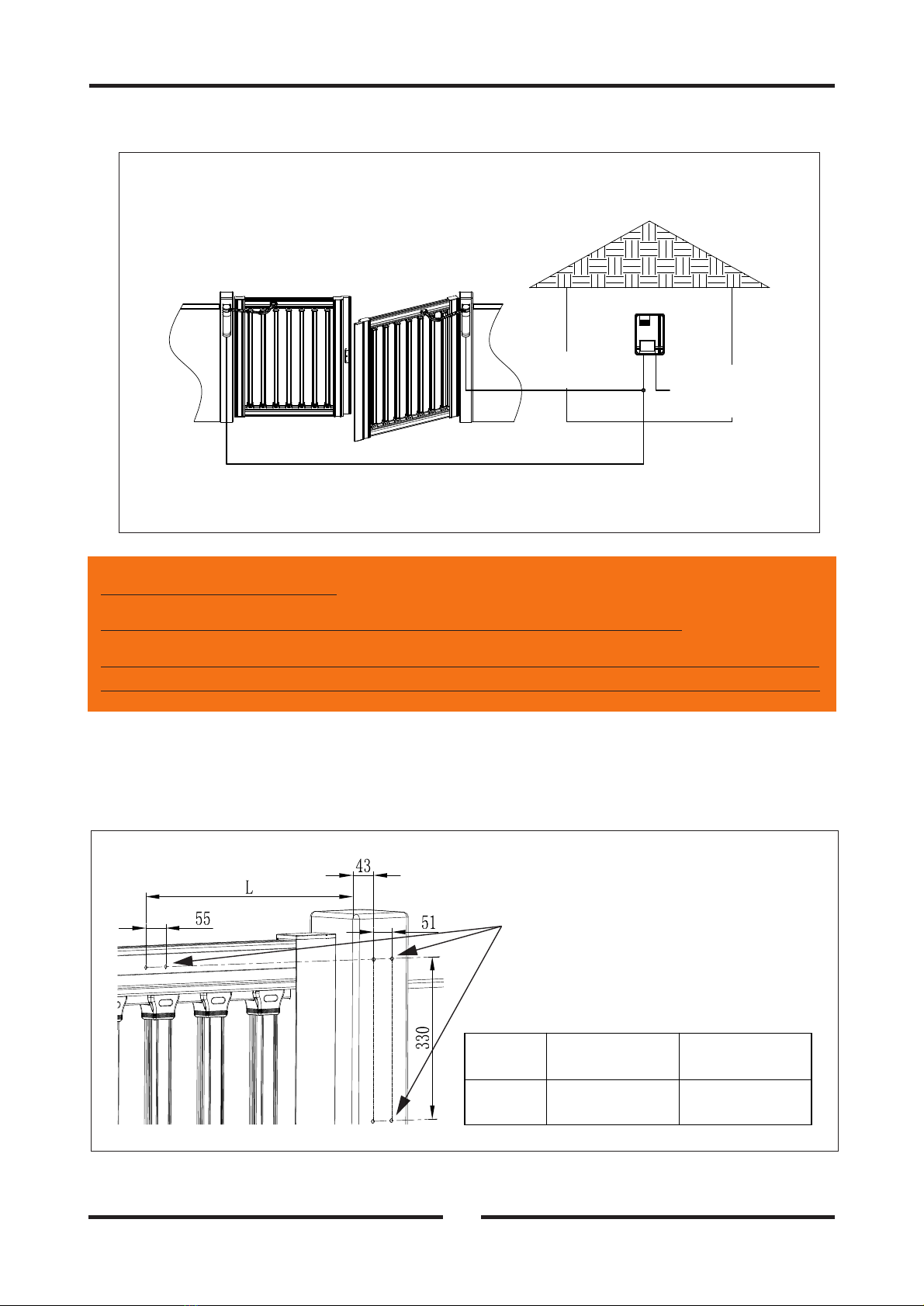

5.1 Installation diagram
5.2 Installation steps of PULLING OPENER
5.2.1 Installation location and measurement
Connect output power 24V
by 2-core wire 1.5mm²
Connect output power 24V
by 2-core wire 1.5mm²
Connect input power 100-240V
by 3-core wire 1.5mm²
Drill M8 hole 6pcs at depth at min 25mm.
Door width ＜1m ≥1m
L 500±20（mm）450±20（mm）
and the door are rm and reliable, and will not loosen during operation!
Very Important Notice!
Both the door frame and the door must be rm and strong.
Ensure the xed points that the door opener installed on the door frame
5

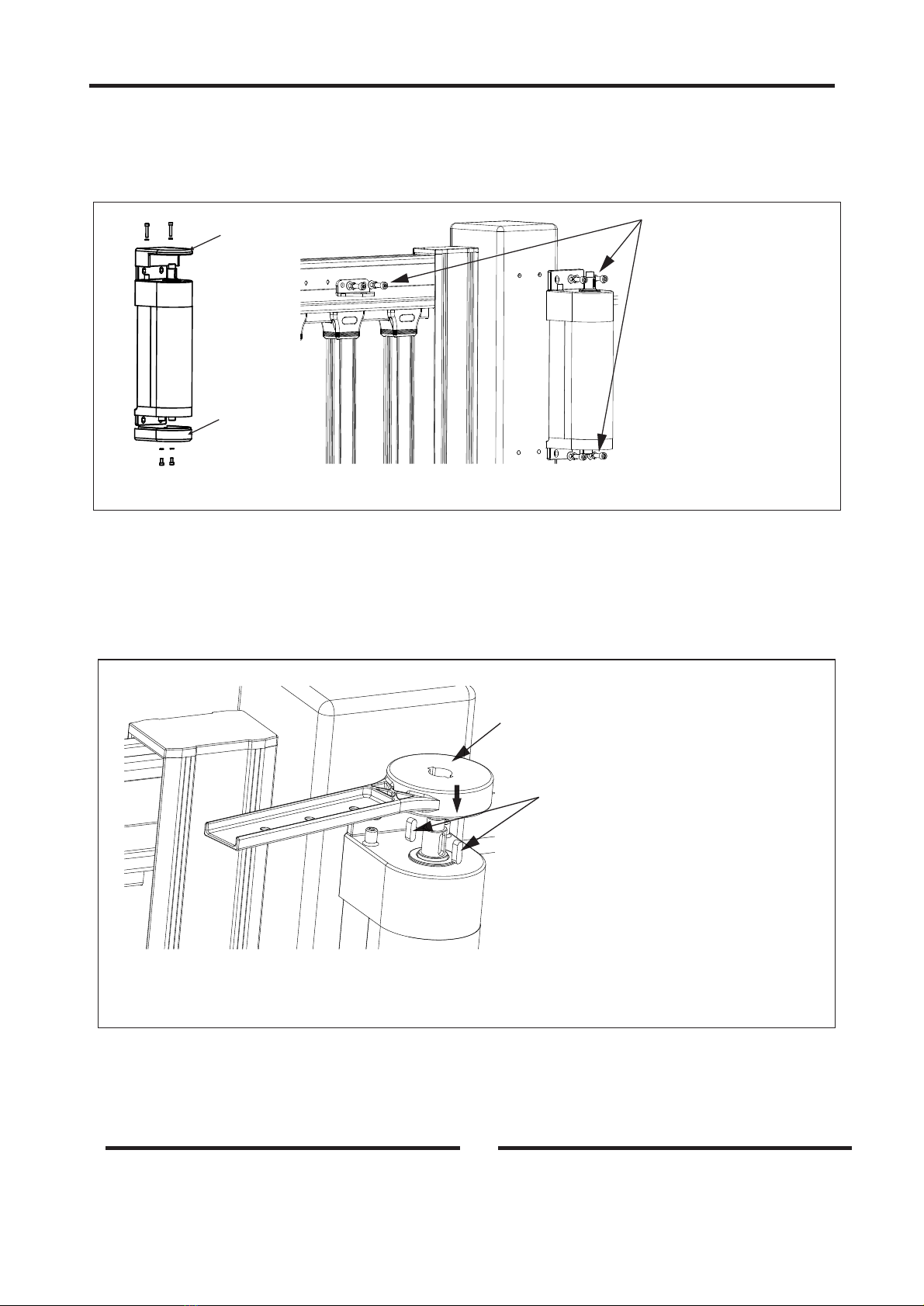

5.2.2 Installation of OPENER
5.2.3 Installation of adaptor arm
Top cover
Led cover
Fix braket by M8x20mm screws
+sping washer
+at washer
6×20mm Flat pin 2pcs
Adaptor arm
Fix at pin,then install adaptor arm as arrow direction.
6

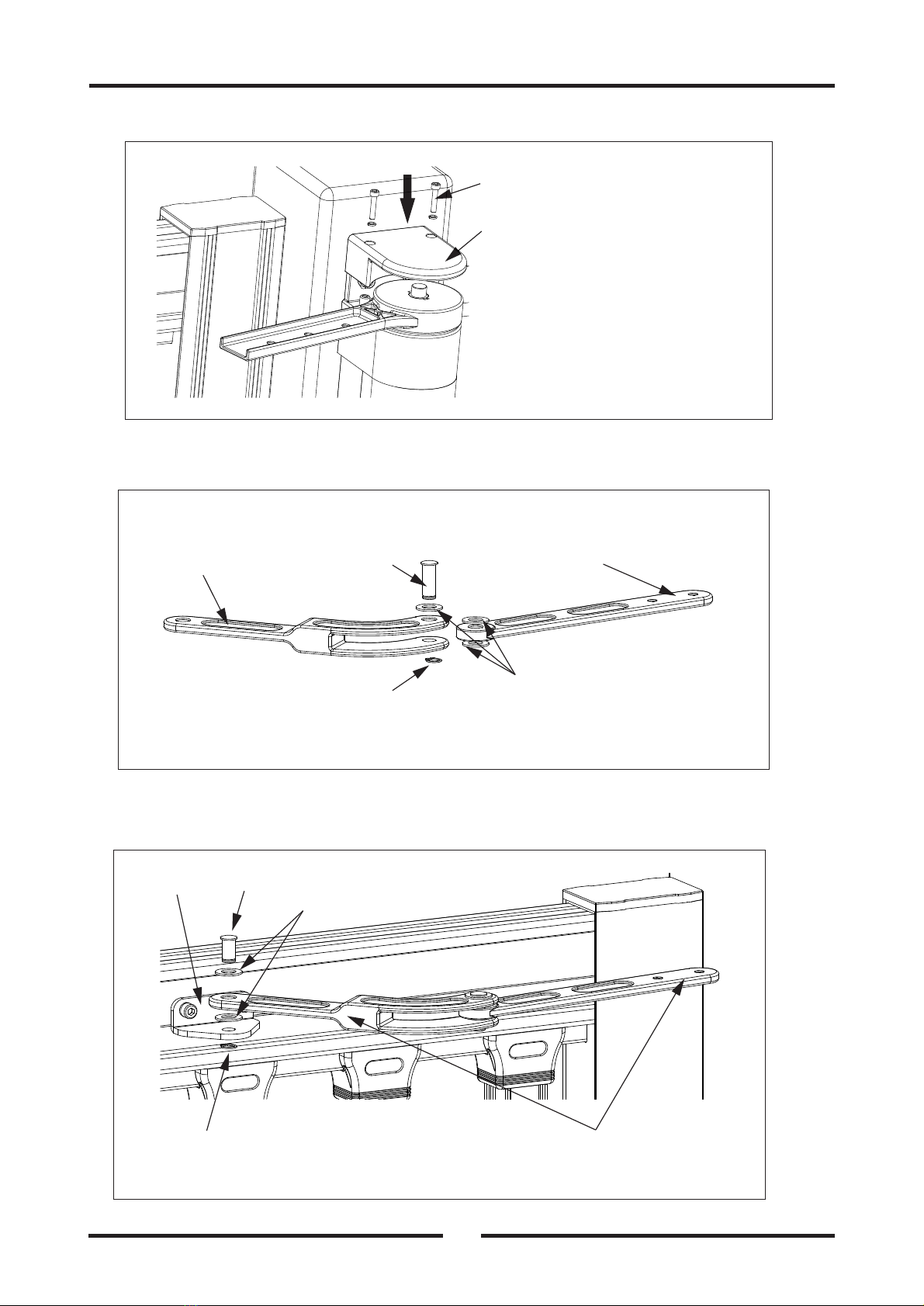

5.2.4 Installation of top cover
5.2.5 Connet arms group
5.2.6 Installation of arms group
Top cover
(+Spring washer)
Install top cover as arrow direction
2-M5×25mm(Hexagon socket head cap screws)
Bent arm
Straight arm
Long pin
Circlip
Flash washer
connect straight arm and bent arm as picture
Arms
Braket Short pin
Circlip
Flash washer
Install arms as picture
7

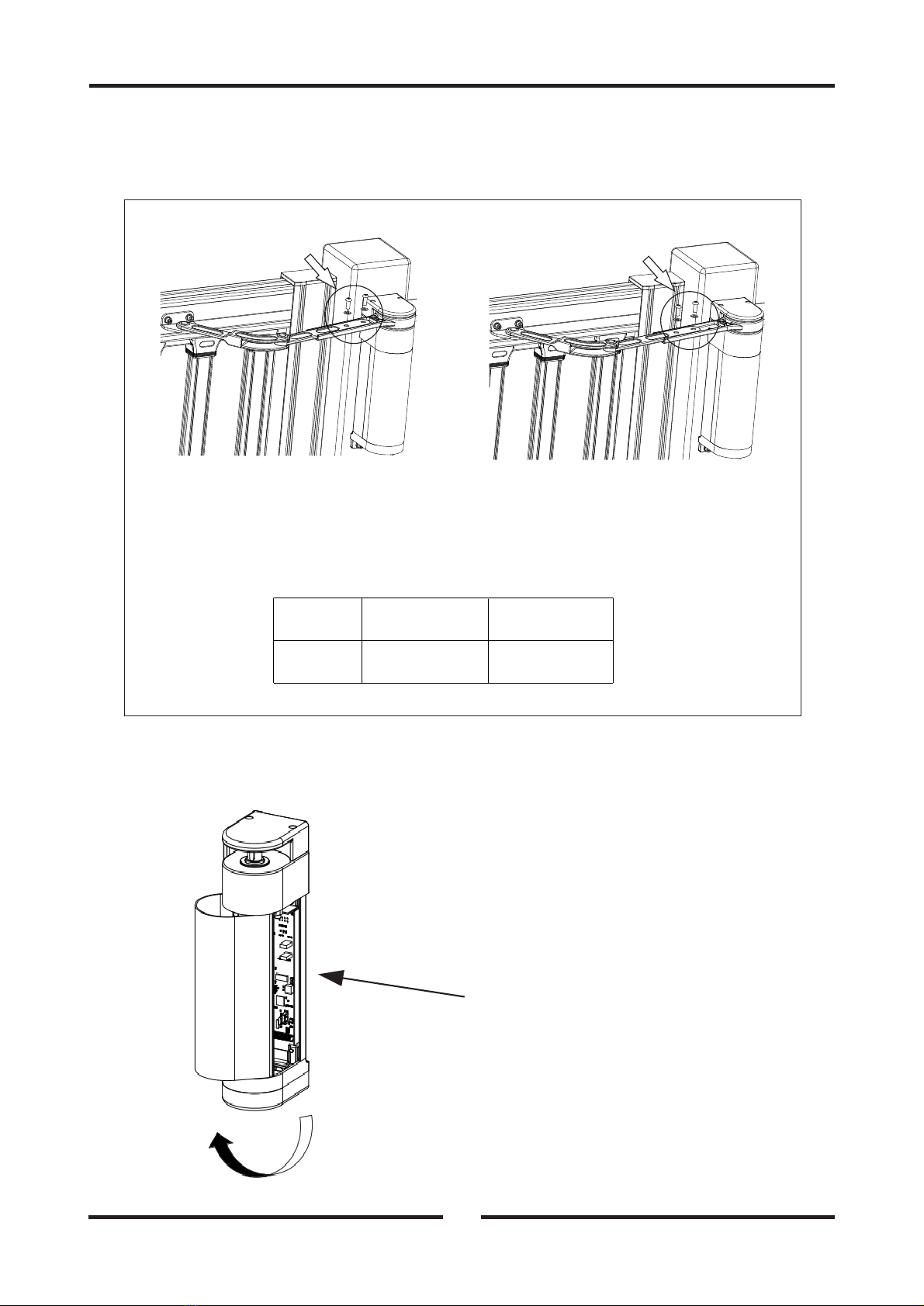

5.2.7 Installation of arms group to adaptor arm
There are 3 installation holes, fix 2 holes by 2pcs M8X20mm scews and flat washer
as arrow position to connect arms group and adaptor arm.
5.2.8 Open the cover
Press one side of the cover to geit it out of the slot,
Remove motor cover
turn it over and take it out
Front install Rear install
L500±20(mm)
Installation Front install Rear install
450±20(mm)
8

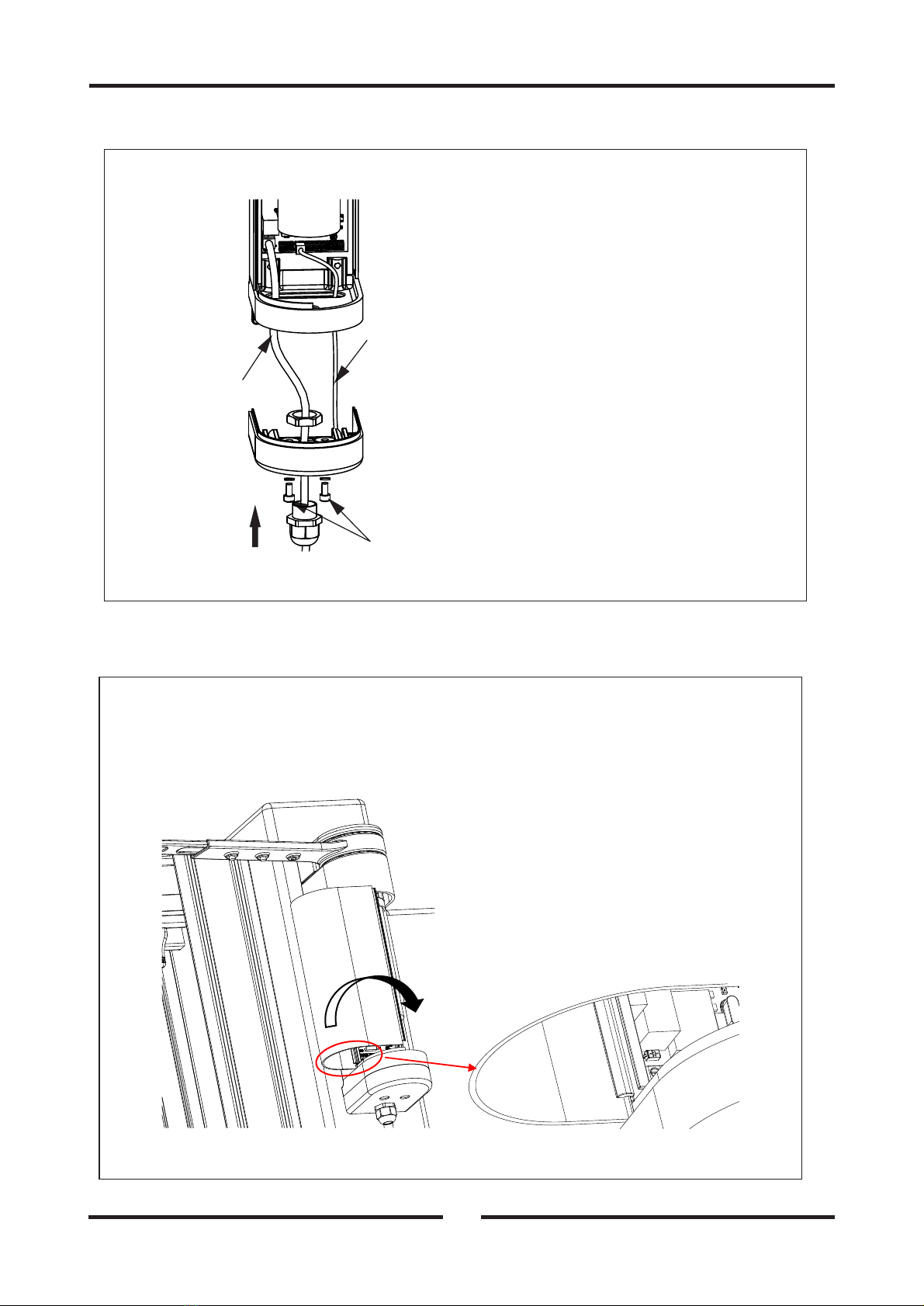

5.2.9 Install the LED cover and connect wires.
5.2.10 Assemble the cover.
Led cable
24V power cable
2-M5×10mm
(Screws and spring washers)
Connect power cable and led cable to
PCB board, please refer to page
Fix led cover by 2pcs M5X10mm screws.
9

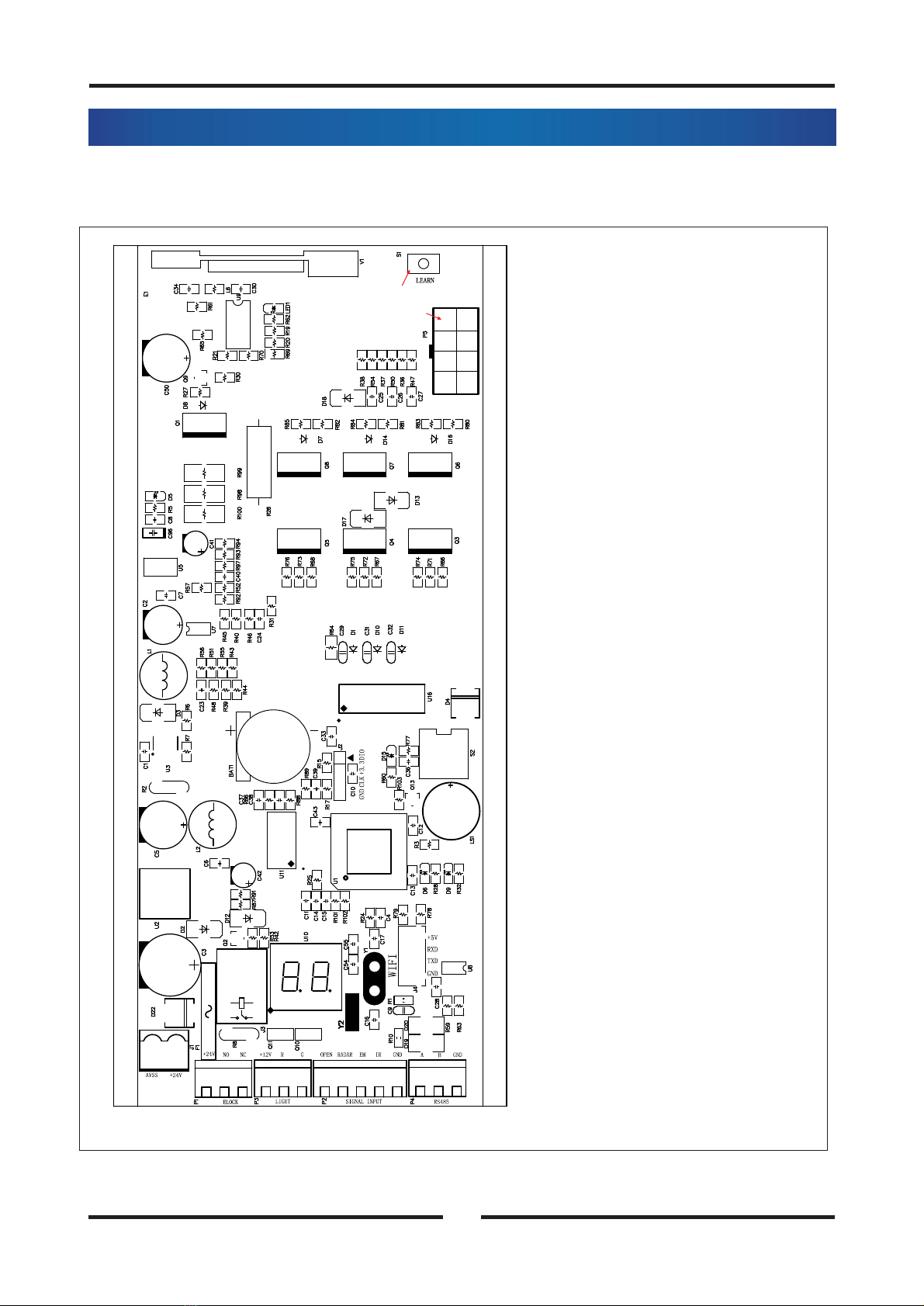

6.CONTROL BOARDS
6.1 Sketch map
1
2
34
5
6
7
8910 11
1.Learn button
2.Motor connector
3.Button cell
4.Dip switch
5.Buzzer
6.Digital display
7.24V input power connector
8.Electromagnetic lock connector
9.Led connector
10. External input signal connector
11. Rs485 connector
