Estate TEDL640AW0 Manuale utente
c1992 WHIRLPOOL CORPORATION
MODEL
W−White, N−Almond
11−92 Litho in U.S.A.
ELECTRIC DRYER
TEDL640AW0
Part No. 4377008
2

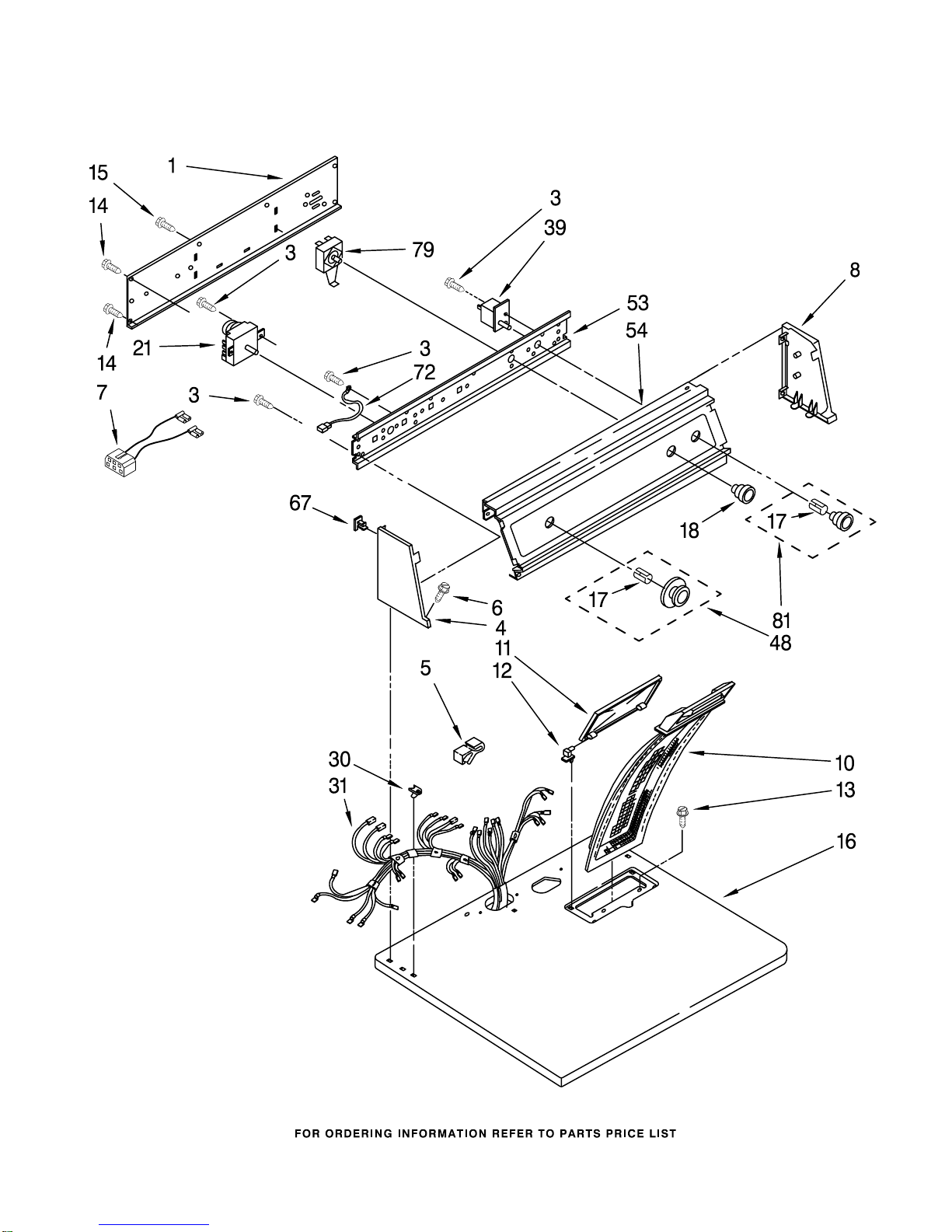

TOP AND CONSOLE PARTS
For Model: TEDL640AW0
4377008
TOP AND CONSOLE PARTS
3
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE AND OPTIONAL PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS OPTIONAL PARTS NOT INCLUDED
PAINTS
PAINT, TOUCH−UP (1/2 oz.)
PAINT, PRESSURIZED SPRAY
(13 oz.)
PAINT,BULK (1 qt.)
For Model: TEDL640AW0
4377008
1 3397545 Panel, Rear
Console
3 3390646 Screw,
8−18 x 5/16
4 3358016 Cap, End (L.H.)
5 689180 Clip, Retainer
6 3353145 Screw, Console
7 3396028 Wire Jumper
Assembly
8 3357998 Cap, End (R.H.)
10 337448 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 693994 Screw (4)
15 693995 Screw (2)
16 Top
3396022 White
3396023 Almond
17 688805 Clip
18 3393270 Control Knob,
Temperature
21 3396215 Timer, 60 HZ.
30 357213 Nut, Push−In (2)
31 3396219 Harness, Wiring
39 660936 Switch,
Push−To−Start
692021 (Alt.)
48 3391827 Timer Knob
Assembly
53 3396293 Bracket, Control
54 3397311 Panel, Control
67 689559 Clip, Push−On (4)
72 690853 Wire, Ground
79 3354281 Switch,
Temperature
81 3388125 Knob, Push
To Start
LIT3396300 Use & Care Guide
LIT3393229 Instructions,
Installation
LIT4377008 List, Service Parts 72017 White
72107 Almond
350930 White
350956 Almond
350938 Primer, Gray
350941 Leveler (Thinner)
799344 White (Uncut)
978883 Almond (Uncut)
LIT677818 Dryer
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
4

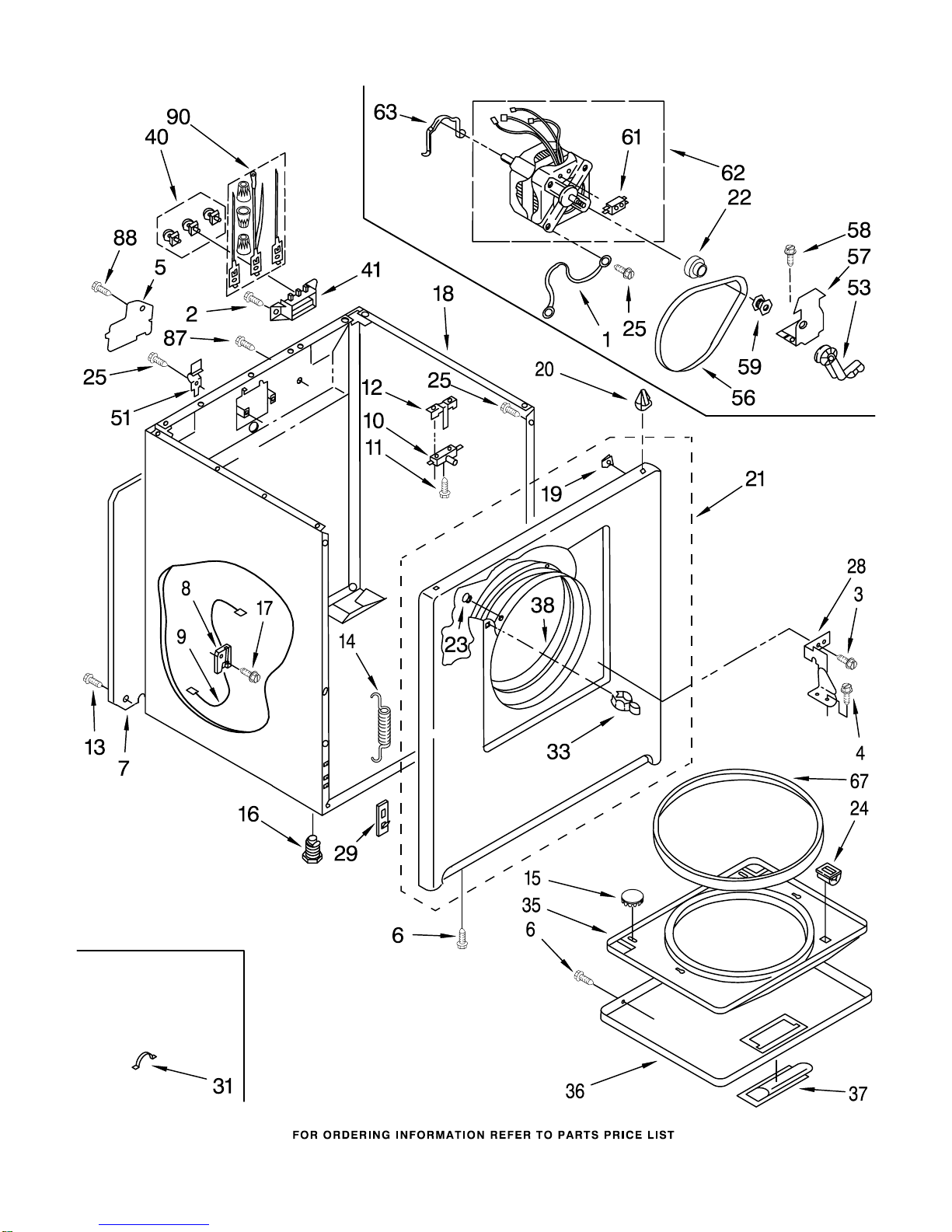

CABINET PARTS
For Model: TEDL640AW0
4377008
5
CABINET PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 690236 Wire, Ground
(Motor)
2 3393008 Screw, 10−16 x 1/2
3 339493 Screw
4 688160 Screw,
8−15 x 1/2
5 690893 Cover, Terminal
Block
6 694091 Screw
7 346368 Panel, Rear
8 337182 Guide, Cable(L.H.)
337183 Guide, Cable(R.H.)
9 230131 Cable, Door (2)
10 347207 Switch, Door
11 98129 Screw,
6−20 x 1−3/8 (2)
12 691581 Lever, Door Switch
13 693994 Screw, Rear Panel
Mounting
14 337186 Spring, Door
15 660975 Plug
16 3392100 Foot, Dryer (4)
17 339493 Screw
18 Cabinet
3394109 White
3394110 Almond
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 Full Front
Panel Assembly
337464 White
689525 Almond
22 3393657 Belt Restrainer
23 685203 Clip, Felt Pad
24 690081 Catch, Door
25 343641 Screw, 10−16 x 1/2
28 238456 Hinge, Door (R.H.)
238460 Hinge, Door (L.H.)
29 3394083 Clip, Front
Panel (2)
31 98997 Clip, Harness
33 696144 Strike, Door
35 695953 Door, Rear
36 Door Front
348737 White
689485 Almond
37 Handle, Door
690270 White
690271 Almond
38 349462 Seal & Bearing
Assembly
40 279393 Terminal Block
Kit For
Terminal Block
41 690261 Block, Terminal
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley
Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt,
5/16−18 x 3/4
59 3389627 Pulley, 60 Hz.
61 3388235 Switch, Motor
62 3391888 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
343481 (Alt.)
685441 (Alt.)
67 3390734 Seal, Door
87 697776 Screw, 10−32 x 1/2
(External Ground)
88 693995 Screw, 10−16 x 1/2
90 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)
For Model: TEDL640AW0
4377008
6

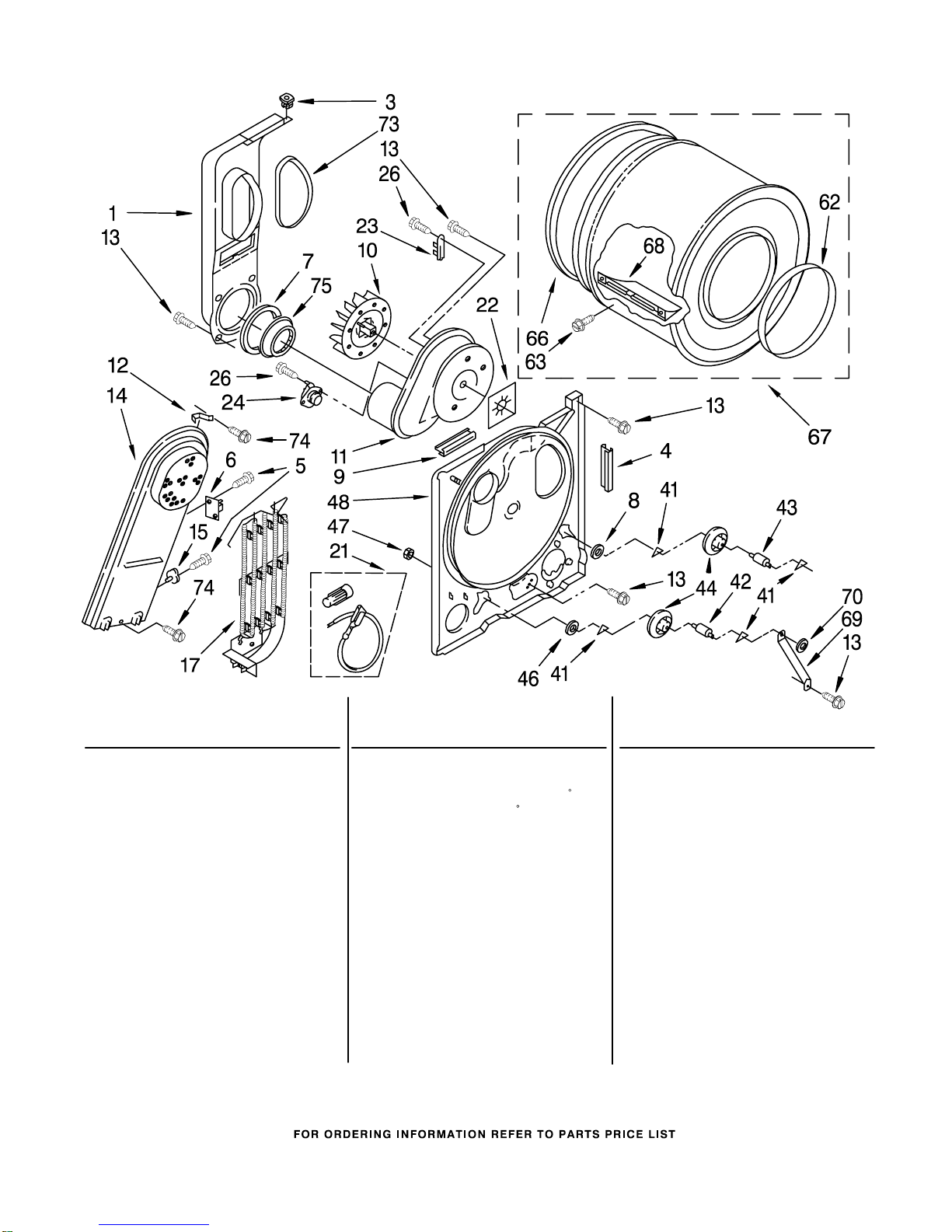

BULKHEAD PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Model: TEDL640AW0
4377008
1 694283 Lint Chute Assembly
3 98460 Nut, Push−In (2)
4 686889 Pad, Cabinet
5 90767 Screw, 8 x 3/8
6 3389946 Thermal, Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
8 3388703 Washer, Support
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 695081 Housing, Blower
12 337272 Clip
13 343641 Screw, 10−16 x 1/2
14 695547 Box, Heater
15 3390291 Thermostat,
High Limit 250 F
(121.1 C) (60 Hz.)
17 660982 Element, Heater
(For 240 Volt
Installation)
693300 (Alt.)
696579 (Alt.)
693062 (Alt.)
21 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
22 3392123 Seal, Blower Shaft
23 3392519 Fuse, Thermal
24 3387134 Thermostat,
Internal−Bias
26 695239 Screw, 8−18 x 3/8
41 690997 Ring, Tri
42 347364 Shaft, L.H.
43 339489 Shaft, R.H.
44 3389901 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 685775 Bulkhead
62 3394508 Ring, Bearing
63 97787 Screw, 11−16 x 7/8
66 337449 Seal, Rear Drum
67 695584 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 339956 Seal
74 687128 Screw, 10−16 x 1/2
75 696302 Shield, Exhaust
