ETC Source Four Zoom Manuale utente

Product information and specifications subject to change.

Part Number:

7060M1250-06.01

Rev C

Released: January 2010

Picking# 7060M1008-C

User Manual

Production Dates: September 2004 - Present

Zoom

iTable of Contents

Table of Contents

ETC

, Emphasis

, Expression

, Insight™, Imagine™, Focus™, Express™, Unison

, Obsession

II, ETCNet2™,

EDMX™, Source Four

, Revolution

, Sensor

, and WYSILink™ are either registered trademarks or trademarks

of Electronic Theatre Controls, Inc. in the United States and other countries.

All other trademarks, both marked and not marked, are the property of their respective owners.

Basic Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Fixture information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Color frame holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Replacing the HPL Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Centering lamp and adjusting the field . . . . . . . . . . . . . . . . . . . .5

Selecting the field angle and focusing the beam . . . . . . . . . . . . .5

Shaping the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Rotating the barrel assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting the C-clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting the yoke position — 25°-50° Zoom . . . . . . . . . . . . . . .8

Adjusting the optional balance yoke position — 15°-30° Zoom. .9

Cleaning Lens and Reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Cleaning glass lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Cleaning the reflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Basic Assembly 1

Basic Assembly

WARNING:

Please note the following safety warnings before use:

Do not mount the fixture on or near combustible surfaces.

Do not operate the fixture without a lens installed.

Always hang the fixture with the color frame retaining clip in the locked

position.

Remove cardboard insert from lens tube before connecting power to your

fixture.

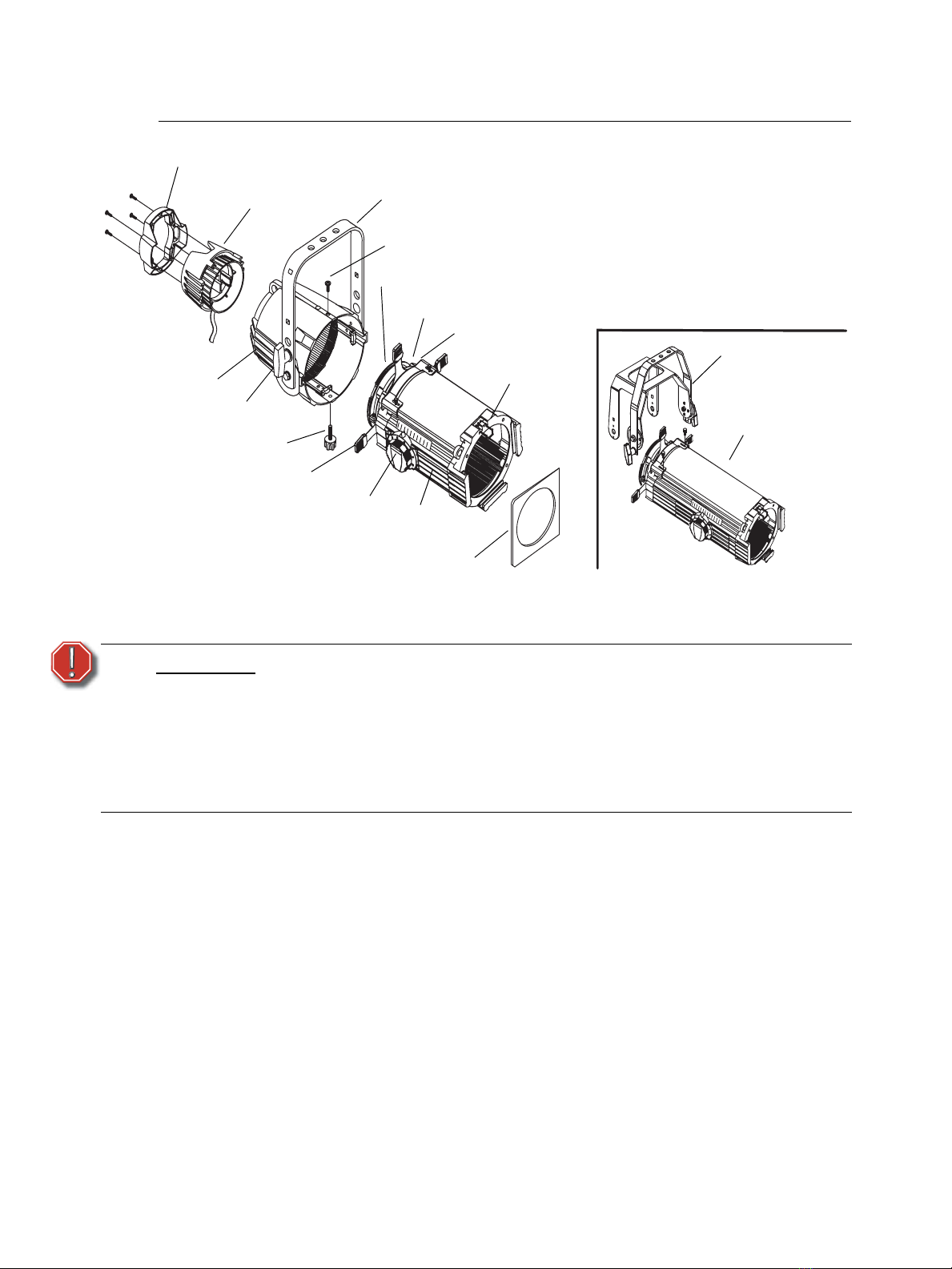

Figure 1

Lamp housing

Insulated handle

Reflector housing

Yoke

Pattern holder slot

Drop-in iris slot

Shutters

Color frame

Barrel

25°-50° lens tube

Barrel rotation knob

Focus dial

Color frame

retaining gel clip

15°-30° lens tube

Optional

Balancing yoke

Retainer bolt

Yoke locking knob

2Source Four Zoom User Manual

Fixture information

HPL lamp table

CAUTION:

Do not use lamps other than the HPL in Source Four fixtures. Use of lamps other

than HPL will void UL/cUL safety compliance and your warranty.

Lamp code Watts Volts Initial Lumen Color temp. Average rated life

HPL 780/77* 750 77 22,950 3,250° 300 hours

HPL 550/77* 550 77 16,170 3,250° 300 hours

HPL 550/77X* 550 77 12,160 3,050° 2000 hours

HPL 750/115 750 115 21,900 3,250°K 300 hours

HPL 750/115X 750 115 16,400 3,050° 1500 hours

HPL 575/115 575 115 16,520 3,250°K 300 hours

HPL 575/115X 575 115 12,360 3,050°K 2000 hours

HPL 375/115 375 115 10,540 3,250°K 300 hours

HPL 375/115X 375 115 8,000 3,050°K 1000 hours

HPL 750/120 750 120 21,900 3,250°K 300 hours

HPL 750/120X 750 130 16,400 3,0500°K 1500 hours

HPL 575/120 575 120 16,520 3,250°K 300 hours

HPL 575/120X 575 120 12,360 3,050°K 2000 hours

HPL 750/230 750 230 19,750 3,200°K 300 hours

HPL 750/230X 750 230 15,600 3,050°K 1500 hours

HPL 575/230 575 230 14,900 3,200°K 400 hours

HPL 575/230X 575 230 11,780 3,050°K 1500 hours

HPL 375/230X 375 230 7,250 3,000°K 1000 hours

HPL 750/240 750 240 19,750 3,200°K 300 hours

HPL 750/240X 750 240 15,600 3,050°K 1500 hours

HPL 575/240 575 240 14,900 3,050°K 400 hours

HPL 575/240X 575 240 11,780 3,050°K 1500 hours

HPL 375/240X 375 240 7,250 3,000°K 1000 hours

* To be used with ETC Dimmer Doubler™

Basic Assembly 3

Color frame holder

The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames

and accessories from falling out. See Figure 2.

Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the color frame.

Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.

WARNING:

Make sure all color frame accessories are locked in position with the

retaining clip before hanging the Source Four.

Note:

The performance of saturated colors may be less than desirable in any theatrical

lighting fixture, especially when equipped with a 750w lamp. For best results,

always use high-quality color media rated for high-temperature use.

ETC’s optional Gel Extender, part # PSF1029, will provide maximum color media

life. The use of any gel extender accessory may limit the coverage of any wide-

angle lens or beam setting.

A variety of heat shield products is also available from many color media

manufacturers. Follow the manufacturer’s instructions for the use of these

products.

Figure 2

Retaining clip in the

locked position

4Source Four Zoom User Manual

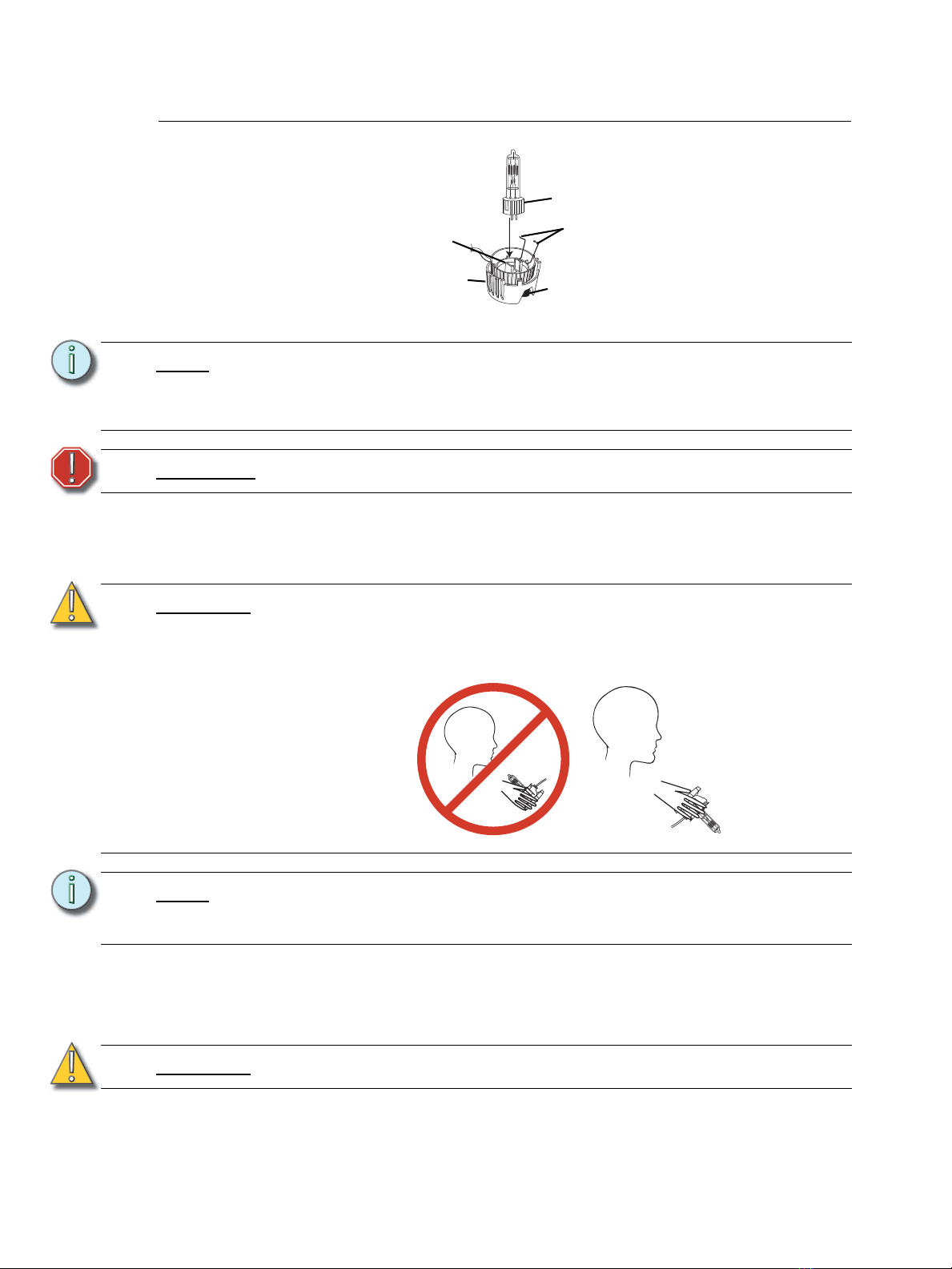

Replacing the HPL Lamp

A lamp must be installed before you use the fixture.

Step 1: Disconnect power to the Source Four before installing the lamp.

Step 2: Loosen the knurled bolt on the back of the lamp housing and pull the housing out.

Step 3: Holding by the base, remove the HPL lamp from its box.

Step 4: Align the flat sides of the lamp base with the retention brackets on either side of the

socket as shown in Figure 3.

Step 5: Push down on the lamp base until the lamp seats firmly. When properly installed, the top

of the lamp’s base will be even with he top edges of the retention brackets.

Step 6: Press lamp retaining clip across lamp base to secure.

Step 7: Reinstall the lamp housing by aligning the bolt hole and tightening the knurled bolt.

Note:

Verify that the HPL lamp you intend to install is suitable for your facility’s voltage;

115-, 120-, 230-, and 240-volt HPL lamps are available. See Fixture information,

page 2. Operating HPL lamps above their rated voltage reduces lamp life and can

cause premature lamp failure.

WARNING:

Let the lamp cool before replacing.

CAUTION:

Use caution when installing or replacing any lamp.

When installing/replacing lamp, be sure to point the lamp away from your face and

away from others before inserting it firmly into the assembly.

This may prevent injuries if the lamp should break.

Note:

To avoid premature lamp failure, do not touch the lamp glass. If you do, clean it

carefully with isopropyl alcohol and a clean lint-free cloth. Allow to dry before

operation.

CAUTION:

Improperly installed lamps cause premature lamp failure and socket problems.

HPL lamp

Lamp retention

brackets

Lamp housing Figure 3

Knurled bolt

Lamp retainer clips

INCORRECT CORRECT

Adjustments 5

Adjustments

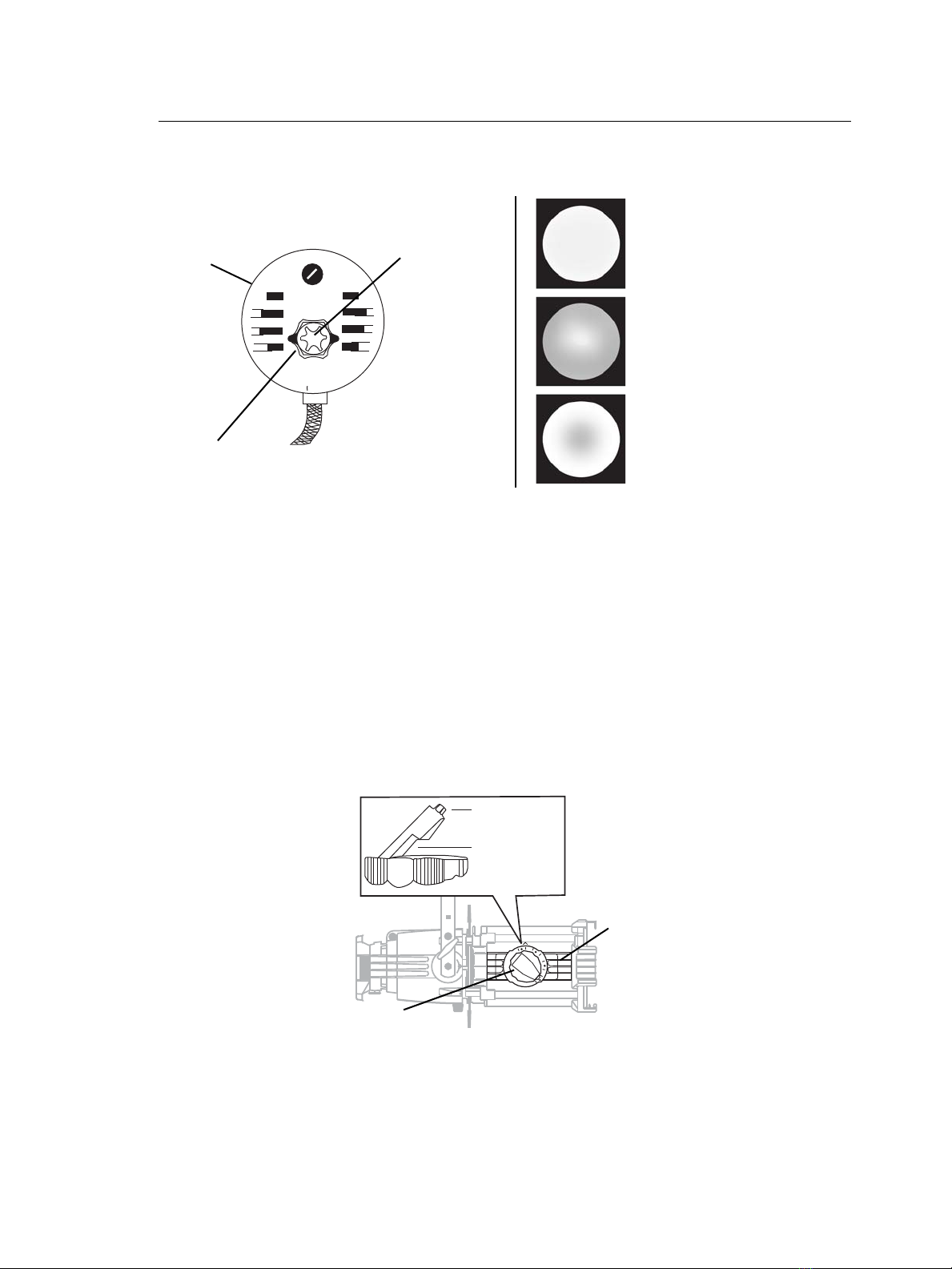

Centering lamp and adjusting the field

The two concentric knobs located on the lamp housing allow you to align the lamp and adjust its

field. See Figure 4. The outer knob centers the lamp within the reflector. The inner knob adjusts the

lamp’s field.

Step 1: Turn on the Source Four and aim it at a flat surface. Adjust the barrel to create a hard

edge.

Step 2: Unlock and loosen the outer knob by turning it counterclockwise.

Step 3: Gently move the outer knob from side to side and up and down until the lamp is centered

within the reflector.

Step 4: Once the lamp is centered, turn the outer knob clockwise to lock it in place.

Step 5: Finally, turn the inner knob either clockwise or counterclockwise to achieve an optimum

flat field. See Figure 5.

Selecting the field angle and focusing the beam

Step 1: Press the locking lever push button and lift the locking lever to unlock the focus dial as

shown in Figure 6.

Step 2: To reduce the field angle, rotate the focus dial clockwise. To enlarge the field, rotate the

dial counterclockwise.

Outer Knob - lamp

center adjustment

Inner Knob -

peak/flat field

adjustment

Rear lamp

housing

Figure 4 Figure 5

Flat field-best adjustment

Hot spot - lamp pulled out

too far

Field with hole - lamp

pushed in too far

Locking lever

push button

Locking lever

Beam focus dial Figure 6

Light baffle

6Source Four Zoom User Manual

Step 3: Once the desired field angle is established, slide the light baffle forward to soften or

backward to sharpen the edge.

Step 4: Once the field and edge are established, press the locking lever to lock the focus dial into

position.

Shaping the beam

The beam can be shaped using the shutters (see Figure 1), a pattern, an optional drop-in iris, or by

rotating the barrel.

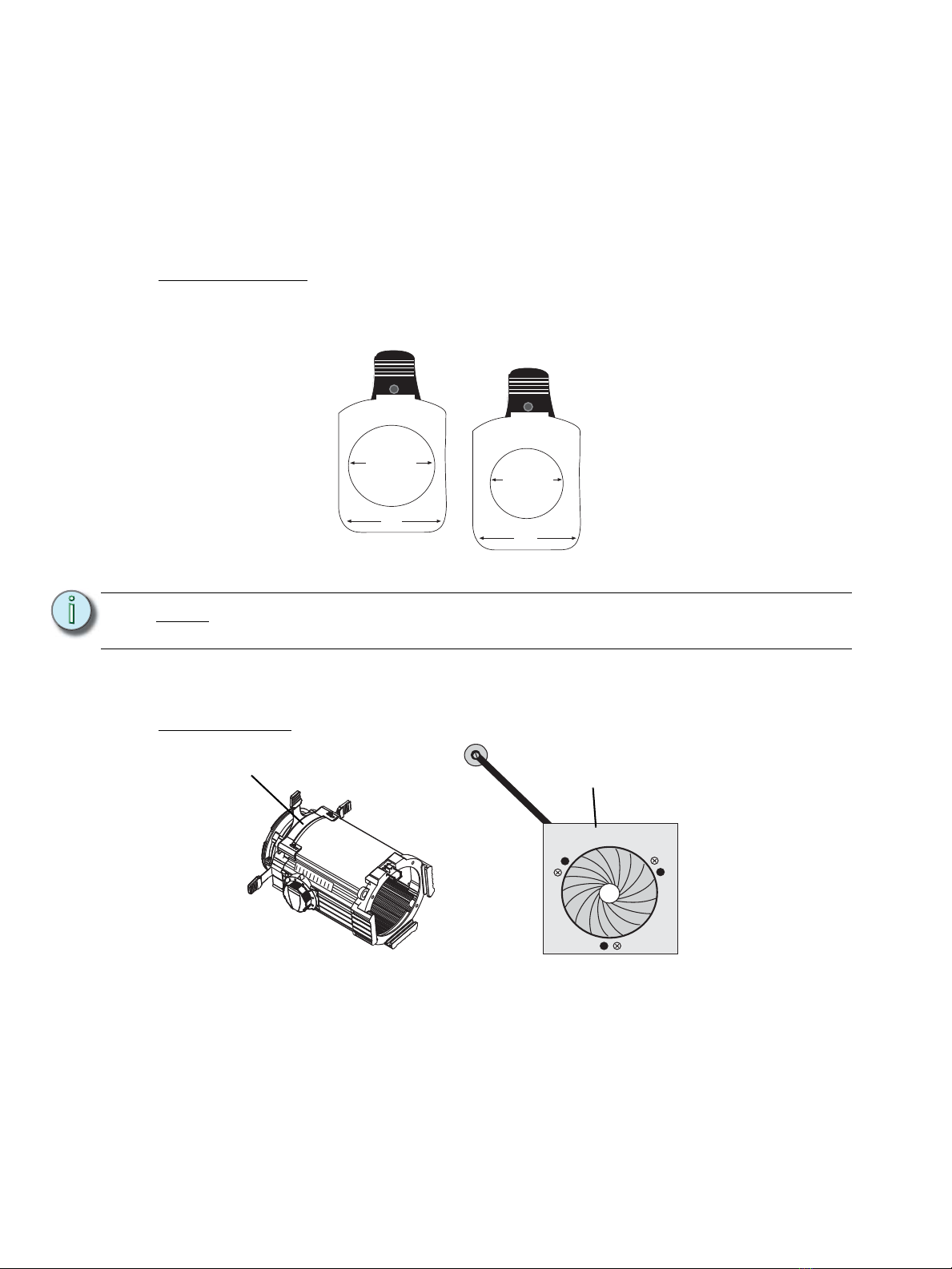

Pattern Projection

The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates

A-size, B-size and glass pattern holders (see Figure 7).

Use an optional donut in the accessory holder to enhance pattern projection. Donut diameter range

should be 2.5” to 2.75”.

Drop-In Iris Slot

The drop-in iris slot is located on the top of the barrel and in front of the pattern holder slot. It

accommodates either a drop-in iris or a motorized pattern device. When the slot is not in use, a

small sheet metal cover secured with two Phillips screws prevents light leakage (see Figure 8).

Step 1: Use a screwdriver to loosen the screws on the drop-in iris slot cover. Do not remove

thumbscrews.

Step 2: Slide the cover completely forward to expose the slot.

Step 3: Insert the iris or motorized pattern device. For an iris, install the flat side toward the

shutters and make sure the iris handle extends from the slot.

Note:

Because the Source Four aperture is 3 inches wide, ETC recommends

using A-size patterns for maximum pattern effectiveness.

3.12" Diameter

3.70"

2.75" Diameter

3.70"

Figure 7

A-Size Pattern holder:

holds 3” diameter patterns B-Size Pattern holder:

holds 2.5” and 2.75”

diameter patterns

Drop-in iris slot Iris

Figure 8

Adjustments 7

Step 4: Slide the slot cover back toward the shutters until it meets the iris handle. Leave enough

space to move the iris handle.

Step 5: Secure the drop-in iris slot cover by tightening the screws.

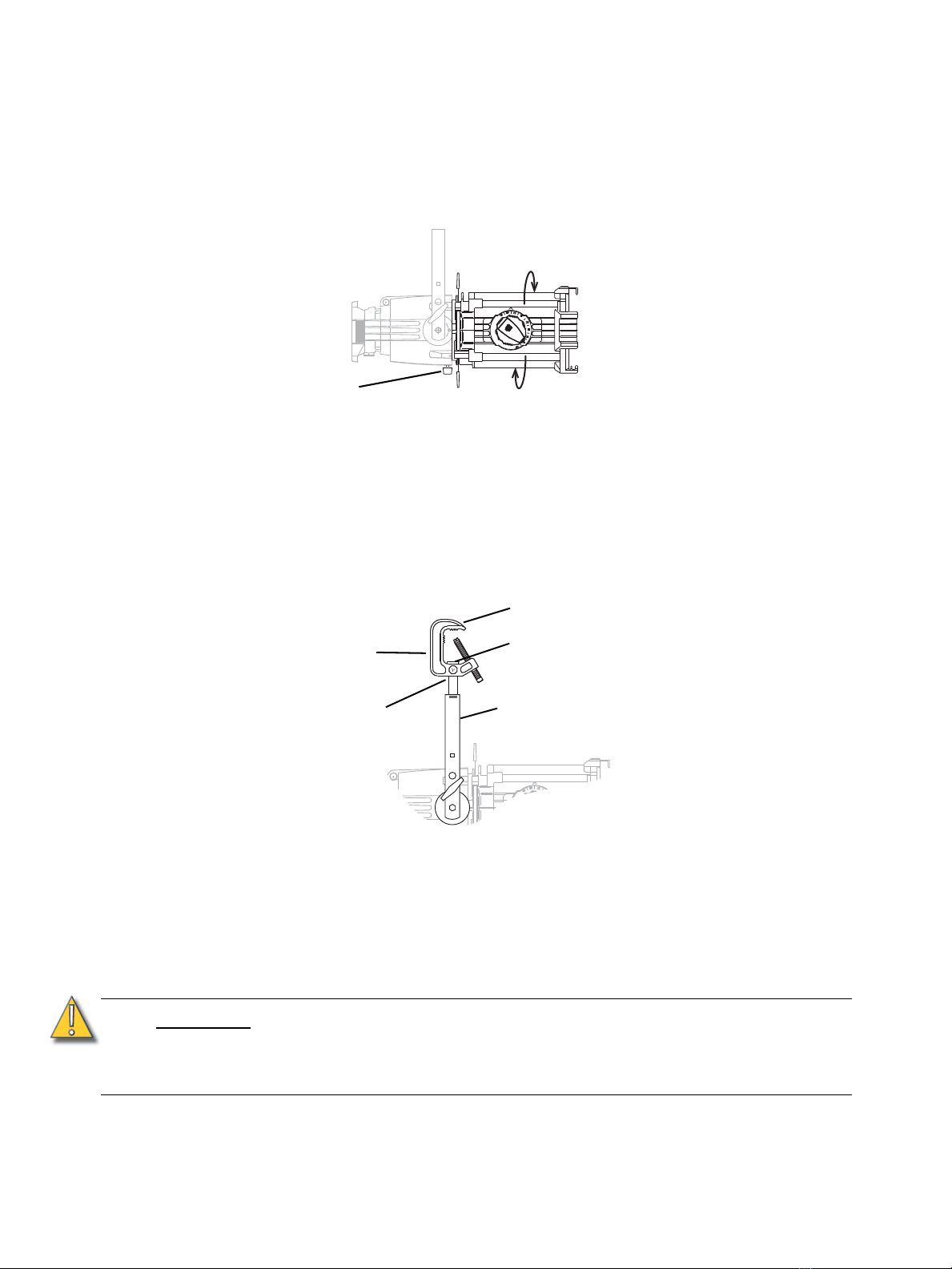

Rotating the barrel assembly

Step 1: Loosen the barrel rotation knob directly behind the shutters on the underside of the

reflector housing (see Figure 9). Do not remove the barrel rotation knob.

Step 2: Rotate the barrel to the desired position (up to 25° in either direction from the centered

position).

Step 3: Once the barrel is positioned, tighten the barrel’s rotation knob to lock it in place.

Adjusting the C-clamp

The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the

fixture once it is mounted (see Figure 10).

Step 1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer.

Step 2: Place the C-clamp on mounting pipe, then tighten the pipe bolt to secure it.

Step 3: Loosen the C-clamp pan screw and rotate the yoke to the desired position.

Step 4: Tighten the pan screw to lock the fixture..

CAUTION:

Tighten C-clamp pipe bolt to 15-20 ft./lbs. (approximately finger tight plus up to

one-quarter turn). Do not exceed 25 ft./lbs. Do not use excessive force.

Tighten the yoke pivot bolt to 5-10 ft./lbs. (approximately finger tight plus up to

one-eighth turn). Do not exceed 15 ft./lbs. Do not use excessive force.

Figure 9

Barrel

rotation knob

ET C

C-clamp

Pipe bolt

Pan screw

Yoke bolt and

lockwasher

Figure 10

Yoke

8Source Four Zoom User Manual

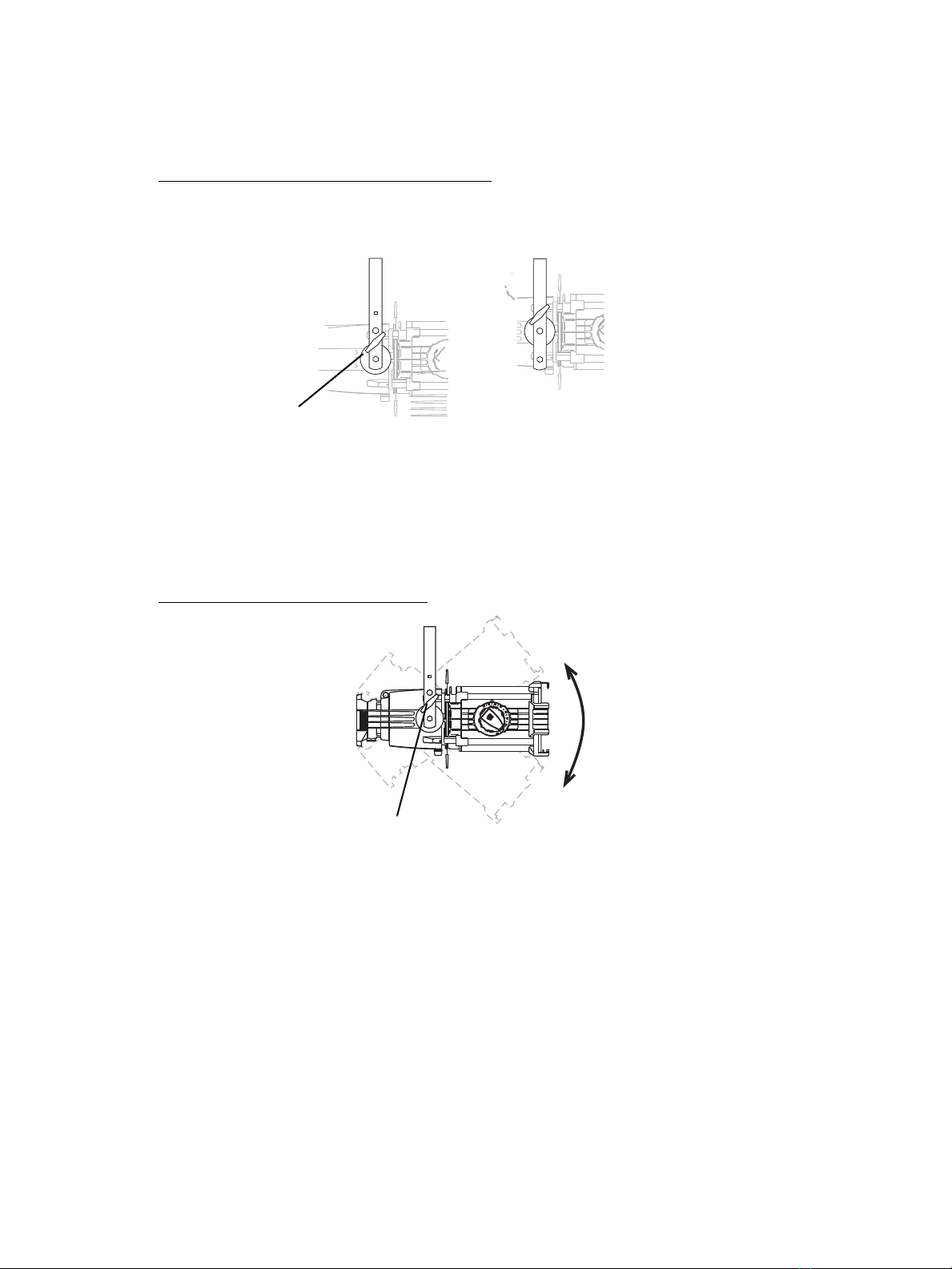

Adjusting the yoke position — 25°-50° Zoom

The Source Four 25°-50° Zoom provides multi-positioning capabilities within its yoke for overall

fixture height and angle.

Setting the fixture height within the yoke

The Source Four 25°-50° Zoom has a two-position yoke for modifying the overall height in which

the fixture is mounted (see Figure 11). To change the height position, perform the following steps.

Step 1: Remove the yoke locking knobs, washers, and hex bolts from either side of the fixture.

Step 2: Raise or lower the fixture to the desired position within the yoke.

Step 3: Reinstall the yoke’s hex bolts, washers, and locking knobs.

Step 4: Tighten the yoke knobs to secure in position.

Setting the angle within the yoke

Step 1: Loosen the yoke locking knobs (see Figure 12). Do not remove them.

Step 2: Tilt the fixture to the desired position.

Step 3: Tighten the yoke locking knobs to secure in position.

Figure 11

Low clearance position

General use position

Yoke locking knob

Yoke locking knob Figure 12

Altri manuali per Source Four Zoom

Indice

Altri manuali ETC Attrezzatura di illuminazione

ETC

ETC Hog 4 Series Manuale utente

ETC

ETC GDS BluesSystem Manuale utente

ETC

ETC Desire Fresnel Manuale utente

ETC

ETC Source Four LED Series Guida all'installazione

ETC

ETC Source Four jr Manuale utente

ETC

ETC Express Manuale utente

ETC

ETC Expression 2.0 Manuale utente

ETC

ETC ColorSource Spot Manuale utente

ETC

ETC High End Systems SolaPix 19 Manuale utente

ETC

ETC Selador Series Manuale utente

ETC

ETC Source Four PARNel CE Manuale utente

ETC

ETC Sensor IQ DALI Control Option Card Manuale utente

ETC

ETC fos/4 Fresnel Manuale utente

ETC

ETC Source Four Revolution Scroller Cartridge Manuale utente

ETC

ETC 3 Series Manuale utente

ETC

ETC fos/4 Series Manuale utente

ETC

ETC Source Four LED Series Manuale utente

ETC

ETC High End Systems SolaFrame 3000 Manuale utente

ETC

ETC ArcSystem Pro Multi-Cell RDM Manuale utente

ETC

ETC microVision FX Manuale utente

ETC

ETC Desire D40XTI Manuale utente

ETC

ETC Sensor IQ Contact Input Control Option Card Manuale utente

ETC

ETC Express 24/48 Manuale utente

ETC

ETC fos/4 Panel Yoke Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
