ETEKCITY EB9380H Manuale utente
1
Questions or Concerns? support@etekcity.com • (855) 686-3835
Digital Body
Weight Scale
Model: EB9380H Series
User Manual
2
Table of Contents
Package Contents
Specications
Safety Information
Function Diagram
Before First Use
Operation
• Using the Scale
• Replacing the Batteries
• Cleaning the Scale
• Clearing the Scale
Troubleshooting
Warranty Information
Customer Support
2
2
3
5
6
7
7
8
9
9
10
12
14
Specifications
Package Contents
Weight Capacity 400 lb / 180 kg
Increments 0.1 lb / 0.05 kg
Weight Units lb / kg
Platform Tempered Glass
Dimensions
LCD Display:
2.9 x 1.4 in / 7.4 x 3.6 cm
Scale:
11.8 x 11.8 x 0.8 in /
30 x 30 x 2.2 cm
Battery 2 x 1.5V AAA Batteries
Auto-Off 20 seconds
1 x Digital Body Weight Scale
2 x 1.5V AAA Batteries (Pre-Installed)
1 x Quick Start Guide
3
SAFETY INFORMATION
Please read and follow all instructions and
safety guidelines in this manual.
General Use
• Check the scale before using. Do not use
the scale if it is damaged in any way.
• Do not strike or bang on the scale and do
not use the scale if there is a slight crack on
the glass. While tempered glass is stronger
and fractures more safely than ordinary
glass, it may shatter unexpectedly after
developing a slight crack. If you see a crack,
contact Customer Support (see page 14).
• The glass platform is slippery when wet.
Always make sure the platform and your
feet are dry before stepping onto the scale.
• Place the scale on a hard, at surface.
• To weigh safely and accurately, stand with
your feet shoulder-width apart while on the
scale. Do not stand on the edge of the scale
or jump on the scale.
READ AND SAVE
THESE INSTRUCTIONS
4
Batteries
• Do not mix new and old batteries.
• If the scale is not in use for a long period
of time, remove the batteries to extend the
lifetime of the scale.
• Avoid standing on the scale for a long
period of time.
• Do not overload the scale. Maximum weight
capacity is 400 lb / 180 kg.
• Keep the scale in a cool area with low
humidity. Keep the scale away from heat
sources, such as ovens or heaters.
• Store the scale horizontally, not vertically.
• For household use only. This scale is not
intended for commercial use.
• Handle with care.
Safety Information (cont.)
7
Note: Press the unit switching button on the
underside of the scale to switch between pounds (lb)
and kilograms (kg).
Operation
Using the Scale
1. Place the scale on a hard, at surface.
Note: Using the scale on soft surfaces such
as carpets and mats will cause inaccurate
measurements.
2. Step on the scale, then step off. Wait for the
screen to display “ ” before using.
[Figure 2.1]
3. Stand on the scale until the display ashes
several times, showing your nal measurement.
[Figure 2.2]
Figure 2.2
Figure 2.1
8
Replacing the Batteries
1. Open the battery compartment on the underside
of the scale.
2. Remove the old batteries and dispose of them
properly.

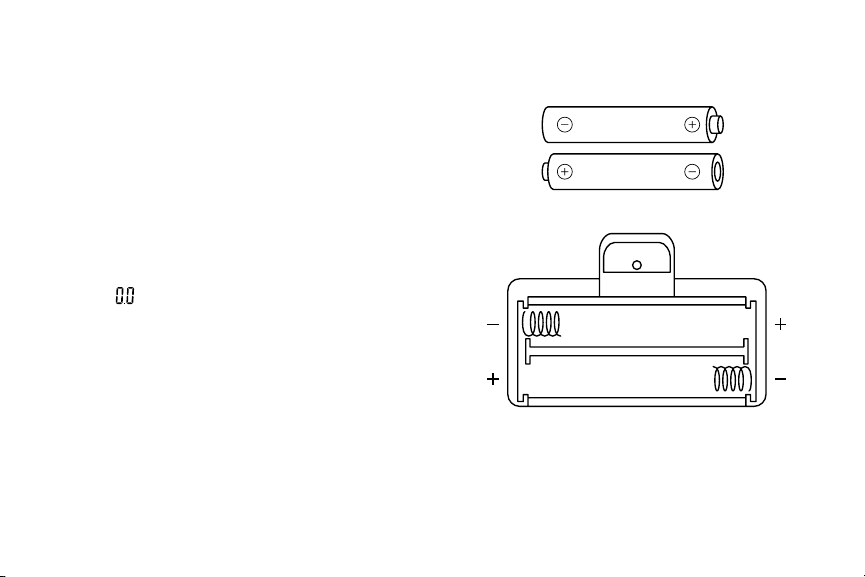

3. Install 2 new 1.5V AAA batteries. Make sure the
polarities match. [Figure 3.1]
4. Close the battery compartment, place the scale
on a hard, at surface, and wait for the display to
show “ ” before using.
Figure 3.1
9
Cleaning the Scale Clearing the Scale
1. Use a slightly damp cloth to clean the surface of
the scale, followed by a soft, dry cloth to wipe
away the remaining moisture.
2. Do not use chemical or abrasive cleaning agents
to clean the scale.
If the scale has been moved or ipped upside down,
it must be cleared to ensure accurate results.
1. Place the scale on a hard, at surface.
2. Step on the scale until digits appear on the
display, then step off.
3. The scale will show “ ” when cleared.
10
Troubleshooting
Problem Possible Solution
Scale does not turn on.
Open the battery compartment cover and remove the plastic strip.
Replace the batteries (see page 8).
Insert batteries under the correct polarity as marked in the battery compartment.
Display backlight does not
come on when stepping on
the scale.
Scale may be malfunctioning. Contact Customer Support (see page 14).
Display shows “ ”. Weight exceeds 400 lb / 180 kg. Use another scale with a higher weight range.
Display shows “ ”. Replace the batteries (see page 8).
Display shows “ ”. Scale needs to be cleared. Please place the scale on a at surface and wait for it to be
cleared before using it.
Reading is inaccurate.
Place scale on a level surface.
Step off the scale, wait for the display to show “ ”, then step back on the scale.
Remove the batteries for 45 seconds and replace them to reset the scale.
If your problem is not listed, please contact Customer Support (see page 14).
