Eternal Lighting CUBE5 Manuale utente

CUBE5™RGBWA LED User

Manual

(Battery Powered DMX LED Fixture)

Please read over this manual before operating the light.

FIRST CHARGE YOUR FIXTURE FOR 6 HOURS.

Introduction

Unpacking: Thank you for purchasing the CUBE4™RGBW QUAD LED. Every CUBE5™

RGBWA LED has been thoroughly tested and has been shipped in perfect operating

condition. Carefully check the shipping carton for damage thatmay have occurred during

shipping. If the carton appears to bedamaged, carefully inspect your fixture for anydamage

and besure all accessories necessary tooperate the unit has arrived intact. In thecase

damage has been found or parts are missing, please contact the manufacturer or your

dealer for further instructions. Donot return this unit to your dealer without first contacting.

Introduction: The CUBE5™RGBWA LED is a DMX intelligent LED par light. This par light

is lightweight and compact which makes it a great piece for mobile DJ’s and clubs.

Warning! Toprevent or reduce the risk of electrical shock or fire,do notexpose this unit to

rain or moisture.

Caution! There are no user serviceableparts insidethis unit. Do not attempt any repairs

yourself;doing sowill void your manufactures warranty. In the unlikely event your unit may

require service please contact the manufacturer or yourdealer.

PLEASE recycle the shipping cartonwhenever possible.

General Instructions

To optimize theperformance of this product, please read these operating instructions

carefully to familiarize you with the basic operations of this unit. These instructions contain

important safety information regarding the use and maintenance of this unit. Please keep

this manual with the unit, for future reference.

Features

Multi-colors

Control Channels:4CH& 8CH

Color Strobe

Master/Slave synchronization

DMX-512 protocol

ElectronicDimming 0-100%

Operating Modes: Sound activation, Auto and DMXcontrol mode

Led operation menu with function buttons

Daisy Chain Units Together inDMX Mode

1-20 flashes/sec strobe effect

Safety Precautions

●To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

●Do not spill water or other liquids into or on to your unit.

●Be sure that the local power outlet match that of the required voltage for your unit.

●Do not attempt to operate this unit if the power cord has been frayed or broken.Do not

attemptto remove or break off theground prong from the electrical cord. This prong is used

to reduce the risk of electrical shock and fire in case of an internal short.

●Disconnect from main powerbefore making any type of connection.

●Do not remove the cover under anyconditions. There are no user serviceable parts

inside.

●Never operate this unit when it’s cover is removed.

●Never plug this unit in to a dimmer pack.

●Always be sure tomount this unit in an area that will allow proper ventilation. Allow

about 6” (15cm) between this device and a wall.

●Do not attempt to operate this unit, if it becomes damaged.

●This unit is intended for indoor use only; use of this product outdoors voids all

warranties.

●During long periods of non-use, disconnect the unit’s main power.

●Always mount this unit in safe and stable matter.

●Power-supply cords should be routed so that they are not likely to be walked on or

pinched byitems placed upon or against them,paying particular attention to the point they

exit from the unit.

●Cleaning -The fixture should be cleaned only as recommended by the manufacturer.

See “Cleaning” for details.

●Heat -The appliance should be situated away from heat sources such as radiators, heat

registers, stoves, or other appliances (including amplifiers) thatproduce heat.

●The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or theplug has been damaged.

B.Objects have fallen, or liquid has been spilled into theappliance.

C.The appliance hasbeen exposed to rain or water.

D.The appliance does not appear to operate normally or exhibits amarked change in

performance

●Fuse standard is2A/250V

●Grounded using yellow/green line

●The ambient temperature must always be under +35°C

Set Up

Power Supply: Before plugging your unit in, be sure the source voltage in your area

matches the required voltage for your CUBE4™RGBW QUAD LED. The CUBE5™RGBWA

LED is workable in 100-220V/50~60Hz. Because linevoltagemayvary from venue tovenue,

you should be sure your unit voltagematches the wall outlet voltagebefore attempting to

operate you fixture.

DMXLinking: To ensureproper DMXdata transmission, when using several DMX fixtures

try to use the shortest cable pathpossible. The order in which fixtures are connected in a

DMX line does not influence the DMX addressing. For example; a fixture assigned a DMX

address of 1 may be placed anywhere in a DMX line, at thebeginning, at the end, or

anywhere in the middle.When a fixture is assigned a DMX address of 1, the DMX controller

knows to send DATA assigned to address 1 to that unit, no matter where it is located in the

DMX chain.

Operating Instructions

Operating Modes: You can use theCUBE5™RGBWA LED in 4 ways:

●Sound activation –The unit will activated by the sound signal.

●Static display –The unit will display the pattern in static way.

●Auto Mode - The unitwill automatically chase through the differentpatterns.

●DMX controlmode - This function will allow you to control each individual fixtures traits

with a standard DMX 512 controller.

DMXMode: Operating through a DMX controller give the user the freedom to create their

own programs tailored to their own individual needs. This function also allows you to use

your fixtures as pattern changing lights.

1. This function will allow you to control each individual fixture’s traits with a standard DMX

512 controller.

2. The Mini PAR uses 6 DMX channels to operate. Please see “DMX Values and Functions”

for the DMX traits.

3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any

standard DMX controller . Set yourdesired DMX address following theset up

specifications that comewith your DMX controller .

4.The unit can automaticallyrecognize theDMX signal oncetheDMX connection is done.

DMX Values and Functions

3CH, 4CH, 5CH, 8CH& 11CHMode

Touch Buttons

There are four touch buttons under the LED display: Menu, Down, Up, Enter. Normally, the

LED will display the current DMX address code of the fixture. At this time, presses Menu to

choose the functionyouwant to set up.Press and hold Up or Down tofast scrolling within

the menu options. When an option is flashing the LED display, press Enter to confirm and

Menu to exit.

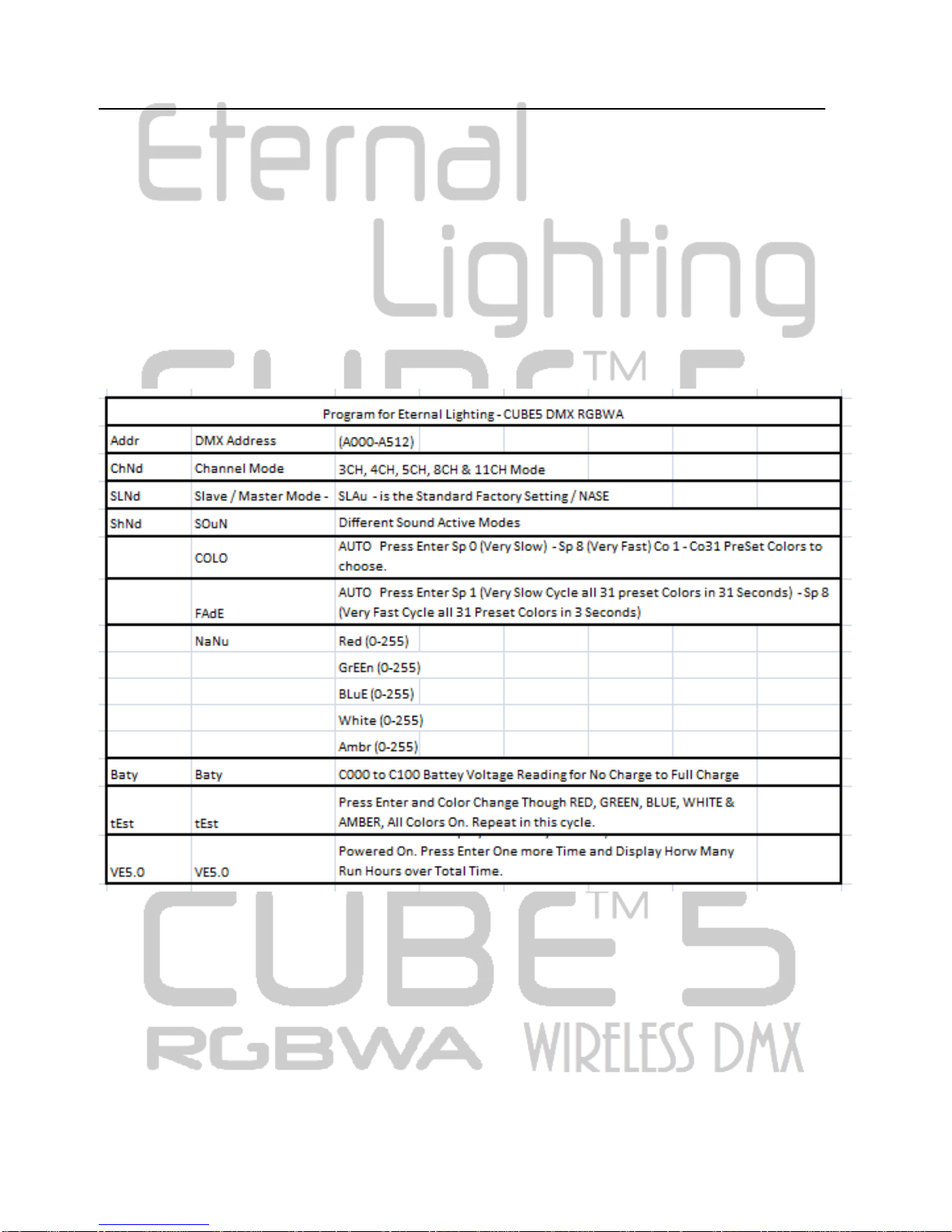

LED Operation Menu:

After initialization, the unit is ready forsetting and working. Please see the following table for

setting information.

For Battery Function and Charge

The unit has the functionofbattery powered.Thebutton forbattery and charge is seton the

rearpanel. It is showed as the following picture, and thefunction is described asbelow.

(1) Alpha-numeric display (2) Touch switches

(3) Microphone (4) DMX-In socket

(5) DMX-Out socket (6) Power switch

(7) Batteryswitch (8) GND

(9) Power socketand fuse holder (10) Fixationscrew

(11) Mounting bracket

There are two buttons on the rear panel of the lighting. One is for power, and the other is

for battery.

●When use the fixture with DMX, not battery,please switch the button for power to “on”,

and switch thebutton for battery to “bat off”.

●When use the fixture with battery instead of DMX, please switch the button for power to

“off”, and also switch thebutton for battery to “bat on”.

●When charge the light, please switch the button for battery to “charge”. At the same

time, if the switch for power is “on”, thelightwill be atwork during the process of charge,

but will consume some power from the charge; if the switch for power is “off”, the light

will be blackout and not be at work.

Tip for the battery and charge:

●The battery can last for 6 hours when all LEDs on after full charge , and can last for

more than 10 hours on auto running mode.Up to 20 Hours with one color diode on.

Results will vary based on brightness of LEDs

●It is suggested to charge the battery for at least 8 hours, whichwill extend the life span

of the battery.

●At the bottom of the fixture, there is a little hole which is the indicating light for the

charge.When charge the light, the indicating light will be in red, and when charged full,

it will be in green.

For wireless receiver Wireless Module of DMX512

MODE：PCB-WI-DMX

Brief：

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data

(generated by console )by wireless way, which solves lighting control issues of wireless

transmitting completelybetween console and lighting, lighting and lighting and so on, It get

rid of connecting cable limited completely

And also can ensure without any time delay when signal data is transmitting, signal data is

real time and reliably.

This product adopt 2.4G ISM frequency section( global opening section) without

permission limited

High effective GFSK modulate, communication design ; 126 channels jumping frequency

automatically，high anti-jamming ability.

Application: Upgrade DMX512 stage lighting

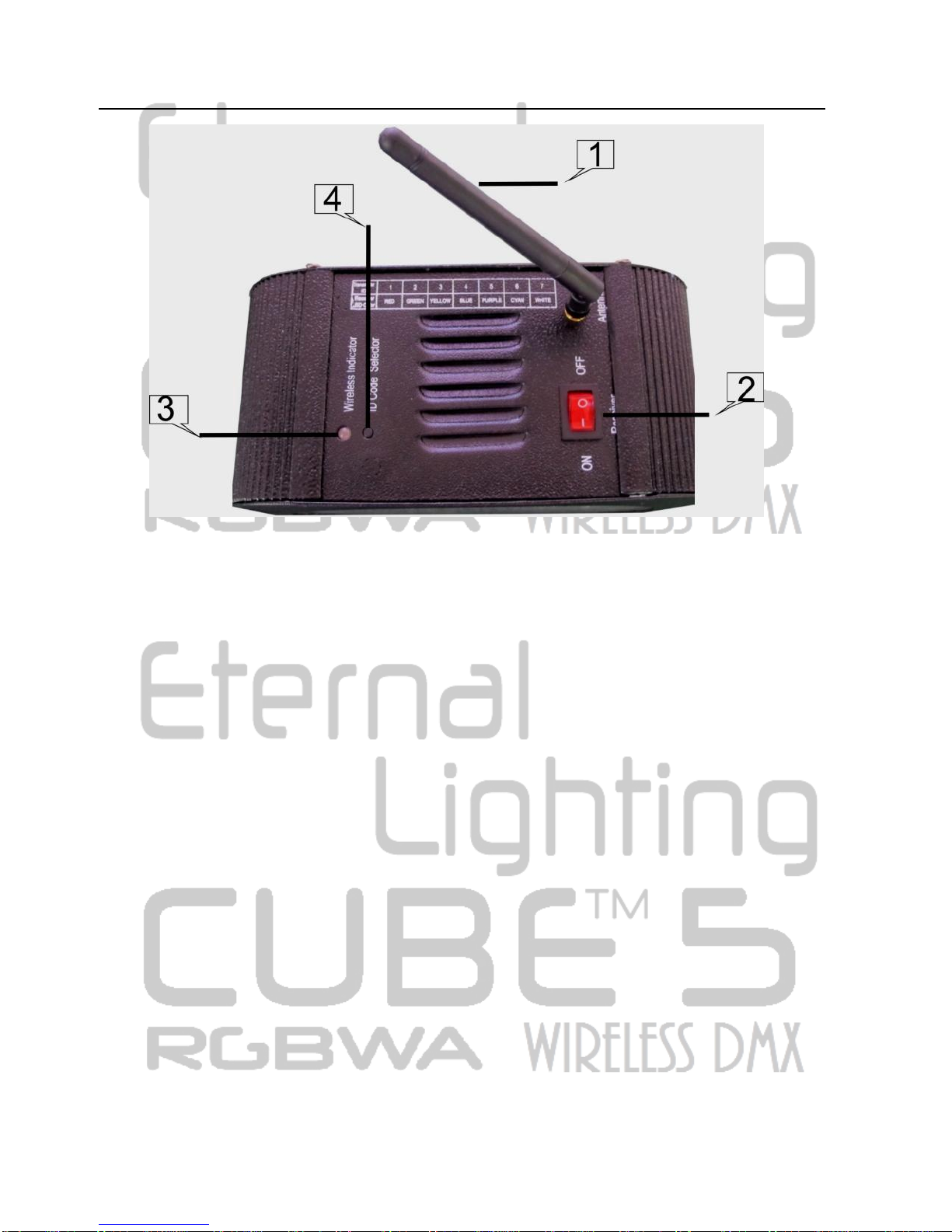

(1) Antenna (2)Power switch forwireless receiver

(3) Wireless indicator (4)ID code selector

Product feature:

1. Product name：2.4G wireless DMX512R/T molding board

2. Small size，Easy tosuit for interior of accessed lighting

3. Single key to operate，tricolor LED displaying

4. Transmitting standard DMX512 protocol data of console，also can transmitting

lighting and lighting DMX512protocol data.

5. 126 channels jumping frequency automatically，high anti-jamming ability. to

ensure works reliability

6. 7 groups ID code settable，User can use 7 groupsindividual wireless net without

any interfere each other in the same place..

7. Input voltage：5VDC

8. Work frequencysection：2.4G ISM,126 channels frequency section

9. Max transmitting power rate：20dBm

10. Receiver sensitive：-94dBm

11. Signal port：RS485 or CPU series port AURT

Compatible series product as follows:

Wiresless transmitter

Operatingmanual：

1. ID code and LED color corresponding relationship：

1：RED

2：GREEN

3：RED+GREED

4：BLUE

5：RED+BLUE

6：GREEN+BLUE

7：RED+GREED+BLUE

2. Press button on transmitter to select group tomatch corresponding color on the

receiving fixture.

LED constant lit up：no DMX or wireless signal.

Red LED flash：transmitting.

Green LED flash：receiving

3. RF frequency---- -- - --- - -2. 400-2. 525Ghz，total 126channels，it’s searching

automatically,

Establishing Communication：

1. Power onDMX512wireless received board and transmitted board.

2. Press button to set same color of transmitted board and received board., please
