ETS SunQuest Pro 16ST Manuale utente
USER MANUAL
26487-02A
26487-02A
i
Limited Lifetime Warranty
SunQuest® warrants your tanning unit to be free of structural defects in its material and
workmanship, under normal use, for its lifetime. SunQuest will repair or replace, at their
discretion, any defect to the structure which affects the performance of the unit.
For 6 months from the date of purchase, SunQuest will provide replacements for parts that
prove to be defective in material or workmanship. Acrylic shields, fluorescent lamps, and
lamp starters are excluded from this warranty. Labor will be covered for 30 days from pur-
chase date. Normal wear, damage from misuse or abuse, damage incurred in transit, or
damage done by unauthorized repairs or modifications are not covered by this warranty.
ETS, Inc. disclaims any implied warranty of merchantability or fitness for any period
beyond the expressed warranty. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitations may not apply to you.
No one has authority to change or modify this Limited Lifetime Warranty in any respect. To
obtain service under the Limited Lifetime Warranty, contact ETS, Inc. at 1-800-449-3605,
and ask for the Technical Service Department.
ETS, Inc. shall not be liable for loss of use, loss of time , inconvenience, rental or substitute
products, loss of business, loss of income, or any other incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may
vary from state to state.
All warranty service must be performed by an authorized service person. If your tanning
unit must be returned for service, all freight charges must be at your expense. Contact your
place of purchase for the address of the SunQuest Service Center nearest you. Proof of
purchase is required to obtain warranty service.
This warranty covers the original purchaser only. This warranty is void if the unit is modi-
fied in any manner from its original design.
ii
elcome
26487-02A
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Making Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Parental Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Replacing Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Timer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Obtaining Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover
iii
afety Information
26487-02A
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow. Minimum use distance from face tanner (if equipped) is 1
inch (2.5 centimeters). Minimum use distance elsewhere is touching the clear plastic panels. Do not use without clear plastic panels (or
wire grid for models using wire grid) in place. Untanned persons should not tan on consecutive days during their first week of tanning.
Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four weeks.
Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corre-
sponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE Pro 16ST:
DARK TAN™ Wolff® Model DT71-T12-100W BI-PIN
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482.
DANGER
DISCONNECT POWER CORD BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
88465
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 20 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 4 8 12 16 20
III Normal (Burns moderately and tans average.) 610152020
IV Dark (Burns minimally, tans easily and above average.) 812162020
1
nstallation
26487-02A
Unpacking and Inspection
Your sunbed comes in two cardboard car-
tons, one for the bench and one for the
canopy. Open the cartons and remove the
bench and canopy as follows.
The bench and canopy are each wrapped
in plastic. Pull back the plastic and, with
a helper, grasp the bench and pull it from
the carton bottom, leaving the plastic
wrap and the carton packaging. Do the
same for the canopy. Do not try to lift
either unit with the plastic still on as it
may slip.
Note! The cartons are reusable. You may
wish to save them for future use.
The canopy box contains the canopy unit
and a pair of gas springs. The bench box
contains the following items:
• Bench Unit
• Box containing necessary assembly
hardware, safety goggles, and pillow
• Box containing two stand legs
Inspect these items, including the canopy
and bench, and make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial numbers of the canopy
and bench in the area provided at the
back of this manual. This information will
be required whenever you call customer
service.
2
Installation - Pre-Installation Planning
26487-02A
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following pre-
installation considerations.
• Your sunbed operates from a 120V
AC source. You should have a NEMA
5-20R electrical outlet (like the one
shown below) installed in the room
in which you will use the unit. The
outlet should be on a dedicated cir-
cuit capable of providing 20 Amp
service. We recommend installation
by a professional electrician. The
outlet must be earth grounded.
20 AMP NEMA #5-20R RECEPTACLE
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool
the sunbed. Maximum ambient
room temperature should be 80°F.
Place your sunbed no closer than
6” from any wall. Make sure nothing
obstructs the airflow into the
sunbed’s endcaps or out of the fan
openings. A poorly ventilated room
may cause the unit to become hot
and cause discomfort to the user.
CAUTION
Proper assembly of your sunbed
requires three people. Plan to have
a couple of helpers assist you.
CAUTION
3
Installation - Assembly Procedures
26487-02A
Assembly Procedures
Hardware Inventory
Open the hardware box and remove the
small bag of hardware. In addition to a
small Allen wrench and pillow, make sure
you have the following hardware items.
Allen-head Bolt
5/16” x 1”
Quantity 2
5/16” Metal Washer
Quantity 2
Bushing
Quantity 2
Allen-head Bolt
5/16” x 1 1/2”
Quantity 2
Nylon Washer
Quantity 2
Hinge Brackets
Quantity 2
(left and right)
Safety Goggles
Quantity 1
WARNING
Wear protective eyewear.
Failure to may result in severe burns or
longterm injury to the eyes.
1/4” Allen Wrench
Quantity 1
4
Installation - Assembly Procedures
26487-02A
Attaching Legs to Bench
Lay the bench upside down on the floor.
Locate the two stand legs and attach to the
bench as shown below.
2. Turn bench right side up on floor.
Place so that the power cord connec-
tor is facing toward the wall outlet.
1. Using the six 5/16” x 1” bolts and the
six larger 5/16” washers already
installed in the bench, attach the
stand legs with the skirt mounting
holes toward the back of the bench
as shown. Install center bolt first. You
may have to gently push the sides of
the legs in to align holes. Tighten
with the Allen wrench.
(ELECTRICAL CONNECTOR INDICATES
BACK OF BENCH)
5
Installation - Assembly Procedures
26487-02A
Attaching Hinge Brackets to Bench
Locate the two hinge brackets and identify
the left and right brackets.
1. Install the hinge brackets to the ends
of the bench such that the short boss
engages the stud above the bolt hole,
and the long boss engages the hole
below the bolt hole. Secure using
the 5/16” x 1” Allen-head bolts and
5/16” metal washers. Tighten bolt
snug, then an additional half turn.
2. Place the bushings into the hinge
brackets as shown below.
SHORT BOLT
6
Installation - Assembly Procedures
26487-02A

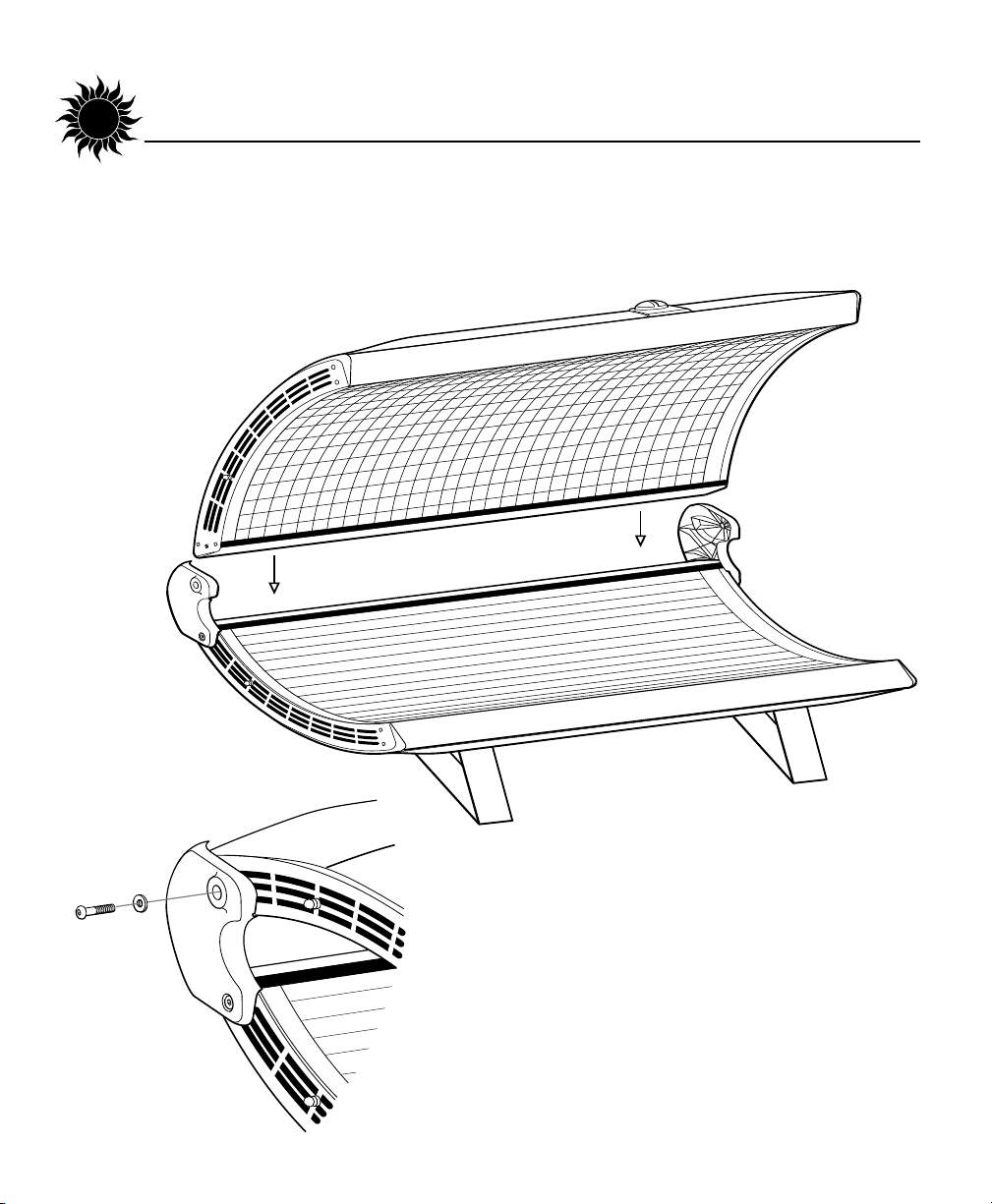

Attaching Canopy to Bench
1. Lift the canopy and hold it between
the hinge brackets. You may want to
use some of the cardboard packing,
laid across the bench, to support the
canopy.
2. Insert the 5/16” x 1 1/2” bolts with
the nylon washers into both hinge
brackets. Tighten bolts into the end-
cap threaded inserts until snug, then
an additional half turn. Do not over-
tighten to avoid damaging threaded
inserts.
