Euphonix System 5 Manuale utente
System 5 Post and
Film Setup Guide
Document Revision: 1.2
Release Date: January 2006
Euphonix Inc.
220 Portage Ave.
Palo Alto, California 94306
Phone: 650-855-0400
Fax: 650-855-0410
Web: http://www.euphonix.com
e-mail: info@euphonix.com
Euphonix System
In the interest of continued product development, Euphonix reserves the right to make
improvements in this manual and the product it describes at any time, without notice or
obligation.
System 5, S-5, PatchNet, eMix, EuCon, R-1, Audio Deck, Studio Hub are trademarks of
Euphonix Inc.
©2006 Euphonix, Inc. All rights reserved worldwide. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without written permission of Euphonix, Inc.
Euphonix System 5 Post and Film Setup Guide
iii
Table of Contents
CM403 Installation ..........................................................................................................................5
CM403 Module..............................................................................................................5
External Record Control................................................................................................6
Film Panel Installation...................................................................................................7
Joystick Panel Installation .............................................................................................9
Blank Panel..................................................................................................................10
Record Control Setup.....................................................................................................................11
Solo Linking ..................................................................................................................................12
Physical Connection Between Systems.......................................................................12
Network Settings..........................................................................................................13
Setting up MOConfig...................................................................................................25
Bus Cascade Inputs........................................................................................................................25
Block Diagram...............................................................................................................................26
Euphonix System 5 Post and Film Setup Guide
5
CM403 Installation
CM403 Module
The CM403 uses the same form factor and architecture as a standard control module
(CM401, 402, 408). A single Ethernet port connects the module to the system via the
100 BaseT EuCon switch. The CM403 houses a TFT and fits three panels of the same
size: Film Post and the Dual-Joystick Panels. The Film Post panel can be placed above
or below the Joystick Panel depending on the preference of the operator. The user has
the option of placing their own motion controller, such as a JSK Engineering Inc. P2
Control Head or Soundmaster ION™, into the spare panel.

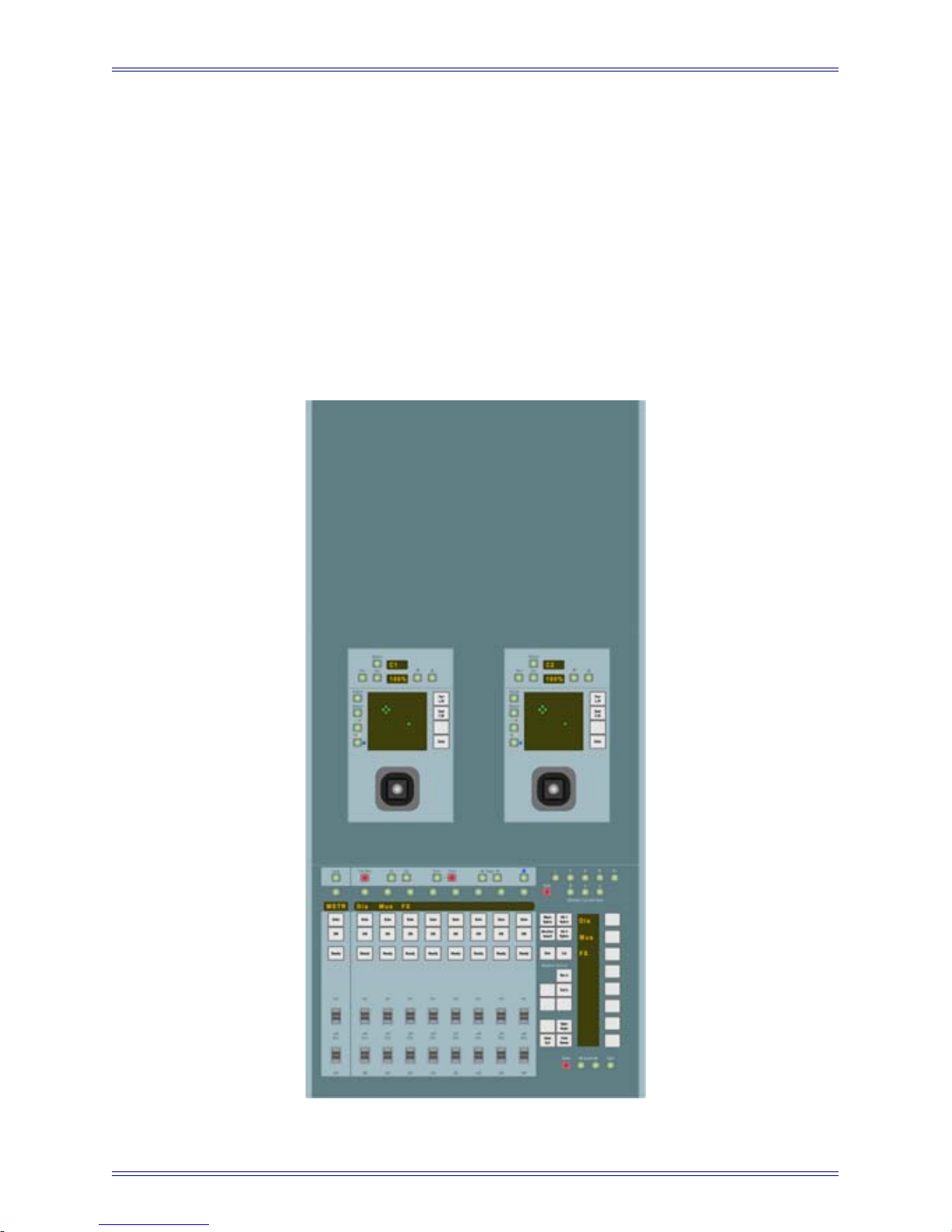

Figure 1 CM403 Module with Film Post Panel and Joysticks
Euphonix System 5 Post and Film Setup Guide
6
ID selection
Up to four CM403 modules can be installed in a System 5 console. Set the ID switches
on the back panel of the module according to Table 1:
Table 1 CM403 ID Switch Settings
NOTE: In a dual-operator console, all CM403 modules are connected to the master
console, which is used for monitoring and record control.
External Record Control
The Euphonix EXT 25-pin connector on the rear panel of the CM403 accepts two
external closures:
Table 2
The+5V outputon theconnector isinternally protectedby a 200 mA self-resetting fuse.
The active-high switch inputs are TTL-level inputs with 100 K pull-down resistors.
CM403 # Frame ID Module ID Position # in
eMix
1 1H 13 1–29
2 1H 14 1–30
3 1H 15 1–31
4 1H 16 1–32
Function Switch Input +5 V
Record In Pin 25 Pin 13
Record Out Pin 11 Pin 13
Euphonix System 5 Post and Film Setup Guide
7
Film Panel Installation
NOTE: Each instruction pertains to the picture beneath its text.

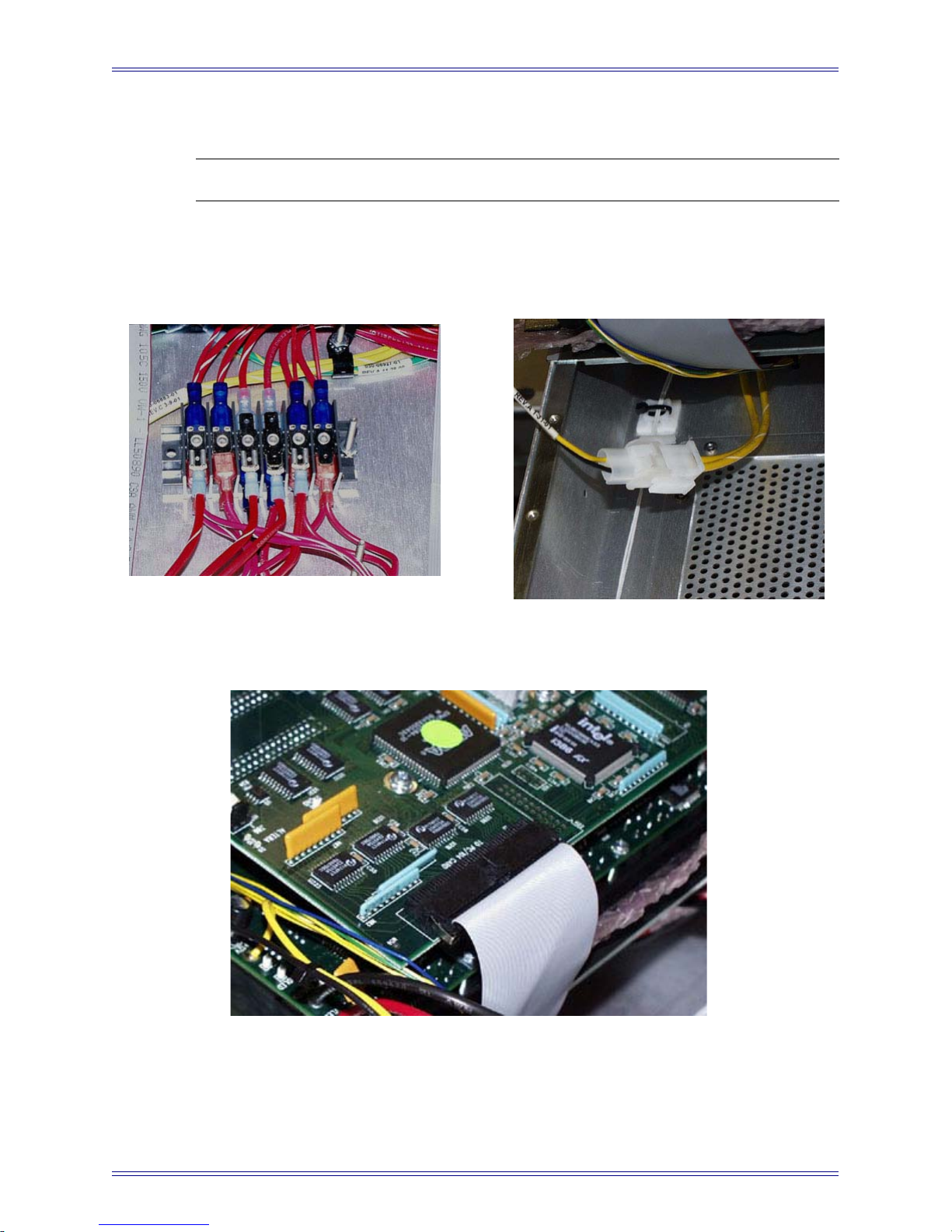

Connect the 5-V power cables (red) from the Film Panel to the header block on the bot-
tom of the module. Be sure to maintain correct polarity (red/white stripe is negative).
Connect the 12-V power connection to the mating connector coming from the PSU.
Connect the PC104 cable to H26 on the Film Panels 386 board.
Euphonix System 5 Post and Film Setup Guide
8

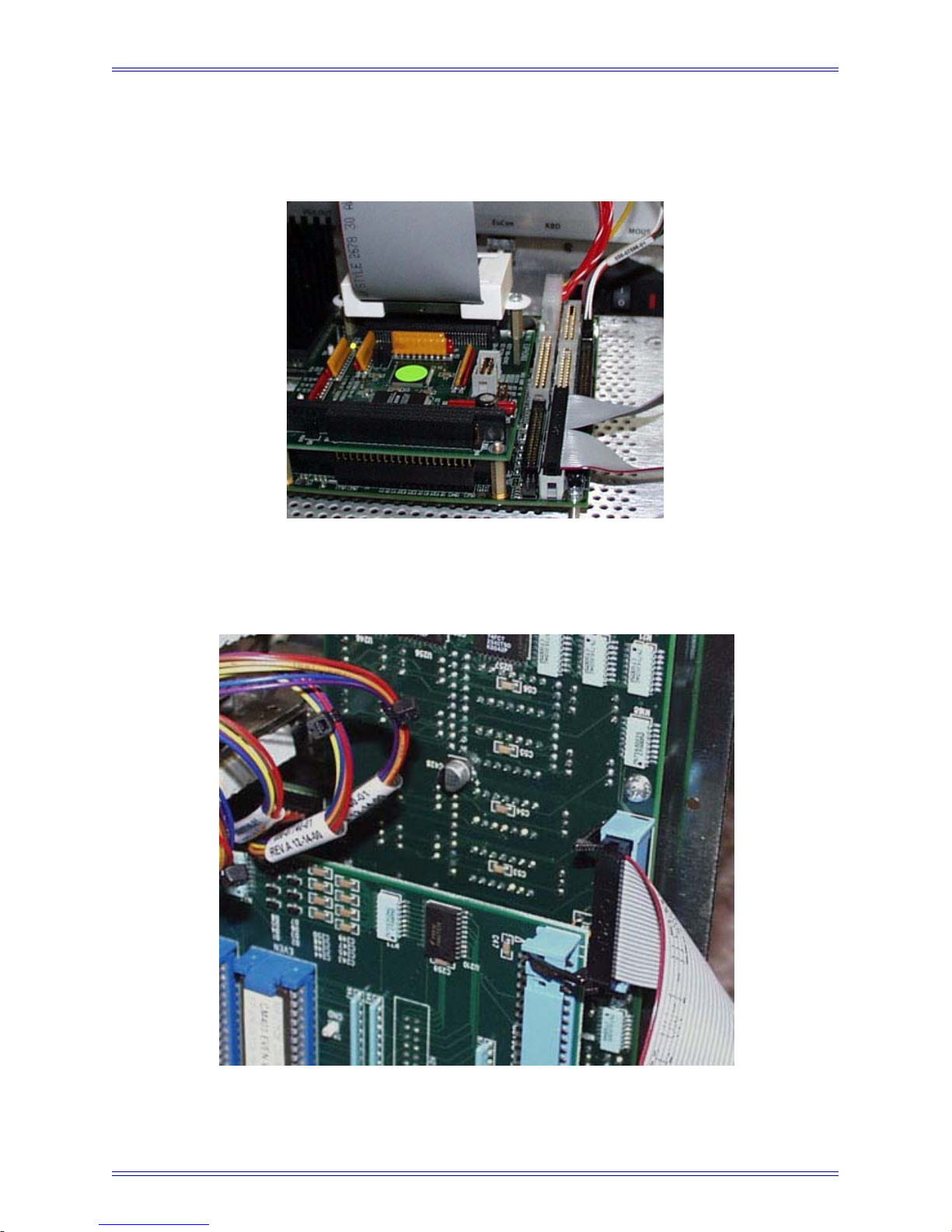

Connect the opposite end of the PC104 cable to the PC104 card on the SBC (Single
Board Computer) mounted on the rear ventilation panel of the module. Secure the RF
choke as shown above.
Connect the Euphonix Ext cable (25-pin D-sub on the rear panel) to H103 on the upper
board of the Film Panel.
Euphonix System 5 Post and Film Setup Guide
9

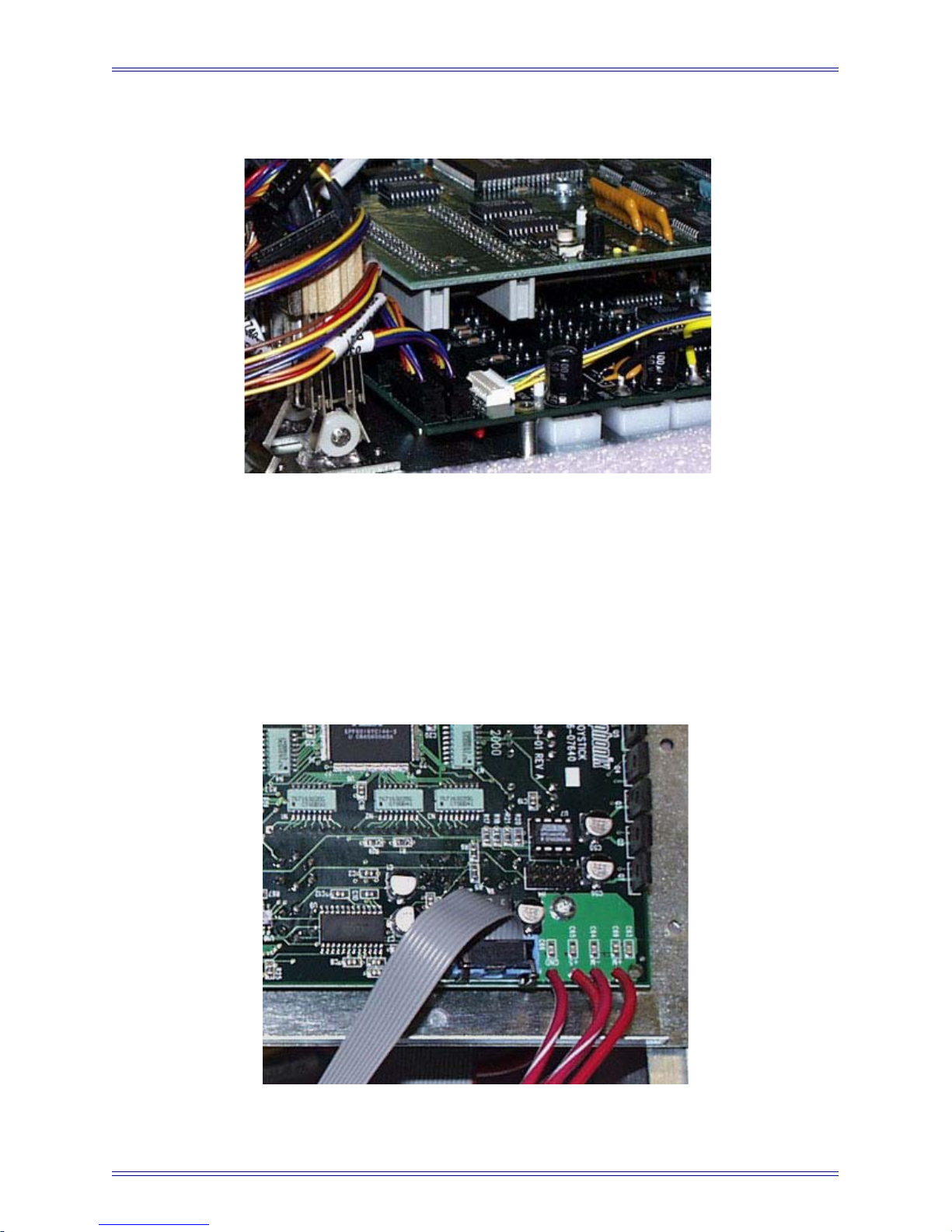

Connect the TFT backlight cable to the connector on the upper board of the film panel.
Joystick Panel Installation
Connect the 5-V power cables (red) from the Joystick to the header block on the bottom
of the module. Be sure to maintain correct polarity (red/white stripe is negative). See
thephoto in Film Panel Installation. Connect the serial cables from the 9-pin connectors
on the rear panel of the CM403 to the headers on the joystick PCBs. Attach two serial
cables between the external CM403 9-pin joystick ports and the adjacent CM408 9-pin
serial ports.
Euphonix System 5 Post and Film Setup Guide
10

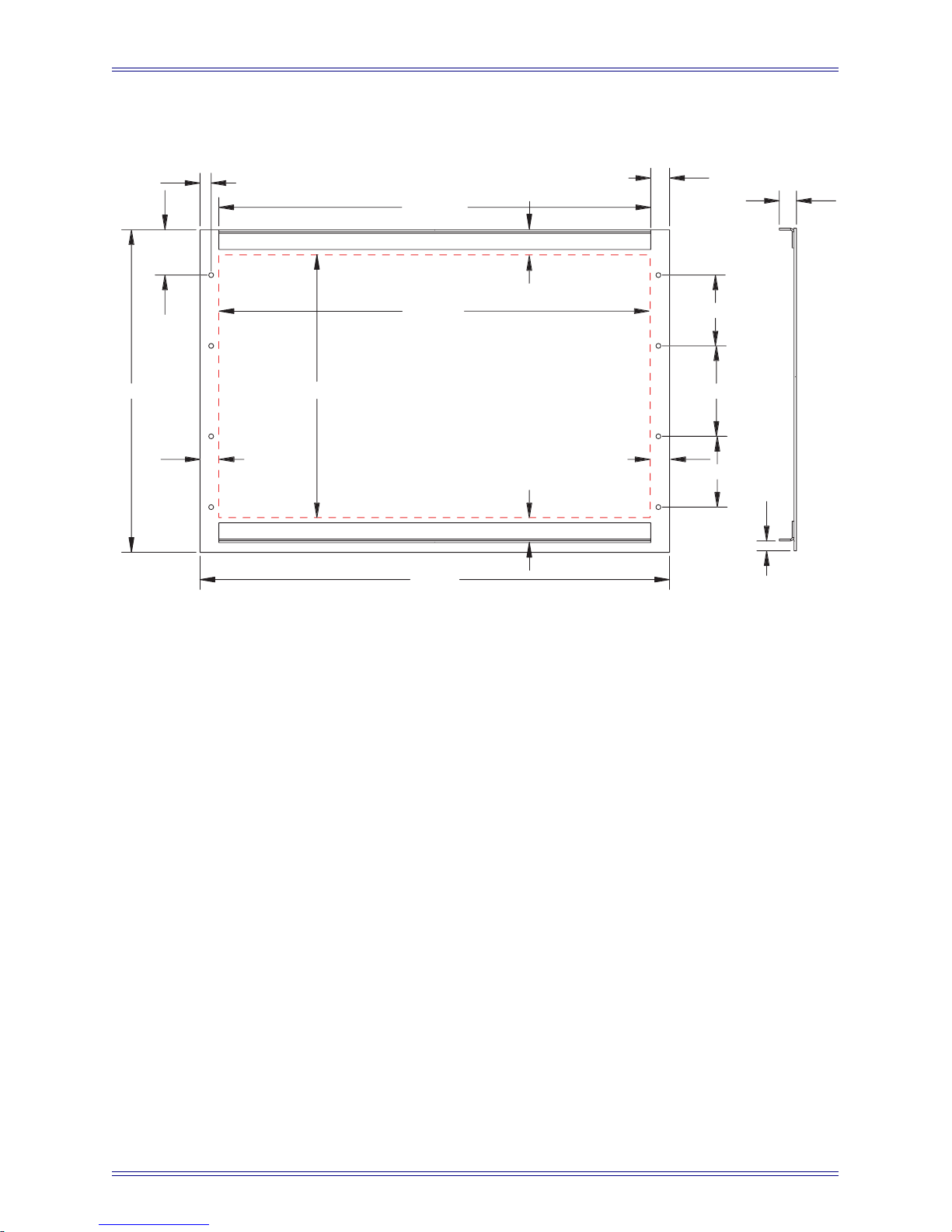

Blank Panel
8
.2
00
1.
800
2.
300
1.
800
1.1
50
.2
85
11.
960
11.
00
X2
.4
80
X2
.2
5
.4
37
1
0
.
960
6
.7
00
FREE SPACE
.
500
.
500
.
8
7
5
.
6
2
5
